Hitachi / Hikoki TC-2690 Engine Spare Parts

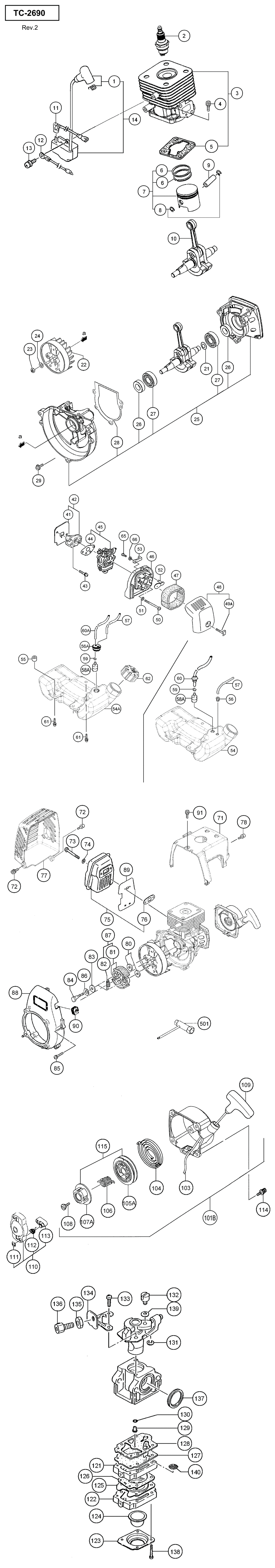

An exploded diagram and spare parts listing for the Hitachi / Hikoki TC-2690 Engine

	Ex VAT	Inc VAT
1 - PLUG CAP HIT-6684894.A11 6684894	£7.75	£9.30
2 - SPARK PLUG ASS'Y BPM6A HIT-6699317.A14 6699317	-
3 - CYLINDER SET HIT-6685493.A3 6685493	£72.13	£86.56
4 - HEX.HOLE BOLT M5X18/S HIT-6684586.A1 6684586	-
5 - CYLINDER GASKET T=1.0 HIT-6685750.A4 6685750	£2.81	£3.37
6 - PISTON RING HIT-6686121.A14 6686121	£6.47	£7.76
7 - PISTON SET HIT-6685902.A6 6685902	£30.58	£36.70
8 - CIR CLIP HIT-6684590.A135 6684590	£1.67	£2.00
9 - PISTON PIN HIT-6684591.A10 6684591	£3.29	£3.95
10 - CRANK SHAFT COMP. HIT-6686219.A1 6686219	£121.07	£145.28
11 - STOP CORD B 190M HIT-6687836.A0 6687836	-
12 - EARTH CORD B 165M HIT-6688463.A0 6688463	-
13 - HIGH TENSION SCREW 4X18WS HIT-6695407.A4 6695407	-
14 - IGNITION COIL ASS'Y HIT-6687686.A1 6687686	-
*21 - GEAR SHAFT SHIM 0.20 HIT-6684604.A12 6684604	-
*21 - GEAR SHAFT SHIM 0.30 HIT-6684605.A69 6684605	-
22 - MAGNETO ROTOR COMP. HIT-6687384.A10 6687384	-
23 - HEX. NUT M8 HIT-6684612.A103 6684612	-
24 - BOLT WASHER M8 HIT-6684611.A16 6684611	-
25 - CRANK CASE ASS'Y HIT-6684905.A18 6684905	£30.92	£37.11
26 - OIL SEAL TB 12227 HIT-6684607.A149 6684607	£4.07	£4.88
27 - BALL BEARING 6001 C3 HIT-6684608.A56 6684608	£5.70	£6.84
28 - CRANK CASE GASKET HIT-6684904.A4 6684904	£1.67	£2.00
29 - HEX. HOLE BOLT M5X16/S HIT-6684903.A77 6684903	-
41 - INLET MANIFOLD GASKET HIT-6689895.A12 6689895	£1.67	£2.00
42 - INSULATOR SET HIT-6689972.A12 6689972	£6.59	£7.91
43 - MACHINE SCREW (W/WASHERS) M5X25 (BLACK) HIT-6696988.A11 6696988	-
44 - CARBURETOR GASKET HIT-6684615.A6 6684615	£1.67	£2.00
45 - CABURETOR SET WYJ-431 HIT-6690519.A3 6690519	£113.54	£136.25
46 - CLEANER BODY COMP. HIT-6690120.A13 6690120	£12.32	£14.78
47 - CLEANER SPONGE HIT-6690365.A21 6690365	£1.67	£2.00
48 - CLEANER COVER ASS'Y HIT-6690421.A1 6690421	£14.48	£17.38
49A - COVER FIXING BOLT COMP. HIT-6698730.A9 6698730	£5.52	£6.63
50 - SCREW 5X57/S HIT-6695353.A11 6695353	£1.67	£2.00
51 - SMALL WASHER 5 HIT-6684864.A75 6684864	-
52 - CHOKE LEVER 1.5 HIT-6691281.A0 6691281	£1.67	£2.00
53 - CHOKE CONTROL LEVER HIT-6691239.A6 6691239	£2.98	£3.57
54 - TANK WHT TILL TL043340 HIT-6691602.A9 6691602	£13.82	£16.59
54A - TANK SINCE TL043341 HIT-6601167.A0 6601167	-
55 - COLLAR 5.8 HIT-6692244.A22 6692244	£1.67	£2.00
56 - RETURN GROMMET TILL TL043340 HIT-6697846.A156 6697846	£1.68	£2.01
56A - FUEL GROMMET SINCE TL043341 HIT-6600358.A28 6600358	£1.67	£2.00
57 - FUEL PIPE 3X5X65 HIT-6684626.A24 6684626	£1.67	£2.00
58A - PUMP FILTER BODY COMP HIT-66A3864.A52 66A3864	-
59 - CLIP D6 HIT-6685198.A34 6685198	-
60 - SHIELD TUBE 3X5X180 TILL TL043340 HIT-6684618.A36 6684618	£6.12	£7.35
60A - FUEL PIPE SINCE TL043341 HIT-6601181.A0 6601181	-
61 - HEX. HOLE BOLT 5X16/PS HIT-6695504.A42 6695504	£1.67	£2.00
62 - TANK CAP D ASS'Y HIT-6691748.A1 6691748	£6.04	£7.25
65 - TAP SCREW 4X14 P HIT-6695280.A0 6695280	£1.67	£2.00
66 - BOLT WASHER M4 HIT-6685070.A40 6685070	£1.67	£2.00
71 - CYLINDER COVER HIT-6685690.A3 6685690	£5.70	£6.84
72 - SCREW 5X16/PS HIT-6695386.A17 6695386	£1.67	£2.00
73 - HEX. HOLE BOLT M6X55 HIT-6684638.A33 6684638	£1.67	£2.00
74 - BOLT WASHER 6 HIT-6684639.A11 6684639	£1.67	£2.00
75 - MUFFLER SET HIT-6692498.A4 6692498	£25.72	£30.86
76 - MUFFLER GASKET HIT-6692732.A8 6692732	£1.67	£2.00
77 - MUFFLER PROTECTOR HIT-6692813.A4 6692813	£8.89	£10.67
78 - SCREW 4X18/PS HIT-6695375.A36 6695375	-
80 - CLUTCH WASHER B HIT-6684642.A36 6684642	£1.67	£2.00
81 - CLUTCH SHOE COMP. HIT-6684643.A3 6684643	£12.01	£14.41
82 - CLUTCH SPRING HIT-6684644.A21 6684644	£3.12	£3.74
83 - CLUTCH PLATE A 0.5 HIT-6684645.A3 6684645	£1.67	£2.00
84 - STEP BOLT HIT-6684646.A33 6684646	£3.72	£4.46
85 - SCREW 5X20/WS HIT-6695421.A0 6695421	-
86 - BENT WASHER 8 HIT-6684648.A95 6684648	£1.67	£2.00
87 - CLUTCH SET ASS'Y HIT-6699640.A4 6699640	£15.92	£19.10
88 - FAN CASE HIT-6601180.A0 6601180	-
89 - HEAT SHIELD HIT-6687264.A3 6687264	-
90 - PRIMARY CORD GROMMET HIT-6688057.A27 6688057	-
91 - HEX. HOLE BOLT 4X15/PS HIT-6684682.A10 6684682	£1.67	£2.00
101B - RECOIL STARTER BODY ASS'Y INCLUD.103-109 HIT-6601570.A37 6601570	£23.15	£27.78
103 - STARTER ROPE 3.5X860 HIT-6684674.A77 6684674	£5.70	£6.84
104 - RECOIL SPRING HIT-6684675.A31 6684675	£8.82	£10.58
105A - STARTER ROPE REEL SINCE TL020631 HIT-6699997.A12 6699997	-
106 - DAMPER SPRING HIT-6684677.A95 6684677	£5.70	£6.84
107A - CAM PLATE SINCE TL020631 HIT-6699996.A77 6699996	£4.28	£5.13
108 - SET SCREW HIT-6684679.A144 6684679	£2.98	£3.57
109 - STARTER HANDLE HIT-6684680.A10 6684680	£5.87	£7.04
110 - STARTER PULLEY ASS'Y HIT-6684681.A103 6684681	£18.16	£21.79
111 - D4E RETAINING RING HIT-6685101.A92 6685101	-
112 - STARTER PAWL SPRING HIT-6684684.A18 6684684	£3.29	£3.95
113 - STARTER PAWL HIT-6684685.A93 6684685	£5.07	£6.08
114 - SCREW 4X18/PS HIT-6695375.A37 6695375	-
115 - CAMPLATE ASS'Y TILL TL020630 HIT-6699691.A42 6699691	£7.75	£9.30
121 - PUMP BODY COMP. HIT-6684879.A19 6684879	£35.37	£42.44
122 - PRIMING PUMP COMP. HIT-6684687.A9 6684687	£9.27	£11.12
123 - DIAPHRAGM COVER HIT-6684688.A91 6684688	£5.70	£6.84
124 - PRIMING BODY HIT-6684689.A76 6684689	£5.87	£7.04
125 - METERING DIAPHRAGM COMP. HIT-6690830.A39 6690830	£14.58	£17.50
126 - DIAPHRAGM GASKET HIT-6684691.A75 6684691	£5.70	£6.84
127 - PUMP DIAPHRAGM HIT-6684693.A151 6684693	£5.70	£6.84
128 - PUMP GASKET HIT-6684692.A30 6684692	£17.28	£20.73
129 - MAIN JET #43 HIT-6691848.A3 6691848	£8.77	£10.52
130 - O-RING HIT-6684695.A49 6684695	£1.67	£2.00
131 - STOP RING HIT-6684696.A165 6684696	-
132 - SWIVEL HIT-6684697.A35 6684697	-
133 - THROTTLE SET SCREW HIT-6684870.A30 6684870	-
134 - CABLE ADJUSTER STAY HIT-6684873.A44 6684873	-
135 - LOCK NUT M6 HIT-6684872.A37 6684872	-
136 - CABLE ADJUSTER HIT-6684871.A38 6684871	-
137 - CLEANER PACKING HIT-6684875.A46 6684875	-
138 - SET SCREW HIT-6684699.A24 6684699	-
139 - THRUST WASHER HIT-6684874.A31 6684874	-
140 - INLET SCREEN HIT-6684700.A187 6684700	-
501 - COMBI BOX SPANNER 10X19 HIT-6685999.A10 6685999	-
