Hitachi / Hikoki TC-4200 Engine Spare Parts

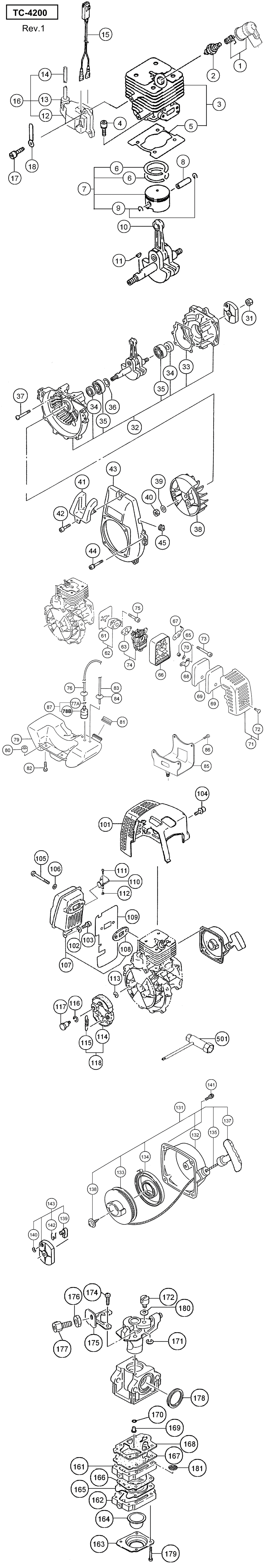

An exploded diagram and spare parts listing for the Hitachi / Hikoki TC-4200 Engine

	Ex VAT	Inc VAT
1 - SPARK PLUG CAP ASS'Y HIT-6687468.A66 6687468	£3.64	£4.37
2 - SPARK PLUG ASS'Y BPM6A HIT-6699317.A13 6699317	-
3 - CYLINDER SET HIT-6685474.A3 6685474	£106.65	£127.98
4 - HEX.HOLE BOLT M5X20/S HIT-6684668.A7 6684668	-
5 - CYLINDER GASKET HIT-6685740.A3 6685740	£2.81	£3.37
6 - PISTON RING HIT-6686123.A13 6686123	-
7 - PISTON SET HIT-6685888.A3 6685888	£34.65	£41.58
8 - PISTON PIN 10X30 HIT-6686007.A13 6686007	£3.52	£4.23
9 - PISTON PIN CIRCLIP HIT-6686032.A17 6686032	£1.67	£2.00
10 - CRANK SHAFT COMP. HIT-6686191.A3 6686191	£121.17	£145.40
11 - WOOD-RUFF KEY 3X13X5 HIT-6686457.A22 6686457	£1.67	£2.00
12 - IGNITION COIL COMP. HIT-6687655.A3 6687655	£32.83	£39.40
13 - RUBBER CAP HIT-6684602.A28 6684602	-
14 - HIGH TENSION CORD HIT-6687885.A3 6687885	£1.67	£2.00
15 - LEAD WIRE ASS'Y HIT-6687970.A9 6687970	-
16 - IGNITION COIL ASS'Y HIT-6687657.A10 6687657	£33.12	£39.74
17 - HEX. HOLE BOLT M4X18/WS HIT-6684599.A37 6684599	-
18 - CORD CLAMP COMP. HIT-6688011.A7 6688011	-
31 - SMALL NUT 10 HIT-6695139.A26 6695139	-
32 - CRANK CASE ASS'Y HIT-6686556.A3 6686556	-
33 - NO LONGER AVAILABLE HIT-6686714.A0 6686714	-
34 - OIL SEAL UD15257 HIT-6695637.A6 6695637	£3.66	£4.39
35 - BALL BEARING #6202 2 HIT-6695557.A5 6695557	-
*36 - CRANK SHAFT SHIM 0.20 HIT-6686472.A15 6686472	£1.67	£2.00
*36 - CRANK SHAFT SHIM 0.30 HIT-6686473.A16 6686473	£1.67	£2.00
37 - HEX. SOCKET HD. BOLT M5X30 S HIT-6684786.A61 6684786	£1.67	£2.00
38 - MAGNETO ROTOR COMP. HIT-6687372.A10 6687372	-
39 - WASHER 10 HIT-6695198.A5 6695198	-
40 - NUT 10 HIT-6695138.A8 6695138	-
41 - SPARK PLUG COVER HIT-6688346.A4 6688346	£5.01	£6.01
42 - HEX.HOLE BOLT 5X20/PS HIT-6684634.A60 6684634	£1.67	£2.00
43 - FAN CASE (SHOT BLASTING) HIT-66A5710.A0 66A5710	-
44 - HEX.HOLE BOLT M5X20/S HIT-6684668.A6 6684668	-
45 - PRIMARY CORD GROMMET HIT-6688057.A8 6688057	-
61 - INLET MANIFOLD GASKET HIT-6689885.A3 6689885	£2.81	£3.37
62 - CARB.INSULATOR SET 1 HIT-6689955.A3 6689955	£16.19	£19.43
63 - CARBURETOR GASKET HIT-6689833.A10 6689833	£1.67	£2.00
65 - COLLAR HIT-6690802.A6 6690802	£2.81	£3.37
66 - CLEANER BODY COMP. HIT-6690099.A3 6690099	£13.72	£16.47
67 - CHOKE VALVE HIT-6691258.A10 6691258	£3.62	£4.35
68 - BLOW OVER CHECK BOARD HIT-6690843.A26 6690843	£1.67	£2.00
69 - CLEANER ELEMENT 6T HIT-6690352.A11 6690352	£1.67	£2.00
70 - WAVE WASHER 8 HIT-6684658.A20 6684658	£1.67	£2.00
71 - CLEANER COVER ASS'Y HIT-6690397.A9 6690397	£6.61	£7.93
72 - SPECIAL SCREW HIT-6689737.A42 6689737	-
73 - SCREW 5X57/S HIT-6695353.A24 6695353	£1.67	£2.00
74 - CARBURETOR SET WYJ168 HIT-6690470.A3 6690470	£67.33	£80.80
75 - HEX. HOLE BOLT M5X25WS HIT-6695515.A30 6695515	£1.67	£2.00
76 - FUEL PIPE ASS'Y 3X5X230 HIT-6688166.A4 6688166	£5.17	£6.20
77A - CLIP D6 HIT-6685198.A24 6685198	-
78B - PUMP FILTER BODY COMP SINCE TL044141 HIT-66A3864.A18 66A3864	-
79 - TANK HIT-6691533.A3 6691533	£13.82	£16.59
80 - COLLAR 5.8 HIT-6692244.A48 6692244	£1.67	£2.00
81 - TANK CAP D ASS'Y 1 HIT-6691715.A8 6691715	£8.55	£10.26
82 - HEX. HOLE BOLT 5X18PS HIT-6695505.A28 6695505	-
83 - FUEL PIPE 3X5X85 HIT-6684880.A16 6684880	£1.67	£2.00
84 - FUEL PIPE GROMMET HIT-6688156.A8 6688156	-
85 - ENGINE BASE COMP. HIT-6688131.A0 6688131	-
86 - HEX.HOLE BOLT M5X20/S HIT-6684668.A5 6684668	-
87 - PUMP FILTER ASS'Y TILL TL044140 HIT-6601175.A11 6601175	-
101 - MUFFLER PROTECTOR HIT-6692780.A3 6692780	-
102 - WASHER M5 (BLACK) HIT-6684918.A53 6684918	£1.67	£2.00
103 - HEX.HOLE BOLT M5X12/S HIT-6684667.A107 6684667	£1.67	£2.00
104 - HEX. HOLE BOLT 5X15 WS HIT-6695512.A35 6695512	-
105 - HEX. HOLE BOLT M6X65 HIT-6695067.A25 6695067	£1.67	£2.00
106 - BOLT WASHER 6 HIT-6684639.A116 6684639	£1.67	£2.00
107 - MUFFLER SET HIT-6692469.A1 6692469	-
108 - MUFFLER GASKET HIT-6692741.A15 6692741	£3.89	£4.67
109 - HEAT SHIELD HIT-6687243.A0 6687243	-
110 - TAIL PIPE COMP. HIT-6692593.A2 6692593	-
111 - SCREW 4X12 HIT-6694865.A3 6694865	-
112 - NUT M4 HIT-6685069.A23 6685069	-
113 - CLUTCH WASHER B HIT-6689645.A40 6689645	£1.67	£2.00
114 - CLUTCH ARM COMP. HIT-6688614.A0 6688614	£9.58	£11.50
115 - CLUTCH SPRING HIT-6689428.A8 6689428	£2.98	£3.57
116 - WAVE WASHER 10 HIT-6695203.A29 6695203	£1.67	£2.00
117 - CLUTCH STEP BOLT HIT-6689632.A8 6689632	£4.26	£5.11
118 - CLUTCH SET ASS'Y HIT-6699556.A12 6699556	-
131 - RECOIL STARTER BODY ASS'Y HIT-6697645.A0 6697645	£28.11	£33.73
132 - RECOIL STARTER BODY COMP HIT-6697646.A23 6697646	-
133 - STARTER ROPE REEL HIT-6697647.A0 6697647	-
134 - RECOIL SPRING HIT-6697648.A23 6697648	-
135 - STARTER ROPE HIT-6697649.A0 6697649	-
137 - STARTER HANDLE HIT-6697650.A23 6697650	-
138 - SET SCREW HIT-6693634.A13 6693634	-
139 - STARTER PAWL HIT-6697643.A0 6697643	-
140 - D4E RETAINING RING HIT-6685101.A27 6685101	-
141 - HEX.HOLE BOLT 5X20/PS HIT-6684634.A59 6684634	£1.67	£2.00
142 - STARTER PAWL SPRING HIT-6697642.A23 6697642	-
143 - STARTER PULLEY ASS'Y HIT-6697644.A23 6697644	£12.94	£15.53
161 - PUMP BODY COMP. HIT-6684879.A56 6684879	£35.37	£42.44
162 - PRIMING PUMP COMP. HIT-6684687.A75 6684687	£9.27	£11.12
163 - DIAPHRAGM COVER HIT-6684688.A24 6684688	£5.70	£6.84
164 - PRIMING BODY HIT-6684689.A75 6684689	£5.87	£7.04
165 - METERING DIAPHRAGM COMP. HIT-6690827.A19 6690827	£14.02	£16.83
166 - DIAPHRAGM GASKET HIT-6684691.A74 6684691	£5.70	£6.84
167 - PUMP DIAPHRAGM HIT-6684693.A152 6684693	£5.70	£6.84
168 - PUMP GASKET HIT-6691457.A57 6691457	£8.48	£10.18
169 - MAIN JET #51 HIT-6696382.A5 6696382	-
170 - O-RING HIT-6684695.A48 6684695	£1.67	£2.00
171 - STOP RING HIT-6684696.A166 6684696	-
172 - SWIVEL HIT-6684697.A34 6684697	-
174 - THROTTLE SET SCREW HIT-6684870.A29 6684870	-
175 - CABLE ADJUSTER STAY HIT-6684873.A45 6684873	-
176 - LOCK NUT M6 HIT-6684872.A35 6684872	-
177 - CABLE ADJUSTER HIT-6684871.A39 6684871	-
178 - CLEANER PACKING HIT-6684875.A47 6684875	-
179 - SET SCREW HIT-6684699.A25 6684699	-
180 - THRUST WASHER HIT-6684874.A30 6684874	-
181 - INLET SCREEN HIT-6684700.A185 6684700	-
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A75 6684764	£7.64	£9.17
