Hitachi / Hikoki TCG22EAP2 Engine Brush Cutter Spare Parts

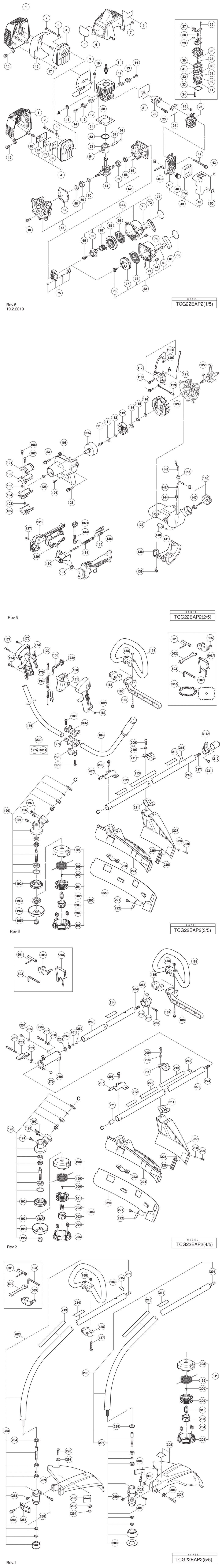

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCG22EAP2 Engine Brush Cutter

	Ex VAT	Inc VAT
*1 - MUFFLER PROTECTOR HIT-6600423.A0 6600423	£14.45	£17.34
*1 - MUFFLER COVER FOR USA HIT-6600492.A1 6600492	-
2 - HEX. SOCKET HD. BOLT M6X55 HIT-6696819.A26 6696819	-
3 - BOLT WASHER M6 (10 PCS.) HIT-949432.A20 949432	£1.67	£2.00
*4 - MUFFLER HIT-6696554.A2 6696554	£31.92	£38.31
*4 - MUFFLER ASS'Y INCLUD.83-86 FOR USA HIT-6600488.A1 6600488	-
*5 - TANAKA LABEL HIT-6696339.A7 6696339	-
*5 - TANAKA LABEL FOR USA HIT-6696340.A2 6696340	-
6 - CYLINDER COVER HIT-6600424.A3 6600424	-
7 - MACHINE SCREW (W/WASHERS) M4X20 (BLACK) HIT-307606.A25 307606	£1.67	£2.00
8 - CAUTION LABEL HIT-000000.A372 000000	-
9 - HEAT PROTECTION PANEL HIT-6600320.A8 6600320	£1.67	£2.00
10 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A28 6698386	-
*11 - SPARK PLUG ASS'Y BMR7A HIT-6699316.A4 6699316	£12.43	£14.92
*11 - SPARK PLUG ASS'Y CJ6 FOR USA HIT-6699322.A43 6699322	£3.73	£4.48
12 - COVER PACKING HIT-6696534.A5 6696534	£1.67	£2.00
13 - INTAKE COVER (A) HIT-6696535.A17 6696535	£1.67	£2.00
14 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A29 6698385	-
15 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A20 791045	£2.71	£3.25
16 - MUFFER HEAT COVER FOR EUROPE HIT-6600340.A5 6600340	£8.42	£10.11
17 - TAPPING SCREW D4X10 FOR EUROPE HIT-6600325.A8 6600325	-
18 - GLASS WASHER HIT-6698700.A52 6698700	£1.67	£2.00
19 - INTAKE COVER (B) HIT-6696536.A4 6696536	-
20 - CYLINDER HIT-6696527.A5 6696527	£35.00	£42.00
21 - INTAKE PACKING HIT-6696548.A5 6696548	£1.67	£2.00
22 - CARBURETOR INSULATOR HIT-6698387.A37 6698387	£4.72	£5.66
23 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A20 6698844	£1.67	£2.00
24 - CARBURETOR PACKING HIT-6698405.A52 6698405	£3.12	£3.74
25 - SWIVEL CAP HIT-6691337.A13 6691337	£1.67	£2.00
26 - CARBURETOR ASS'Y WYC-22 INCLUD.27-41 HIT-6696550.A5 6696550	£61.22	£73.46
27 - CABLE ADJUST STAY HIT-6699287.A22 6699287	-
28 - SWIVEL HIT-6696830.A53 6696830	-
29 - STOP RING HIT-6684696.A82 6684696	-
30 - PUMP GASKET HIT-6684692.A72 6684692	£17.28	£20.73
31 - PUMP DIAPHRAGM HIT-6684693.A79 6684693	£5.70	£6.84
32 - PUMP PLATE HIT-6691242.A32 6691242	-
33 - DIAPHRAGM COVER-METERING HIT-6685222.A178 6685222	£5.70	£6.84
34 - SET SCREW HIT-6691312.A100 6691312	-
35 - SET SCREW M3X12 HIT-6696829.A0 6696829	-
36 - O-RING HIT-6684695.A117 6684695	£1.67	£2.00
37 - MAIN JET HIT-6697947.A0 6697947	-
38 - CIRCUIT PLATE HIT-6691234.A27 6691234	-
39 - PUMP BODY COMP. HIT-6696828.A53 6696828	£13.28	£15.93
40 - DIAPHRAGM PACKING-METERING HIT-6685220.A2 6685220	£2.81	£3.37
41 - METERING DIAPHRAGM HIT-6684690.A72 6684690	£24.05	£28.86
42 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A27 307224	£1.67	£2.00
43 - MARK PLATE (T) FOR EUROPE HIT-6600327.A14 6600327	-
44B - FUEL PIPE L70 HIT-6699014.A19 6699014	£2.77	£3.32
45 - AIR CLEANER HOUSING HIT-6696832.A35 6696832	£15.61	£18.73
46 - PRIMING PUMP COMP. HIT-6685139.A135 6685139	£10.67	£12.80
47A - CLEANER SPONGE HIT-6600704.A6 6600704	£5.61	£6.73
48 - AIR CLEANER COVER HIT-6696831.A0 6696831	£9.68	£11.62
49 - AIR CLEANER ASS'Y INCLUD.45-48 HIT-6696549.A5 6696549	£13.36	£16.03
50 - PRIMER LABEL FOR EUROPE HIT-6699000.A7 6699000	-
51 - CYLINDER PACKING HIT-6696530.A5 6696530	£1.67	£2.00
52 - PISTON RING HIT-6696532.A5 6696532	£3.56	£4.27
53 - PISTON HIT-6696531.A15 6696531	£10.77	£12.92
54 - CIR CLIP HIT-6684590.A104 6684590	£1.67	£2.00
55 - PISTON PIN HIT-6696944.A1 6696944	£5.61	£6.73
56 - CRANK CASE (B) COMP INCLUD.58 HIT-6696538.A2 6696538	£15.19	£18.23
57 - CRANK CASE PACKING HIT-6696539.A10 6696539	£1.67	£2.00
58 - OIL SEAL TB 12227 HIT-6684607.A205 6684607	£4.07	£4.88
59 - BALL BEARING 6001 C3 HIT-6684608.A1 6684608	£5.70	£6.84
*60 - SHIM T0.2 HIT-6696946.A1 6696946	£1.67	£2.00
*60 - SHIM T0.3 HIT-6696945.A34 6696945	£1.67	£2.00
61 - CRANK SHAFT COMP. HIT-6696533.A19 6696533	£42.11	£50.53
62 - CRANK CASE (A) ASS'Y INCLUD.58 HIT-6696537.A5 6696537	£15.66	£18.79
63 - KNOCK PIN 4X12 HIT-6696947.A76 6696947	-
64A - RECOIL STARTER BODY ASS'Y INCLUD.65-69 HIT-6601570.A5 6601570	£23.15	£27.78
65 - SET SCREW EXCEPT FOR EUROPE (LB) HIT-6684679.A94 6684679	£2.98	£3.57
66 - CAM PLATE EXCEPT FOR EUROPE (LB) HIT-6699996.A67 6699996	£4.28	£5.13
67 - DAMPER SPRING EXCEPT FOR EUROPE (LB) HIT-6684677.A69 6684677	£5.70	£6.84
68 - STARTER ROPE REEL EXCEPT FOR EUROPE (LB) HIT-6699997.A22 6699997	-
69 - RECOIL SPRING EXCEPT FOR EUROPE (LB) HIT-6684675.A63 6684675	£8.82	£10.58
71 - STARTER ROPE 3.5X860 EXCEPT FOR EUROPE (LB) HIT-6684674.A53 6684674	£5.70	£6.84
72 - STARTER HANDLE EXCEPT FOR EUROPE (LB) HIT-6684680.A49 6684680	£5.87	£7.04
73 - NAME PLATE HIT-000000.A373 000000	-
74 - SCREW (W/WASHERS) M4X16 HIT-6698398.A3 6698398	-
*75 - STARTER PULLEY ASS'Y HIT-6684681.A69 6684681	£18.16	£21.79
*75 - STARTER PULLEY ASS'Y FOR EUROPE (LB) HIT-6696471.A11 6696471	£8.35	£10.02
76 - SET SCREW FOR EUROPE (LB) HIT-6693633.A7 6693633	£1.67	£2.00
77 - REEL HIT-000000.A374 000000	-
77 - FOR EUROPE (LB) HIT-000000.A375 000000	-
78 - RECOIL SPRING FOR EUROPE (LB) HIT-6684675.A62 6684675	£8.82	£10.58
79 - STARTER CASE COM. HIT-000000.A376 000000	-
79 - FOR EUROPE (LB) HIT-000000.A377 000000	-
80 - ROPE FOR EUROPE (LB) HIT-6693168.A31 6693168	£2.82	£3.39
81 - STARTER HANDLE FOR EUROPE (LB) HIT-6693227.A31 6693227	-
82 - RECOIL STARTER BODY ASS'Y INCLUD.76-81 FOR EUROPE (LB) HIT-6696572.A1 6696572	£13.43	£16.12
83 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR USA HIT-6685068.A50 6685068	-
84 - EXHAUST PIPE FOR USA HIT-6600491.A0 6600491	-
85 - EXHAUST PIPE GASKET FOR USA HIT-6600490.A5 6600490	-
86 - SPARK ARRESTER FOR USA HIT-6600489.A0 6600489	-
101 - ANTI VIBE RUBBER (A) HIT-6696963.A39 6696963	£3.12	£3.74
*102 - PIPE HOLDER (A) HIT-6696542.A5 6696542	£1.67	£2.00
*102 - PIPE HOLDER (A) FOR EUROPE (S) HIT-6698643.A18 6698643	£3.56	£4.27
103 - NUT M5 (BLACK) EXCEPT FOR EUROPE (S) HIT-302012.A37 302012	£1.67	£2.00
*104 - PIPE HOLDER (B) HIT-6696543.A2 6696543	£1.67	£2.00
*104 - PIPE HOLDER (B) FOR EUROPE (S) HIT-6698644.A29 6698644	£3.56	£4.27
105 - ANTI VIBE RUBBER (B) HIT-6696964.A1 6696964	£3.02	£3.63
106 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12 HIT-6699176.A34 6699176	£1.67	£2.00
107 - HEX. HOLE BOLT 5X22/S HIT-6695492.A11 6695492	-
108 - FAN CASE (VERMILION) HIT-6699159.A6 6699159	£14.29	£17.15
*109 - CLUTCH SHAFT FOR EUROPE (LB) HIT-6698790.A1 6698790	£14.47	£17.36
109A - CLUTCH SHAFT COMP HIT-6696541.A0 6696541	£14.95	£17.94
110 - STEP BOLT HIT-6696469.A31 6696469	£2.84	£3.41
111 - BENT WASHER 8 HIT-6684648.A65 6684648	£1.67	£2.00
112 - CLUTCH PLATE (A) HIT-6696546.A29 6696546	£1.67	£2.00
113 - CLUTCH HIT-6696948.A0 6696948	£15.02	£18.03
114 - CLUTCH WASHER (B) HIT-6696547.A7 6696547	£1.67	£2.00
115 - FLYWHEEL NUT HIT-6685337.A30 6685337	-
116 - BOLT WASHER M8 (BLACK) HIT-323212.A51 323212	£1.67	£2.00
117 - IGNITION COIL ASS'Y INCLUD.119A HIT-6699464.A4 6699464	£27.08	£32.49
118 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A28 6698388	£1.67	£2.00
119A - PLUG CAP HIT-6601421.A10 6601421	£1.67	£2.00
120 - PLUG CAP METAL HIT-6699186.A40 6699186	£1.67	£2.00
121 - CORD HIT-6696544.A27 6696544	-
122 - WOODRUFF KEY 3X13X4.5 HIT-6684899.A45 6684899	-
123 - EARTH CORD HIT-6696545.A10 6696545	-
124 - MAGNETO ROTOR HIT-6699289.A19 6699289	£24.52	£29.43
125 - RETAINING RING FOR D12 SHAFT (10 PCS.) EXCEPT FOR EUROPE (LB) HIT-939542.A22 939542	£2.98	£3.57
126 - TAPPING SCREW D4.5X16 HIT-6698878.A19 6698878	£1.67	£2.00
127 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) EXCEPT FOR EUROPE (S) HIT-305812.A68 305812	£1.67	£2.00
*128 - HANDLE (B) FOR USA HIT-6696942.A21 6696942	-
*128 - HANDLE (B) EXCEPT FOR USA HIT-6696487.A13 6696487	£5.88	£7.06
129 - LOCK LEVER FOR EUROPE HIT-6696490.A30 6696490	£2.84	£3.41
130 - LEVER HIT-6696488.A26 6696488	£1.67	£2.00
131 - SPRING (A) HIT-6696489.A10 6696489	£2.84	£3.41
132A - STOP SWITCH HIT-6601275.A20 6601275	£1.67	£2.00
*133 - STOP SWITCH CORD HIT-6696491.A15 6696491	-
*133 - STOP SWITCH CORD FOR EUROPE (S) HIT-6696592.A4 6696592	-
*134 - PROTECTION TUBE HIT-6696967.A30 6696967	-
*134 - PROTECTION TUBE FOR EUROPE (S) HIT-6696594.A4 6696594	-
135 - THROTTLE WIRE COMP. EXCEPT FOR EUROPE (S) HIT-6696560.A3 6696560	£8.35	£10.02
*136 - HANDLE (A) FOR USA HIT-6696941.A1 6696941	-
*136 - HANDLE (A) EXCEPT FOR USA HIT-6696486.A20 6696486	£5.88	£7.06
*137 - TANK HIT-6696569.A1 6696569	£7.75	£9.30
*137 - TANK FOR USA HIT-6696552.A3 6696552	-
138 - STAND FOR USA HIT-6696556.A7 6696556	-
*139 - BOLT (W/FLANGE) L17.8 HIT-6696574.A57 6696574	£1.67	£2.00
*139 - FLANGE BOLT FOR USA HIT-6696557.A8 6696557	£1.67	£2.00
140 - PUMP FILTER HIT-6600351.A20 6600351	£4.45	£5.34
141 - CLIP HIT-6696949.A75 6696949	£1.67	£2.00
*142 - FUEL PIPE HIT-6698716.A11 6698716	£5.61	£6.73
*142 - FUEL PIPE L180 FOR USA HIT-6698932.A4 6698932	-
143A - FUEL PIPE L70 HIT-6699014.A20 6699014	£2.77	£3.32
144 - RETURN GROMMET HIT-6684627.A118 6684627	£1.67	£2.00
145 - FUEL GROMMET HIT-6688156.A74 6688156	£5.55	£6.66
146 - FUEL TANK CAP ASS'Y INCLUD.147 HIT-6698402.A60 6698402	-
147 - TANK CAP CHAIN HIT-6698732.A28 6698732	-
171 - TAPPING SCREW (W/FLANGE) D4X30 FOR EUROPE (S) HIT-323837.A7 323837	-
172 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) FOR EUROPE (S) HIT-302086.A43 302086	£1.67	£2.00
173 - HANDLE (B) FOR EUROPE (S) HIT-6696590.A7 6696590	-
174 - MACHINE SCREW M5X30 (BLACK) FOR EUROPE (S) HIT-323041.A7 323041	-
175 - THROTTLE WIRE COMP. FOR EUROPE (S) HIT-6696593.A13 6696593	£7.12	£8.54
176 - HANDLE RIGHT FOR EUROPE (S) HIT-6696585.A6 6696585	-
177A - HANDLE HOLDER (B) SINCE 7.2015 FOR EUROPE (S) HIT-6600501.A11 6600501	-
178 - HANDLE HOLDER (C) FOR EUROPE (S) HIT-6696578.A0 6696578	-
179 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE (S) HIT-6684714.A36 6684714	£1.67	£2.00
180 - HEX. HOLE BOLT M5X25/S FOR EUROPE (S) HIT-6684709.A148 6684709	£1.67	£2.00
181A - HANDLE HOLDER (A) SINCE 7.2015 FOR EUROPE (S) HIT-6600500.A20 6600500	-
182 - HANDLE (A) FOR EUROPE (S) HIT-6696588.A6 6696588	-
183 - NUT M5 (BLACK) FOR EUROPE (S) HIT-302012.A36 302012	£1.67	£2.00
184 - HANDLE LEFT FOR EUROPE (S) HIT-6696595.A6 6696595	-
185 - HANDLE HOLDER (A) FOR EUROPE (LB) HIT-6696972.A13 6696972	-
186 - BARRIER FOR EUROPE (SL SLD) HIT-6696973.A9 6696973	£8.35	£10.02
187 - BOLT (BLACK) M6 FOR EUROPE (LB HIT-6696974.A28 6696974	£1.67	£2.00
188 - NUT M6 (10 PCS.) FOR EUROPE (LB HIT-949556.A78 949556	£1.67	£2.00
189 - LOOP HANDLE FOR EUROPE (LB SL SLD) HIT-6696975.A12 6696975	£13.36	£16.03
*190 - GEAR CASE ASS'Y 3BB (A) INCLUD.191-197 FOR EUROPE (S HIT-6699402.A16 6699402	-
*190 - GEAR CASE ASS'Y 3BB (B) INCLUD.191 HIT-6696976.A13 6696976	£60.73	£72.88
191 - BOLT (W/PLUS) M6X8 FOR EUROPE (S HIT-6684737.A28 6684737	-
192 - CUTTER HOLDER (A) FOR EUROPE (S HIT-6696977.A9 6696977	£18.01	£21.61
193 - CUTTER HOLDER (B) FOR EUROPE (S HIT-6698659.A12 6698659	£15.99	£19.19
194 - NUT COVER FOR EUROPE (S SL SLD) HIT-6699188.A0 6699188	£10.93	£13.12
195 - U-NUT (LEFT HAND) M10 FOR EUROPE (S HIT-335759.A51 335759	£1.67	£2.00
196 - SCREW 5X12/W.S FOR EUROPE (S SL SLD) HIT-6695414.A66 6695414	£1.67	£2.00
197 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) FOR EUROPE (S HIT-949664.A9 949664	£4.33	£5.20
198 - COVER FOR EUROPE (S SL SLD) HIT-6698794.A24 6698794	£17.58	£21.09
199 - NYLON CORD HIT-000000.A378 000000	-
200 - SET SCREW HIT-6698795.A9 6698795	-
201 - REEL FOR EUROPE (S SL SLD) HIT-6698796.A32 6698796	£7.12	£8.54
202 - RETURN SPRING FOR EUROPE (S SL SLD) HIT-6698797.A1 6698797	£1.67	£2.00
203 - BUTTON HIT-6698798.A37 6698798	£7.12	£8.54
204 - CORD GUIDE HIT-6698799.A2 6698799	£7.12	£8.54
205 - CASE HIT-6698800.A29 6698800	£14.11	£16.93
*206 - NYLON HEAD ASS'Y INCLUD.198-205 HIT-6696454.A23 6696454	£48.12	£57.75
207 - COVER BRACKET FOR EUROPE (S SL SLD) HIT-6696494.A23 6696494	£3.02	£3.63
208 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE (S SL SLD) HIT-6684714.A70 6684714	£1.67	£2.00
209 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 FOR USA (SL HIT-6685064.A44 6685064	-
210 - SPRING WASHER M6 (10 PCS.) FOR USA (SL HIT-949455.A94 949455	£1.67	£2.00
211 - COVER BRACKET FOR USA (SL SLD) HIT-6696978.A26 6696978	-
*213 - CAUTION MARK (USA) HIT-6600448.A5 6600448	-
*213 - CAUTION MARK FOR EUROPE (S) HIT-6600449.A2 6600449	-
214 - LEVEL MARK (B) EXCEPT FOR EUROPE (S) HIT-6600446.A16 6600446	-
215 - LEVEL MARK FOR EUROPE HIT-6684851.A1 6684851	-
216 - MAIN PIPE COMP. FOR EUROPE (S SL) HIT-6696558.A18 6696558	£22.07	£26.48
217 - DRIVE SHAFT FOR EUROPE (S SL) HIT-6698514.A3 6698514	£19.46	£23.35
218A - HANGER FOR EUROPE (S SL) HIT-6600504.A7 6600504	£1.67	£2.00
219 - CAP (A) FOR EUROPE (S HIT-6698515.A30 6698515	-
220 - COVER GUARD FOR EUROPE (S SL SLD) HIT-6696950.A11 6696950	£11.18	£13.42
221 - TAPPING SCREW 4X14 FOR EUROPE (S SL SLD) HIT-6684751.A58 6684751	£1.67	£2.00
222 - KNIFE FOR EUROPE (S SL SLD) HIT-6684750.A42 6684750	£3.64	£4.37
223 - GUARD HOLDER FOR EUROPE (S SL SLD) HIT-6696951.A27 6696951	£3.02	£3.63
224 - GUARD FOR EUROPE (S SL SLD) HIT-6696980.A6 6696980	£27.49	£32.99
225 - NUT M4 (10 PCS.) FOR USA (SL HIT-949554.A43 949554	£1.67	£2.00
226 - KNIFE FOR USA (SL SLD) HIT-6696584.A9 6696584	-
227 - GUARD FOR USA (SL SLD) HIT-6696981.A22 6696981	-
228 - BOLT WASHER M4 (BLACK) FOR USA (SL HIT-323210.A45 323210	-
229 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR USA (SL HIT-6685068.A58 6685068	-
230 - HANDLE HOLDER (A).(B) SET INCLUD.177A HIT-6600499.A4 6600499	-
*230 - HANDLE HOLDER (A).(B) SET FOR EUROPE (S) HIT-6600499.A5 6600499	-
231 - MACHINE SCREW M5X10 (10 PCS.) FOR EUROPE (S HIT-949236.A49 949236	£1.67	£2.00
251 - HEX. BOLT 6X50 FOR EUROPE (SLD) HIT-6684824.A20 6684824	£1.67	£2.00
252 - HANDLE KNOB FOR EUROPE (SLD) HIT-6684823.A3 6684823	£3.51	£4.21
253 - SPECIAL WASHER B FOR EUROPE (SLD) HIT-6684822.A45 6684822	£1.67	£2.00
254 - HEX. SOCKET HD. BOLT M5X12 FOR EUROPE (SLD) HIT-6684829.A0 6684829	-
255 - SPRING WASHER M5 FOR EUROPE (SLD) HIT-6698884.A1 6698884	-
256 - HEX. SOCKET HD. BOLT (W/BUTTON) M6 FOR EUROPE (SLD) HIT-6684825.A4 6684825	£1.67	£2.00
257 - SPRING WASHER M6 (10 PCS.) FOR EUROPE (SLD) HIT-949455.A93 949455	£1.67	£2.00
258 - WASHER M6 (10 PCS.) FOR EUROPE (SLD) HIT-949425.A31 949425	£1.67	£2.00
259 - SPACER 1.6 FOR EUROPE (SLD) HIT-6689139.A13 6689139	£2.84	£3.41
260 - SPACER FOR EUROPE (SLD) HIT-6684819.A3 6684819	-
261 - PULLEY WASHER FOR EUROPE (SLD) HIT-6684820.A15 6684820	-
262 - RETAINING RING FOR D10 SHAFT (10 PCS.) FOR EUROPE (SLD) HIT-939540.A38 939540	£1.67	£2.00
263 - MAIN PIPE COMP. FOR EUROPE (SLD) HIT-6684815.A0 6684815	£64.29	£77.15
264 - DRIVE SHAFT A FOR EUROPE (SLD) HIT-6684814.A5 6684814	£38.90	£46.68
265 - HANGER FOR EUROPE (SLD) HIT-6684705.A0 6684705	-
266 - HANGER COLLAR FOR EUROPE (SLD) HIT-6684704.A6 6684704	-
267 - HANGER FIXING BRACKET FOR EUROPE (SLD) HIT-6684706.A6 6684706	-
268 - HEX. HOLE BOLT M5X25/S FOR EUROPE (SLD) HIT-6684709.A206 6684709	£1.67	£2.00
269 - JOINT CASE FOR EUROPE (SLD) HIT-6684817.A13 6684817	£35.67	£42.80
270 - CAP NUT 6 FOR EUROPE (SLD) HIT-6684828.A20 6684828	£1.67	£2.00
271 - BUSHING FOR EUROPE (SLD) HIT-6684833.A4 6684833	£3.85	£4.62
272 - SYMBOL MARK SMART FIT FOR EUROPE (SLD) HIT-6694743.A4 6694743	-
273 - DRIVE SHAFT COMP FOR EUROPE (SLD) HIT-6697838.A4 6697838	£25.30	£30.36
274 - DRIVE SHAFT B 783L FOR EUROPE (SLD) HIT-6684832.A17 6684832	£35.25	£42.30
281 - FLEXIBLE SHAFT FOR EUROPE (LB) HIT-6698325.A1 6698325	£18.52	£22.23
282 - MAIN PIPE ASS'Y INCLUD.281 HIT-6696580.A2 6696580	£56.58	£67.89
283 - CUTTER CASE INCLUD.284 HIT-6600494.A0 6600494	-
284 - BEARING WASHER FOR EUROPE (LB) HIT-6698331.A3 6698331	-
285 - HEX. SOCKET HD. BOLT M5X10 (10 PCS.) FOR EUROPE (LB) HIT-949819.A27 949819	£2.98	£3.57
286 - BOLT M6 FOR EUROPE (LB) HIT-6698334.A3 6698334	£4.45	£5.34
287 - GUARD BRACKET FOR EUROPE (LB) HIT-6698335.A4 6698335	£4.45	£5.34
288 - HEX. SOCKET HD. BOLT M5X25 (10 PCS.) FOR EUROPE (LB) HIT-949662.A24 949662	£3.64	£4.37
289 - GUARD FOR EUROPE (LB) HIT-6698809.A6 6698809	£20.26	£24.31
290 - MACHINE SCREW M5X14 (10 PCS.) FOR EUROPE (LB) HIT-949238.A10 949238	£1.67	£2.00
291 - WASHER M5 (10 PCS.) FOR EUROPE (LB) HIT-949424.A15 949424	£1.67	£2.00
292 - KNIFE FOR EUROPE (LB) HIT-6698333.A4 6698333	£10.10	£12.12
293 - SPRING WASHER M5 (10 PCS.) FOR EUROPE (LB) HIT-949454.A58 949454	£1.67	£2.00
294 - NUT M5 (10 PCS.) FOR EUROPE (LB) HIT-949555.A10 949555	£1.67	£2.00
295 - FLEXIBLE SHAFT (A) FOR USA (SLB) HIT-6685038.A5 6685038	£13.02	£15.62
296 - MAIN PIPE (A) ASS'Y INCLUD.295 HIT-6696582.A1 6696582	-
297 - CUTTER CASE (A) INCLUD.298-301 FOR USA (SLB) HIT-6698811.A0 6698811	-
298 - BEARING WASHER (A) FOR USA (SLB) HIT-6698340.A1 6698340	-
299 - BOLT M5X10 (10 PCS.) FOR USA (SLB) HIT-949707.A2 949707	-
300 - WASHER FOR USA (SLB) HIT-6685001.A2 6685001	-
301 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X28 HIT-000000.A2530 000000	-
302 - TAPPING SCREW D5X16 FOR USA (SLB) HIT-6685074.A1 6685074	-
303 - NUT M6 FOR USA (SLB) HIT-6684792.A32 6684792	-
304 - KNIFE FOR USA (SLB) HIT-6685015.A1 6685015	£2.81	£3.37
305 - GUARD (W/CAUTION LABEL) FOR USA (SLB) HIT-6699076.A0 6699076	-
306 - BOLT WASHER 6 FOR USA (SLB) HIT-6684639.A45 6684639	£1.67	£2.00
307 - PLUS BOLT M6X45 FOR USA (SLB) HIT-6684995.A1 6684995	-
308 - COVER FOR EUROPE (LB) HIT-6698801.A1 6698801	£17.65	£21.18
309 - REEL FOR EUROPE (LB) HIT-6698802.A2 6698802	£8.85	£10.62
310 - RETURN SPRING FOR EUROPE (LB) HIT-6698803.A1 6698803	£1.67	£2.00
*311 - NYLON HEAD (R) INCLUD.199 HIT-6696597.A2 6696597	£21.85	£26.22
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A23 6684764	£7.64	£9.17
502 - WRENCH 8X10 FOR EUROPE (S SL LB) HIT-6696596.A10 6696596	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A91 944458	£1.67	£2.00
504A - CUTTER COVER FOR EUROPE (S) HIT-6684768.A53 6684768	-
505 - PROTECTIVE GLASSES HIT-875769.A166 875769	-
506A - SHOULDER BELT SINGLE FOR EUROPE (S SL SLD) HIT-6601420.A29 6601420	-
507 - CUTTING BLADE 4X230 1 HIT-6684767.A0 6684767	£15.17	£18.20

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki TCG22EAP2 Engine Brush Cutter Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki TCG22EAP2 Engine Brush Cutter Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki TCG22EAP2 Engine Brush Cutter Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
