Hitachi / Hikoki TCG27EAP2 Engine Brush Cutter Spare Parts

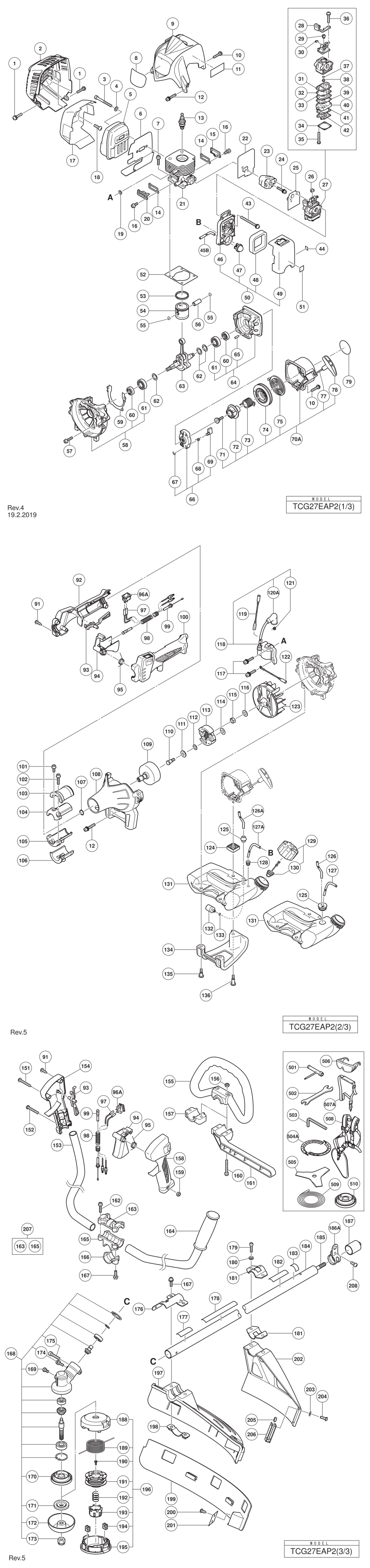

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCG27EAP2 Engine Brush Cutter

	Ex VAT	Inc VAT
1 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A34 791045	£2.71	£3.25
2 - MUFFLER COVER HIT-6600322.A1 6600322	£10.60	£12.72
3 - HEX. SOCKET HD. BOLT M6X65 HIT-6698384.A5 6698384	-
4 - BOLT WASHER M6 (10 PCS.) HIT-949432.A48 949432	£1.67	£2.00
5 - MUFFLER (B) HIT-6600004.A12 6600004	-
6 - HEAT PROTECTION PANEL HIT-6600324.A19 6600324	-
7 - HEX. SOCKET BOLT M5X20 HIT-6696958.A15 6696958	-
*8 - TANAKA LABEL HIT-6696339.A1 6696339	-
*8 - TANAKA LABEL FOR USA HIT-6696340.A5 6696340	-
9 - CYLINDER COVER HIT-6697921.A6 6697921	£8.59	£10.31
10 - MACHINE SCREW (W/WASHERS) M4X20 (BLACK) HIT-307606.A19 307606	£1.67	£2.00
11 - CAUTION LABEL HIT-000000.A2543 000000	-
12 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-6698950.A30 6698950	-
*13 - SPARK PLUG ASS'Y BMR7A HIT-6699316.A27 6699316	£12.43	£14.92
*13 - SPARK PLUG ASS'Y CJ6 FOR USA HIT-6699322.A25 6699322	£3.73	£4.48
14 - COVER PACKING HIT-6698365.A18 6698365	£1.67	£2.00
15 - SCAVENGING COVER (A) HIT-6698484.A0 6698484	-
16 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A35 6698385	-
17 - MUFFLER HEAT COVER HIT-6600422.A11 6600422	-
18 - TAPPING SCREW D4X10 HIT-6600325.A4 6600325	-
19 - GLASS WASHER HIT-6698700.A75 6698700	£1.67	£2.00
20 - SCAVENGING COVER (B) HIT-6698485.A22 6698485	-
21 - CYLINDER HIT-6698480.A1 6698480	£50.30	£60.36
22 - INTAKE PACKING HIT-6698473.A0 6698473	-
23 - CARBURETOR INSULATOR HIT-6698387.A48 6698387	£4.72	£5.66
24 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A1 6698844	£1.67	£2.00
25 - CARBURETOR PACKING HIT-6698405.A67 6698405	£3.12	£3.74
26 - SWIVEL CAP HIT-6691337.A17 6691337	£1.67	£2.00
27 - CARBURETOR ASS'Y WYC-29 INCLUD.28-42 HIT-6698489.A6 6698489	-
28 - CABLE ADJUST STAY HIT-6699287.A35 6699287	-
29 - SWIVEL HIT-6696830.A39 6696830	-
30 - FLANGE HIT-6684969.A1 6684969	-
31 - PUMP GASKET HIT-6684692.A114 6684692	£17.28	£20.73
32 - PUMP DIAPHRAGM HIT-6684693.A0 6684693	£5.70	£6.84
33 - PUMP PLATE HIT-6691242.A49 6691242	-
34 - DIAPHRAGM COVER-METERING HIT-6685222.A134 6685222	£5.70	£6.84
35 - SET SCREW HIT-6691312.A76 6691312	-
36 - SET SCREW M3X12 HIT-6696829.A13 6696829	-
37 - O-RING HIT-6684695.A194 6684695	£1.67	£2.00
38 - JET HIT-000000.A2544 000000	-
39 - CIRCUIT PLATE HIT-6691234.A10 6691234	-
40 - PUMP BODY COMP. HIT-6696828.A39 6696828	£13.28	£15.93
41 - DIAPHRAGM PACKING-METERING HIT-6685220.A45 6685220	£2.81	£3.37
42 - METERING DIAPHRAGM HIT-6684690.A112 6684690	£24.05	£28.86
43 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A45 307224	£1.67	£2.00
44 - MARK PLATE (T) FOR EUROPE HIT-6600327.A4 6600327	-
45B - FUEL PIPE HIT-6601444.A32 6601444	-
46 - AIR CLEANER HOUSING HIT-6696832.A26 6696832	£15.61	£18.73
47 - PRIMING PUMP COMP. HIT-6685139.A100 6685139	£10.67	£12.80
48 - CLEANER SPONGE HIT-6600704.A9 6600704	£5.61	£6.73
49 - AIR CLEANER COVER HIT-6696831.A6 6696831	£9.68	£11.62
50 - AIR CLEANER ASS'Y INCLUD.46-49 HIT-6696549.A2 6696549	£13.36	£16.03
51 - PRIMER LABEL FOR EUROPE HIT-6699000.A16 6699000	-
52 - CYLINDER PACKING HIT-6698366.A0 6698366	£1.67	£2.00
53 - PISTON RING HIT-6686121.A22 6686121	£6.47	£7.76
54 - PISTON HIT-6698483.A6 6698483	-
55 - CIR CLIP HIT-6684590.A124 6684590	£1.67	£2.00
56 - PISTON PIN HIT-6684591.A15 6684591	£3.29	£3.95
57 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A15 6698386	-
58 - CRANK CASE (B) ASS'Y INCLUD.60 HIT-6698370.A18 6698370	£23.00	£27.60
59 - CRANK CASE PACKING HIT-6698371.A0 6698371	£1.67	£2.00
60 - OIL SEAL TB 12227 HIT-6684607.A97 6684607	£4.07	£4.88
61 - BALL BEARING 6001 C3 HIT-6684608.A103 6684608	£5.70	£6.84
62 - SHIM T0.5 HIT-6698490.A0 6698490	-
63 - CRANK SHAFT COMP. HIT-6698488.A0 6698488	-
64 - CRANK CASE (A) ASS'Y INCLUD.60 HIT-6698369.A0 6698369	£17.94	£21.53
65 - KNOCK PIN 4X12 HIT-6696947.A49 6696947	-
66 - STARTER PULLEY ASS'Y INCLUD.67-69 HIT-6684681.A112 6684681	£18.16	£21.79
67 - STOP RING E-5 HIT-6684683.A20 6684683	-
68 - STARTER PAWL SPRING HIT-6684684.A0 6684684	£3.29	£3.95
69 - STARTER PAWL HIT-6684685.A103 6684685	£5.07	£6.08
70A - RECOIL STARTER BODY ASS'Y INCLUD.71-75 HIT-6601570.A23 6601570	£23.15	£27.78
71 - SET SCREW HIT-6684679.A155 6684679	£2.98	£3.57
72 - CAM PLATE HIT-6699996.A89 6699996	£4.28	£5.13
73 - DAMPER SPRING HIT-6684677.A115 6684677	£5.70	£6.84
74 - STARTER ROPE REEL HIT-6699997.A0 6699997	-
75 - RECOIL SPRING HIT-6684675.A0 6684675	£8.82	£10.58
77 - STARTER ROPE 3.5X860 HIT-6684674.A94 6684674	£5.70	£6.84
78 - STARTER HANDLE HIT-6684680.A3 6684680	£5.87	£7.04
79 - NAME PLATE HIT-000000.A2545 000000	-
*91 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A8 305812	£1.67	£2.00
*91 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) FOR (S) HIT-302086.A59 302086	£1.67	£2.00
*92 - HANDLE (B) FOR EUROPE (SL) HIT-6696487.A4 6696487	£5.88	£7.06
*92 - HANDLE (B) FOR USA HIT-6696942.A14 6696942	-
93 - LOCK LEVER FOR EUROPE HIT-6696490.A40 6696490	£2.84	£3.41
94 - LEVER HIT-6696488.A36 6696488	£1.67	£2.00
95 - SPRING (A) HIT-6696489.A1 6696489	£2.84	£3.41
96A - STOP SWITCH HIT-6601275.A40 6601275	£1.67	£2.00
*97 - STOP SWITCH CORD HIT-6696491.A16 6696491	-
*97 - STOP SWITCH CORD FOR (S) HIT-6696592.A5 6696592	-
*98 - PROTECTION TUBE HIT-6696967.A29 6696967	-
*98 - PROTECTION TUBE FOR (S) HIT-6696594.A3 6696594	-
*99 - THROTTLE WIRE COMP. HIT-6696560.A2 6696560	£8.35	£10.02
*99 - THROTTLE WIRE COMP. FOR (S) HIT-6696593.A12 6696593	£7.12	£8.54
*100 - HANDLE (A) FOR EUROPE (SL) HIT-6696486.A21 6696486	£5.88	£7.06
*100 - HANDLE (A) FOR USA HIT-6696941.A2 6696941	-
101 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12 HIT-6699176.A35 6699176	£1.67	£2.00
102 - HEX. HOLE BOLT 5X22/S HIT-6695492.A10 6695492	-
103 - ANTI VIBE RUBBER (A) HIT-6696963.A38 6696963	£3.12	£3.74
104 - PIPE HOLDER (A) HIT-6698643.A17 6698643	£3.56	£4.27
105 - PIPE HOLDER (B) HIT-6698644.A30 6698644	£3.56	£4.27
106 - ANTI VIBE RUBBER (B) HIT-6696964.A2 6696964	£3.02	£3.63
107 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A23 939542	£2.98	£3.57
108 - FAN CASE HIT-6697922.A11 6697922	-
109 - CLUTCH SHAFT HIT-6699400.A3 6699400	£14.52	£17.43
110 - STEP BOLT HIT-6696469.A30 6696469	£2.84	£3.41
111 - BENT WASHER 8 HIT-6684648.A66 6684648	£1.67	£2.00
112 - CLUTCH PLATE (A) HIT-6696546.A28 6696546	£1.67	£2.00
113 - CLUTCH HIT-6696948.A1 6696948	£15.02	£18.03
114 - CLUTCH WASHER (B) HIT-6696547.A8 6696547	£1.67	£2.00
115 - FLYWHEEL NUT HIT-6685337.A31 6685337	-
116 - BOLT WASHER M8 (BLACK) HIT-323212.A50 323212	£1.67	£2.00
117 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A29 6698388	£1.67	£2.00
118 - IGNITION COIL ASS'Y INCLUD.120A HIT-6698492.A0 6698492	£28.42	£34.11
119 - CORD HIT-6698495.A1 6698495	-
120A - PLUG CAP HIT-6601421.A11 6601421	£1.67	£2.00
121 - PLUG CAP METAL HIT-6699186.A39 6699186	£1.67	£2.00
122 - EARTH CORD HIT-6696545.A11 6696545	-
123 - MAGNETO ROTOR COMP. HIT-6698396.A13 6698396	£11.52	£13.82
124 - SPACER HIT-6699558.A29 6699558	-
*125 - FUEL GROMMET HIT-6600358.A14 6600358	£1.67	£2.00
*125 - FUEL GROMMET FOR USA HIT-6688156.A76 6688156	£5.55	£6.66
*126 - FUEL PIPE HIT-6698716.A12 6698716	£5.61	£6.73
126A - FUEL PIPE FOR USA HIT-6601525.A7 6601525	-
127A - FUEL PIPE L70 HIT-6699014.A21 6699014	£2.77	£3.32
128 - RETURN GROMMET FOR USA HIT-6684627.A117 6684627	£1.67	£2.00
129 - FUEL TANK CAP ASS'Y INCLUD.130 HIT-6698402.A61 6698402	-
130 - TANK CAP CHAIN HIT-6698732.A27 6698732	-
*131 - TANK (C) HIT-6600354.A26 6600354	-
*131 - TANK FOR USA HIT-6699719.A2 6699719	£23.15	£27.78
132 - PUMP FILTER HIT-6600351.A21 6600351	£4.45	£5.34
133 - CLIP HIT-6696949.A74 6696949	£1.67	£2.00
134 - STAND HIT-6694787.A47 6694787	£3.56	£4.27
135 - FLANGE BOLT HIT-6696557.A9 6696557	£1.67	£2.00
136 - BOLT (W/FLANGE) L27.8 HIT-6698991.A6 6698991	-
151 - TAPPING SCREW (W/FLANGE) D4X30 FOR (S) HIT-323837.A8 323837	-
152 - MACHINE SCREW M5X30 (BLACK) FOR (S) HIT-323041.A8 323041	-
153 - HANDLE RIGHT FOR (S) HIT-6698637.A11 6698637	-
154 - HANDLE (B) FOR (S) HIT-6696590.A6 6696590	-
155 - LOOP HANDLE FOR USA HIT-6696975.A11 6696975	£13.36	£16.03
156 - NUT M6 (10 PCS.) FOR USA HIT-949556.A77 949556	£1.67	£2.00
157 - HANDLE HOLDER (A) FOR USA HIT-6696972.A14 6696972	-
158 - HANDLE (A) FOR (S) HIT-6696588.A7 6696588	-
159 - NUT M5 (BLACK) FOR (S) HIT-302012.A35 302012	£1.67	£2.00
160 - BOLT (BLACK) M6 FOR USA HIT-6696974.A29 6696974	£1.67	£2.00
161 - BARRIER FOR EUROPE (SL) HIT-6696973.A8 6696973	£8.35	£10.02
162 - HEX. HOLE BOLT M5X25/S FOR (S) HIT-6684709.A149 6684709	£1.67	£2.00
163 - HANDLE HOLDER (A) SINCE 7.2015 FOR (S) HIT-6600500.A19 6600500	-
164 - HANDLE (LEFT) FOR (S) HIT-6698638.A5 6698638	-
165 - HANDLE HOLDER (B) SINCE 7.2015 FOR (S) HIT-6600501.A12 6600501	-
166 - HANDLE HOLDER (C) FOR (S) HIT-6696578.A1 6696578	-
*167 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE (SL) HIT-6684714.A34 6684714	£1.67	£2.00
*167 - HEX. HOLE BUTTON BOLT M6X25 FOR (S) HIT-6684714.A35 6684714	£1.67	£2.00
*168 - GEAR CASE ASS'Y 3BB (A) INCLUD.169-175 HIT-6699402.A17 6699402	-
*168 - GEAR CASE ASS'Y 3BB (B) INCLUD.169 HIT-6696976.A14 6696976	£60.73	£72.88
169 - BOLT (W/PLUS) M6X8 HIT-6684737.A29 6684737	-
170 - CUTTER HOLDER (A) FOR EUROPE HIT-6696977.A8 6696977	£18.01	£21.61
171 - CUTTER HOLDER (B) FOR EUROPE HIT-6698659.A13 6698659	£15.99	£19.19
172 - NUT COVER FOR EUROPE HIT-6699188.A1 6699188	£10.93	£13.12
173 - U-NUT (LEFT HAND) M10 FOR EUROPE HIT-335759.A50 335759	£1.67	£2.00
174 - SCREW 5X12/W.S HIT-6695414.A65 6695414	£1.67	£2.00
175 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) HIT-949664.A10 949664	£4.33	£5.20
176 - COVER BRACKET FOR EUROPE HIT-6696494.A16 6696494	£3.02	£3.63
*177 - CAUTION LABEL (HEDGE) HIT-6600328.A8 6600328	-
*178 - CAUTION MARK (USA) HIT-6600448.A6 6600448	-
*178 - CAUTION MARK FOR (S) HIT-6600449.A0 6600449	-
179 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 FOR USA HIT-6685064.A33 6685064	-
180 - SPRING WASHER M6 (10 PCS.) FOR USA HIT-949455.A103 949455	£1.67	£2.00
181 - COVER BRACKET FOR USA HIT-6696978.A20 6696978	-
182 - LEVEL MARK (B) FOR USA HIT-6600446.A14 6600446	-
183 - LEVEL MARK FOR EUROPE HIT-6684851.A17 6684851	-
184 - MAIN PIPE COMP. HIT-6696558.A17 6696558	£22.07	£26.48
185 - DRIVE SHAFT HIT-6698514.A11 6698514	£19.46	£23.35
186A - HANGER FOR EUROPE HIT-6600504.A19 6600504	£1.67	£2.00
187 - CAP (A) FOR EUROPE HIT-6698515.A21 6698515	-
*188 - COVER HIT-6698794.A25 6698794	£17.58	£21.09
*188 - COVER FOR USA HIT-6698937.A11 6698937	£22.42	£26.91
189 - NYLON CORD HIT-000000.A379 000000	-
190 - SET SCREW HIT-6698795.A8 6698795	-
*191 - REEL HIT-6698796.A33 6698796	£7.12	£8.54
*191 - REEL FOR USA HIT-6698939.A10 6698939	-
*192 - RETURN SPRING HIT-6698797.A5 6698797	£1.67	£2.00
*192 - RETURN SPRING FOR USA HIT-6698941.A10 6698941	-
*193 - BUTTON HIT-6698798.A32 6698798	£7.12	£8.54
*193 - BUTTON FOR USA HIT-6698940.A8 6698940	-
*194 - CORD GUIDE HIT-6698799.A7 6698799	£7.12	£8.54
*194 - CORD GUIDE FOR USA HIT-6698942.A8 6698942	-
*195 - CASE HIT-6698800.A24 6698800	£14.11	£16.93
*195 - CASE FOR USA HIT-6698938.A8 6698938	-
*196 - NYLON HEAD ASS'Y INCLUD.188-195 HIT-6696454.A29 6696454	£48.12	£57.75
*196 - NYLON HEAD ASS'Y INCLUD.188-195 FOR USA HIT-6698639.A12 6698639	£31.92	£38.31
197 - GUARD FOR EUROPE HIT-6696980.A15 6696980	£27.49	£32.99
198 - GUARD HOLDER FOR EUROPE HIT-6696951.A40 6696951	£3.02	£3.63
199 - COVER GUARD FOR EUROPE HIT-6696950.A0 6696950	£11.18	£13.42
200 - TAPPING SCREW 4X14 FOR EUROPE HIT-6684751.A81 6684751	£1.67	£2.00
201 - KNIFE FOR EUROPE HIT-6684750.A20 6684750	£3.64	£4.37
202 - GUARD FOR USA HIT-6696981.A16 6696981	-
203 - BOLT WASHER M4 (BLACK) FOR USA HIT-323210.A42 323210	-
204 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR USA HIT-6685068.A49 6685068	-
205 - NUT M4 (10 PCS.) FOR USA HIT-949554.A57 949554	£1.67	£2.00
206 - KNIFE FOR USA HIT-6696584.A17 6696584	-
207 - HANDLE HOLDER (A).(B) SET INCLUD.163 HIT-6600499.A19 6600499	-
208 - MACHINE SCREW M5X10 (10 PCS.) FOR EUROPE HIT-949236.A89 949236	£1.67	£2.00
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A51 6684764	£7.64	£9.17
502 - WRENCH 8X10 FOR EUROPE HIT-6696596.A6 6696596	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A138 944458	£1.67	£2.00
504A - CUTTER COVER FOR (S) HIT-6684768.A52 6684768	-
505 - BLADE 3TX255XT1.8 FOR (S) HIT-6698711.A8 6698711	-
506 - PROTECTIVE GLASSES HIT-875769.A90 875769	-
507A - SHOULDER BELT SINGLE FOR EUROPE (SL) HIT-6601420.A36 6601420	-
508 - SHOULDER BELT ASS'Y W FOR (S) HIT-6696184.A16 6696184	£25.30	£30.36
509 - MEGA TWIST CORD FOR USA HIT-6698640.A3 6698640	-
510 - CUTTER HOLDER (A) FOR USA HIT-6696977.A10 6696977	£18.01	£21.61

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki TCG27EAP2 Engine Brush Cutter Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki TCG27EAP2 Engine Brush Cutter Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki TCG27EAP2 Engine Brush Cutter Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
