Hitachi / Hikoki TCH22EPA Engine Hedge Trimmer Spare Parts

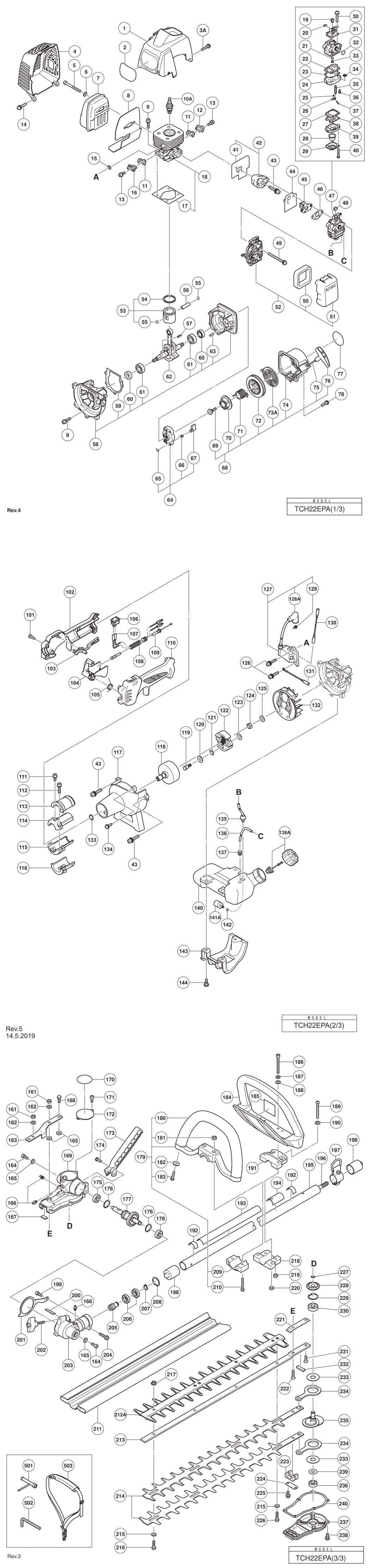

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCH22EPA Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - CYLINDER COVER HIT-6697680.A1 6697680	-
2 - TANAKA LABEL HIT-6696339.A6 6696339	-
3A - M4 SCREW (BLACK) HIT-6699780.A2 6699780	-
4 - MUFFLER PROTECTOR HIT-6699015.A1 6699015	-
5 - HEX. HOLE BOLT M6X55 HIT-6684638.A23 6684638	£1.67	£2.00
6 - BOLT WASHER 6 HIT-6684639.A69 6684639	£1.67	£2.00
7 - MUFFLER HIT-6698477.A5 6698477	£15.61	£18.73
8 - HEAT PROTECTION PANEL HIT-6696553.A9 6696553	£3.02	£3.63
9 - HEX. HOLE BOLT 5X20S HIT-6695491.A20 6695491	£1.67	£2.00
10A - SPARK PLUG ASS'Y BMR7A HIT-6699316.A7 6699316	£12.43	£14.92
11 - INTAKE COVER PACKING HIT-6696922.A2 6696922	-
12 - INTAKE COVER (A) HIT-6696535.A11 6696535	£1.67	£2.00
13 - HEX. HOLE BOLT 4X12WS HIT-6695507.A5 6695507	-
14 - SCREW 5X16/PS HIT-6695386.A23 6695386	£1.67	£2.00
15 - WASHER T1.6 HIT-6684600.A23 6684600	-
16 - INTAKE COVER (B) HIT-6696536.A11 6696536	-
17 - CYLINDER PACKING HIT-6696920.A0 6696920	-
18 - CYLINDER SET PN INCLUD.17 HIT-6697962.A1 6697962	-
19 - SWIVEL HIT-6684697.A86 6684697	-
20 - STOP RING HIT-6684696.A99 6684696	-
21 - O-RING HIT-6684695.A106 6684695	£1.67	£2.00
22 - PUMP GASKET HIT-6684692.A62 6684692	£17.28	£20.73
23 - PUMP DIAPHRAGM HIT-6684693.A92 6684693	£5.70	£6.84
24 - PUMP BODY HIT-6699942.A7 6699942	-
25 - METERING LEVER SPRING HIT-6696323.A2 6696323	-
26 - CONTROL LEVER HIT-6685217.A67 6685217	-
27 - DIAPHRAGM GASKET HIT-6684691.A40 6684691	£5.70	£6.84
28 - PRIMING BODY HIT-6684689.A41 6684689	£5.87	£7.04
29 - DIAPHRAGM COVER HIT-6684688.A58 6684688	£5.70	£6.84
30 - THROTTLE SET SCREW HIT-6684698.A31 6684698	-
31 - THROTTLE VALVE HIT-6684883.A9 6684883	£32.24	£38.69
32 - O-RING P-15 HIT-6695670.A1 6695670	-
33 - MAIN JET #32 HIT-6699943.A3 6699943	-
34 - INLET SCREEN HIT-6684700.A117 6684700	-
35 - NEEDLE VALVE HIT-6685215.A96 6685215	£6.79	£8.15
36 - HINGE PIN SET SCREW HIT-6691305.A10 6691305	-
37 - HINGE PIN HIT-6685219.A90 6685219	-
38 - METERING DIAPHRAGM HIT-6684690.A64 6684690	£24.05	£28.86
39 - PRIMING PUMP COMP. HIT-6684687.A41 6684687	£9.27	£11.12
40 - SET SCREW HIT-6684699.A56 6684699	-
41 - INTAKE PACKING HIT-6696933.A2 6696933	-
42 - CARBURETOR INSULATOR SET PN INCLUD.41 HIT-6699016.A0 6699016	-
43 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A24 6698844	£1.67	£2.00
44 - CARBURETOR PACKING HIT-6684616.A22 6684616	£1.67	£2.00
45 - THROTTLE WIRE FIXING PLATE HIT-6684629.A5 6684629	-
46 - CARBURETOR GASKET HIT-6684615.A20 6684615	£1.67	£2.00
47 - CARBURETOR ASS'Y INCLUD.19-40 HIT-6698960.A4 6698960	£47.62	£57.14
48 - SWIVEL CAP HIT-6691337.A16 6691337	£1.67	£2.00
49 - PLUS SCREW 5X60WS HIT-6695431.A13 6695431	-
50 - CLEANER ELEMENT HIT-6690347.A28 6690347	£7.15	£8.58
51 - AIR CLEANER CAP HIT-6690139.A5 6690139	£7.15	£8.58
52 - AIR FILTER ASS'Y INCLUD.50 HIT-6698961.A6 6698961	£8.46	£10.15
53 - PISTON SET INCLUD.54 HIT-6697682.A2 6697682	-
54 - PISTON RING HIT-6686118.A4 6686118	£6.94	£8.33
55 - CIR CLIP HIT-6684590.A93 6684590	£1.67	£2.00
56 - PISTON PIN HIT-6696944.A9 6696944	£5.61	£6.73
57 - WOODRUFF KEY 3X13X4.5 HIT-6684899.A46 6684899	-
58 - CRANK CASE ASS'Y INCLUD.59-61 HIT-6697686.A2 6697686	-
59 - CRANK CASE PACKING HIT-6696925.A0 6696925	-
60 - OIL SEAL TB 12227 HIT-6684607.A195 6684607	£4.07	£4.88
61 - BALL BEARING 6001 C3 HIT-6684608.A12 6684608	£5.70	£6.84
62 - CRANK SHAFT COMP. HIT-6699017.A2 6699017	-
63 - KNOCK PIN 4X12 HIT-6695521.A7 6695521	-
64 - STARTER PULLEY ASS'Y INCLUD.65-67 HIT-6684681.A60 6684681	£18.16	£21.79
65 - D4E RETAINING RING HIT-6685101.A145 6685101	-
66 - STARTER PAWL SPRING HIT-6684684.A53 6684684	£3.29	£3.95
67 - STARTER PAWL HIT-6684685.A58 6684685	£5.07	£6.08
69 - SET SCREW HIT-6684679.A87 6684679	£2.98	£3.57
70 - CAM PLATE HIT-6684678.A7 6684678	£5.17	£6.20
71 - DAMPER SPRING HIT-6684677.A62 6684677	£5.70	£6.84
73A - RECOIL SPRING HIT-6684675.A72 6684675	£8.82	£10.58
74 - RECOIL STARTER BODY COMP. HIT-6684673.A5 6684673	£12.98	£15.58
76 - STARTER HANDLE HIT-6684680.A55 6684680	£5.87	£7.04
77 - NAME PLATE HIT-000000.A492 000000	-
78 - SCREW 4X16/PS HIT-6695374.A3 6695374	£1.67	£2.00
101 - TAPPING SCREW D4 HIT-6697190.A4 6697190	£1.67	£2.00
102 - HANDLE (B) HIT-6696487.A11 6696487	£5.88	£7.06
103 - LOCK LEVER HIT-6696490.A33 6696490	£2.84	£3.41
104 - LEVER HIT-6696488.A28 6696488	£1.67	£2.00
105 - SPRING (A) HIT-6698819.A10 6698819	£1.67	£2.00
106 - STOP SWITCH HIT-6685239.A10 6685239	£6.88	£8.25
107 - STOP SWITCH CORD HIT-6698820.A0 6698820	£4.28	£5.13
108 - PROTECTION TUBE HIT-6698822.A0 6698822	£1.67	£2.00
109 - THROTTLE WIRE HIT-6698821.A10 6698821	£6.42	£7.70
110 - HANDLE (A) HIT-6696486.A23 6696486	£5.88	£7.06
111 - HEX.HOLE BOLT M5X12/S HIT-6684667.A22 6684667	£1.67	£2.00
112 - HEX. HOLE BOLT M5X25/S HIT-6684709.A138 6684709	£1.67	£2.00
113 - ANTI-VIBE RUBBER (A) HIT-6684666.A7 6684666	£3.58	£4.29
114 - PIPE HOLDER (A) HIT-6698643.A20 6698643	£3.56	£4.27
115 - PIPE HOLDER (B) HIT-6698644.A27 6698644	£3.56	£4.27
116 - ANTI-VIBE RUBBER (B) HIT-6684665.A3 6684665	£3.58	£4.29
118 - CLUTCH DRUM COMP. HIT-6684663.A3 6684663	£22.38	£26.85
119 - STEP BOLT HIT-6689627.A14 6689627	£1.67	£2.00
120 - BENT WASHER 8 HIT-6684648.A62 6684648	£1.67	£2.00
121 - CLUTCH PLATE (A) HIT-6689528.A2 6689528	£1.67	£2.00
122 - CLUTCH SET HIT-6697655.A8 6697655	£9.68	£11.62
123 - CLUTCH WASHER B HIT-6697619.A32 6697619	£1.67	£2.00
124 - HEX. NUT M8 HIT-6684612.A64 6684612	-
125 - BOLT WASHER M8 HIT-6684611.A57 6684611	-
126 - HEX. HOLE BOLT 4X18WS HIT-6695508.A44 6695508	£1.67	£2.00
127 - IGNITION COIL ASS'Y INCLUD.128A HIT-6699286.A1 6699286	-
128A - PLUG CAP HIT-6601421.A14 6601421	£1.67	£2.00
129 - METAL FITTING OF PLUG CAP HIT-6699933.A0 6699933	-
130 - CORD HIT-6698992.A6 6698992	-
131 - CORD HIT-6697690.A1 6697690	-
132 - MAGNETO ROTOR HIT-6699289.A21 6699289	£24.52	£29.43
133 - STOP RING C-12 OUTER HIT-6684664.A31 6684664	£1.67	£2.00
134 - TAPPING SCREW D4.5X16 HIT-6684636.A19 6684636	£1.67	£2.00
135 - SHIELD TUBE 3X5X180 HIT-6684618.A20 6684618	£6.12	£7.35
136 - FUEL PIPE 3X5X95 HIT-6692358.A0 6692358	-
137 - RETURN GROMMET HIT-6684627.A106 6684627	£1.67	£2.00
138A - FUEL TANK CAP ASS'Y INCLUD.TANK CAP CHAIN HIT-6698402.A68 6698402	-
139 - TANK CAP CHAIN HIT-6684625.A47 6684625	-
140 - TANK HIT-6696569.A2 6696569	£7.75	£9.30
141A - PUMP FILTER BODY COMP HIT-66A3864.A92 66A3864	-
142 - CLIP 1 HIT-6684619.A21 6684619	£1.67	£2.00
143 - STAND HIT-6696556.A8 6696556	-
144 - FLANGE BOLT HIT-6696557.A6 6696557	£1.67	£2.00
161 - LOCK NUT 6 UPS-P HIT-6695175.A16 6695175	£1.67	£2.00
162 - BOLT WASHER 6 HIT-6684639.A70 6684639	£1.67	£2.00
163 - SUPPORT PLATE HIT-6690744.A7 6690744	£17.82	£21.39
164 - HEX. HOLE BOLT 6X12 HIT-6695078.A8 6695078	£1.67	£2.00
165 - SPECIAL WASHER B HIT-6684822.A34 6684822	£1.67	£2.00
166 - GREASE NIPPLE COMP. HIT-6688643.A46 6688643	£1.67	£2.00
167 - GREASE STOP (B) HIT-6686659.A3 6686659	£1.67	£2.00
168 - PLUS BOLT 6X14 HIT-6695016.A16 6695016	-
170 - CAUTION MARK A TANAKA HIT-6694538.A0 6694538	-
171 - HEX HOLE BOLT 4X8 HIT-6695035.A9 6695035	-
172 - GEAR CASE COVER (A) HIT-6689167.A8 6689167	-
173 - HANDLE HIT-6688089.A3 6688089	£7.75	£9.30
174 - HEX HOLE BUTTON SCREW 6X15 HIT-6695079.A12 6695079	£1.67	£2.00
175 - BALL BEARING 608DD HIT-608DDM.A36 608DDM	£6.35	£7.62
176 - RETAINING RING C-TYPE D22 HIT-6695293.A13 6695293	£1.67	£2.00
177 - GEAR SHAFT HIT-6698957.A3 6698957	£53.49	£64.19
178 - BALL BEARING 608VV HIT-333945.A2 333945	-
179 - LOOP HANDLE ASS'Y ANTI-VIB. INCLUD.180-183 HIT-6696088.A5 6696088	-
180 - HANDLE GRIP FOR (S) HIT-6691098.A18 6691098	£10.90	£13.08
181 - HEX.NUT 6 FOR (S) HIT-6684835.A16 6684835	£1.67	£2.00
182 - BRAKE SHAFT WASHER FOR (S) HIT-6689681.A40 6689681	£1.67	£2.00
183 - TAPPING SCREW 5X20 FOR (S) HIT-6695255.A1 6695255	-
184 - FRONT HANDLE FOR (SM) HIT-6688096.A3 6688096	£16.62	£19.94
186 - HEX. HOLE BOLT 5X55 FOR (SM) HIT-6695056.A4 6695056	-
187 - SPRING WASHER 5 FOR (SM) HIT-6684834.A42 6684834	£1.67	£2.00
188 - WASHER M5 (BLACK) FOR (SM) HIT-6684918.A95 6684918	£1.67	£2.00
189 - HEX. HOLE BUTTON BOLT M6X25 FOR (SM) HIT-6684714.A38 6684714	£1.67	£2.00
190 - WASHER 6 FOR (SM) HIT-6695194.A4 6695194	-
191 - BRACKET A FOR (SM) HIT-6688103.A2 6688103	-
192 - LEVEL MARK HIT-6684851.A14 6684851	-
193 - CAUTION PLATE TANAKA HIT-000000.A493 000000	-
194 - LEVEL MARK FOR (S) HIT-6684852.A29 6684852	-
*195 - MAIN PIPE L=945 FOR (S) HIT-6699930.A0 6699930	-
*195 - MAIN PIPE L=600 FOR (SM) HIT-6699931.A2 6699931	-
*196 - DRIVE SHAFT 978L FOR (S) HIT-6689440.A3 6689440	£50.06	£60.07
*196 - DRIVE SHAFT 633L FOR (SM) HIT-6689439.A0 6689439	-
197 - HANGER D24 HIT-6689277.A1 6689277	-
198 - CAP (A) HIT-6698515.A23 6698515	-
199 - HEX. HOLE BOLT 5X10 HIT-6695042.A33 6695042	£1.67	£2.00
200 - GREASE STOP (D) HIT-6686669.A1 6686669	£1.67	£2.00
201 - ANGLE LIMITER FOR (SM) HIT-6688159.A2 6688159	-
202 - HANDLE KNOB A COMP. HIT-6691200.A9 6691200	£12.10	£14.52
203 - GEAR CASE A 1 HIT-6688653.A4 6688653	£38.36	£46.03
204 - HEX. HOLE BOLT M5X25/S HIT-6684709.A141 6684709	£1.67	£2.00
205 - PINION HIT-6698958.A3 6698958	£16.85	£20.22
207 - STOP RING S-12 1 HIT-6695302.A4 6695302	£1.67	£2.00
208 - STOP RING C-24 1 HIT-6684732.A25 6684732	£1.67	£2.00
209 - HANDLE BRACKET A FOR (S) HIT-6691134.A4 6691134	£3.10	£3.72
210 - BOLT 6X43/P (BLACK) FOR (S) HIT-6684838.A25 6684838	£1.67	£2.00
211 - CUTTER COVER HIT-6687301.A12 6687301	-
212A - PROTECTION PLATE FOR (SM) HIT-6601208.A1 6601208	-
213 - CUTTER GUIDE 625.5MM HIT-6687125.A13 6687125	£37.68	£45.21
214 - CUTTER (A) HIT-6687079.A11 6687079	£46.75	£56.10
215 - WASHER 7 BLACK HIT-6687187.A34 6687187	£1.67	£2.00
216 - CUTTER FIXING BOLT B HIT-6687162.A16 6687162	£1.67	£2.00
217 - FLANGE NUT 6 HIT-6695170.A17 6695170	£1.67	£2.00
218 - BRACKET B FOR (SM) HIT-6688104.A4 6688104	-
219 - HEX.NUT 6 FOR (SM) HIT-6684835.A17 6684835	£1.67	£2.00
220 - NUT M5 (BLACK) FOR (SM) HIT-6685075.A12 6685075	-
221 - SPACER HIT-6688633.A7 6688633	-
222 - HEX. HOLE FLUSH BOLT 6X25 HIT-6695075.A13 6695075	£1.67	£2.00
223 - GREASE STOP (A) HIT-6686647.A8 6686647	£1.67	£2.00
224 - CAM ROD PLATE HIT-6686826.A8 6686826	£1.67	£2.00
225 - HEX. HOLE BOLT 4X10S HIT-6695484.A34 6695484	£1.67	£2.00
226 - FIXING BOLT A M6 HIT-6687158.A45 6687158	£1.67	£2.00
227 - RETAINING RING E-TYPE D6 HIT-6695310.A4 6695310	£1.67	£2.00
228 - GEAR 2 HIT-6698959.A3 6698959	£28.02	£33.63
229 - RETAINING RING C-TYPE D26 HIT-6695294.A26 6695294	-
230 - BALL BEARING #6000ZZ 1 HIT-6695525.A2 6695525	-
231 - HEX HOLE FLUSH SCREW 6X16 HIT-6695073.A7 6695073	£1.67	£2.00
232 - GREASE STOP (C) HIT-6686666.A4 6686666	-
233 - CAM-ROD GUIDE PLATE HIT-6686611.A4 6686611	£2.98	£3.57
234 - CAM ROD (A) HIT-000000.A495 000000	-
235 - CAM SHAFT COMP. HIT-6686790.A13 6686790	£62.78	£75.33
236 - BALL BEARING 608ZZC3 HIT-6698772.A26 6698772	£2.84	£3.41
237 - GEAR CASE COVER (B) HIT-6699737.A3 6699737	-
238 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 HIT-6684595.A33 6684595	£1.67	£2.00
239 - SPECIAL WASHER HIT-6699934.A6 6699934	-
240 - GEAR CASE PACKING HIT-6699733.A3 6699733	£1.67	£2.00
501 - COMBI. BOX SPANNER 10X19 1 HIT-6685997.A17 6685997	-
502 - HEX. BAR WRENCH 4MM HIT-6684813.A39 6684813	-
503 - SHOULDER BELT HIT-6692867.A8 6692867	£8.37	£10.04

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki TCH22EPA Engine Hedge Trimmer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki TCH22EPA Engine Hedge Trimmer Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki TCH22EPA Engine Hedge Trimmer Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
