Hitachi / Hikoki TCH27EPA Engine Hedge Trimmer Spare Parts

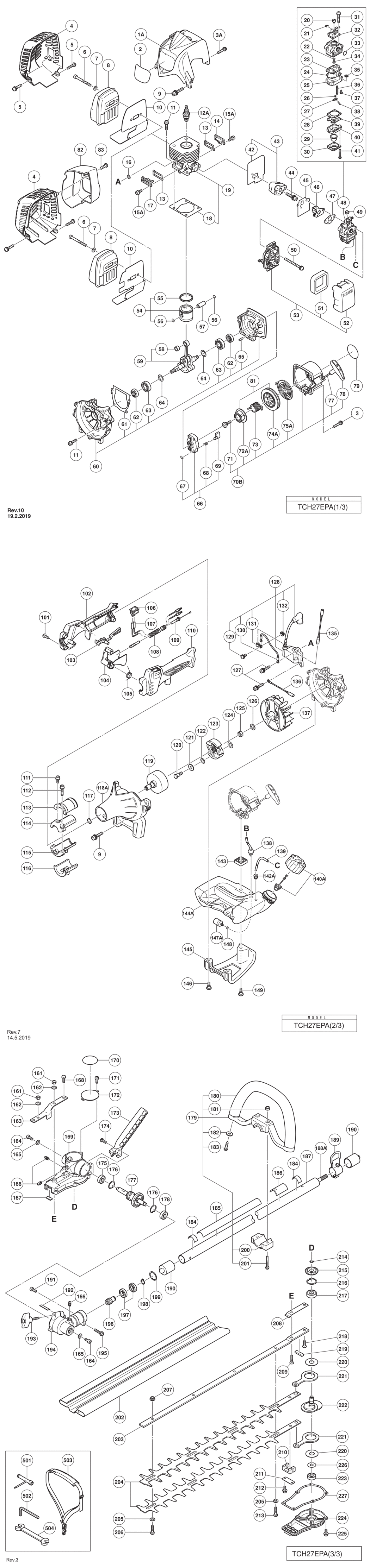

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCH27EPA Engine Hedge Trimmer

	Ex VAT	Inc VAT
1A - CYLINDER COVER HIT-6697921.A5 6697921	£8.59	£10.31
2 - TANAKA LABEL HIT-000000.A2650 000000	-
3A - M4 SCREW (BLACK) HIT-6699780.A1 6699780	-
4 - MUFFLER COVER HIT-6698493.A8 6698493	£5.88	£7.06
*4 - MUFFLER COVER FOR EUROPE HIT-6600336.A0 6600336	£10.02	£12.02
5 - SCREW 5X16/PS HIT-6695386.A19 6695386	£1.67	£2.00
6 - HEX. HOLE BOLT M6X55 HIT-6684638.A29 6684638	£1.67	£2.00
*6 - HEX. HOLE BOLT M6X65 FOR EUROPE HIT-6695067.A11 6695067	£1.67	£2.00
7 - BOLT WASHER 6 HIT-6684639.A32 6684639	£1.67	£2.00
8 - MUFFLER HIT-6698477.A0 6698477	£15.61	£18.73
*8 - MUFFLER (B) FOR EUROPE HIT-6600461.A3 6600461	-
9 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-6698950.A33 6698950	-
10 - HEAT PROTECTION PANEL HIT-6698491.A5 6698491	£5.88	£7.06
*10 - HEAT PROTECTION PANEL FOR EUROPE HIT-6600324.A21 6600324	-
11 - HEX. HOLE BOLT 5X20S HIT-6695491.A17 6695491	£1.67	£2.00
*12A - SPARK PLUG ASS'Y BMR7A HIT-6699316.A22 6699316	£12.43	£14.92
*12A - SPARK PLUG ASS'Y CJ6 EXCEPT FOR AUS HIT-6699322.A22 6699322	£3.73	£4.48
13 - COVER PACKING HIT-6697684.A4 6697684	-
14 - SCAVENGING COVER (A) HIT-6698484.A1 6698484	-
15A - HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 HIT-6684595.A45 6684595	£1.67	£2.00
16 - WASHER T1.6 HIT-6684600.A16 6684600	-
17 - SCAVENGING COVER (B) HIT-6698485.A21 6698485	-
18 - CYLINDER GASKET HIT-6697681.A2 6697681	-
19 - CYLINDER SET PN INCLUD.18 HIT-6697679.A3 6697679	£39.62	£47.54
20 - SWIVEL HIT-6684697.A149 6684697	-
21 - STOP RING HIT-6684696.A12 6684696	-
22 - O-RING HIT-6684695.A182 6684695	£1.67	£2.00
23 - PUMP GASKET HIT-6684692.A106 6684692	£17.28	£20.73
24 - PUMP DIAPHRAGM HIT-6684693.A11 6684693	£5.70	£6.84
25 - PUMP BODY HIT-6699942.A6 6699942	-
26 - METERING LEVER SPRING HIT-6696323.A7 6696323	-
27 - CONTROL LEVER HIT-6685217.A50 6685217	-
28 - DIAPHRAGM GASKET HIT-6684691.A0 6684691	£5.70	£6.84
29 - PRIMING BODY HIT-6684689.A1 6684689	£5.87	£7.04
30 - DIAPHRAGM COVER HIT-6684688.A98 6684688	£5.70	£6.84
31 - THROTTLE SET SCREW HIT-6684698.A7 6684698	-
32 - THROTTLE VALVE HIT-6684883.A4 6684883	£32.24	£38.69
33 - O-RING P-15 HIT-6695670.A6 6695670	-
34 - MAIN JET #32 HIT-6699943.A4 6699943	-
35 - INLET SCREEN HIT-6684700.A4 6684700	-
36 - NEEDLE VALVE HIT-6685215.A64 6685215	£6.79	£8.15
37 - HINGE PIN SET SCREW HIT-6691305.A7 6691305	-
38 - HINGE PIN HIT-6685219.A63 6685219	-
39 - METERING DIAPHRAGM HIT-6684690.A110 6684690	£24.05	£28.86
40 - PRIMING PUMP COMP. HIT-6684687.A2 6684687	£9.27	£11.12
41 - SET SCREW HIT-6684699.A98 6684699	-
42 - INTAKE PACKING HIT-6697691.A4 6697691	-
43 - CARBURETOR INSULATOR SET PN INCLUD.42 HIT-6698954.A0 6698954	-
44 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A9 6698844	£1.67	£2.00
45 - CARBURETOR PACKING HIT-6684616.A37 6684616	£1.67	£2.00
46 - THROTTLE WIRE FIXING PLATE HIT-6684629.A0 6684629	-
47 - CARBURETOR GASKET HIT-6684615.A10 6684615	£1.67	£2.00
48 - CARBURETOR ASS'Y INCLUD.20-41 HIT-6698960.A0 6698960	£47.62	£57.14
50 - PLUS SCREW 5X60WS HIT-6695431.A21 6695431	-
51 - CLEANER ELEMENT HIT-6690347.A38 6690347	£7.15	£8.58
52 - AIR CLEANER CAP HIT-6690139.A1 6690139	£7.15	£8.58
53 - AIR FILTER ASS'Y INCLUD.51 HIT-6698961.A10 6698961	£8.46	£10.15
54 - PISTON SET PN INCLUD.55 HIT-6697683.A1 6697683	£15.61	£18.73
55 - PISTON RING HIT-6686121.A21 6686121	£6.47	£7.76
56 - CIR CLIP HIT-6684590.A118 6684590	£1.67	£2.00
57 - PISTON PIN HIT-6684591.A19 6684591	£3.29	£3.95
58 - NEEDLE BEARING HK0810B HIT-6695590.A6 6695590	-
59 - CRANK SHAFT ASS'Y INCLUD.58 HIT-6698962.A0 6698962	-
60 - CRANK CASE ASS'Y INCLUD.61-63 HIT-6697687.A2 6697687	-
61 - CRANK CASE PACKING HIT-6697688.A5 6697688	£1.67	£2.00
62 - OIL SEAL TB 12227 HIT-6684607.A110 6684607	£4.07	£4.88
63 - BALL BEARING 6001 C3 HIT-6684608.A90 6684608	£5.70	£6.84
64 - CRANK SHAFT WASHER HIT-6697685.A1 6697685	-
65 - KNOCK PIN 4X12 HIT-6695521.A14 6695521	-
66 - STARTER PULLEY ASS'Y INCLUD.67-69 HIT-6684681.A109 6684681	£18.16	£21.79
67 - D4E RETAINING RING HIT-6685101.A112 6685101	-
68 - STARTER PAWL SPRING HIT-6684684.A11 6684684	£3.29	£3.95
69 - STARTER PAWL HIT-6684685.A96 6684685	£5.07	£6.08
70B - RECOIL STARTER BODY ASS'Y INCLUD.71-75A HIT-6601570.A26 6601570	£23.15	£27.78
71 - SET SCREW HIT-6684679.A152 6684679	£2.98	£3.57
72A - CAM PLATE SINCE TL000001 HIT-6699996.A82 6699996	£4.28	£5.13
73 - DAMPER SPRING HIT-6684677.A110 6684677	£5.70	£6.84
74A - STARTER ROPE REEL SINCE TL000001 HIT-6699997.A7 6699997	-
75A - RECOIL SPRING HIT-6684675.A9 6684675	£8.82	£10.58
77 - STARTER ROPE 3.5X860 HIT-6684674.A89 6684674	£5.70	£6.84
78 - STARTER HANDLE HIT-6684680.A6 6684680	£5.87	£7.04
79 - NAME PLATE HIT-000000.A2651 000000	-
81 - CAMPLATE ASS'Y INCLUD.72A HIT-6699691.A38 6699691	£7.75	£9.30
82 - MUFFLER REAR COVER FOR EUROPE HIT-6600335.A14 6600335	£13.36	£16.03
83 - TAPPING SCREW D4 FOR EUROPE HIT-6600332.A13 6600332	£1.67	£2.00
101 - TAPPING SCREW D4 HIT-6697190.A2 6697190	£1.67	£2.00
102 - HANDLE (B) HIT-6696487.A1 6696487	£5.88	£7.06
103 - LOCK LEVER HIT-6696490.A43 6696490	£2.84	£3.41
104 - LEVER HIT-6696488.A39 6696488	£1.67	£2.00
105 - SPRING (A) HIT-6698819.A8 6698819	£1.67	£2.00
106 - STOP SWITCH HIT-6685239.A13 6685239	£6.88	£8.25
107 - STOP SWITCH CORD HIT-6698820.A2 6698820	£4.28	£5.13
108 - PROTECTION TUBE HIT-6698822.A2 6698822	£1.67	£2.00
109 - THROTTLE WIRE HIT-6698821.A8 6698821	£6.42	£7.70
110 - HANDLE (A) HIT-6696486.A33 6696486	£5.88	£7.06
111 - HEX.HOLE BOLT M5X12/S HIT-6684667.A1 6684667	£1.67	£2.00
112 - HEX. HOLE BOLT M5X25/S HIT-6684709.A201 6684709	£1.67	£2.00
113 - ANTI-VIBE RUBBER (A) HIT-6684666.A9 6684666	£3.58	£4.29
114 - PIPE HOLDER (A) HIT-6698643.A8 6698643	£3.56	£4.27
115 - PIPE HOLDER (B) HIT-6698644.A39 6698644	£3.56	£4.27
116 - ANTI-VIBE RUBBER (B) HIT-6684665.A1 6684665	£3.58	£4.29
117 - STOP RING C-12 OUTER HIT-6684664.A47 6684664	£1.67	£2.00
118A - FAN CASE HIT-6697922.A8 6697922	-
119 - CLUTCH DRUM COMP. HIT-6684663.A1 6684663	£22.38	£26.85
120 - STEP BOLT HIT-6689627.A9 6689627	£1.67	£2.00
121 - BENT WASHER 8 HIT-6684648.A84 6684648	£1.67	£2.00
122 - CLUTCH PLATE (A) HIT-6689528.A11 6689528	£1.67	£2.00
123 - CLUTCH SET HIT-6697655.A5 6697655	£9.68	£11.62
124 - CLUTCH WASHER B HIT-6697619.A28 6697619	£1.67	£2.00
125 - HEX. NUT M8 HIT-6684612.A91 6684612	-
126 - BOLT WASHER M8 HIT-6684611.A34 6684611	-
127 - HEX. HOLE BOLT 4X18WS HIT-6695508.A66 6695508	£1.67	£2.00
*128 - IGNITION COIL HIT-6699936.A3 6699936	-
*128 - IGNITION COIL (A) ASS'Y INCLUD.129-132 FOR EUROPE HIT-6699937.A0 6699937	£52.10	£62.52
130 - EARTH CORD FOR EUROPE HIT-6699940.A7 6699940	-
131 - CLIP FOR EUROPE HIT-6699939.A0 6699939	-
132 - FLANGE NUT M4 FOR EUROPE HIT-6699938.A7 6699938	-
135 - CORD HIT-6698992.A3 6698992	-
136 - CORD FOR ASIA HIT-6697690.A3 6697690	-
137 - MAGNETO ROTOR COMP. HIT-6698396.A4 6698396	£11.52	£13.82
138 - SHIELD TUBE 3X5X180 HIT-6684618.A26 6684618	£6.12	£7.35
139 - FUEL PIPE 3X5X85 HIT-6684880.A31 6684880	£1.67	£2.00
140A - FUEL TANK CAP ASS'Y INCLUD.TANK CAP CHAIN HIT-6698402.A86 6698402	-
141 - TANK CAP CHAIN HIT-6684625.A24 6684625	-
142A - RETURN GROMMET HIT-6697846.A134 6697846	£1.68	£2.01
143 - SPACER HIT-6698496.A14 6698496	-
144A - TANK (B) HIT-6600317.A29 6600317	£12.36	£14.83
145 - STAND HIT-6694787.A35 6694787	£3.56	£4.27
146 - FLANGE BOLT HIT-6696557.A2 6696557	£1.67	£2.00
147A - PUMP FILTER BODY COMP HIT-66A3864.A64 66A3864	-
148 - CLIP 1 HIT-6684619.A7 6684619	£1.67	£2.00
149 - FLANGE BOLT HIT-000000.A2652 000000	-
161 - LOCK NUT 6 UPS-P HIT-6695175.A4 6695175	£1.67	£2.00
162 - BOLT WASHER 6 HIT-6684639.A33 6684639	£1.67	£2.00
163 - SUPPORT PLATE HIT-6690744.A1 6690744	£17.82	£21.39
164 - HEX. HOLE BOLT 6X12 HIT-6695078.A1 6695078	£1.67	£2.00
165 - SPECIAL WASHER B HIT-6684822.A53 6684822	£1.67	£2.00
166 - GREASE NIPPLE COMP. HIT-6688643.A63 6688643	£1.67	£2.00
167 - GREASE STOP (B) HIT-6686659.A8 6686659	£1.67	£2.00
168 - PLUS BOLT 6X14 HIT-6695016.A8 6695016	-
170 - CAUTION MARK A TANAKA HIT-6694538.A2 6694538	-
171 - HEX HOLE BOLT 4X8 HIT-6695035.A16 6695035	-
172 - GEAR CASE COVER (A) HIT-6689167.A15 6689167	-
173 - HANDLE HIT-6688089.A9 6688089	£7.75	£9.30
174 - HEX HOLE BUTTON SCREW 6X15 HIT-6695079.A21 6695079	£1.67	£2.00
175 - BALL BEARING 608DD HIT-608DDM.A61 608DDM	£6.35	£7.62
176 - RETAINING RING C-TYPE D22 HIT-6695293.A2 6695293	£1.67	£2.00
177 - GEAR SHAFT HIT-6698957.A5 6698957	£53.49	£64.19
178 - BALL BEARING 608VV HIT-333945.A10 333945	-
179 - LOOP HANDLE ASS'Y ANTI-VIB. INCLUD.180-183 HIT-6696088.A7 6696088	-
180 - HANDLE GRIP HIT-6691098.A29 6691098	£10.90	£13.08
181 - HEX.NUT 6 HIT-6684835.A6 6684835	£1.67	£2.00
182 - BRAKE SHAFT WASHER HIT-6689681.A26 6689681	£1.67	£2.00
183 - TAPPING SCREW 5X20 HIT-6695255.A21 6695255	-
184 - LEVEL MARK HIT-6684851.A4 6684851	-
185 - CAUTION PLATE TANAKA HIT-000000.A2653 000000	-
186 - LEVEL MARK HIT-6684852.A37 6684852	-
187 - MAIN PIPE 1450L HIT-6698963.A3 6698963	-
188A - DRIVE SHAFT 1483L HIT-6697879.A1 6697879	£17.94	£21.53
189 - HANGER D24 HIT-6689277.A8 6689277	-
190 - CAP (A) HIT-6698515.A33 6698515	-
191 - HEX. HOLE BOLT 5X10 HIT-6695042.A4 6695042	£1.67	£2.00
192 - GREASE STOP (D) HIT-6686669.A7 6686669	£1.67	£2.00
193 - HANDLE KNOB A COMP. HIT-6691200.A15 6691200	£12.10	£14.52
194 - GEAR CASE A 1 HIT-6688653.A0 6688653	£38.36	£46.03
195 - HEX. HOLE BOLT M5X25/S HIT-6684709.A200 6684709	£1.67	£2.00
196 - PINION HIT-6698958.A1 6698958	£16.85	£20.22
198 - STOP RING S-12 1 HIT-6695302.A9 6695302	£1.67	£2.00
199 - STOP RING C-24 1 HIT-6684732.A42 6684732	£1.67	£2.00
200 - HANDLE BRACKET A HIT-6691134.A9 6691134	£3.10	£3.72
201 - BOLT 6X43/P (BLACK) HIT-6684838.A39 6684838	£1.67	£2.00
202 - CUTTER COVER HIT-6687301.A19 6687301	-
203 - CUTTER GUIDE 625.5MM HIT-6687125.A9 6687125	£37.68	£45.21
204 - CUTTER (A) HIT-6687079.A15 6687079	£46.75	£56.10
205 - WASHER 7 BLACK HIT-6687187.A42 6687187	£1.67	£2.00
206 - CUTTER FIXING BOLT B HIT-6687162.A10 6687162	£1.67	£2.00
207 - FLANGE NUT 6 HIT-6695170.A35 6695170	£1.67	£2.00
208 - SPACER HIT-6688633.A1 6688633	-
209 - HEX. HOLE FLUSH BOLT 6X25 HIT-6695075.A5 6695075	£1.67	£2.00
210 - GREASE STOP (A) HIT-6686647.A2 6686647	£1.67	£2.00
211 - CAM ROD PLATE HIT-6686826.A2 6686826	£1.67	£2.00
212 - HEX. HOLE BOLT 4X10S HIT-6695484.A19 6695484	£1.67	£2.00
213 - FIXING BOLT A M6 HIT-6687158.A26 6687158	£1.67	£2.00
214 - RETAINING RING E-TYPE D6 HIT-6695310.A10 6695310	£1.67	£2.00
215 - GEAR 2 HIT-6698959.A5 6698959	£28.02	£33.63
216 - RETAINING RING C-TYPE D26 HIT-6695294.A42 6695294	-
218 - HEX HOLE FLUSH SCREW 6X16 HIT-6695073.A1 6695073	£1.67	£2.00
219 - GREASE STOP (C) HIT-6686666.A9 6686666	-
220 - CAM-ROD GUIDE PLATE HIT-6686611.A9 6686611	£2.98	£3.57
221 - CAM ROD (A) HIT-6699732.A0 6699732	£28.44	£34.13
222 - CAM SHAFT COMP. HIT-6686790.A15 6686790	£62.78	£75.33
223 - BALL BEARING 608ZZC3 HIT-6698772.A36 6698772	£2.84	£3.41
224 - GEAR CASE COVER (B) HIT-6699737.A1 6699737	-
225 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 HIT-6684595.A47 6684595	£1.67	£2.00
226 - SPECIAL WASHER HIT-6699934.A3 6699934	-
227 - GEAR CASE PACKING HIT-6699733.A5 6699733	£1.67	£2.00
501 - COMBI. BOX SPANNER 10X19 1 HIT-6685997.A29 6685997	-
502 - HEX. BAR WRENCH 4MM HIT-6684813.A17 6684813	-
503 - SHOULDER BELT HIT-6692867.A4 6692867	£8.37	£10.04
504 - WRENCH 8X10 HIT-6684766.A23 6684766	-
601 - EXT-200 HIT-000000.A2656 000000	-
602 - EXT-300 HIT-000000.A2657 000000	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki TCH27EPA Engine Hedge Trimmer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
