Hitachi / Hikoki TCH27EPAP Engine Hedge Trimmer Spare Parts

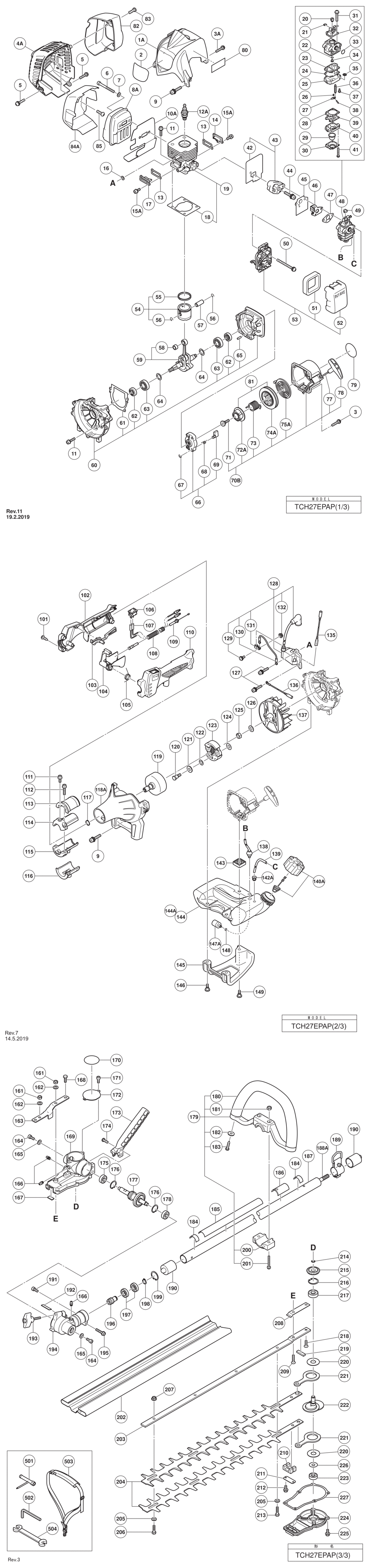

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCH27EPAP Engine Hedge Trimmer

	Ex VAT	Inc VAT
1A - CYLINDER COVER HIT-6697921.A4 6697921	£8.59	£10.31
2 - TANAKA LABEL HIT-000000.A2658 000000	-
3A - M4 SCREW (BLACK) HIT-6699780.A0 6699780	-
4A - MUFFLER COVER SINCE 11.2013 HIT-6600336.A1 6600336	£10.02	£12.02
5 - SCREW 5X16/PS HIT-6695386.A20 6695386	£1.67	£2.00
6 - HEX. HOLE BOLT M6X65 HIT-6695067.A10 6695067	£1.67	£2.00
7 - BOLT WASHER 6 HIT-6684639.A34 6684639	£1.67	£2.00
8A - MUFFLER (B) HIT-6600004.A13 6600004	-
9 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-6698950.A34 6698950	-
10A - HEAT PROTECTION PANEL SINCE 11.2013 HIT-6600324.A20 6600324	-
11 - HEX. HOLE BOLT 5X20S HIT-6695491.A16 6695491	£1.67	£2.00
*12A - SPARK PLUG ASS'Y BMR7A HIT-6699316.A21 6699316	£12.43	£14.92
*12A - SPARK PLUG ASS'Y CJ6 FOR USA HIT-6699322.A23 6699322	£3.73	£4.48
13 - COVER PACKING HIT-6697684.A5 6697684	-
14 - SCAVENGING COVER (A) HIT-6698484.A2 6698484	-
15A - HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 HIT-6684595.A46 6684595	£1.67	£2.00
16 - WASHER T1.6 HIT-6684600.A15 6684600	-
17 - SCAVENGING COVER (B) HIT-6698485.A20 6698485	-
18 - CYLINDER GASKET HIT-6697681.A3 6697681	-
19 - CYLINDER SET PN INCLUD.18 HIT-6697679.A2 6697679	£39.62	£47.54
20 - SWIVEL HIT-6684697.A148 6684697	-
21 - STOP RING HIT-6684696.A13 6684696	-
22 - O-RING HIT-6684695.A181 6684695	£1.67	£2.00
23 - PUMP GASKET HIT-6684692.A105 6684692	£17.28	£20.73
24 - PUMP DIAPHRAGM HIT-6684693.A12 6684693	£5.70	£6.84
25 - PUMP BODY HIT-6699942.A5 6699942	-
26 - METERING LEVER SPRING HIT-6696323.A6 6696323	-
27 - CONTROL LEVER HIT-6685217.A49 6685217	-
28 - DIAPHRAGM GASKET HIT-6684691.A1 6684691	£5.70	£6.84
29 - PRIMING BODY HIT-6684689.A0 6684689	£5.87	£7.04
30 - DIAPHRAGM COVER HIT-6684688.A99 6684688	£5.70	£6.84
31 - THROTTLE SET SCREW HIT-6684698.A8 6684698	-
32 - THROTTLE VALVE HIT-6684883.A3 6684883	£32.24	£38.69
33 - O-RING P-15 HIT-6695670.A7 6695670	-
34 - MAIN JET #32 HIT-6699943.A5 6699943	-
35 - INLET SCREEN HIT-6684700.A5 6684700	-
36 - NEEDLE VALVE HIT-6685215.A65 6685215	£6.79	£8.15
37 - HINGE PIN SET SCREW HIT-6691305.A6 6691305	-
38 - HINGE PIN HIT-6685219.A64 6685219	-
39 - METERING DIAPHRAGM HIT-6684690.A111 6684690	£24.05	£28.86
40 - PRIMING PUMP COMP. HIT-6684687.A1 6684687	£9.27	£11.12
41 - SET SCREW HIT-6684699.A99 6684699	-
42 - INTAKE PACKING HIT-6697691.A5 6697691	-
43 - CARBURETOR INSULATOR SET PN INCLUD.42 HIT-6698954.A1 6698954	-
44 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A8 6698844	£1.67	£2.00
45 - CARBURETOR PACKING HIT-6684616.A38 6684616	£1.67	£2.00
46 - THROTTLE WIRE FIXING PLATE HIT-6684629.A1 6684629	-
47 - CARBURETOR GASKET HIT-6684615.A9 6684615	£1.67	£2.00
48 - CARBURETOR ASS'Y INCLUD.20-41 HIT-6698960.A1 6698960	£47.62	£57.14
50 - PLUS SCREW 5X60WS HIT-6695431.A20 6695431	-
51 - CLEANER ELEMENT HIT-6690347.A39 6690347	£7.15	£8.58
52 - AIR CLEANER CAP HIT-6690139.A0 6690139	£7.15	£8.58
53 - AIR FILTER ASS'Y INCLUD.51 HIT-6698961.A9 6698961	£8.46	£10.15
54 - PISTON SET PN INCLUD.55 HIT-6697683.A2 6697683	£15.61	£18.73
55 - PISTON RING HIT-6686121.A20 6686121	£6.47	£7.76
56 - CIR CLIP HIT-6684590.A117 6684590	£1.67	£2.00
57 - PISTON PIN HIT-6684591.A20 6684591	£3.29	£3.95
58 - NEEDLE BEARING HK0810B HIT-6695590.A5 6695590	-
59 - CRANK SHAFT ASS'Y INCLUD.58 HIT-6698962.A1 6698962	-
60 - CRANK CASE ASS'Y INCLUD.61-63 HIT-6697687.A1 6697687	-
61 - CRANK CASE PACKING HIT-6697688.A6 6697688	£1.67	£2.00
62 - OIL SEAL TB 12227 HIT-6684607.A109 6684607	£4.07	£4.88
63 - BALL BEARING 6001 C3 HIT-6684608.A91 6684608	£5.70	£6.84
64 - CRANK SHAFT WASHER HIT-6697685.A2 6697685	-
65 - KNOCK PIN 4X12 HIT-6695521.A15 6695521	-
66 - STARTER PULLEY ASS'Y INCLUD.67-69 HIT-6684681.A108 6684681	£18.16	£21.79
67 - D4E RETAINING RING HIT-6685101.A113 6685101	-
68 - STARTER PAWL SPRING HIT-6684684.A10 6684684	£3.29	£3.95
69 - STARTER PAWL HIT-6684685.A97 6684685	£5.07	£6.08
70B - RECOIL STARTER BODY ASS'Y INCLUD.71-75A HIT-6601570.A27 6601570	£23.15	£27.78
71 - SET SCREW HIT-6684679.A151 6684679	£2.98	£3.57
72A - CAM PLATE SINCE TL000001 HIT-6699996.A83 6699996	£4.28	£5.13
73 - DAMPER SPRING HIT-6684677.A111 6684677	£5.70	£6.84
74A - STARTER ROPE REEL SINCE TL000001 HIT-6699997.A6 6699997	-
75A - RECOIL SPRING HIT-6684675.A8 6684675	£8.82	£10.58
77 - STARTER ROPE 3.5X860 HIT-6684674.A90 6684674	£5.70	£6.84
78 - STARTER HANDLE HIT-6684680.A7 6684680	£5.87	£7.04
79 - NAME PLATE HIT-000000.A2659 000000	-
80 - CAUTION PLATE (USA) HIT-000000.A2660 000000	-
81 - CAMPLATE ASS'Y INCLUD.72A HIT-6699691.A37 6699691	£7.75	£9.30
82 - MUFFLER REAR COVER SINCE 11.2013 HIT-6600335.A15 6600335	£13.36	£16.03
83 - TAPPING SCREW D4 SINCE 11.2013 HIT-6600332.A12 6600332	£1.67	£2.00
84A - MUFFLER HEAT COVER SINCE 11.2013 HIT-6600422.A13 6600422	-
85 - TAPPING SCREW D4X10 SINCE 11.2013 HIT-6600325.A2 6600325	-
101 - TAPPING SCREW D4 HIT-6697190.A1 6697190	£1.67	£2.00
102 - HANDLE (B) HIT-6696487.A0 6696487	£5.88	£7.06
103 - LOCK LEVER HIT-6696490.A42 6696490	£2.84	£3.41
104 - LEVER HIT-6696488.A40 6696488	£1.67	£2.00
105 - SPRING (A) HIT-6698819.A7 6698819	£1.67	£2.00
106 - STOP SWITCH HIT-6685239.A14 6685239	£6.88	£8.25
107 - STOP SWITCH CORD HIT-6698820.A3 6698820	£4.28	£5.13
108 - PROTECTION TUBE HIT-6698822.A3 6698822	£1.67	£2.00
109 - THROTTLE WIRE HIT-6698821.A7 6698821	£6.42	£7.70
110 - HANDLE (A) HIT-6696486.A34 6696486	£5.88	£7.06
111 - HEX.HOLE BOLT M5X12/S HIT-6684667.A0 6684667	£1.67	£2.00
112 - HEX. HOLE BOLT M5X25/S HIT-6684709.A202 6684709	£1.67	£2.00
113 - ANTI-VIBE RUBBER (A) HIT-6684666.A10 6684666	£3.58	£4.29
114 - PIPE HOLDER (A) HIT-6698643.A9 6698643	£3.56	£4.27
115 - PIPE HOLDER (B) HIT-6698644.A38 6698644	£3.56	£4.27
116 - ANTI-VIBE RUBBER (B) HIT-6684665.A0 6684665	£3.58	£4.29
117 - STOP RING C-12 OUTER HIT-6684664.A48 6684664	£1.67	£2.00
118A - FAN CASE HIT-6697922.A9 6697922	-
119 - CLUTCH DRUM COMP. HIT-6684663.A0 6684663	£22.38	£26.85
120 - STEP BOLT HIT-6689627.A10 6689627	£1.67	£2.00
121 - BENT WASHER 8 HIT-6684648.A83 6684648	£1.67	£2.00
122 - CLUTCH PLATE (A) HIT-6689528.A10 6689528	£1.67	£2.00
123 - CLUTCH SET HIT-6697655.A4 6697655	£9.68	£11.62
124 - CLUTCH WASHER B HIT-6697619.A27 6697619	£1.67	£2.00
125 - HEX. NUT M8 HIT-6684612.A92 6684612	-
126 - BOLT WASHER M8 HIT-6684611.A33 6684611	-
127 - HEX. HOLE BOLT 4X18WS HIT-6695508.A65 6695508	£1.67	£2.00
*128 - IGNITION COIL HIT-6699936.A2 6699936	-
*128 - IGNITION COIL (A) ASS'Y INCLUD.129-132 FOR EUROPE HIT-6699937.A1 6699937	£52.10	£62.52
130 - EARTH CORD FOR EUROPE HIT-6699940.A6 6699940	-
131 - CLIP FOR EUROPE HIT-6699939.A1 6699939	-
132 - FLANGE NUT M4 FOR EUROPE HIT-6699938.A6 6699938	-
135 - CORD HIT-6698992.A2 6698992	-
136 - CORD HIT-6697690.A2 6697690	-
137 - MAGNETO ROTOR COMP. HIT-6698396.A3 6698396	£11.52	£13.82
*138 - SHIELD TUBE 3X5X180 HIT-6684618.A25 6684618	£6.12	£7.35
*138 - SHIELD TUBE SET FOR USA HIT-6698970.A5 6698970	-
139 - FUEL PIPE 3X5X85 HIT-6684880.A32 6684880	£1.67	£2.00
140A - FUEL TANK CAP ASS'Y INCLUD.TANK CAP CHAIN HIT-6698402.A87 6698402	-
141 - TANK CAP CHAIN HIT-6684625.A23 6684625	-
142A - RETURN GROMMET HIT-6684627.A133 6684627	£1.67	£2.00
143 - SPACER HIT-6698496.A15 6698496	-
*144 - TANK FOR USA HIT-6698377.A2 6698377	-
144A - TANK (B) HIT-6600317.A30 6600317	£12.36	£14.83
145 - STAND HIT-6694787.A34 6694787	£3.56	£4.27
146 - FLANGE BOLT HIT-6696557.A3 6696557	£1.67	£2.00
147A - PUMP FILTER BODY COMP HIT-66A3864.A65 66A3864	-
148 - CLIP 1 HIT-6684619.A8 6684619	£1.67	£2.00
149 - FLANGE BOLT HIT-000000.A2662 000000	-
161 - LOCK NUT 6 UPS-P HIT-6695175.A3 6695175	£1.67	£2.00
162 - BOLT WASHER 6 HIT-6684639.A35 6684639	£1.67	£2.00
163 - SUPPORT PLATE HIT-6690744.A0 6690744	£17.82	£21.39
164 - HEX. HOLE BOLT 6X12 HIT-6695078.A2 6695078	£1.67	£2.00
165 - SPECIAL WASHER B HIT-6684822.A52 6684822	£1.67	£2.00
166 - GREASE NIPPLE COMP. HIT-6688643.A62 6688643	£1.67	£2.00
167 - GREASE STOP (B) HIT-6686659.A9 6686659	£1.67	£2.00
168 - PLUS BOLT 6X14 HIT-6695016.A7 6695016	-
170 - CAUTION MARK A TANAKA HIT-6694538.A1 6694538	-
171 - HEX HOLE BOLT 4X8 HIT-6695035.A17 6695035	-
172 - GEAR CASE COVER (A) HIT-6689167.A14 6689167	-
173 - HANDLE HIT-6688089.A8 6688089	£7.75	£9.30
174 - HEX HOLE BUTTON SCREW 6X15 HIT-6695079.A20 6695079	£1.67	£2.00
175 - BALL BEARING 608DD HIT-608DDM.A62 608DDM	£6.35	£7.62
176 - RETAINING RING C-TYPE D22 HIT-6695293.A1 6695293	£1.67	£2.00
177 - GEAR SHAFT HIT-6698957.A4 6698957	£53.49	£64.19
178 - BALL BEARING 608VV HIT-333945.A9 333945	-
179 - LOOP HANDLE ASS'Y ANTI-VIB. INCLUD.180-183 HIT-6696088.A9 6696088	-
180 - HANDLE GRIP HIT-6691098.A28 6691098	£10.90	£13.08
181 - HEX.NUT 6 HIT-6684835.A8 6684835	£1.67	£2.00
182 - BRAKE SHAFT WASHER HIT-6689681.A24 6689681	£1.67	£2.00
183 - TAPPING SCREW 5X20 HIT-6695255.A20 6695255	-
184 - LEVEL MARK HIT-6684851.A5 6684851	-
185 - CAUTION PLATE TANAKA HIT-000000.A2663 000000	-
186 - LEVEL MARK HIT-6684852.A36 6684852	-
187 - MAIN PIPE 1450L HIT-6698963.A2 6698963	-
188A - DRIVE SHAFT 1483L HIT-6697879.A2 6697879	£17.94	£21.53
189 - HANGER D24 EXCEPT FOR USA HIT-6689277.A9 6689277	-
190 - CAP (A) HIT-6698515.A31 6698515	-
191 - HEX. HOLE BOLT 5X10 HIT-6695042.A2 6695042	£1.67	£2.00
192 - GREASE STOP (D) HIT-6686669.A8 6686669	£1.67	£2.00
193 - HANDLE KNOB A COMP. HIT-6691200.A14 6691200	£12.10	£14.52
194 - GEAR CASE A 1 HIT-6688653.A2 6688653	£38.36	£46.03
195 - HEX. HOLE BOLT M5X25/S HIT-6684709.A203 6684709	£1.67	£2.00
196 - PINION HIT-6698958.A2 6698958	£16.85	£20.22
198 - STOP RING S-12 1 HIT-6695302.A7 6695302	£1.67	£2.00
199 - STOP RING C-24 1 HIT-6684732.A39 6684732	£1.67	£2.00
200 - HANDLE BRACKET A HIT-6691134.A10 6691134	£3.10	£3.72
201 - BOLT 6X43/P (BLACK) HIT-6684838.A38 6684838	£1.67	£2.00
202 - CUTTER COVER HIT-6687301.A20 6687301	-
203 - CUTTER GUIDE 625.5MM HIT-6687125.A7 6687125	£37.68	£45.21
204 - CUTTER (A) HIT-6687079.A14 6687079	£46.75	£56.10
205 - WASHER 7 BLACK HIT-6687187.A41 6687187	£1.67	£2.00
206 - CUTTER FIXING BOLT B HIT-6687162.A11 6687162	£1.67	£2.00
207 - FLANGE NUT 6 HIT-6695170.A37 6695170	£1.67	£2.00
208 - SPACER HIT-6688633.A2 6688633	-
209 - HEX. HOLE FLUSH BOLT 6X25 HIT-6695075.A4 6695075	£1.67	£2.00
210 - GREASE STOP (A) HIT-6686647.A1 6686647	£1.67	£2.00
211 - CAM ROD PLATE HIT-6686826.A0 6686826	£1.67	£2.00
212 - HEX. HOLE BOLT 4X10S HIT-6695484.A17 6695484	£1.67	£2.00
213 - FIXING BOLT A M6 HIT-6687158.A25 6687158	£1.67	£2.00
214 - RETAINING RING E-TYPE D6 HIT-6695310.A12 6695310	£1.67	£2.00
215 - GEAR 2 HIT-6698959.A4 6698959	£28.02	£33.63
216 - RETAINING RING C-TYPE D26 HIT-6695294.A44 6695294	-
218 - HEX HOLE FLUSH SCREW 6X16 HIT-6695073.A2 6695073	£1.67	£2.00
219 - GREASE STOP (C) HIT-6686666.A8 6686666	-
220 - CAM-ROD GUIDE PLATE HIT-6686611.A7 6686611	£2.98	£3.57
221 - CAM ROD (A) HIT-6699732.A1 6699732	£28.44	£34.13
222 - CAM SHAFT COMP. HIT-6686790.A14 6686790	£62.78	£75.33
223 - BALL BEARING 608ZZC3 HIT-6698772.A37 6698772	£2.84	£3.41
224 - GEAR CASE COVER (B) HIT-6699737.A2 6699737	-
225 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 HIT-6684595.A43 6684595	£1.67	£2.00
226 - SPECIAL WASHER HIT-6699934.A4 6699934	-
227 - GEAR CASE PACKING HIT-6699733.A4 6699733	£1.67	£2.00
501 - COMBI. BOX SPANNER 10X19 1 HIT-6685997.A27 6685997	-
502 - HEX. BAR WRENCH 4MM HIT-6684813.A18 6684813	-
503 - SHOULDER BELT HIT-6692867.A3 6692867	£8.37	£10.04
504 - WRENCH 8X10 HIT-6684766.A22 6684766	-
601 - EXT-200 HIT-000000.A2666 000000	-
602 - EXT-300 HIT-000000.A2667 000000	-
603 - REPAIR KIT (D-4) TILL 10.2013 FOR EUROPE HIT-6600037.A2 6600037	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki TCH27EPAP Engine Hedge Trimmer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki TCH27EPAP Engine Hedge Trimmer Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki TCH27EPAP Engine Hedge Trimmer Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
