Hitachi / Hikoki WR16SA Impact Wrench Spare Parts

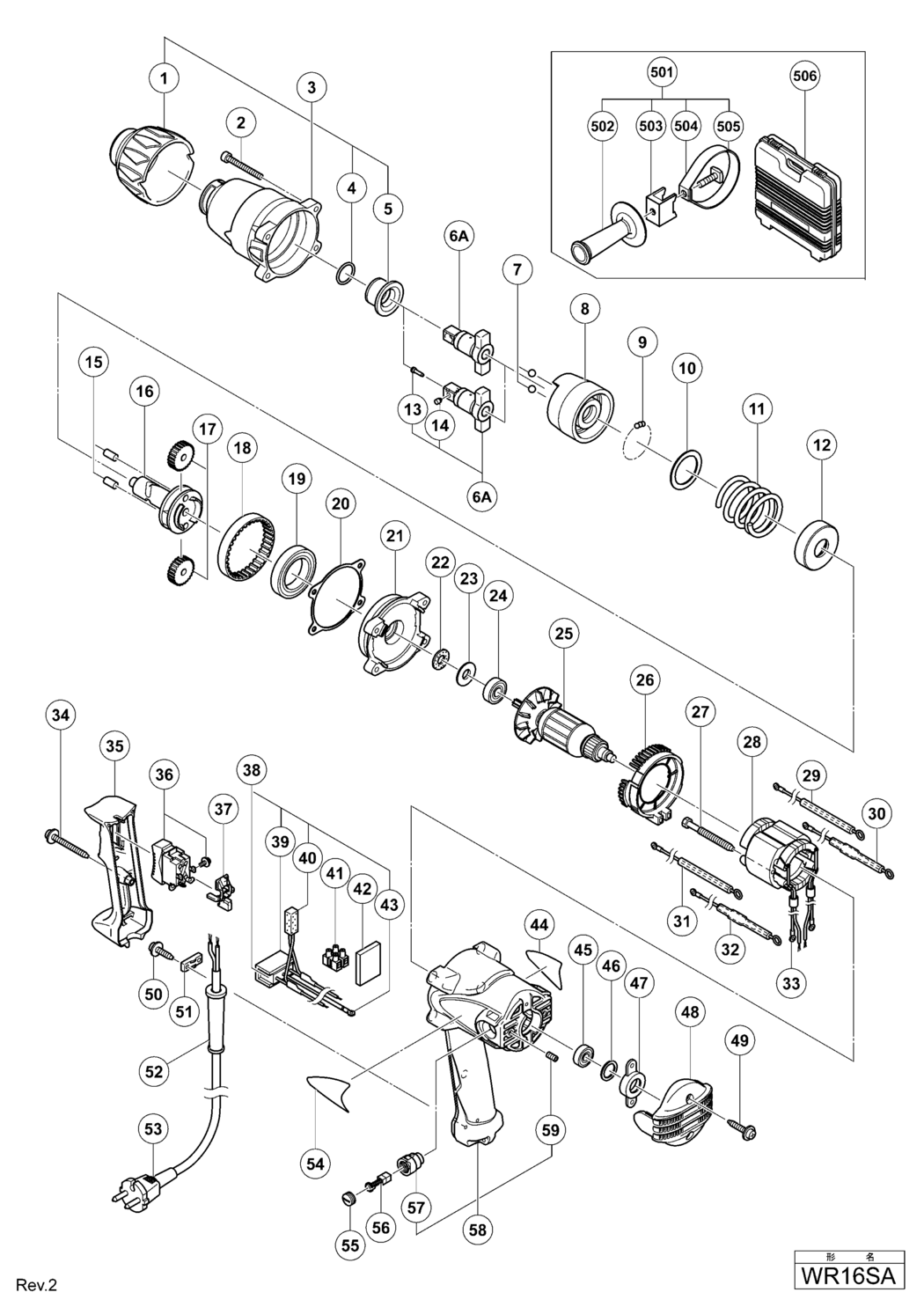

An exploded diagram and spare parts listing for the Hitachi / Hikoki WR16SA Impact Wrench

	Ex VAT	Inc VAT
1 - BUMPER HIT-323767.A0 323767	£10.45	£12.54
2 - SEAL LOCK HEX. SOCKET HD. BOLT M5X35 HIT-323753.A0 323753	£1.67	£2.00
3 - HAMMER CASE ASS'Y INCLUD.1 HIT-323765.A0 323765	£52.51	£63.01
4 - O-RING (M) HIT-318704.A1 318704	£4.78	£5.73
5 - METAL HIT-323766.A2 323766	£10.45	£12.54
*6A - ANVIL (L) TYPE FOR W/O PLUNGER(A) HIT-334341.A0 334341	£161.34	£193.61
*6A - ANVIL (L) ASS'Y INCLUD.13 HIT-334342.A1 334342	£185.94	£223.13
*6A - ANVIL (L) ASS'Y PIN RETAINER (A) HIT-334342.A2 334342	£185.94	£223.13
7 - STEEL BALL D6.35 (10 PCS.) HIT-959150.A16 959150	£1.67	£2.00
8 - HAMMER HIT-323764.A0 323764	£85.71	£102.85
9 - STEEL BALL D3.97 (10 PCS.) HIT-959155.A37 959155	£1.67	£2.00
10 - HAMMER WASHER HIT-323763.A0 323763	-
11 - SPRING HIT-323761.A0 323761	£10.45	£12.54
12 - SPRING SEAT HIT-323760.A0 323760	-
13 - PIN RETAINER (A) FOR FRA HIT-323542.A2 323542	£1.67	£2.00
14 - PLUNGER (A) FOR FRA HIT-323541.A3 323541	£7.57	£9.08
15 - NEEDLE ROLLER HIT-985169.A0 985169	-
16 - SPINDLE HIT-323762.A0 323762	£54.47	£65.36
17 - IDLE GEAR SET (2 PCS.) HIT-318446.A0 318446	£41.47	£49.76
18 - RING GEAR HIT-955124.A0 955124	£37.22	£44.67
19 - BALL BEARING 6907ZZ-N HIT-6907ZN.A0 6907ZN	£21.09	£25.31
20 - GASKET (A) HIT-324022.A0 324022	£1.67	£2.00
21 - INNER COVER HIT-323758.A0 323758	£16.46	£19.75
22 - FELT PACKING HIT-323755.A0 323755	£1.67	£2.00
23 - PACKING WASHER HIT-985166.A0 985166	£1.67	£2.00
24 - BALL BEARING 6000DDCMPS2L HIT-6000DD.A4 6000DD	£6.52	£7.82
*25 - ARMATURE 110V HIT-360687C.A0 360687C	£66.96	£80.35
*25 - ARMATURE (S) 110V HIT-360850C.A0 360850C	£75.98	£91.18
*25 - ARMATURE ASS'Y 120V INCLUD.24 HIT-360687U.A0 360687U	-
*25 - ARMATURE 220V-230V HIT-360687E.A0 360687E	£66.96	£80.35
*25 - ARMATURE (S) 220V-230V HIT-360850E.A0 360850E	£75.72	£90.86
*25 - ARMATURE 240V HIT-360687F.A0 360687F	-
*25 - ARMATURE (S) 240V HIT-360850F.A0 360850F	-
26 - FAN GUIDE HIT-323757.A0 323757	£6.50	£7.80
27 - HEX. HD. TAPPING SCREW D4X45 HIT-981824.A6 981824	-
*28 - STATOR 110V HIT-340605C.A0 340605C	£42.00	£50.40
*28 - STATOR 120V HIT-340605D.A0 340605D	-
*28 - STATOR (S) 110V-120V HIT-340735D.A0 340735D	-
*28 - STATOR 220V-230V HIT-340605E.A0 340605E	£43.48	£52.18
*28 - STATOR (S) 220V-230V HIT-340735E.A0 340735E	£51.64	£61.97
*28 - STATOR 240V HIT-340605F.A0 340605F	-
*28 - STATOR (S) 240V HIT-340735F.A0 340735F	-
*29 - INTERNAL WIRE (WHITE) FOR KUW HIT-985186.A1 985186	£6.38	£7.66
*29 - INTERNAL WIRE (WHITE) FOR USA HIT-985192.A1 985192	-
30 - CHOKE COIL (WHITE) FOR SAF HIT-323769.A0 323769	£18.20	£21.84
*31 - INTERNAL WIRE (BLACK) FOR KUW HIT-985187.A0 985187	£5.22	£6.26
*31 - INTERNAL WIRE (BLACK) FOR USA HIT-985193.A0 985193	£5.34	£6.41
32 - CHOKE COIL (BLACK) FOR SAF HIT-323770.A0 323770	£18.20	£21.84
33 - TERMINAL HIT-980063.A66 980063	£1.67	£2.00
34 - TAPPING SCREW (W/FLANGE) D4X35 (BLACK) HIT-303694.A3 303694	£1.67	£2.00
35 - HANDLE COVER HIT-323772.A0 323772	£8.66	£10.39
*36 - SWITCH (2P SCREW TYPE) HIT-985103.A3 985103	£28.14	£33.77
*36 - SWITCH (2P SCREW TYPE) FOR AUT HIT-320528.A0 320528	£29.42	£35.31
37 - SWITCH ADAPTER HIT-323768.A0 323768	£6.94	£8.33
38 - NOISE SUPPRESSOR ASS'Y (W/RESISTOR) INCLUD.39 HIT-323780.A0 323780	£33.22	£39.87
39 - SUPPORT (B) FOR NOISE SUPPRESSOR ASS'Y (W/RESISTOR) HIT-930153.A3 930153	£1.67	£2.00
40 - SUPPORT (B) FOR NOISE SUPPRESSOR ASS'Y (W/RESISTOR) HIT-316186.A4 316186	£1.67	£2.00
*41 - PILLAR TERMINAL (A) HIT-958308Z.A7 958308Z	£7.53	£9.04
*41 - PILLAR TERMINAL (B) FOR USA HIT-983418Z.A1 983418Z	-
42 - SUPPORT (B) HIT-324023.A0 324023	-
43 - TERMINAL FOR NOISE SUPPRESSOR ASS'Y (W/RESISTOR) HIT-980063.A65 980063	£1.67	£2.00
44 - NAME PLATE HIT-000000.A2878 000000	-
45 - BALL BEARING 608VVC2PS2L HIT-608VVM.A199 608VVM	£5.70	£6.84
46 - RUBBER WASHER HIT-985198.A0 985198	£1.67	£2.00
47 - BEARING BUSHING (B) HIT-323754.A0 323754	£11.67	£14.00
48 - TAIL COVER HIT-323756.A0 323756	£8.66	£10.39
49 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A214 301653	£1.67	£2.00
50 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A261 984750	£1.67	£2.00
51 - CORD CLIP HIT-937631.A18 937631	£1.67	£2.00
*52 - CORD ARMOR D8.8 HIT-953327.A127 953327	£1.67	£2.00
*52 - CORD ARMOR D10.1 HIT-938051.A53 938051	£1.67	£2.00
*53 - CORD (CORD ARMOR D8.8) HIT-500247Z.A29 500247Z	-
*53 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500450Z.A27 500450Z	£35.67	£42.80
*53 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A17 500461Z	£15.56	£18.67
*53 - CORD (CORD ARMOR D8.8) FOR SUI HIT-500248Z.A8 500248Z	-
*53 - CORD (CORD ARMOR D8.8) FOR AUS HIT-500439Z.A34 500439Z	-
*53 - CORD (CORD ARMOR D8.8) FOR USA HIT-500240Z.A5 500240Z	-
*53 - CORD (CORD ARMOR D8.8) FOR KUW HIT-500423Z.A26 500423Z	-
*53 - CORD (CORD ARMOR D8.8) FOR CHN HIT-500456Z.A5 500456Z	-
*53 - CORD (CORD ARMOR D8.8) FOR HKG HIT-500435Z.A25 500435Z	£14.14	£16.97
*53 - CORD (CORD ARMOR D10.1) FOR THA HIT-500201Z.A3 500201Z	-
*53 - CORD (CORD ARMOR D8.8) FOR INA HIT-500234Z.A7 500234Z	-
54 - BRAND LABEL HIT-000000.A2879 000000	-
55 - BRUSH CAP HIT-931266.A1 931266	£1.67	£2.00
56 - CARBON BRUSH (1 PAIR) HIT-999021.A16 999021	£5.54	£6.65
57 - BRUSH HOLDER HIT-957571.A8 957571	£3.97	£4.76
58 - HOUSING ASS'Y INCLUD.57 HIT-323771.A0 323771	£55.62	£66.75
59 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A47 938477	£1.67	£2.00
501 - SIDE HANDLE ASS'Y INCLUD.502-505 FOR SAF HIT-323774.A0 323774	£20.62	£24.74
502 - SIDE HANDLE FOR SIDE HANDLE ASS'Y HIT-980901.A5 980901	£10.37	£12.44
503 - HANDLE HOLDER FOR SIDE HANDLE ASS'Y HIT-323775.A1 323775	£8.42	£10.11
504 - HANDLE RING FOR SIDE HANDLE ASS'Y HIT-323776.A0 323776	-
505 - SQUARE BOLT M8 FOR SIDE HANDLE ASS'Y HIT-980903.A5 980903	-
506 - CASE (A) FOR ESP HIT-323777.A0 323777	£44.46	£53.35
601 - UNIVERSAL JOINT ASS'Y INCLUD.602 HIT-986062.A5 986062	-
602 - SOCKET PIN HIT-873537.A1 873537	-
603 - O-RING (J1SW1516) HIT-873187.A12 873187	£1.67	£2.00
604 - HEX. SOCKET ASS'Y 17MMX32L INCLUD.602 HIT-873536.A13 873536	-
605 - HEX. SOCKET ASS'Y 19MMX34L INCLUD.602 HIT-873624.A1 873624	-
606 - HEX. SOCKET ASS'Y 21MMX36L INCLUD.602 HIT-873626.A11 873626	-
607 - HEX. SOCKET ASS'Y 22MMX40L INCLUD.602 HIT-873627.A1 873627	-
608 - HEX. SOCKET ASS'Y 23MMX40L INCLUD.602 HIT-873628.A5 873628	-
609 - HEX. SOCKET ASS'Y 24MMX40L INCLUD.602 HIT-873629.A0 873629	-
610 - HEX. SOCKET ASS'Y 26MMX40L INCLUD.602 HIT-873630.A5 873630	-
611 - HEX. SOCKET ASS'Y 27MMX40L INCLUD.602 HIT-985195.A0 985195	£24.47	£29.36
612 - HEX. SOCKET ASS'Y 30MMX50L INCLUD.602 HIT-985196.A5 985196	-
613 - EXTENSION BAR ASS'Y (SQUARE) 12.7MMX100L INCLUD.602 HIT-873633.A12 873633	£25.14	£30.17
614 - HEX. SOCKET ASS'Y (LONG) 12MMX52L INCLUD.602 HIT-955138.A0 955138	-
615 - HEX. SOCKET ASS'Y (LONG) 13MMX52L INCLUD.602 HIT-955139.A14 955139	-
616 - HEX. SOCKET ASS'Y (LONG) 14MMX52L INCLUD.602 HIT-955140.A0 955140	-
617 - HEX. SOCKET ASS'Y (LONG) 17MMX52L INCLUD.602 HIT-955141.A13 955141	-
618 - HEX. SOCKET ASS'Y (LONG) 19MMX52L INCLUD.602 HIT-955142.A0 955142	-
619 - HEX. SOCKET ASS'Y (LONG) 21MMX52L INCLUD.602 HIT-955143.A13 955143	-
620 - HEX. SOCKET ASS'Y (LONG) 22MMX52L INCLUD.602 HIT-955144.A0 955144	-
621 - HEX. SOCKET ASS'Y (LONG) 24MMX52L INCLUD.602 HIT-955146.A5 955146	-
622 - HEX. SOCKET ASS'Y (LONG) 17MMX75L INCLUD.602 HIT-955149.A12 955149	-
623 - HEX. SOCKET ASS'Y (LONG) 19MMX75L INCLUD.602 HIT-955150.A1 955150	-
624 - HEX. SOCKET ASS'Y (LONG) 21MMX75L INCLUD.602 HIT-955151.A12 955151	-
625 - HEX. SOCKET ASS'Y (LONG) 26MMX75L INCLUD.602 HIT-955147.A0 955147	-
626 - HEX. SOCKET ASS'Y (LONG) 30MMX75L INCLUD.602 HIT-985197.A0 985197	-
627 - GREASE FOR IMPACT WRENCH (100G) HIT-971042.A8 971042	£16.77	£20.12
628 - SIDE HANDLE ASS'Y INCLUD.629-632 HIT-323774.A1 323774	£20.62	£24.74
629 - SIDE HANDLE HIT-980901.A4 980901	£10.37	£12.44
630 - SQUARE BOLT M8 HIT-980903.A4 980903	-
631 - HANDLE HOLDER HIT-323775.A0 323775	£8.42	£10.11
632 - HANDLE RING HIT-323776.A1 323776	-
633 - UNIVERSAL JOINT PIN HIT-955153.A1 955153	-
