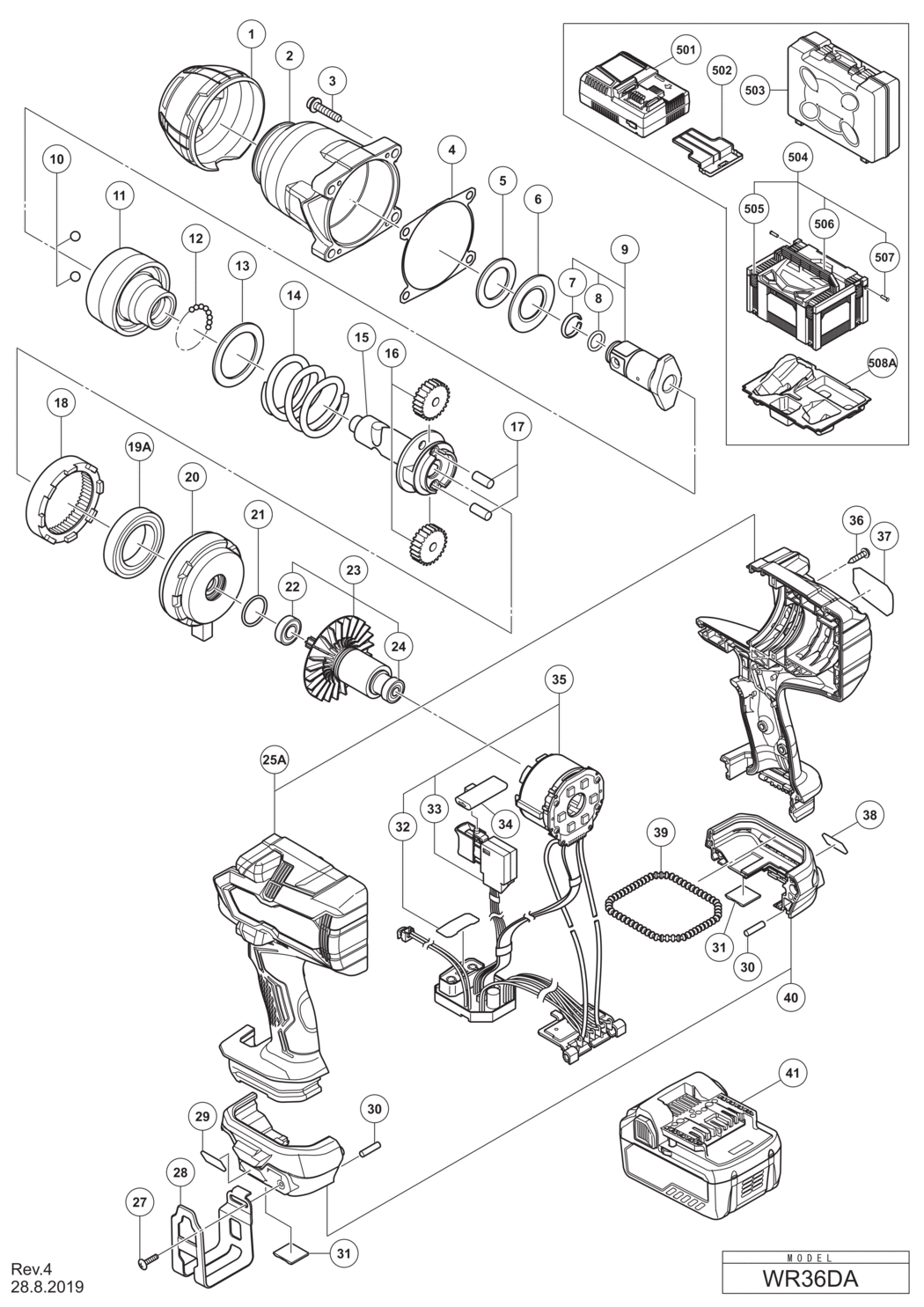

1 - FRONT CAP
HIT-373036.A1
373036
|
£7.22
|
£8.66
|
|
|
2 - HAMMER CASE
HIT-373037.A0
373037
|
£40.35
|
£48.42
|
|
|
3 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X30
HIT-373377.A0
373377
|
-
|
|
|
|
4 - PACKING
HIT-373302.A1
373302
|
£1.67
|
£2.00
|
|
|
5 - THRUST DAMPER
HIT-373045.A0
373045
|
-
|
|
|
|
6 - WASHER (F)
HIT-373044.A0
373044
|
-
|
|
|
|
7 - FRICTION RING (C)
HIT-373034.A0
373034
|
£14.86
|
£17.83
|
|
|
8 - O-RING (1AP-12)
HIT-996407.A1
996407
|
£1.67
|
£2.00
|
|
|
9 - ANVIL (A) INCLUD.7
HIT-373033.A0
373033
|
£77.50
|
£93.00
|
|
|
10 - STEEL BALL D7.14 (10 PCS.)
HIT-959151.A1
959151
|
£1.67
|
£2.00
|
|
|
11 - HAMMER
HIT-373043.A1
373043
|
-
|
|
|
|
12 - STEEL BALL D3.97 (10 PCS.)
HIT-959155.A7
959155
|
£1.67
|
£2.00
|
|
|
13 - WASHER (J)
HIT-373038.A0
373038
|
-
|
|
|
|
14 - HAMMER SPRING
HIT-373042.A0
373042
|
-
|
|
|
|
15 - SPINDLE
HIT-373048.A0
373048
|
-
|
|
|
|
16 - IDLE GEAR SET (2 PCS.)
HIT-373300.A1
373300
|
-
|
|
|
|
17 - NEEDLE ROLLER
HIT-373049.A1
373049
|
-
|
|
|
|
18 - RING GEAR
HIT-373047.A1
373047
|
-
|
|
|
|
19A - BALL BEARING 6907 2RS
HIT-334310.A2
334310
|
-
|
|
|
|
20 - INNER COVER
HIT-373046.A0
373046
|
-
|
|
|
|
21 - O-RING (I.D 21.5)
HIT-887302.A0
887302
|
-
|
|
|
|
22 - BALL BEARING 6900VVCM
HIT-371033.A16
371033
|
-
|
|
|
|
23 - ROTOR ASS'Y INCLUD.22
HIT-361077.A1
361077
|
-
|
|
|
|
24 - BALL BEARING 607VV
HIT-607VVC.A3
607VVC
|
£6.31
|
£7.57
|
|
|
*25A - HOUSING (A).(B) SET
HIT-373031.A0
373031
|
-
|
|
|
|
27 - TRUSS HD. SCREW M4 (BLACK)
HIT-373378.A0
373378
|
-
|
|
|
|
28 - HOOK
HIT-373035.A0
373035
|
-
|
|
|
|
29 - MV LABEL (B)
HIT-000000.A4989
000000
|
-
|
|
|
|
30 - REAR BUMPER
HIT-373041.A1
373041
|
-
|
|
|
|
31 - SIDE BUMPER
HIT-373040.A0
373040
|
-
|
|
|
|
32 - PANEL SHEET (A)
HIT-000000.A4990
000000
|
-
|
|
|
|
33 - DC-SPEED CONTROL SWITCH
HIT-376527.A7
376527
|
£27.21
|
£32.65
|
|
|
34 - PUSHING BUTTON
HIT-373301.A0
373301
|
£1.66
|
£1.99
|
|
|
35 - WIRING ASS'Y INCLUD.32
HIT-373029.A0
373029
|
£172.63
|
£207.16
|
|
|
36 - TAPPING SCREW (W/FLANGE) D4X20
HIT-339250.A2
339250
|
-
|
|
|
|
37 - NAME PLATE
HIT-000000.A4991
000000
|
-
|
|
|
|
38 - MV LABEL (A)
HIT-000000.A4992
000000
|
-
|
|
|
|
39 - JOINT RUBBER
HIT-373039.A1
373039
|
-
|
|
|
|
40 - HOUSING (C).(D) SET
HIT-373032.A1
373032
|
-
|
|
|
|
*41 - BATTERY BSL 36A18 (EUROPE AUS NZL) INCLUD.502
HIT-371750.A13
371750
|
£173.17
|
£207.80
|
|
|
501 - CHARGER (MODEL UC 18YSL3)
HIT-000000.A4994
000000
|
-
|
|
|
|
502 - BATTERY COVER
HIT-329897.A6
329897
|
£1.67
|
£2.00
|
|
|
*504 - CASE ASS'Y (STACKABLE 3) INCLUD.505-507(HIKOKI BRAND)
HIT-337108.A2
337108
|
-
|
|
|
|
*505 - LATCH
HIT-336472.A72
336472
|
£1.67
|
£2.00
|
|
|
*506 - HANDLE
HIT-336473.A2
336473
|
£6.43
|
£7.72
|
|
|
*507 - HINGE
HIT-336474.A72
336474
|
£1.67
|
£2.00
|
|
|
*508A - INNER TRAY
HIT-375578.A1
375578
|
-
|
|
|
|
601 - SILICONE RUBBER
HIT-306927.A24
306927
|
-
|
|
|
|
602 - GREASE (ATTOLUB MS NO.2) 500G
HIT-309922.A27
309922
|
£56.92
|
£68.31
|
|
|
603 - GREASE (MOLUB-ALLOY NO.777-1) 75G
HIT-325149.A4
325149
|
£18.35
|
£22.02
|
|
