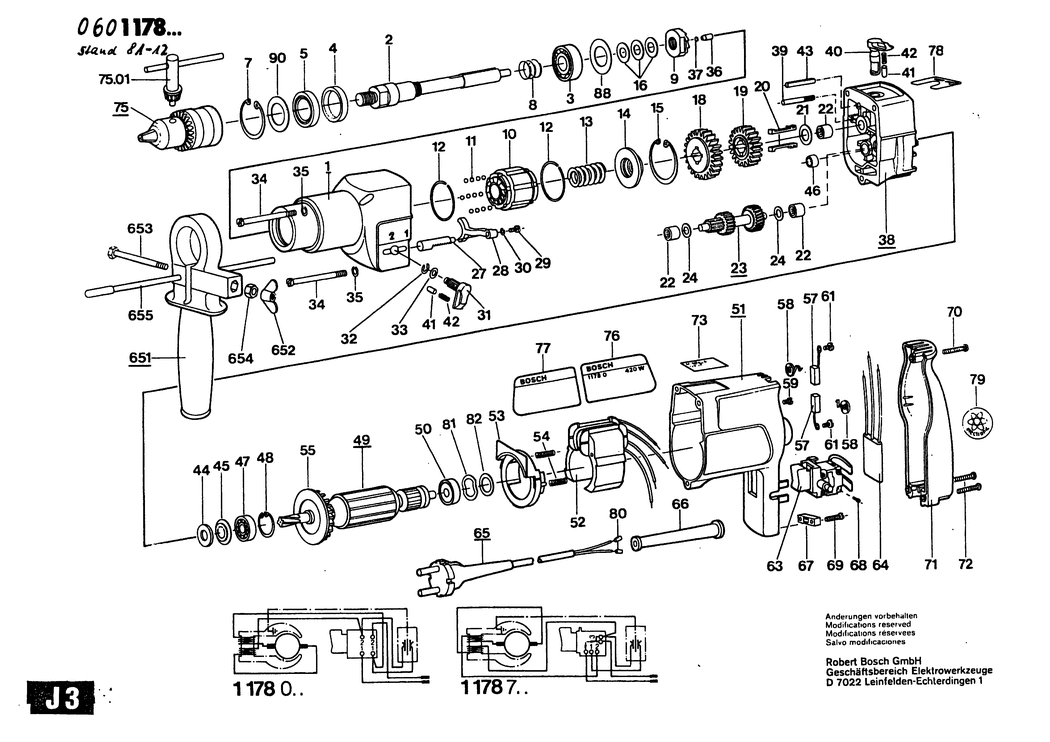

1 - ASSEMBLY OF SERVICE PARTS
BSD-2605806956.A11
2605806956
|
-
|
|
|
|
2 - DRILLING SPINDLE
BSD-2606135003.A16
2606135003
|
-
|
|
|
|
3 - GROOVE BALL BEARING 160 03 DIN 625
BSD-1900900202.A11
1900900202
|
-
|
|
|
|
4 - SPACER RING
BSD-2600201007.A7
2600201007
|
-
|
|
|
|
5 - RADIAL SEAL
BSD-2600283011.A16
2600283011
|
-
|
|
|
|
7 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A307
2916660014
|
£1.75
|
£2.10
|
|
|
8 - COMPRESSION SPRING
BSD-2604616002.A67
2604616002
|
£1.75
|
£2.10
|
|
|
9 - LOCATING WASHER
BSD-2600190025.A16
2600190025
|
-
|
|
|
|
10 - STRIKER
BSD-2608710008.A0
2608710008
|
-
|
|
|
|
11 - BALL 5/32
BSD-1903230204.A0
1903230204
|
-
|
|
|
|
12 - RETAINING RING
BSD-2604601011.A7
2604601011
|
-
|
|
|
|
13 - COMPRESSION SPRING
BSD-2604619008.A0
2604619008
|
-
|
|
|
|
14 - SUPPORTING DISC
BSD-2600101082.A7
2600101082
|
-
|
|
|
|
15 - SPRING RETAINING RING 40x1.75 DIN 472
BSD-2916663018.A23
2916663018
|
-
|
|
|
|
16 - SHIM WASHER 0.3 MM
BSD-2600101027.A230
2600101027
|
£1.75
|
£2.10
|
|
|
16 - SHIM WASHER 0.3 MM
BSD-2600101666.A23
2600101666
|
-
|
|
|
|
16 - SHIM WASHER 0.5 MM
BSD-2600101667.A53
2600101667
|
£1.75
|
£2.10
|
|
|
18 - CYLINDRICAL GEAR Z=68
BSD-2606316097.A0
2606316097
|
-
|
|
|
|
19 - TOOTHED GEAR Z=56
BSD-2606316096.A11
2606316096
|
-
|
|
|
|
20 - FLAT KEY
BSD-2602300001.A35
2602300001
|
-
|
|
|
|
21 - PLAIN WASHER
BSD-2600101001.A41
2600101001
|
-
|
|
|
|
22 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A488
2600914010
|
£2.80
|
£3.36
|
|
|
23 - ASSEMBLY OF SERVICE PARTS Z=31/27/16
BSD-2606309901.A11
2606309901
|
-
|
|
|
|
24 - SHIM 0.3 MM
BSD-2600100570.A238
2600100570
|
£1.75
|
£2.10
|
|
|
27 - TOOTHED RACK
BSD-2603070010.A5
2603070010
|
-
|
|
|
|
28 - FORK LEVER
BSD-2602033001.A0
2602033001
|
-
|
|
|
|
29 - SOCKET HEAD CAP SCREW DIN 84-AM3x6-5.8
BSD-2910011048.A189
2910011048
|
£1.75
|
£2.10
|
|
|
30 - SPRING LOCK WASHER A3-FSt
BSD-2916690001.A84
2916690001
|
-
|
|
|
|
31 - ROTARY KNOB
BSD-2602026023.A37
2602026023
|
-
|
|
|
|
32 - LOCKING WASHER DIN 6799-4-FSt
BSD-2916080007.A20
2916080007
|
£2.61
|
£3.13
|
|
|
33 - SHIM WASHER
BSD-2600100618.A224
2600100618
|
£1.75
|
£2.10
|
|
|
34 - SOCKET HEAD CAP SCREW M 4x53 MM
BSD-2603410038.A0
2603410038
|
-
|
|
|
|
35 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A407
2916690003
|
£1.75
|
£2.10
|
|
|
36 - PRESSURE SPINDLE 0.2 MM
BSD-2603200019.A11
2603200019
|
-
|
|
|
|
37 - SHIM WASHER 0.3 MM
BSD-2600000015.A23
2600000015
|
-
|
|
|
|
37 - SHIM WASHER
BSD-2600000016.A0
2600000016
|
-
|
|
|
|
37 - SHIM WASHER 0.5 MM
BSD-2600000017.A23
2600000017
|
-
|
|
|
|
37 - SHIM WASHER 0.8 MM
BSD-2600000019.A5
2600000019
|
-
|
|
|
|
38 - ASSEMBLY OF SERVICE PARTS
BSD-2605700924.A0
2605700924
|
-
|
|
|
|
39 - HOLDING PIN
BSD-2603200011.A12
2603200011
|
-
|
|
|
|
40 - ROTARY KNOB
BSD-2602026021.A0
2602026021
|
-
|
|
|
|
41 - RATCHET CAP
BSD-2600590006.A1130
2600590006
|
£1.75
|
£2.10
|
|
|
42 - RATCHET CAP
BSD-2600590006.A1131
2600590006
|
£1.75
|
£2.10
|
|
|
43 - SLOTTED SPRING PIN 4x30 MM DIN 7346
BSD-2917780105.A213
2917780105
|
£1.75
|
£2.10
|
|
|
44 - FELT DISC
BSD-2600108000.A267
2600108000
|
-
|
|
|
|
45 - CUPPED WASHER
BSD-2600500030.A0
2600500030
|
-
|
|
|
|
46 - SEAL BUSHING
BSD-2600300049.A8
2600300049
|
-
|
|
|
|
47 - BALL BEARING 8x22x7
BSD-1900905029.A184
1900905029
|
£21.52
|
£25.83
|
|
|
48 - SPRING RETAINING RING
BSD-2600119000.A83
2600119000
|
£1.75
|
£2.10
|
|
|
49 - ARMATURE 220V
BSD-2604010537.A27
2604010537
|
-
|
|
|
|
50 - BALL BEARING 7x22x7
BSD-1900905018.A1154
1900905018
|
£18.96
|
£22.75
|
|
|
51 - MOTOR HOUSING
BSD-2605104960.A41
2605104960
|
-
|
|
|
|
52 - FIELD 220V
BSD-2604222298.A7
2604222298
|
-
|
|
|
|
53 - COVER DISC
BSD-2601328036.A0
2601328036
|
-
|
|
|
|
54 - COMPRESSION SPRING
BSD-2604611026.A193
2604611026
|
-
|
|
|
|
55 - FAN
BSD-2606610021.A53
2606610021
|
-
|
|
|
|
58 - SPIRAL SPRING
BSD-2604652002.A117
2604652002
|
-
|
|
|
|
59 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A336
2910211004
|
-
|
|
|
|
61 - SOCKET HEAD CAP SCREW
BSD-2603410010.A167
2603410010
|
-
|
|
|
|
63 - ON-OFF SWITCH
BSD-2607200043.A154
2607200043
|
-
|
|
|
|
63 - ON-OFF SWITCH
BSD-2607200065.A44
2607200065
|
-
|
|
|
|
64 - SUPPRESSION FILTER
BSD-2607329051.A162
2607329051
|
-
|
|
|
|
66 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A122
2600703011
|
£2.80
|
£3.36
|
|
|
66 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1509
2600703012
|
£2.80
|
£3.36
|
|
|
66 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A74
2600703013
|
£2.61
|
£3.13
|
|
|
67 - CABLE CLIP
BSD-2601035001.A1184
2601035001
|
£1.75
|
£2.10
|
|
|
68 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A469
2603410023
|
-
|
|
|
|
69 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2388
2910211019
|
£1.75
|
£2.10
|
|
|
70 - TAPPING SCREW DIN 7971-BZ3.9x19
BSD-2910211020.A30
2910211020
|
£2.16
|
£2.59
|
|
|
71 - HOUSING COVER
BSD-2605132017.A89
2605132017
|
-
|
|
|
|
72 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A982
2910211021
|
£1.75
|
£2.10
|
|
|
75 - KEY CHUCK dia 1-10 MM. 1/2
BSD-1608571045.A21
1608571045
|
£29.74
|
£35.69
|
|
|
75/01 - CHUCK WRENCH SG2. SW4
BSD-1607950044.A32
1607950044
|
£6.12
|
£7.34
|
|
|
77 - MANUFACTURER'S NAMEPLATE
BSD-2601110099.A0
2601110099
|
-
|
|
|
|
78 - STICKER
BSD-2601110076.A68
2601110076
|
-
|
|
|
|
79 - STICKER
BSD-2601110041.A218
2601110041
|
-
|
|
|
|
80 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A535
1900452012
|
£1.75
|
£2.10
|
|
|
81 - SHIM
BSD-2600150004.A261
2600150004
|
£2.16
|
£2.59
|
|
|
82 - SHIM 0.5 MM
BSD-2600101020.A248
2600101020
|
£1.75
|
£2.10
|
|
|
82 - SHIM 0.2 MM
BSD-2600101022.A384
2600101022
|
£1.75
|
£2.10
|
|
|
82 - SHIM 0.3 MM
BSD-2600101023.A215
2600101023
|
£1.75
|
£2.10
|
|
|
88 - SHIM WASHER
BSD-2600102042.A16
2600102042
|
-
|
|
|
|
90 - SHIM 0.5 MM
BSD-2600102044.A6
2600102044
|
-
|
|
|
|
651 - AUXILIARY HANDLE
BSD-2602025031.A22
2602025031
|
-
|
|
|
|
652 - WING NUT M6 DIN 315-G-GTW-40
BSD-2915191006.A83
2915191006
|
-
|
|
|
|
653 - HEX SCREW DIN 931-M6x75-8.8
BSD-2911011220.A46
2911011220
|
-
|
|
|
|
654 - CONICAL SPRING WASHER
BSD-2601098001.A58
2601098001
|
-
|
|
|
|
655 - DEPTH-GAUGE
BSD-2607010026.A0
2607010026
|
-
|
|
|
|
857 - CARBON-BRUSH SET
BSD-2604320902.A302
2604320902
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2376
160111A3H3
|
£2.61
|
£3.13
|
|
