Bosch CSB 620-2 E / 0603149742 / GB 240 Volt Spare Parts

Home Details Reviews Delivery

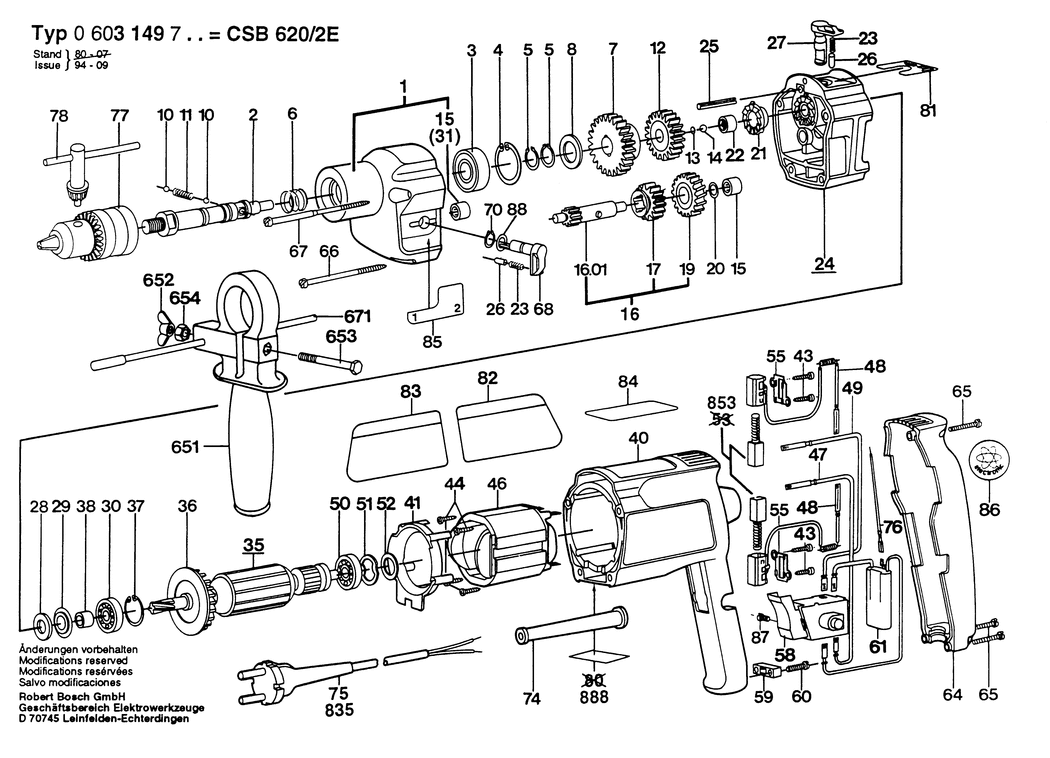

An exploded drawing and listing for the Bosch CSB 620-2 E / 0603149742 / GB 240 Volt

	Ex VAT	Inc VAT
1 - GEAR HOUSING BSD-2605806959.A12 2605806959	-
2 - DRILLING SPINDLE 1/2-UNF-2 BSD-2606135001.A28 2606135001	-
3 - GROOVE BALL BEARING 15x32x9 BSD-2600905014.A3 2600905014	-
4 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A16 2916660013	£2.16	£2.59
5 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A417 2916650006	£1.75	£2.10
6 - COMPRESSION SPRING BSD-2604617000.A190 2604617000	£2.61	£3.13
7 - CYLINDRICAL GEAR Z=48 BSD-2606317014.A58 2606317014	-
8 - SHIM 1.0 MM BSD-2600101515.A58 2600101515	£1.95	£2.34
10 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A87 1903230007	£1.75	£2.10
11 - COMPRESSION SPRING BSD-2604610007.A23 2604610007	-
12 - CYLINDRICAL GEAR Z=36 BSD-2606317025.A7 2606317025	-
13 - SHIM WASHER 0.2 MM BSD-2600000012.A54 2600000012	£1.75	£2.10
13 - SHIM WASHER 0.3 MM BSD-2600000013.A32 2600000013	-
13 - SHIM WASHER 0.5 MM BSD-2600000014.A13 2600000014	£1.75	£2.10
13 - SHIM WASHER 0.1 MM BSD-2600000018.A21 2600000018	-
14 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A725 1903230010	£1.75	£2.10
15 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A554 2600914010	£2.80	£3.36
16 - TOOTHED SHAFT Z=10/22/21 BSD-2606309902.A19 2606309902	-
16 - TOOTHED SHAFT Z=10 BSD-2606309004.A22 2606309004	-
17 - CYLINDRICAL GEAR Z=22 BSD-2606317026.A10 2606317026	-
19 - CYLINDRICAL GEAR Z=21 BSD-2606320006.A44 2606320006	-
20 - SHIM 0.3 MM BSD-2600100607.A1090 2600100607	£1.75	£2.10
21 - LOCATING WASHER BSD-2606490031.A44 2606490031	-
22 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A338 2600917003	£2.80	£3.36
23 - RATCHET CAP BSD-2600590006.A1341 2600590006	£1.75	£2.10
24 - FLANGED BEARING BSD-2605700928.A15 2605700928	-
25 - SLOTTED SPRING PIN 4x30 MM DIN 7346 BSD-2917780105.A158 2917780105	£1.75	£2.10
26 - RATCHET CAP BSD-2600590006.A1342 2600590006	£1.75	£2.10
27 - ROTARY KNOB BSD-2602026017.A5 2602026017	£7.36	£8.83
28 - FELT WASHER BSD-2600108077.A169 2600108077	£1.75	£2.10
29 - CUPPED WASHER BSD-2600500002.A11 2600500002	£1.75	£2.10
30 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A763 2600905021	£8.67	£10.41
31 - NEEDLE BEARING dia6/12 MM BSD-2600914017.A17 2600914017	£11.30	£13.56
35 - ARMATURE 230-240V BSD-2604010671.A2 2604010671	-
36 - FAN BSD-2606610049.A253 2606610049	£2.16	£2.59
37 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A949 2916660008	£2.16	£2.59
38 - RECEPTACLE BSD-2600400008.A443 2600400008	£1.75	£2.10
40 - MOTOR HOUSING BSD-2605104146.A17 2605104146	-
41 - COVER DISC BSD-2601328032.A5 2601328032	-
43 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1349 2603490017	£2.16	£2.59
44 - TAPPING SCREW BSD-2603435086.A316 2603435086	£1.75	£2.10
46 - FIELD 220-240V BSD-1604220254.A81 1604220254	£21.68	£26.01
47 - CABLE L=130 MM BSD-2604448005.A378 2604448005	£1.75	£2.10
48 - BRUSH HOLDER BSD-2604449030.A0 2604449030	-
48 - BRUSH HOLDER BSD-2604337003.A151 2604337003	£2.16	£2.59
49 - CONNECTING CABLE L=176 MM BSD-2604448004.A12 2604448004	£1.32	£1.58
50 - BALL BEARING 7x22x7 BSD-1900905018.A988 1900905018	£18.96	£22.75
51 - SHIM BSD-2600150004.A440 2600150004	£2.16	£2.59
52 - SHIM 0.3 MM BSD-2600101023.A199 2600101023	£1.75	£2.10
52 - SHIM 0.2 MM BSD-2600101022.A420 2600101022	£1.75	£2.10
52 - SHIM 0.5 MM BSD-2600101020.A229 2600101020	£1.75	£2.10
55 - BRUSH PLATE BSD-2601015047.A175 2601015047	-
58 - ON-OFF SWITCH BSD-2607200173.A2 2607200173	-
58 - ON-OFF SWITCH BSD-2607200211.A8 2607200211	-
59 - CABLE CLIP BSD-2601035001.A1537 2601035001	£1.75	£2.10
60 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2161 2910211019	£1.75	£2.10
61 - SUPPRESSION FILTER BSD-2607329096.A46 2607329096	£7.36	£8.83
64 - HOUSING COVER BSD-2605132046.A0 2605132046	-
65 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A931 2910211021	£1.75	£2.10
66 - HEADLESS SCREW 65 MM BSD-2603435071.A162 2603435071	-
67 - TAPPING SCREW 79 MM BSD-2603435012.A107 2603435012	-
68 - ROTARY KNOB BSD-2602026018.A28 2602026018	-
70 - SPRING RETAINING RING DIN 471-10x1MM-FSt BSD-2916650001.A481 2916650001	£2.61	£3.13
74 - GROMMET dia6.9 MM BSD-2600707059.A525 2600707059	£3.72	£4.47
74 - GROMMET dia11.6-dia12.5x84 MM BSD-2600707060.A40 2600707060	£2.61	£3.13
74 - GROMMET dia8.8 MM BSD-2600707061.A271 2600707061	£2.80	£3.36
75 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F BSD-3604460069.A24 3604460069	£37.72	£45.27
76 - CABLE BSD-2604448003.A243 2604448003	-
77 - KEY CHUCK dia1.5-13 MM. 1/2 BSD-1608571055.A60 1608571055	-
78 - CHUCK WRENCH SG2 BSD-2607950007.A1227 2607950007	£6.52	£7.83
81 - STICKER BSD-2601110076.A4 2601110076	-
82 - STICKER BSD-2601110662.A3 2601110662	-
82 - STICKER BSD-2601110227.A1 2601110227	-
82 - STICKER BSD-2601110628.A3 2601110628	-
83 - STICKER BSD-2601110653.A2 2601110653	-
83 - STICKER BSD-2601110226.A3 2601110226	-
83 - STICKER BSD-2601110653.A3 2601110653	-
84 - STICKER BSD-2601110117.A6 2601110117	-
85 - STICKER BSD-2601110072.A28 2601110072	-
86 - STICKER BSD-2601110041.A186 2601110041	-
87 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1327 2603410001	£1.75	£2.10
88 - SHIM 0.2 MM BSD-2600100575.A134 2600100575	£2.16	£2.59
88 - SHIM 0.3 MM BSD-2600100576.A185 2600100576	-
88 - SHIM 0.5 MM BSD-2600100577.A137 2600100577	£1.75	£2.10
651 - AUXILIARY HANDLE BSD-2602025094.A115 2602025094	£7.36	£8.83
652 - WING NUT M6 DIN 315-G-GTW-40 BSD-2915191006.A75 2915191006	-
653 - HEX SCREW DIN 931-M6x45-8.8 BSD-2911011211.A9 2911011211	-
654 - CONICAL SPRING WASHER BSD-2601098001.A33 2601098001	-
671 - DEPTH-GAUGE BSD-2607010026.A14 2607010026	-
835 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1607000386.A44 1607000386	£21.52	£25.83
853 - CARBON-BRUSH SET BSD-2604321905.A353 2604321905	£11.30	£13.56
888 - NAMEPLATE BSD-160111A3H3.A2731 160111A3H3	£2.61	£3.13
