Mafell 918501 Cross-Cutting System KSS 80 Ec / 370 Spare Parts

Home Details Reviews Delivery

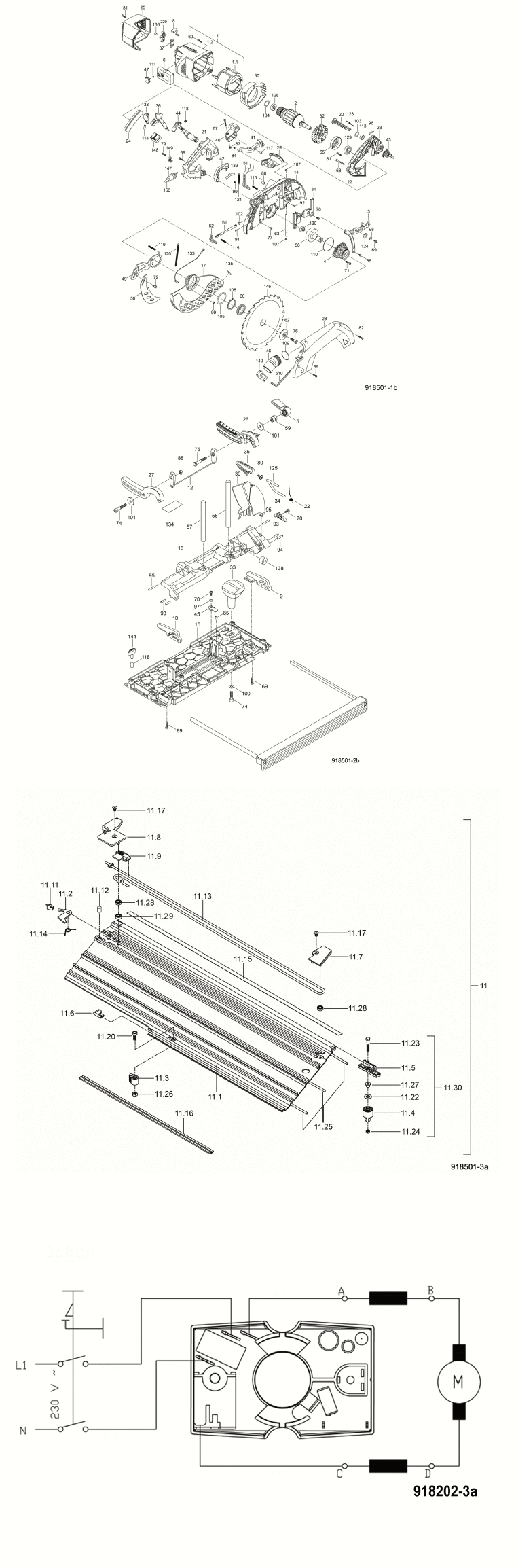

An exploded drawing and spare parts listing for the Mafell 918501 Cross-Cutting System KSS 80 Ec / 370

	Ex VAT	Inc VAT
1 - MOTOR CASING WITH INDUCTOR MAF-084652.A0 084652	-
1.1 - INDUCTOR MAF-084654.A0 084654	-
1.2 - MOTOR CASING MAF-205160.A2 205160	-
2 - ARMATURE BALANCED MAF-088222.A0 088222	-
3 - LEVER JOINT MAF-205143.A2 205143	-
4 - BEARING COVER MAF-205147.A2 205147	-
5 - TENSIONING LEVER MAF-205298.A1 205298	-
6 - CONTROL MODULE MAF-077674.A1 077674	£130.23	£156.28
8 - CARBON BRUSH WITH AUTOMATIC CUT-OFF MAF-063176.A6 063176	£17.38	£20.86
9 - SEGMENT FOR TILTING MAF-205148.A1 205148	-
10 - SEGMENT FOR TILTING MAF-205149.A0 205149	-
11 - GUIDE TRACK AS OPTIONAL ACCESSORY MAF-205310.A1 205310	£300.85	£361.02
11.1 - GUIDE TRACK MAF-205293.A0 205293	-
11.2 - RATCHET MAF-205319.A1 205319	-
11.3 - STOP BOLT MAF-204014.A10 204014	£13.72	£16.47
11.4 - STOP PLATE MAF-203988.A8 203988	£4.96	£5.95
11.5 - INDICATOR MAF-203987.A11 203987	£11.45	£13.74
11.6 - EDGE PROTECTION MAF-205317.A0 205317	-
11.7 - STOP PLATE MAF-205314.A0 205314	-
11.8 - COVER MAF-205318.A2 205318	-
11.9 - SPRING GUIDE MAF-203992.A1 203992	-
11.11 - HANDLE MAF-204007.A9 204007	-
11.12 - STOP BUFFER MAF-204009.A8 204009	-
11.13 - POLYETHYLENE CABLE MAF-205157.A0 205157	-
11.14 - LEG SPRING MAF-066155.A1 066155	-
11.15 - SKALE MAF-205316.A2 205316	-
11.16 - SPLINTER GUARD F-SS 3,4M MAF-204375.A1 204375	£27.49	£32.99
11.17 - FLAT-HEAD SCREW MAF-053016.A9 053016	-
11.20 - CYLINDER-HEAD SCREW MAF-055059.A8 055059	-
11.22 - WASHER MAF-006102.A57 006102	-
11.23 - HEXAGON-HEAD SCREW MAF-005688.A9 005688	-
11.24 - HEXAGONAL NUT MAF-005915.A36 005915	-
11.25 - NON-SLIP PROFILE F-HP 6,8 M MAF-204376.A3 204376	£22.12	£26.55
11.26 - HEXAGONAL NUT MAF-005939.A37 005939	-
11.27 - SLEEVE MAF-204237.A11 204237	-
11.28 - GROOVED BALL BEARING MAF-062090.A5 062090	-
11.29 - SHIM RING MAF-061125.A5 061125	-
11.30 - STOP PLATE MAF-205442.A11 205442	£25.48	£30.57
12 - CLAMPING UNIT MAF-205291.A0 205291	-
14 - GEAR CASING MAF-205130.A1 205130	-
15 - BASE PLATE MAF-205309.A1 205309	£173.42	£208.11
16 - TILTING SUPPORT MAF-205128.A2 205128	£121.58	£145.89
17 - PROTECTIVE COVER MAF-205139.A2 205139	£78.77	£94.52
20 - PUSH-BUTTON MAF-205161.A2 205161	-
21 - HANDLE SHELL MAF-205178.A2 205178	-
22 - HANDLE SHELL MAF-205179.A1 205179	-
23 - HANDLE SHELL COVER MAF-204513.A7 204513	£12.35	£14.82
24 - HANDLE INSERT MAF-203877.A17 203877	£20.10	£24.12
25 - MOTOR COVER MAF-205159.A2 205159	-
26 - SWIVEL RAIL MAF-205167.A0 205167	-
27 - SWIVEL RAIL MAF-205296.A0 205296	-
28 - PROTECTIVE COVER MAF-205326.A1 205326	-
29 - DEPTH SETTING MAF-205151.A2 205151	-
30 - AIR CONDUCTING RING MAF-205162.A0 205162	-
31 - COVER MAF-205169.A2 205169	-
32 - FAN MAF-205164.A0 205164	-
33 - HANDLE MAF-205308.A8 205308	£15.68	£18.81
34 - PANEL MAF-205155.A1 205155	-
35 - LEVER MAF-205171.A1 205171	-
36 - SWITCH TRIGGER MAF-205154.A0 205154	-
37 - INSULATING PLATE MAF-202357.A1 202357	-
38 - LOCKING LEVER MAF-206382.A0 206382	-
39 - PROTECTIVE DISK MAF-205168.A2 205168	-
40 - PLUNGE LEVER HANDLE MAF-205156.A0 205156	£13.12	£15.75
41 - PUSH-BUTTON MAF-205180.A2 205180	£12.40	£14.88
42 - BRAKE LEVER MAF-205142.A2 205142	-
43 - LOCKING LEVER MAF-205158.A0 205158	-
44 - LOCK-OFF BUTTON MAF-204510.A14 204510	£12.05	£14.46
45 - INDICATOR MAF-205292.A0 205292	-
46 - HOSE CONNECTOR MAF-205290.A1 205290	£19.09	£22.91
47 - SETTING WHEEL MAF-203729.A8 203729	-
49 - RIVING KNIFE/SPLITTER SUPPORT MAF-205138.A1 205138	-
50 - RIVING KNIFE/SPLITTER MAF-205141.A1 205141	-
51 - CLAMPING LEVER MAF-205152.A0 205152	-
52 - RATCHET MAF-205175.A1 205175	-
55 - BRAKE DRUM MAF-202353.A2 202353	-
56 - GUIDE COLUMN MAF-205173.A1 205173	-
57 - GUIDE COLUMN MAF-205174.A2 205174	-
58 - SAW SHAFT MAF-205132.A0 205132	-
59 - SHOULDER NUT MAF-205294.A7 205294	-
60 - FLANGE, REAR MAF-202352.A1 202352	-
61 - SHAFT AXLE MAF-205172.A2 205172	-
62 - FLANGE DISK MAF-202351.A1 202351	-
63 - STOP PLATE MAF-205153.A5 205153	-
66 - CYLINDRICAL OVAL-HEAD SCREW MAF-055111.A12 055111	-
67 - OVAL-HEAD SCREW MAF-055258.A7 055258	£1.73	£2.08
68 - OVAL-HEAD SCREW MAF-055257.A18 055257	-
69 - SELF-TAPPING SCREW MAF-055230.A53 055230	-
70 - SELF-TAPPING SCREW MAF-055232.A24 055232	£1.77	£2.12
71 - CYLINDRICAL OVAL-HEAD SCREW MAF-055269.A2 055269	-
72 - CYLINDER-HEAD SCREW MAF-055234.A5 055234	£1.25	£1.50
74 - CYLINDER-HEAD SCREW MAF-055113.A9 055113	£2.78	£3.33
75 - HEXAGON-HEAD SCREW MAF-056031.A5 056031	-
76 - CYLINDER-HEAD SCREW MAF-055236.A0 055236	£2.76	£3.31
77 - CYLINDER-HEAD SCREW MAF-055055.A11 055055	£3.39	£4.07
79 - CYLINDRICAL OVAL-HEAD SCREW MAF-055246.A11 055246	-
80 - OVAL-HEAD SCREW MAF-055264.A5 055264	-
81 - CYLINDRICAL OVAL-HEAD SCREW MAF-055061.A142 055061	£1.79	£2.15
82 - CYLINDRICAL OVAL-HEAD SCREW MAF-055139.A20 055139	-
84 - THREADED PIN MAF-052021.A1 052021	-
85 - THREADED PIN MAF-005284.A62 005284	-
86 - THREADED PIN MAF-005210.A0 005210	-
87 - LOCKING NUT MAF-005986.A14 005986	-
88 - HEXAGON SAFETY NUT MAF-059017.A3 059017	-
91 - CYLINDRICAL PIN MAF-058019.A2 058019	-
92 - SPRING DOWEL SLEEVE MAF-058229.A4 058229	-
93 - CYLINDRICAL PIN MAF-058046.A9 058046	£2.98	£3.57
94 - CYLINDRICAL PIN MAF-058228.A2 058228	£2.38	£2.86
95 - CYLINDRICAL PIN MAF-058225.A1 058225	-
96 - RIBBED PIN MAF-058219.A18 058219	-
97 - CUP SPRING MAF-066165.A4 066165	-
98 - WASHER MAF-061013.A64 061013	-
99 - LOCKING WASHER MAF-061069.A29 061069	£1.57	£1.88
100 - WASHER MAF-006101.A62 006101	£1.80	£2.16
101 - WASHER MAF-034208.A14 034208	-
102 - LOCKING WASHER MAF-061135.A24 061135	-
103 - SHIM RING MAF-006160.A39 006160	£1.73	£2.08
104 - COMPENSATING DISK MAF-006671.A2 006671	£2.14	£2.57
105 - SHIM RING MAF-006127.A1 006127	-
107 - SNAP RING MAF-061160.A7 061160	-
108 - RETAINING RING MAF-061133.A2 061133	£3.46	£4.15
109 - SEALING RING MAF-078173.A8 078173	-
110 - SEALING RING MAF-065064.A0 065064	-
111 - SEALING RING MAF-065004.A33 065004	£1.72	£2.06
113 - PRESSURE SPRING MAF-066096.A16 066096	£4.47	£5.36
114 - PRESSURE SPRING MAF-006645.A5 006645	-
115 - PRESSURE SPRING MAF-066177.A0 066177	-
117 - PRESSURE SPRING MAF-006684.A3 006684	-
118 - PRESSURE SPRING MAF-066043.A98 066043	£3.19	£3.83
119 - RETRACTING SPRING MAF-066090.A21 066090	-
120 - RETRACTING SPRING MAF-066134.A1 066134	£5.72	£6.86
121 - RETRACTING SPRING MAF-066092.A16 066092	£5.22	£6.27
122 - LEG SPRING MAF-066167.A2 066167	-
123 - LEG SPRING MAF-066174.A2 066174	-
124 - CUP SPRING MAF-066016.A6 066016	£1.82	£2.19
125 - FRAME MAF-205144.A2 205144	-
128 - GROOVED BALL BEARING MAF-062073.A45 062073	£15.00	£18.00
129 - GROOVED BALL BEARING MAF-006268.A3 006268	£16.07	£19.28
130 - GROOVED BALL BEARING MAF-006282.A48 006282	£15.42	£18.50
133 - BOWDEN CABLE MAF-205286.A1 205286	£12.12	£14.55
134 - LABEL SELECTION OF SAW BLADES MAF-205297.A2 205297	-
135 - RUBBER BUFFER MAF-205289.A1 205289	-
136 - PRESSURE BIT MAF-202378.A12 202378	-
138 - STOP BUFFER MAF-034209.A9 034209	-
139 - BRAKE LINING MAF-205176.A0 205176	-
140 - HOOK-AND-LOOP FASTENER BELT MAF-205049.A15 205049	£5.66	£6.79
144 - WING SCREW MAF-079091.A6 079091	-
146 - TCT SAW BLADE MAF-092590.A2 092590	-
147 - CABLE PROTECTING SLEEVE MAF-086064.A72 086064	£3.53	£4.24
148 - 2-POLE SWITCH WITH LOCK-OFF BUTTON MAF-087862.A1 087862	-
149 - CABLE CLAMP MAF-205672.A0 205672	-
150 - MAINS CABLE WITH PLUG MAF-087888.A2 087888	-
220 - BRUSH HOLDER MAF-063148.A39 063148	£10.82	£12.98
510 - ALLEN KEY MAF-093034.A34 093034	-
