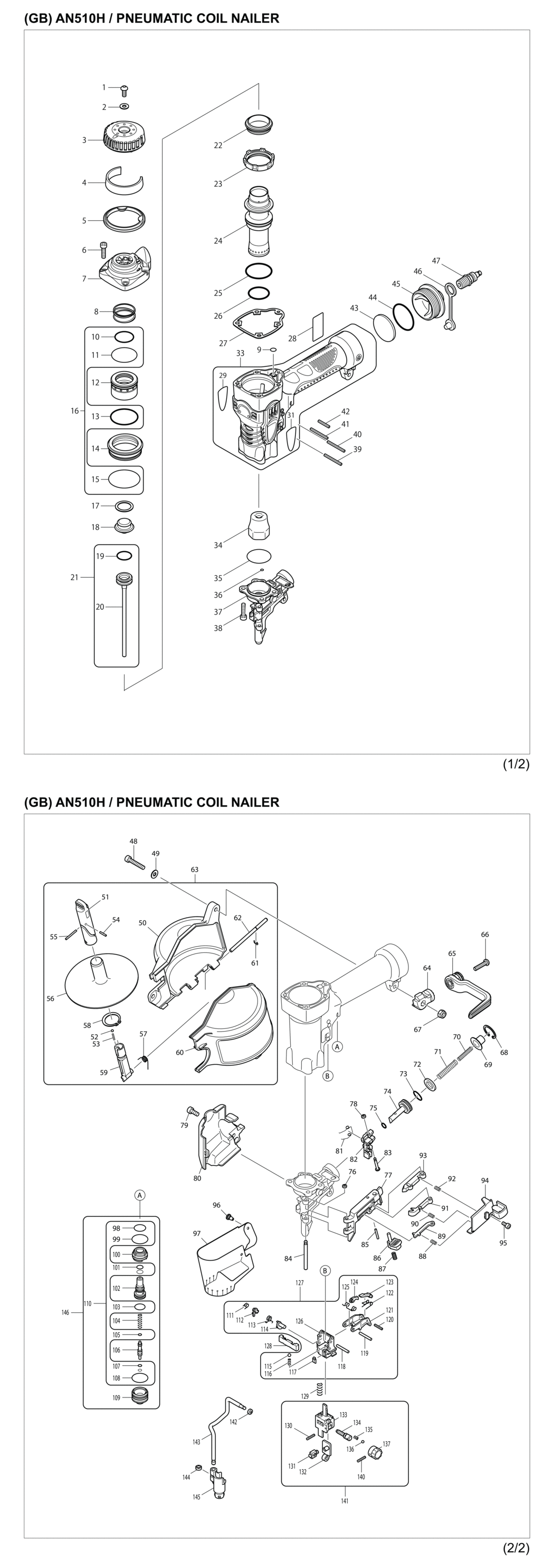

An exploded drawing and spare parts listing for the Makita AN510H Construction Coil Nailer
Ex VAT Inc VAT
1-1 - HEX SOCKET HD M5X12 AN510/45 MSP-265903-7.A0 265903-7 £1.44 £1.73
2 - FLAT WASHER 5 AN510/610/620/7 MSP-267343-5.A4 267343-5 £1.44 £1.73
3 - EXHAUST COVER AN510 MSP-419764-9 419764-9 £6.08 £7.30
4 - FILTER AN510 MSP-413106-9 413106-9 £25.20 £30.24
5 - COVER SEAL AN510 MSP-419763-1 419763-1 £3.90 £4.68
6 - HEX SOCKET HD BOLT M5X20 AN51 MSP-266369-4.A3 266369-4 £1.44 £1.73
7 - TOP CAP AN510 MSP-318252-2 318252-2 £108.61 £130.33
8 - COMPRESSION SPRING 27 AN510 MSP-234055-5 234055-5 £5.46 £6.55
9 - O RING 5 BTM40/50/620/711/DLS MSP-213021-5.A15 213021-5 £1.44 £1.73
10 - O RING 23 AN510/AR411HR MSP-213393-8.A2 213393-8 £1.44 £1.73
11 - O RING 34 HM1110/1111/AN510 MSP-213458-6.A0 213458-6 £1.44 £1.73
12 - HEAD VALVE AN510 MSP-419770-4 419770-4 £64.94 £77.93
13 - O RING 36 AN510/HR2010/HM1202 MSP-213510-0.A2 213510-0 £1.44 £1.73
14 - HEAD VALVE GUIDE AN510 MSP-331744-4 331744-4 £15.58 £18.70
15 - O RING 42 AN510/AG125/GA4034 MSP-213561-3.A1 213561-3 £1.44 £1.73
16 - AIR LEAK REPAIR SET AN510 MSP-194736-2.A0 194736-2 £23.95 £28.74
17 - FLAT WASHER 18 AN510 MSP-267344-3 267344-3 £1.44 £1.73
18 - REAR CUSHION AN510 MSP-421993-2 421993-2 £26.92 £32.31
19 - O-RING 17 AN510 MSP-213282-7 213282-7 £13.42 £16.10
20 - DRIVER AN510 MSP-165458-1 165458-1 £259.80 £311.76
21 - DRIVER ASSY AN510 MSP-135135-9 135135-9 £266.76 £320.11
22 - VALVE SEAT AN510 MSP-421994-0 421994-0 £15.58 £18.70
23 - CYLINDER STAY AN510 MSP-331743-6 331743-6 £15.70 £18.84
25 - O RING 33 AN510/AN635H MSP-213462-5.A3 213462-5 £1.44 £1.73
26-1 - O RING 26 AN510/6900DW MSP-213643-1 213643-1 £1.44 £1.73
27 - TOP CAP GASKET AN510 MSP-162249-1 162249-1 £9.20 £11.04
28 - NAME PLATE AN510 MSP-866113-5 866113-5 £1.44 £1.73
29 - LABEL/MAKITA LOGO R AN510 MSP-819333-0 819333-0 £3.90 £4.68
31 - LABEL/MAKITA LOGO L AN510 MSP-819334-8 819334-8 £3.90 £4.68
33 - LABEL/INDICATION AN51061062 MSP-816919-1.A0 816919-1 £1.44 £1.73
33 - HOUSING SET AN510 MSP-188650-2 188650-2 £315.72 £378.86
34 - FRONT CUSHION AN510 MSP-421992-4 421992-4 £23.62 £28.34
35-1 - O RING 31 AN510 MSP-213990-0 213990-0 £1.44 £1.73
36 - O RING 3 AN510/620/711 DA3010 MSP-213034-6.A11 213034-6 £1.44 £1.73
37 - DRIVER GUIDE AN510 MSP-158171-8 158171-8 £341.52 £409.82
38 - HEX SOCKET HD BOLT M5X20 AN51 MSP-266369-4.A4 266369-4 £1.44 £1.73
39 - SPRING PIN AN510/620/711/AN635 MSP-951078-5.A8 951078-5 £1.44 £1.73
40 - SPRING PIN AN510/620/711/AN635 MSP-951078-5.A11 951078-5 £1.44 £1.73
41 - SPRING PIN AN510/620/711/AN635 MSP-951078-5.A19 951078-5 £1.44 £1.73
43 - INLET FILTER AN510/711/AN911H MSP-413105-1.A1 413105-1 £2.24 £2.69
44-1 - O RING 36 AN510/620/711 MSP-213506-1.A2 213506-1 £1.44 £1.73
45 - INLET CAP AN510/610/711/911H MSP-318108-9.A0 318108-9 £35.86 £43.03
46 - CAP 9 AN510/610/711/911/AN635H MSP-286280-4.A6 286280-4 £2.34 £2.81
47 - 1 TOUCH JOINT H22PM AN510/711 MSP-243105-5.A4 243105-5 £29.38 £35.25
48 - HEX.SOCKT HD BOLT M5X28 AN510 MSP-265570-8.A2 265570-8 £1.44 £1.73
49 - FLAT WASHER 5 AN510/610/620/7 MSP-267343-5.A3 267343-5 £1.44 £1.73
50 - MAGAZINE AN510 MSP-419768-1 419768-1 £21.89 £26.27
51 - CHANGE SLEEVE AN510 MSP-419767-3 419767-3 £3.90 £4.68
52 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A45 216001-0 £1.59 £1.91
53 - COMPRESSION SPRING 2 AN510/71 MSP-233492-0.A3 233492-0 £1.44 £1.73
55 - PIN 2.5 AN510/620/AN635H MSP-268167-2.A3 268167-2 £1.44 £1.73
56 - CHANGE PLATE AN510 MSP-419766-5 419766-5 £8.42 £10.11
57 - TORSION SPRING 7 AN510/711 MSP-233505-7.A3 233505-7 £3.90 £4.68
58 - EXT DIN 471 CIRCLIP-25/AN635H MSP-961105-0.A15 961105-0 £1.44 £1.73
60 - LABEL/MAGAZINE AN510 MSP-808229-0 808229-0 £29.38 £35.25
60 - MAGAZINE CAP AN510 MSP-158916-4 158916-4 £44.88 £53.86
61 - STOP RING E-3 AN510/711/AN635H MSP-259042-3.A4 259042-3 £1.44 £1.73
64 - HOOK BASE AN510/711/911H MSP-162255-6.A2 162255-6 £4.52 £5.43
65 - HOOK AN510 MSP-419843-3 419843-3 £6.08 £7.30
66 - PAN.HD.SCREW M5X22 AN510/711 MSP-265176-2.A2 265176-2 £1.44 £1.73
67 - HEX FULL NUT M5 RP0900/AN510 MSP-931202-6.A39 931202-6 £1.44 £1.73
68 - RETAINING RING INT R-21 AN510 MSP-962101-1 962101-1 £1.44 £1.73
70 - COMPRESSION SPRING 6 AN510 MSP-233493-8 233493-8 £2.65 £3.18
71 - COMPRESSION SPRING 8 AN510 MSP-233494-6 233494-6 £2.50 £3.00
72 - RUBBER RING 13 AN510 MSP-262121-8 262121-8 £3.59 £4.31
73 - O RING 14 AN510/620/711 8406C MSP-213154-6.A5 213154-6 £1.44 £1.73
74 - PISTON AN510 MSP-324750-6 324750-6 £15.13 £18.16
75 - O RING 8 AN510/AR411HR MSP-213007-9.A2 213007-9 £1.44 £1.73
76 - URETHANE RING 3 AN510/711 MSP-262120-0.A7 262120-0 £1.44 £1.73
77 - DOOR AN510 MSP-310189-9 310189-9 £85.68 £102.82
78 - URETHANE RING 3 AN510/711 MSP-262120-0.A8 262120-0 £1.44 £1.73
79 - HEX SOCKET HD M5X12 AN510/45 MSP-265903-7.A1 265903-7 £1.44 £1.73
80 - CONTACT ARM COVER AN510 MSP-419762-3 419762-3 £5.78 £6.93
81 - TORSION SPRING 6 AN510 MSP-231652-8 231652-8 £3.28 £3.93
82 - FEEDING CLAW AN504/510 MSP-310116-6 310116-6 £22.90 £27.48
83 - SHOULDER PIN 3-4 AN510 MSP-256463-0 256463-0 £1.44 £1.73
84 - PIN 4 AN510 MSP-268170-3 268170-3 £2.50 £3.00
85 - PIN 3 AN510 MSP-268183-4 268183-4 £1.44 £1.73
86 - LOCK LEVER AN510/620/711 MSP-162247-5.A0 162247-5 £5.78 £6.93
87 - COMPRESSION SPRING 5 AN510 MSP-234013-1 234013-1 £1.44 £1.73
88 - COMPRESSION SPRING 4 BHX2501/ MSP-233133-8.A0 233133-8 £1.44 £1.73
89 - CHECK CLAW AN510 MSP-344995-0 344995-0 £2.81 £3.37
90 - COMPRESSION SPRING 4 BHX2501/ MSP-233133-8.A1 233133-8 £1.44 £1.73
91 - NAIL HOLDER AN510 MSP-311998-9 311998-9 £20.30 £24.36
92 - COMPRESSION SPRING 4 BHX2501/ MSP-233133-8.A2 233133-8 £1.44 £1.73
93 - ARM AN510 MSP-311997-1 311997-1 £21.89 £26.27
94 - DOOR COVER AN510 MSP-419761-5 419761-5 £5.46 £6.55
95 - HEX SOCKET HD M5X12 AN510/45 MSP-265903-7.A2 265903-7 £1.44 £1.73
96 - RUBBER PIN 9.5 AN510/620/711 MSP-421418-6.A0 421418-6 £1.44 £1.73
97 - COVER AN510 MSP-413107-7 413107-7 £8.58 £10.30
98 - O-RING 15 AN510/620/711/AN635H MSP-213233-0.A2 213233-0 £1.44 £1.73
99 - *O RING 18 HM0871C/AN510/620 MSP-213275-4.A37 213275-4 £1.44 £1.73
100 - TRIGGER VALVE GUIDE AN510/620 MSP-419732-2.A1 419732-2 £51.61 £61.93
101 - O-RING 7 AN510/620/711/AN635H MSP-213968-3.A6 213968-3 £2.65 £3.18
103 - O-RING 12.5 AN510/620/711 MSP-213185-5.A1 213185-5 £1.44 £1.73
104 - COMPRESSION SPRING 4 AN510/61 MSP-233485-7.A0 233485-7 £2.65 £3.18
105 - O RING 3 AN510/620/711 DA3010 MSP-213034-6.A12 213034-6 £1.44 £1.73
105-1 - O RING 3 AN942/AN635H MSP-213044-3.A2 213044-3 £1.44 £1.73
106-1 - TRIGGER BULB STEM AN910 ETC MSP-326189-9.A3 326189-9 £8.11 £9.73
107 - O-RING 3 AN510/620/711/AN635H MSP-213979-8.A1 213979-8 £2.34 £2.81
107-1 - O RING 3 AN942/AN635H/AR411HR MSP-213640-7.A4 213640-7 £4.37 £5.24
108 - *O RING 18 HM0871C/AN510/620 MSP-213275-4.A38 213275-4 £1.44 £1.73
109 - TRIGGER VALVE CASE AN510/620 MSP-331741-0.A2 331741-0 £17.86 £21.43
110 - AIR LEAK REPAIR SET AN510 MSP-194736-2.A1 194736-2 £23.95 £28.74
111 - TORSION SPRING 5 AN510/711 MSP-233501-5.A3 233501-5 £1.44 £1.73
112 - STOPPER PLATE AN510/620/711 MSP-310199-6.A1 310199-6 £7.49 £8.99
113 - TORSION SPRING 6 AR411HR MSP-233502-3.A2 233502-3 £1.44 £1.73
114 - LEVER AN510/620/711/AR411HR MSP-310310-0.A1 310310-0 £7.64 £9.17
115 - STEEL BALL 4 BFL080/121FZ MSP-216024-8.A68 216024-8 £1.44 £1.73
115-1 - LOCK PIN AN911H/AR411HR MSP-326144-1.A5 326144-1 £2.50 £3.00
116 - COMPRESSION SPRING 2 AN510/61 MSP-233490-4.A4 233490-4 £1.44 £1.73
117 - SPRING COVER AN510/620/711 MSP-419743-7.A2 419743-7 £1.44 £1.73
118 - PIN 3 AN510/620/711/AR411HR MSP-268168-0.A5 268168-0 £1.44 £1.73
119 - PIN 3 AN510/620/711/AR411HR MSP-268168-0.A10 268168-0 £1.44 £1.73
120 - SPRING PIN 2-12 AN510/620/711 MSP-951007-8.A5 951007-8 £1.44 £1.73
121 - TRIGGER AN510/620/711 MSP-310294-2.A0 310294-2 £33.41 £40.09
122 - TORSION SPRING 4 AN510/620/71 MSP-231699-2.A4 231699-2 £1.44 £1.73
123 - TRIP LEVER AN510/620/711 MSP-310196-2.A1 310196-2 £8.27 £9.92
124 - LEVER AN510/610/620/711/911 MSP-310198-8.A4 310198-8 £7.49 £8.99
125 - TORSION SPRING 7 AN510/711 MSP-233503-1.A3 233503-1 £3.28 £3.93
126 - TRIGGER BASE AN510/620/711 MSP-419844-1.A0 419844-1 £6.55 £7.86
127-1 - TRIGGER ASSY AN911H MSP-135494-1.A1 135494-1 £72.82 £87.39
128 - CHANGE ROD AN510/610/620/711/ MSP-310293-4.A5 310293-4 £18.72 £22.46
129 - COMPRESSION SPRING 6 AN510 MSP-234012-3.A0 234012-3 £2.81 £3.37
130 - SPRING PIN 2 14 AG125 MSP-951010-9.A7 951010-9 £1.44 £1.73
131 - ADJUSTER PIECE AN510/610/620/ MSP-310201-5.A4 310201-5 £7.49 £8.99
132 - SLIDE PLATE AN510/620/711 MSP-345775-7.A1 345775-7 £3.74 £4.49
133 - UPPER YOKE AN510/620/AR411HR MSP-310234-0.A2 310234-0 £43.30 £51.96
134 - ADJUSTER SHAFT AN510/610/620/ MSP-324745-9.A1 324745-9 £2.65 £3.18
135 - COMPRESSION SPRING 2 AN510/61 MSP-233491-2.A3 233491-2 £1.44 £1.73
136 - STEEL BALL 2.3 AN610H/DUP361 MSP-216031-1.A0 216031-1 £1.44 £1.73
137 - ADJUSTER AN510/610/620/7 MSP-158747-1.A4 158747-1 £1.44 £1.73
140 - SPRING PIN 2 14 AG125 MSP-951010-9.A8 951010-9 £1.44 £1.73
142 - URETHANE RING 3 AN510/711 MSP-262120-0.A11 262120-0 £1.44 £1.73
143 - ARM AN510 MSP-324751-4 324751-4 £59.92 £71.91
144 - URETHANE RING 4 AN510 MSP-262128-4 262128-4 £7.18 £8.61
145 - CONTACT TOP AN510 MSP-310240-5 310240-5 £29.38 £35.25
146 - *TRIGGER VALVE ASSY AN510/610 MSP-135598-9.A1 135598-9 £98.53 £118.24
A01-1 - SAFETY GOGGLE HR2450/AN MODELS MSP-195246-2.A8 195246-2 £2.55 £3.06
A02 - OIL SUPPLY SET AN510/620/711 MSP-194381-3.A6 194381-3 £2.01 £2.41
A03 - BOARD ADAPTER AN510 MSP-421996-6 421996-6 £2.34 £2.81
A04 - FLOOR ADAPTER AN510 MSP-421997-4 421997-4 £3.59 £4.31
A05 - LATCH AN510/BDF453/BUC121/2 MSP-163455-1.A27 163455-1 £1.20 £1.44
A05 - PLASTIC CASE AN510 MSP-824793-3 824793-3 £56.78 £68.13
A05 - HANDLE AN510/DDF453/501 MSP-419360-3.A35 419360-3 £1.44 £1.73
