Makita RBC3101 Petrol Brushcutter Spare Parts

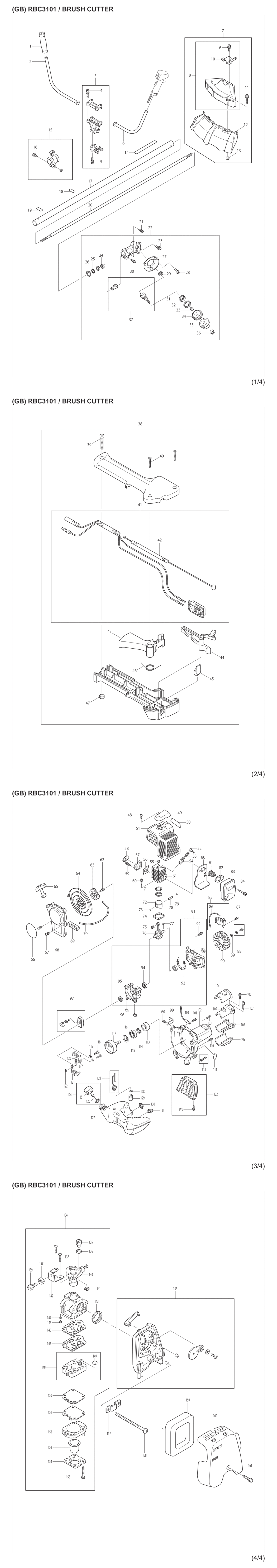

An exploded drawing and spare parts listing for the Makita RBC3101 Petrol Brushcutter

	Ex VAT	Inc VAT
1 - *GRIP RBC260L/U/RBC420E/MS420 MSP-6274501000.A0 6274501000	£9.82	£11.79
2 - HANDLE (LEFT) MS3200E/RBC320 MSP-6274500700.A1 6274500700	£23.62	£28.34
4-1 - SOCKET HEAD BOLT M5X25 DBC260 MSP-266805-0.A2 266805-0	£1.44	£1.73
5 - HEX SOCKET HEAD BOLT M5X30 R MSP-0119059940.A3 0119059940	£1.44	£1.73
6 - HANDLE (RIGHT) MS3200E/RBC32 MSP-6274500600.A0 6274500600	£21.89	£26.27
7-1 - PROTECTOR ASSY RBC281/320E MSP-6278011002.A1 6278011002	£30.46	£36.55
8 - *PROTECTOR ASSY MS3200E/RBC28 MSP-6278012001.A0 6278012001	£30.24	£36.29
9-2 - BOLT/CROSS RECESSED M6X30 MSP-266617-1.A0 266617-1	£2.50	£3.00
10 - PROTECTOR CLAMP MS2800/RBC28 MSP-6278501000.A1 6278501000	£6.40	£7.68
11 - SCREW ASSY M5x40 DBC260L/U MSP-0140059380.A3 0140059380	£12.63	£15.16
12-1 - PROTECTOR RBC260L/UMS281 MSP-140424-9.A1 140424-9	£17.13	£20.56
13-1 - NUT M5 DBC260L/U/RBC3101 MSP-264035-7.A2 264035-7	£1.44	£1.73
14 - LABEL/CAUTION RBC3101 MSP-6279518500 6279518500	£12.79	£15.35
15 - HANGER ASSY RBC3101 MSP-6277002000.A1 6277002000	£10.77	£12.92
16-1 - SCREW & WASHER ASSY DBC260L/U MSP-266788-4.A4 266788-4	£1.44	£1.73
17 - SHAFT PIPE RBC3101 MSP-6271019000 6271019000	£155.16	£186.19
18 - *LABEL/CAUTION RBC260LUMS32 MSP-6259514700.A2 6259514700	£4.06	£4.87
18-1 - LABEL/CAUTION EM2651LHEBH253 MSP-808723-2.A7 808723-2	£1.44	£1.73
19 - *LABEL/CAUTION RBC260LUMS32 MSP-6259514700.A3 6259514700	£4.06	£4.87
20 - SHAFT MS3200/RBC320/RBC3101 MSP-6271500802.A2 6271500802	£43.30	£51.96
21 - BOLT ASSY M6x14 RBC410/420E MSP-0130069910.A2 0130069910	£1.44	£1.73
22 - *GEAR CASE UNIT MS3200/RBC280 MSP-6273001008.A3 6273001008	£126.48	£151.78
23-1 - OIL BOLT M10 RBC230/RBC420E MSP-266671-5.A0 266671-5	£4.37	£5.24
25 - OUTER SNAPRING RBC310/MS3200E MSP-6253502600.A1 6253502600	£1.44	£1.73
26-2 - RETAINING RING R-24 AN620 MSP-962103-7.A20 962103-7	£1.44	£1.73
27-1 - GUARD RBC310/RBC420E/RBC3101 MSP-412099-7.A1 412099-7	£3.90	£4.68
28-1 - SCREW ASSY M5X12 DBC260L/U MSP-265195-8.A2 265195-8	£1.44	£1.73
29-2 - BALL BEARING 627ZZ MSP-210145-8 210145-8	£11.39	£13.67
30 - BOLT ASSY M6X30 RBC280/RBC31 MSP-0130069920.A1 0130069920	£1.44	£1.73
31 - BALL BEARING 6200DDU MS3200 MSP-0600109970.A0 0600109970	£12.79	£15.35
32 - INNER SNAP RING RBC310/MS320 MSP-0031430000.A0 0031430000	£1.44	£1.73
33 - SPACER RBC310/RBC3101 MSP-6253501300.A3 6253501300	£5.62	£6.74
34 - *RECEIVE WASHER RBC310/RBC3101 MSP-6258503600.A0 6258503600	£30.96	£37.15
35 - *CLAMP WASHER RBC310/RBC3101 MSP-327196-5.A4 327196-5	£16.32	£19.58
37 - CUTTER SHAFT SET MS3200E MSP-6273013000.A0 6273013000	£64.94	£77.93
38 - CONTROL LEVER ASSY MS3200E/RB MSP-6275008000.A0 6275008000	£78.50	£94.20
39-1 - HEX SOCKET HD BOLT M5X30 AN94 MSP-922252-2.A6 922252-2	£1.44	£1.73
42 - CONTROL CABLE RBC3101 MSP-6275005040 6275005040	£25.20	£30.24
44-1 - LEVER RBC260L/U/RBC421L/RBC31 MSP-452278-5.A2 452278-5	£6.08	£7.30
45 - *TOP RBC260L/U/RPT250/MH2556/ MSP-6195006150.A3 6195006150	£1.44	£1.73
46-1 - TORSION SPRING EBH253L MSP-233568-3.A1 233568-3	£1.44	£1.73
46 - *SPRING EH7500/U/EM4251/PTR25 MSP-6195006050.A1 6195006050	£2.18	£2.62
49 - PLUG COVER RBC3101 MSP-5317501200 5317501200	£2.81	£3.37
50 - LABEL/TRADE MARK RBC201RBC3 MSP-6279505700.A1 6279505700	£4.83	£5.80
51 - CYLINDER COVER RBC3101 MSP-5315505400 5315505400	£27.65	£33.18
52 - PLUG CAP MS3200/RBC320E/RBC31 MSP-5317010030.A1 5317010030	£14.51	£17.41
55 - SPACER EH7500/RBC3101/HTR560 MSP-5503503001.A4 5503503001	£2.34	£2.81
56 - INSULATOR GASKET MS3200/RBC31 MSP-5313502300.A3 5313502300	£1.44	£1.73
57 - INSULATOR ASSY RBC3101 MSP-5313021002 5313021002	£7.49	£8.99
58-1 - SPACER GASKET RBC230/260/320E MSP-442177-9.A14 442177-9	£1.44	£1.73
60 - *SOCKET HEAD BOLT M5X18 RBC23 MSP-0119059950.A4 0119059950	£1.44	£1.73
61-2 - CYLINDER RBC310/MS3200E/RBC31 MSP-319255-9.A0 319255-9	£84.04	£100.85
61 - *CYLINDER RBC310/MS3200E/RBC3 MSP-5311500201.A0 5311500201	-
62 - *SET SCREW EPH1000/RBC221/251 MSP-5425003010.A1 5425003010	£2.81	£3.37
63-1 - REEL EBH341U MSP-451923-9.A0 451923-9	£5.15	£6.18
64-1 - SPIRAL SPRING EBH341U MSP-232257-7.A2 232257-7	£15.44	£18.53
66 - LABEL/RBC3101 MSP-6279519300 6279519300	£8.27	£9.92
68-1 - *STARTER REWIND RBC3101 MSP-5315021001 5315021001	£41.98	£50.37
69 - DAMPER RBC3101 MSP-5316503800 5316503800	£3.74	£4.49
70-1 - STARTER ROPE EBH341U MSP-444018-5.A2 444018-5	£4.06	£4.87
72 - *PISTON RBC310/320E/MS3200E MSP-5312500601.A2 5312500601	£32.69	£39.23
73-1 - CLIP ER2650LH/EM2651LH/EBH253 MSP-233976-8.A6 233976-8	£1.44	£1.73
75 - NEEDLE ROLLER BEARING RBC230/ MSP-0610089990.A0 0610089990	£7.49	£8.99
76 - *CRANK SHAFT COMPL RBC3101 MSP-5312012000 5312012000	£187.80	£225.36
77-1 - WOODRUFF KEY 3 ER2650LH/EM265 MSP-254040-2.A1 254040-2	£4.06	£4.87
78 - PISTON PIN RBC310/MS3200E MSP-5312500400.A0 5312500400	£4.68	£5.62
82 - MUFFLER GASKET RBC310/RBC310 MSP-5313500600 5313500600	£2.34	£2.81
84 - SOCKET H BOLT M5X55 RBC320E/M MSP-0119059670.A1 0119059670	£3.90	£4.68
85 - *COIL RBC3101 MSP-5317015021 5317015021	£111.51	£133.81
86-1 - WIRE RBC3101 MSP-5317015030.A0 5317015030	£6.71	£8.05
86 - WIRE RBC3101 MSP-5317015030.A1 5317015030	£6.71	£8.05
88 - BOLT ASSY RBC230/EM4251/4340L MSP-0011306160.A1 0011306160	£1.44	£1.73
90 - FLYWHEEL RBC3101 MSP-5317015010 5317015010	£69.93	£83.92
92-1 - SOCKET HEAD BOLT M5X25 DBC260 MSP-266805-0.A3 266805-0	£1.44	£1.73
94-1 - BALL BEARING 6001C3 MS3200E MSP-210113-1.A2 210113-1	£12.48	£14.98
95-1 - OIL SEAL RBC221/251/MS3200E MSP-213628-7.A2 213628-7	£2.81	£3.37
96-1 - DAMPER RBC230/320E/MS3200E/MH MSP-424446-0.A4 424446-0	£1.44	£1.73
97-1 - *PULLEY EBH341L&U MSP-165606-2.A0 165606-2	£5.78	£6.93
98-1 - SCREW ASSY M5X12 EPH1000/RBC2 MSP-266808-4.A3 266808-4	£1.44	£1.73
99 - *CLAMP RBC525/MS20C/EM4251/43 MSP-0566059980.A4 0566059980	£2.34	£2.81
101-1 - H.S.H BOLT M5X18 ER2650LH/EH5 MSP-266787-6.A22 266787-6	£1.44	£1.73
102 - CLUTCH CASE RBC3101 MSP-6271502200 6271502200	£77.11	£92.53
103-1 - H.S.H BOLT M5X18 ER2650LH/EH5 MSP-266787-6.A23 266787-6	£1.44	£1.73
104 - PIPE DAMPER 1 RBC3101 MSP-6241501200.A1 6241501200	£4.68	£5.62
105 - PIPE BRACKET 1 RBC3101 MSP-6271502000 6271502000	£8.58	£10.30
106 - SOCKET HEAD BOLT M5X12 DBC26 MSP-0119059900.A3 0119059900	£1.44	£1.73
107 - *SOCKET HEAD BOLT M5X18 RBC23 MSP-0119059950.A3 0119059950	£1.44	£1.73
108 - PIPE BRACKET 2 RBC3101 MSP-6271502100 6271502100	£8.89	£10.67
110-1 - H.S.H BOLT M5X18 ER2650LH/EH5 MSP-266787-6.A21 266787-6	£1.44	£1.73
111 - LABEL/PTR2500RBC3101 MSP-6279516201.A0 6279516201	£2.81	£3.37
112-1 - SCREW ASSY M5X12 EPH1000/RBC2 MSP-266808-4.A2 266808-4	£1.44	£1.73
113 - SPACER RBC3101 MSP-6271502300 6271502300	£5.62	£6.74
115 - *BALL BEARING PTR2500/RBC3101 MSP-0600129810.A0 0600129810	£12.95	£15.54
115-2 - BALL BEARING 6201LLU EBH341U MSP-210116-5.A2 210116-5	£6.40	£7.68
117 - CLUTCH DRUM RBC3101 MSP-6272006000 6272006000	£30.96	£37.15
118-1 - SHOULDER HEX BOLT M8X23 EBH34 MSP-266571-9.A1 266571-9	£2.34	£2.81
119-3 - WAVE WASHER 10 EM4340/RBC3100 MSP-267849-3.A0 267849-3	£1.44	£1.73
119-2 - WAVE WASHER 10 EM4350/EM4351 MSP-267832-0.A4 267832-0	£1.44	£1.73
119 - *WAVE WASHER RBC3101 MSP-0204109990 204109990	£4.52	£5.43
120 - *CLUTCH SPRING RBC3101 MSP-5318004010 5318004010	£5.46	£6.55
121-2 - CLUTCH ASSY EBH341U/EM4340 MSP-125757-3.A1 125757-3	£12.01	£14.41
121-2 - CLUTCH SHOE EBH341U/EM4340 MSP-AN04002000.A1 AN04002000	£9.20	£11.04
122-1 - FLAT WASHER 8 EM4340/RBC3100 MSP-267424-5.A1 267424-5	£1.44	£1.73
123 - TUBE RBC3101 MSP-0851179940 851179940	£1.44	£1.73
124-1 - CAP FUEL TANK ASSY RBC350E MSP-168668-9.A7 168668-9	£14.20	£17.04
125-1 - FUEL TANK CAP MS221/PB25 MSP-452920-8.A13 452920-8	£8.58	£10.30
126-1 - STRAP ER2550/EBH341U MSP-140436-2.A1 140436-2	£3.96	£4.75
127 - FUEL TANK RBC3101 MSP-5316503700 5316503700	£32.69	£39.23
129-2 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A11 163447-0	£3.42	£4.10
129-1 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A62 163447-0	£3.42	£4.10
130-1 - PLATE ER2550/ EBH251L/341U MSP-424102-2.A2 424102-2	£1.44	£1.73
131-1 - GASKET ER2550/ EBH251L/341U MSP-424103-0.A13 424103-0	£1.44	£1.73
132-1 - STAND SET ER2550/EBH253L MSP-195144-0.A1 195144-0	£1.47	£1.76
133-1 - SCREW ASSY M5X14 EPH1000/RBC2 MSP-266809-2.A7 266809-2	£1.44	£1.73
135-1 - SWIVEL ER2650LH/341U/BHX2501 MSP-325922-6.A11 325922-6	£5.46	£6.55
136-1 - WASHER ER2650LH/BHX2501/ER25 MSP-413140-9.A25 413140-9	£1.44	£1.73
138 - *CABLE ADJUST NUT RBC230/260/ MSP-5316005450.A5 5316005450	£1.44	£1.73
138-1 - CABLE ADJUST NUT M6 EB7650TH MSP-264065-8.A9 264065-8	£1.44	£1.73
139-1 - CABLE ADJUST SCREW MS3200 MSP-326084-3.A4 326084-3	£10.30	£12.36
140 - VALVE ASSY THROTTLE RBC3101/H MSP-5196002010.A3 5196002010	£59.92	£71.91
141-1 - SROP RING E-3 ER2650LH/BHX250 MSP-257964-1.A22 257964-1	£2.81	£3.37
142-1 - BRACKET CABLE MS3200/RBC350/4 MSP-346491-4.A1 346491-4	£9.98	£11.98
143-1 - RING PACKING RBC230/260/310 MSP-424444-4.A8 424444-4	£2.34	£2.81
144-1 - O RING 2 ER2650LH/EBH253L/341 MSP-213538-8.A24 213538-8	£3.59	£4.31
145 - JET RBC230/310/MS3200E/RST25 MSP-5036002010.A3 5036002010	£8.58	£10.30
147-2 - PUMP DIAPHRAGM DCS230T/EB7600T MSP-DA00001144.A36 DA00001144	£14.21	£17.05
148-1 - PUMP BODY ASSY MS3200/RBC420 MSP-140989-1.A0 140989-1	£43.30	£51.96
149-2 - INLET SCREEN DCS230T/EA3201S MSP-WJ00014070.A30 WJ00014070	£1.44	£1.73
150-1 - METERING DIAPHRAGM GASET EBH MSP-442154-1.A12 442154-1	£3.59	£4.31
151-1 - METERING DIAPHRAGM ASSY EH760 MSP-168767-7.A8 168767-7	£26.92	£32.31
152-1 - AIR PURGE BODY ASY DBC260L/U MSP-140988-3.A11 140988-3	£14.20	£17.04
153-1 - PRIMER PUMP ER2650LH/BHX2501 MSP-424314-7.A11 424314-7	£4.83	£5.80
154-1 - PRIMER PUMP COVER ER265/EM2511 MSP-346270-0.A6 346270-0	£4.83	£5.80
155-1 - TAPPING SREW M3X24 ER2550/EBH MSP-266582-4.A17 266582-4	£1.44	£1.73
157-1 - AIR CLEANER PLATE DBC260L/U MSP-346489-1.A2 346489-1	£2.81	£3.37
159-1 - AIR CLEANER ELEMENT RBC221/MH MSP-443167-5.A1 443167-5	£2.36	£2.83
161-1 - SCREW ASSY M5X14 EPH1000/RBC2 MSP-266809-2.A6 266809-2	£1.44	£1.73
162 - WASHER BUR360/EM2651LH/EBH253 MSP-413143-3.A0 413143-3	£1.44	£1.73
