Makita RBC320 Petrol Brushcutter Spare Parts

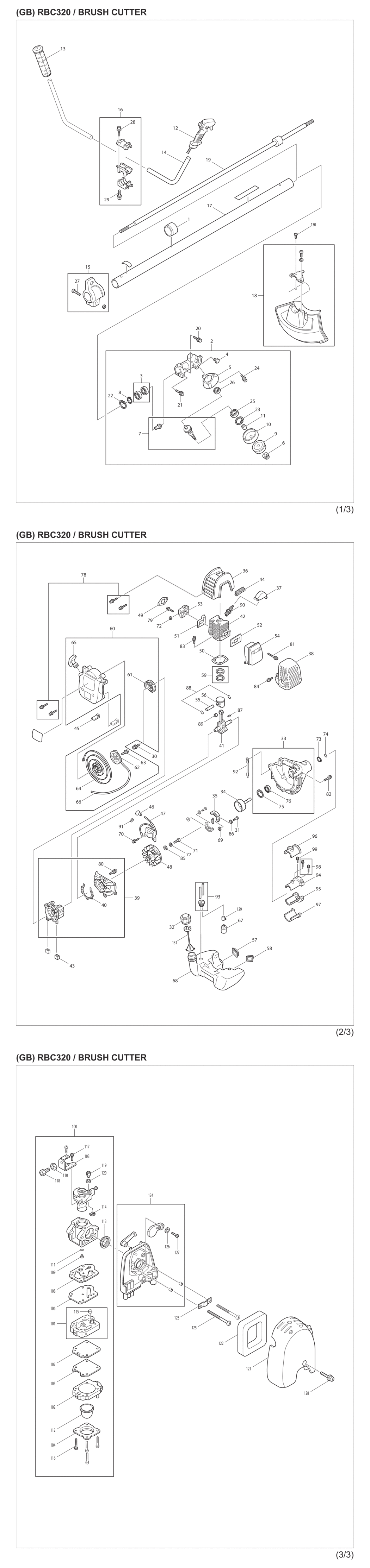

An exploded drawing and spare parts listing for the Makita RBC320 Petrol Brushcutter

	Ex VAT	Inc VAT
1 - BUSH RBC310 MSP-6254501300.A1 6254501300	£5.46	£6.55
2-4 - *GEAR CASE UNIT MS3200/RBC280 MSP-6273001008.A1 6273001008	£126.48	£151.78
3-1 - BALL BEARING 609ZZ EBH253L/BB MSP-210049-4.A22 210049-4	£4.21	£5.05
4-1 - OIL BOLT M10 RBC230/RBC420E MSP-266671-5.A5 266671-5	£4.37	£5.24
5-1 - GUARD RBC310/RBC420E/RBC3101 MSP-412099-7.A3 412099-7	£3.90	£4.68
6-2 - NUT SPRING WASHER RBC260L/U/E MSP-264018-7.A0 264018-7	£1.20	£1.44
7-2 - CUTTER SHAFT SET MS3200E MSP-6273013000.A2 6273013000	£64.94	£77.93
8 - OUTER SNAPRING RBC310/MS3200E MSP-6253502600.A2 6253502600	£1.44	£1.73
9 - *CLAMP WASHER RBC310/RBC3101 MSP-327196-5.A0 327196-5	£16.32	£19.58
10 - *RECEIVE WASHER RBC310/RBC3101 MSP-6258503600.A4 6258503600	£30.96	£37.15
11 - SPACER RBC310/RBC3101 MSP-6253501300.A2 6253501300	£5.62	£6.74
16-1 - HANDLE HOLDER ASS'Y RBC351 MSP-6414005001.A1 6414005001	£40.03	£48.04
17A - SHAFT PIPE MS3200 MSP-6271009000.A1 6271009000	£168.72	£202.46
18-1 - PROTECTOR ASSY EM4251/RBC255/2 MSP-6258060002.A0 6258060002	£29.67	£35.60
18 - PROTECTOR ASSY MS3200 MSP-126915-4.A2 126915-4	£15.83	£19.00
20-2 - BOLT ASSY M6x14 RBC410/420E MSP-0130069910.A1 0130069910	£1.44	£1.73
21-1 - BOLT ASSY M6X30 RBC280/RBC31 MSP-0130069920.A2 0130069920	£1.44	£1.73
23 - INNER SNAP RING RBC310/MS320 MSP-0031430000.A2 0031430000	£1.44	£1.73
25 - BALL BEARING 6200DDU MS3200 MSP-0600109970.A3 0600109970	£12.79	£15.35
27-2 - SCREW & WASHER ASSY DBC260L/U MSP-266788-4.A1 266788-4	£1.44	£1.73
28-2 - SOCKET HEAD BOLT M5X25 DBC260 MSP-266805-0.A8 266805-0	£1.44	£1.73
30 - BOLT ASSY RBC230/MS3200/HTR56 MSP-6202006000.A4 6202006000	£1.44	£1.73
32A2 - FUEL TANK CAP MS221/PB25 MSP-452920-8.A12 452920-8	£8.58	£10.30
33 - CLUTCH CASE ASSY MS3200 MSP-6271004001.A0 6271004001	£84.29	£101.15
35 - CLUTCH SHOE MS3200 MSP-6272003000.A1 6272003000	£48.58	£58.29
37 - PLUG COVER MS3200/RBC320E MSP-5317500700.A2 5317500700	£4.83	£5.80
38-1 - MUFFLER COVER MS3200E/RBC320E MSP-5313503800.A1 5313503800	£10.77	£12.92
39 - CRANK CASE MS3200/RBC32 MSP-5311007000.A1 5311007000	£136.08	£163.30
40 - CRANK CASE GASKET MS3200 MSP-5311501200.A1 5311501200	£1.44	£1.73
42-3 - CYLINDER RBC310/MS3200E/RBC31 MSP-319255-9.A2 319255-9	£84.04	£100.85
42-1 - *CYLINDER RBC310/MS3200E/RBC3 MSP-5311500201.A1 5311500201	-
43-1 - DAMPER RBC230/320E/MS3200E/MH MSP-424446-0.A0 424446-0	£1.44	£1.73
44 - DAMPER MS3200/RBC320E MSP-5315504100.A2 5315504100	£3.59	£4.31
45 - DAMPER MS3200/RBC320E MSP-5316503100.A0 5316503100	£3.28	£3.93
46 - PLUG CAP MS3200/RBC320E/RBC31 MSP-5317010030.A2 5317010030	£14.51	£17.41
47 - COIL MS3200/RBC320E MSP-5317010020.A1 5317010020	£124.23	£149.08
48 - FLYWHEEL MS3200/RBC320E MSP-5317010010.A1 5317010010	£77.11	£92.53
49-2 - SPACER GASKET RBC230/260/320E MSP-442177-9.A0 442177-9	£1.44	£1.73
50-1 - CYLINDER GASKET MS3200E/RBC31 MSP-5311500301.A1 5311500301	£2.18	£2.62
51 - INSULATOR GASKET MS3200/RBC31 MSP-5313502300.A0 5313502300	£1.44	£1.73
52-1 - MUFFLER GASKET MS3200E/RBC32 MSP-5313503600.A1 5313503600	£14.35	£17.22
52 - MUFFLER GASKET MS3200 MSP-5313502200.A1 5313502200	£4.68	£5.62
53 - INSULATOR RBC310/320E MSP-5313500500.A1 5313500500	£5.92	£7.11
54 - EXHAUST MUFFLER MS3200 MSP-5313009001.A1 5313009001	£50.02	£60.03
55 - PISTON PIN RBC310/MS3200E MSP-5312500400.A2 5312500400	£4.68	£5.62
56-1 - *PISTON RBC310/320E/MS3200E MSP-5312500601.A0 5312500601	£32.69	£39.23
57-1 - PLATE ER2550/ EBH251L/341U MSP-424102-2.A3 424102-2	£1.44	£1.73
58-1 - GASKET ER2550/ EBH251L/341U MSP-424103-0.A12 424103-0	£1.44	£1.73
59 - PISTON RING RBC310/MS3200E MSP-5982500200.A0 5982500200	£5.62	£6.74
61 - PULLEY STARTER RBC260/MS3200 MSP-5245007000.A1 5245007000	£19.58	£23.50
62 - REEL MS3200 MSP-5315007010.A1 5315007010	£12.01	£14.41
63 - SET SCREW MS3200 MSP-5315007020.A1 5315007020	£2.50	£3.00
64 - SPIRAL SPRING RBC260/MS3200 MSP-5415003020.A3 5415003020	£12.79	£15.35
65-1 - STARTER KNOB EBH341U MSP-424317-1.A5 424317-1	£3.74	£4.49
66 - STARTER ROPE RBC221/251/MS32 MSP-5235024022.A2 5235024022	£12.17	£14.60
67-2 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A10 163447-0	£3.42	£4.10
67-1 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A63 163447-0	£3.42	£4.10
68-1 - FUEL TANK MS3200/RBC280 MSP-5316502001.A2 5316502001	£35.86	£43.03
70-1 - BOLT M5X20 MS3200E MSP-0011705200.A2 0011705200	£1.44	£1.73
72-1 - NUT M5 EPH1000/RBL500/MH2556 MSP-264086-0.A0 264086-0	£1.44	£1.73
73-1 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A80 961052-5	£1.44	£1.73
74 - O RING MS3200/RBC320E MSP-0062610060.A2 0062610060	£1.44	£1.73
75 - *INNER SNAP RING RBC260/EM425 MSP-0031432000.A1 0031432000	£1.44	£1.73
75-1 - RETAINING RING R-32 BPJ140/81 MSP-962151-6.A58 962151-6	£1.44	£1.73
82 - *SOCKET HD BOLT M5X20 DBC260L MSP-0119059730.A1 0119059730	£1.44	£1.73
83 - *SOCKET HEAD BOLT M5X18 RBC23 MSP-0119059950.A8 0119059950	£1.44	£1.73
86-2 - WASHER 8 ER2650LH/EBH253U/ER2 MSP-267817-6.A12 267817-6	£1.44	£1.73
87-1 - WOODRUFF KEY 3 ER2650LH/EM265 MSP-254040-2.A12 254040-2	£4.06	£4.87
88-2 - CLIP ER2650LH/EM2651LH/EBH253 MSP-233976-8.A20 233976-8	£1.44	£1.73
89 - NEEDLE ROLLER BEARING RBC230/ MSP-0610089990.A5 0610089990	£7.49	£8.99
93-3 - TUBE MS3200E/RBC320E MSP-0851179972.A0 0851179972	£10.77	£12.92
94-2 - PIPE BRACKET MS3200/RBC320E MSP-6271500301.A1 6271500301	£9.05	£10.86
94-1 - PIPE DAMPER (1) MS3200 MSP-6271500104.A2 6271500104	£3.90	£4.68
96 - PIPE BRACKET MS3200/RBC320E MSP-6271500301.A0 6271500301	£9.05	£10.86
96-1 - PIPE DAMPER (1) MS3200 MSP-6271500104.A3 6271500104	£3.90	£4.68
96-2 - PIPE DAMPER (1) MS3200E/RBC32 MSP-6271500105.A0 6271500105	£4.83	£5.80
97-2 - PIPE DAMPER (2) MS3200E/RBC32 MSP-6271500205.A2 6271500205	£4.37	£5.24
97 - PIPE BRACKET 2 MS3200/RBC320E MSP-6271500401.A3 6271500401	£9.36	£11.23
99 - SOCKET HEAD BOLT M5X12 DBC26 MSP-0119059900.A6 0119059900	£1.44	£1.73
101-1 - PUMP BODY ASSY MS3200/RBC420 MSP-140989-1.A1 140989-1	£43.30	£51.96
102-1 - AIR PURGE BODY ASY DBC260L/U MSP-140988-3.A10 140988-3	£14.20	£17.04
103-1 - BRACKET CABLE MS3200/RBC350/4 MSP-346491-4.A0 346491-4	£9.98	£11.98
104-1 - PRIMER PUMP COVER ER265/EM2511 MSP-346270-0.A5 346270-0	£4.83	£5.80
105-1 - METERING DIAPHRAGM ASSY EH760 MSP-168767-7.A9 168767-7	£26.92	£32.31
108-1 - PUMP GASKET HTR4900/RBC2110 MSP-442172-9.A1 442172-9	£8.27	£9.92
109 - JET RBC230/310/MS3200E/RST25 MSP-5036002010.A4 5036002010	£8.58	£10.30
110-1 - CABLE ADJUST NUT M6 EB7650TH MSP-264065-8.A10 264065-8	£1.44	£1.73
111-1 - O RING 2 ER2650LH/EBH253L/341 MSP-213538-8.A25 213538-8	£3.59	£4.31
112-1 - PRIMER PUMP ER2650LH/BHX2501 MSP-424314-7.A12 424314-7	£4.83	£5.80
113-1 - RING PACKING RBC230/260/310 MSP-424444-4.A7 424444-4	£2.34	£2.81
115-2 - INLET SCREEN DCS230T/EA3201S MSP-WJ00014070.A31 WJ00014070	£1.44	£1.73
116-1 - TAPPING SREW M3X24 ER2550/EBH MSP-266582-4.A16 266582-4	£1.44	£1.73
117 - *THROTTLE COLLAR SCREW RBC420 MSP-5246001240.A4 5246001240	£2.18	£2.62
118-1 - CABLE ADJUST SCREW MS3200 MSP-326084-3.A5 326084-3	£10.30	£12.36
120 - WASHER MS3200 MSP-5236052030.A3 5236052030	£4.83	£5.80
122-1 - AIR CLEANER ELEMENT RBC221/MH MSP-443167-5.A2 443167-5	£2.36	£2.83
123-1 - AIR CLEANER PLATE DBC260L/U MSP-346489-1.A3 346489-1	£2.81	£3.37
124 - AIR CLEANER PLATE MS3200/RBC3 MSP-5313015000.A0 5313015000	£13.42	£16.10
125 - SCREW M5X50 RBC260/310/320E MSP-0140059730.A0 0140059730	£1.44	£1.73
126 - WASHER RBC221/PB250/RBL250 MSP-0031104000.A0 0031104000	£1.44	£1.73
127 - TAPPING SCREW M4X8 RBC221 MSP-0150049980.A3 0150049980	£1.44	£1.73
128-1 - SCREW ASSY M5X14 EPH1000/RBC2 MSP-266809-2.A8 266809-2	£1.44	£1.73
129-1 - HOSE CLAMP ER2550/EBH251L/341 MSP-345920-4.A6 345920-4	£1.44	£1.73
130 - TAPPING SCREW RBC251/EM4251 MSP-0150059940.A0 0150059940	£1.44	£1.73
131-3 - STRAP ER2550/EBH341U MSP-140436-2.A2 140436-2	£3.96	£4.75
A01-1 - *BAND ASSY MS3200/RBC280/420E MSP-6417015003.A5 6417015003	£23.56	£28.27
A02 - CUTTER COVER RBC230/260/310 MSP-6418500700.A1 6418500700	£8.89	£10.67
A04-1 - *TOOL KIT RBC260L/U/MS3200E/RB MSP-6119019001.A0 6119019001	£9.73	£11.68
A04-2 - *TOOL KIT RBC260L/U/MS3200E/RB MSP-195508-8.A1 195508-8	£3.63	£4.36
A05-1 - *WRENCH 4 ER2650LH/EBH253L/ER MSP-783223-2.A19 783223-2	£1.20	£1.44
A06-1 - CUSHION MS3200 MSP-6277500201.A1 6277500201	£42.48	£50.98
