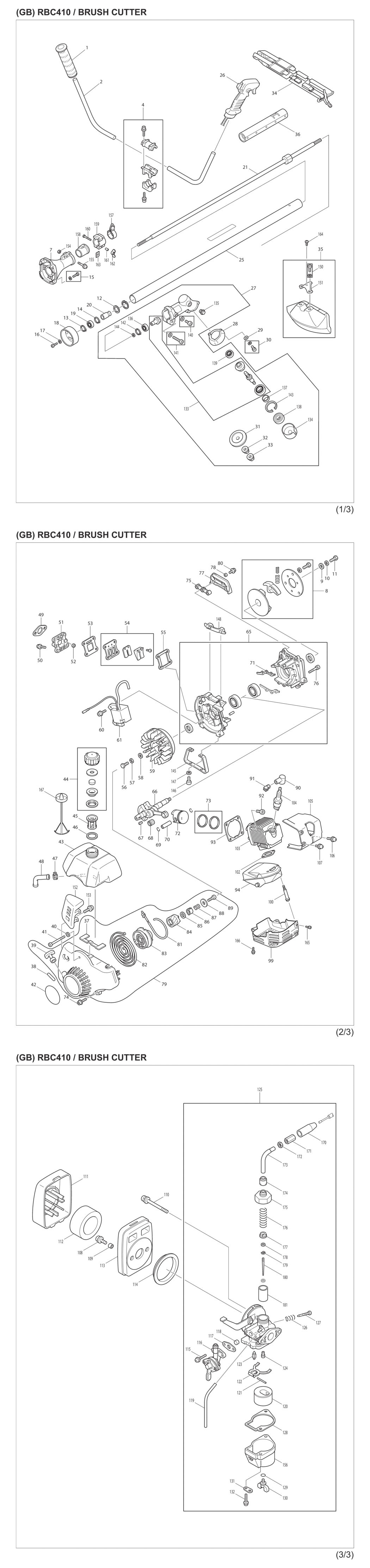

An exploded drawing and spare parts listing for the Makita RBC410 Petrol Brushcutter
Ex VAT Inc VAT
4-1 - HANDLE HOLDER ASS'Y RBC351 MSP-6414005001.A0 6414005001 £40.03 £48.04
8-1 - CLUTCH BOLT RBC421L MSP-266825-4.A0 266825-4 £8.11 £9.73
8-1 - SPRING WASHER G4300IS MSP-0032005000.A0 0032005000 £1.44 £1.73
8-1 - CLUTCH SHOE RBC421L MSP-168803-9.A0 168803-9 £22.47 £26.96
8 - SPRING WASHER G4300IS MSP-0032005000.A1 0032005000 £1.44 £1.73
9-1 - WASHER M6 EH561/RBC420E/525E MSP-267429-5.A11 267429-5 £1.44 £1.73
10 - SPRING WASHER M6 RBC310/RBC42 MSP-0032006000.A8 0032006000 £1.44 £1.73
11 - *BOLT M6X14 RBC410/420E/525E MSP-6202500400.A1 6202500400 £5.62 £6.74
11-1 - BOLT M6X14 RBC410/420E/525E MSP-266746-0.A0 266746-0 £2.97 £3.56
13-1 - RETAINING RING R-35 HP1631/41 MSP-962153-2.A19 962153-2 £1.44 £1.73
14-1 - EXT DIN 471 CIRCLIP-17/DHR171D MSP-961057-5.A12 961057-5 £1.44 £1.73
16-1 - BOLT M6X14 RBC410/420E/525E MSP-266746-0.A1 266746-0 £2.97 £3.56
16 - *BOLT M6X14 RBC410/420E/525E MSP-6202500400.A0 6202500400 £5.62 £6.74
20-1 - DAMPER RBC410/RBC420E/EM4340L MSP-424403-8.A0 424403-8 £15.58 £18.70
25B - SHAFT PIPE RBC350/420 MSP-6411026000 6411026000 £202.68 £243.22
26 - *CONTROL LEVER ASS' Y RBC410 MSP-6415011001 6415011001 £69.30 £83.16
27 - GEAR CASE ASSY RBC410/RBC420E MSP-6353001000 6353001000 £239.52 £287.42
28-1 - GUARD RBC310/RBC420E/RBC3101 MSP-412099-7.A2 412099-7 £3.90 £4.68
30 - SOCKET HEAD BOLT M5X12 DBC26 MSP-0119059900.A4 0119059900 £1.44 £1.73
32-1 - NUT M10 RBC410/RBC420E MSP-264058-5 264058-5 £2.50 £3.00
33-1 - NUT M10 RBC410/RBC420E MSP-264062-4 264062-4 £4.68 £5.62
34-3 - *BAND ASSY MS3200/RBC280/420E MSP-6417015003.A3 6417015003 £23.56 £28.27
34-2 - HOOK FOR 6207003002 MSP-6257500400.A2 6257500400 £8.58 £10.30
36A1 - CUSHION RBC260/310/420E/525E MSP-168676-0.A3 168676-0 £21.17 £25.40
37-1 - DAMPER (-) RBC350/420E MSP-5416503500.A2 5416503500 £4.99 £5.99
38 - *LABEL/CHOKE RBC410BBX7600 MSP-6419504300.A3 6419504300 £4.83 £5.80
39 - *STARTER KNOB G1700I MSP-5305002110.A5 5305002110 £8.89 £10.67
40-1 - WASHER M5 RBC230/310/PB250 MSP-267446-5.A0 267446-5 £1.44 £1.73
45-1 - FILTER RBC410 MSP-168585-3.A1 168585-3 £4.06 £4.87
46-2 - GASKET RBC410 MSP-423412-4.A1 423412-4 £1.44 £1.73
49 - *CARBURETOR GASKET RBC410 MSP-5416501300.A1 5416501300 £1.44 £1.73
52-1 - NUT M5 EPH1000/RBL500/MH2556 MSP-264086-0.A4 264086-0 £1.44 £1.73
54-1 - VALVE REED ASS'Y RBC410 MSP-125796-3.A0 125796-3 £41.98 £50.37
55-1 - BRACKET GASKET RBC410/420E MSP-442160-6.A1 442160-6 £1.44 £1.73
57 - SPRING WASHER M6 RBC310/RBC42 MSP-0032006000.A9 0032006000 £1.44 £1.73
65-1 - BALL BEARING 6202C3 RBC525 MSP-210202-2.A7 210202-2 £12.32 £14.79
68-1 - NEEDLE ROLLER BEARING EPH1000 MSP-212085-6.A0 212085-6 £10.14 £12.17
69-1 - CLIP EBH341L&U MSP-233983-1.A0 233983-1 £1.44 £1.73
69 - *CLIP EPH1000/RBC410/420E/EM4 MSP-0565099990.A3 0565099990 £1.44 £1.73
70 - PISTON PIN RBC410/420E MSP-5412500300.A1 5412500300 £4.37 £5.24
70-2 - PISTON PIN RBC410/420E MSP-257797-4.A2 257797-4 £4.21 £5.05
73-1 - PISTON RING RBC410/420E MSP-257309-3.A2 257309-3 £5.62 £6.74
75-2 - *DAMPER RBC410/420 MSP-424335-9.A0 424335-9 £3.59 £4.31
76 - HEX SOCKET HEAD BOLT M5X30 R MSP-0119059940.A2 0119059940 £1.44 £1.73
77-3 - BUEL TANK BRACKET RBC/MS/RBK MSP-455434-6.A0 455434-6 £1.44 £1.73
79-1 - STARTER/REWIND ASSY RBC420E MSP-5415050000.A1 5415050000 £87.07 £104.48
80-1 - SCREW M5X14 RBC350/420 MSP-266591-3.A1 266591-3 £1.44 £1.73
82-1 - SPIRAL SPRING RBC410/420E MSP-233993-8.A1 233993-8 £11.08 £13.29
84-1 - RARCHET RBC410/420E MSP-452767-0.A3 452767-0 £4.37 £5.24
85 - *THRUST WASHER RBC410/420E MSP-5415001220.A2 5415001220 £1.44 £1.73
85-1 - THRUST WASHER RBC410/420E MSP-267444-9.A3 267444-9 £2.25 £2.70
87-1 - FRICTION SPRING RBC410/420E MSP-233994-6.A2 233994-6 £1.44 £1.73
88 - *WASHER RBC410/420E MSP-5415001060.A1 5415001060 £1.44 £1.73
89-1 - BIND SCREW RBC410/420E MSP-266670-7.A1 266670-7 £1.44 £1.73
91-2 - PLUG CAP SPRING ER2650LH/BHX2 MSP-324891-8.A30 324891-8 £1.44 £1.73
99A1 - MUFFLER COVER RBC350/420E MSP-452762-0 452762-0 £12.79 £15.35
100-2 - SOCKET HEAD BOLT M6X60 RBC350 MSP-266589-0.A1 266589-0 £1.44 £1.73
102-2 - MUFFLER GASKET RBC410/420E MSP-168584-5.A0 168584-5 £2.34 £2.81
104-1 - SPARK PLUG RBC260 MSP-168588-7.A1 168588-7 £11.39 £13.67
105 - CYLINDER COVER RBC350/420E MSP-5415504600.A1 5415504600 £18.72 £22.46
107 - PAN HEAD SCREW M5X14 MSP-0043705140.A4 0043705140 £1.44 £1.73
108-1 - SCREW M5X14 RBC350/420 MSP-266591-3.A0 266591-3 £1.44 £1.73
109-1 - SPACER RBC260/420/PB250 MSP-346438-8.A3 346438-8 £1.44 £1.73
111-1 - AIR CLEANER COVER RBC410 MSP-5413503502.A0 5413503502 £5.92 £7.11
112 - ELEMENT RBC410 MSP-5413500900.A0 5413500900 £2.34 £2.81
113 - AIR CLEANER CASE/RBC410 MSP-5413503900.A1 5413503900 -
114 - AIR CLEANER GASKET RBC410 MSP-5413503100.A1 5413503100 £1.44 £1.73
116-1 - COCK BODY ASS'Y RBC410 MSP-140633-0.A0 140633-0 £35.86 £43.03
121-1 - STRAIGHT PIN RBC410 MSP-268270-9.A1 268270-9 £1.44 £1.73
122 - *FLOAT ARM RBC410 MSP-5306009230.A1 5306009230 £14.20 £17.04
122-1 - FLOAT ARM RBC410 MSP-346350-2.A0 346350-2 £13.42 £16.10
128-1 - GASKET RBC410 MSP-442162-2.A1 442162-2 £1.44 £1.73
130-1 - SCREW RBC410 MSP-265793-8.A1 265793-8 £5.46 £6.55
133 - CUTTER SHAFT SET RBC410/RBC42 MSP-6413003000 6413003000 £82.91 £99.49
134-1 - RECEIVE WASHER RBC410/RBC420E MSP-326053-4 326053-4 £17.13 £20.56
135-1 - OIL BOLT M10 RBC230/RBC420E MSP-266671-5.A2 266671-5 £4.37 £5.24
136-1 - BALL BEARING 6001ZZ MSP-210129-6.A2 210129-6 £14.82 £17.78
137-1 - SPACER RBC410/RBC420E MSP-326052-6 326052-6 £4.21 £5.05
138-1 - OIL SEAL RBC410/RBC420E MSP-213596-4 213596-4 £4.99 £5.99
143 - *INNER SNAP RING RBC260/EM425 MSP-0031432000.A2 0031432000 £1.44 £1.73
143-1 - RETAINING RING R-32 BPJ140/81 MSP-962151-6.A28 962151-6 £1.44 £1.73
145A1 - STAND RBC350/420 MSP-346443-5 346443-5 £8.96 £10.75
146A1 - CAP HD SCREW M6X14 MSP-922316-2.A3 922316-2 £1.44 £1.73
148-1 - DAMPER (-) RBC350/420E MSP-5416503500.A3 5416503500 £4.99 £5.99
151 - PROTECTOR CLAMP RBC225 MSP-6418500302.A1 6418500302 £4.37 £5.24
152 - STARTER COVER RBC350/420E MSP-5415504500.A0 5415504500 £10.30 £12.36
157-1 - *BAND ASSY RBC350/420E/525E MSP-6407006001.A2 6407006001 £22.90 £27.48
158 - *STOPPER RBC350/420E/525E MSP-6411502101.A0 6411502101 £15.98 £19.18
158-1 - STOPPER RBC350/420E/525E MSP-413154-8.A0 413154-8 £15.42 £18.51
162 - WING NUT RBC350/420E/525E MSP-6411501300.A2 6411501300 £7.64 £9.17
163 - FIBER GASKET RBC350 MSP-0037108000 37108000 £1.44 £1.73
164 - TAPPING SCREW RBC251/EM4251 MSP-0150059940.A2 0150059940 £1.44 £1.73
166-1 - SCREW M6x16 RBC350/RBC420 MSP-0140069910 140069910 £1.44 £1.73
166 - PAN HEAD SCREW M5X14 MSP-0043705140.A3 0043705140 £1.44 £1.73
A02 - CUTTER COVER RBC230/260/310 MSP-6418500700.A2 6418500700 £8.89 £10.67
A02-2 - *CUTTER COVER SET DBC260/RBC42 MSP-6418027000.A2 6418027000 £6.55 £7.86
A05-1 - *WRENCH 4 ER2650LH/EBH253L/ER MSP-783223-2.A18 783223-2 £1.20 £1.44
