1 - CHEESE-HEAD SCREW
MET-341701940.A73
341701940
|
£3.20
|
£3.84
|
|
|
2 - SELF-TAP. FILL. H. SCREW
MET-141118700.A10
141118700
|
£3.20
|
£3.84
|
|
|
3 - GASKET
MET-339210910.A1
339210910
|
£1.50
|
£1.80
|
|
|
4 - SPINDLE
MET-341603790.A10
341603790
|
£73.52
|
£88.23
|
|
|
5 - BALL BEARING 15X35X11
MET-143111520.A14
143111520
|
£22.61
|
£27.13
|
|
|
6 - CAP SCREW
MET-141111070.A8
141111070
|
£1.50
|
£1.80
|
|
|
7 - CONTROL KNOB CPL.
MET-316049410.A4
316049410
|
£22.96
|
£27.55
|
|
|
8 - GEAR COVER
MET-316032920.A9
316032920
|
£36.59
|
£43.91
|
|
|
9 - GEAR COVER
MET-316032790.A3
316032790
|
£71.39
|
£85.67
|
|
|
10 - CYLINDRICAL PIN
MET-141160350.A5
141160350
|
-
|
|
|
|
11 - RETAINING RING
MET-141180360.A3
141180360
|
£3.20
|
£3.84
|
|
|
12 - BALL BEARING 12X28X8
MET-143113860.A8
143113860
|
£17.55
|
£21.06
|
|
|
13 - WASHER
MET-141152150.A4
141152150
|
£3.20
|
£3.84
|
|
|
14 - SPINDLE WHEEL
MET-340003430.A3
340003430
|
£48.88
|
£58.66
|
|
|
15 - PRALLEL KEY
MET-141154910.A16
141154910
|
£1.50
|
£1.80
|
|
|
16 - GEAR SPINDLE
MET-340003410.A3
340003410
|
£61.08
|
£73.30
|
|
|
17 - GEAR CLUSTER
MET-340003420.A8
340003420
|
£63.36
|
£76.03
|
|
|
18 - GASKET
MET-339210850.A11
339210850
|
£4.76
|
£5.71
|
|
|
19 - RETAINING RING
MET-141180040.A23
141180040
|
£1.50
|
£1.80
|
|
|
20 - NEEDLE SLEEVE
MET-143111460.A22
143111460
|
£5.62
|
£6.75
|
|
|
21 - GEAR COVER
MET-316032800.A4
316032800
|
-
|
|
|
|
22 - BALL BEARING 10X26X8
MET-143111120.A26
143111120
|
£22.61
|
£27.13
|
|
|
23 - RETAINING RING
MET-141180350.A30
141180350
|
£3.20
|
£3.84
|
|
|
24 - ARMATURE CPL.120V
MET-310008310.A1
310008310
|
£79.43
|
£95.32
|
|
|
25 - BALL BEARING 8X22X7
MET-143113400.A91
143113400
|
£9.82
|
£11.79
|
|
|
26 - RUBBER BEARING
MET-344096020.A36
344096020
|
£3.20
|
£3.84
|
|
|
29 - INTERMEDIATE GEAR CPL.
MET-316032820.A2
316032820
|
£71.39
|
£85.67
|
|
|
30 - SELF-TAP FILL H SCREW
MET-141116020.A686
141116020
|
£3.20
|
£3.84
|
|
|
31 - D-HANDLE
MET-343377080.A2
343377080
|
£36.59
|
£43.91
|
|
|
32 - HALF WAVE SWITCH
MET-343407320.A3
343407320
|
£55.90
|
£67.08
|
|
|
33 - LEAD WIRE (SWITCH)
MET-344494940.A0
344494940
|
-
|
|
|
|
34 - LEAD WIRE (SWITCH)
MET-344494910.A2
344494910
|
£3.82
|
£4.59
|
|
|
35 - PART NOT NEEDED
MET-399999990.A198
399999990
|
-
|
|
|
|
36 - DEPTH STOP
MET-341511630.A87
341511630
|
£6.38
|
£7.65
|
|
|
37 - SUPPORT HANDLE CPL.
MET-314000790.A7
314000790
|
£26.35
|
£31.62
|
|
|
38 - BAFFLE
MET-339150970.A22
339150970
|
£6.38
|
£7.65
|
|
|
39 - LEAD WIRE (SWITCH)
MET-344494900.A0
344494900
|
£4.76
|
£5.71
|
|
|
40 - RATING PLATE
MET-338042690.A0
338042690
|
-
|
|
|
|
42 - CARBON BRUSH
MET-316035080.A8
316035080
|
£26.35
|
£31.62
|
|
|
43 - BRUSH HOLDER ASSY
MET-316033220.A3
316033220
|
£22.61
|
£27.13
|
|
|
44 - PART NOT NEEDED
MET-399999990.A199
399999990
|
-
|
|
|
|
45 - FIELD COIL 230 V
MET-311010040.A6
311010040
|
£54.94
|
£65.93
|
|
|
46 - PART NOT NEEDED
MET-399999990.A200
399999990
|
-
|
|
|
|
47 - MOTOR HOUSING
MET-315012780.A38
315012780
|
£22.61
|
£27.13
|
|
|
48 - M-LABEL 08 52X22
MET-338122160.A370
338122160
|
£1.50
|
£1.80
|
|
|
49 - WARNING LABEL
MET-338115880.A12
338115880
|
-
|
|
|
|
50 - CABLE WITH UL-CSA-PLUG
MET-344492750.A41
344492750
|
£22.61
|
£27.13
|
|
|
51 - CABLE SLEEVE
MET-344100970.A278
344100970
|
£3.20
|
£3.84
|
|
|
52 - LEAD WIRE (SWITCH)
MET-344494880.A10
344494880
|
£3.20
|
£3.84
|
|
|
54 - CHANGE-OVER SWITCH
MET-343407330.A2
343407330
|
£36.59
|
£43.91
|
|
|
55 - CABLE CLIP
MET-343362490.A16
343362490
|
£3.20
|
£3.84
|
|
|
56 - SELF-TAP. FILL. H. SCREW
MET-141117060.A580
141117060
|
£3.20
|
£3.84
|
|
|
57 - WASHER
MET-339000770.A3
339000770
|
£1.50
|
£1.80
|
|
|
58 - O-RING
MET-143195080.A2
143195080
|
-
|
|
|
|
880 - GREASE
MET-344131050.A6
344131050
|
£54.94
|
£65.93
|
|
|

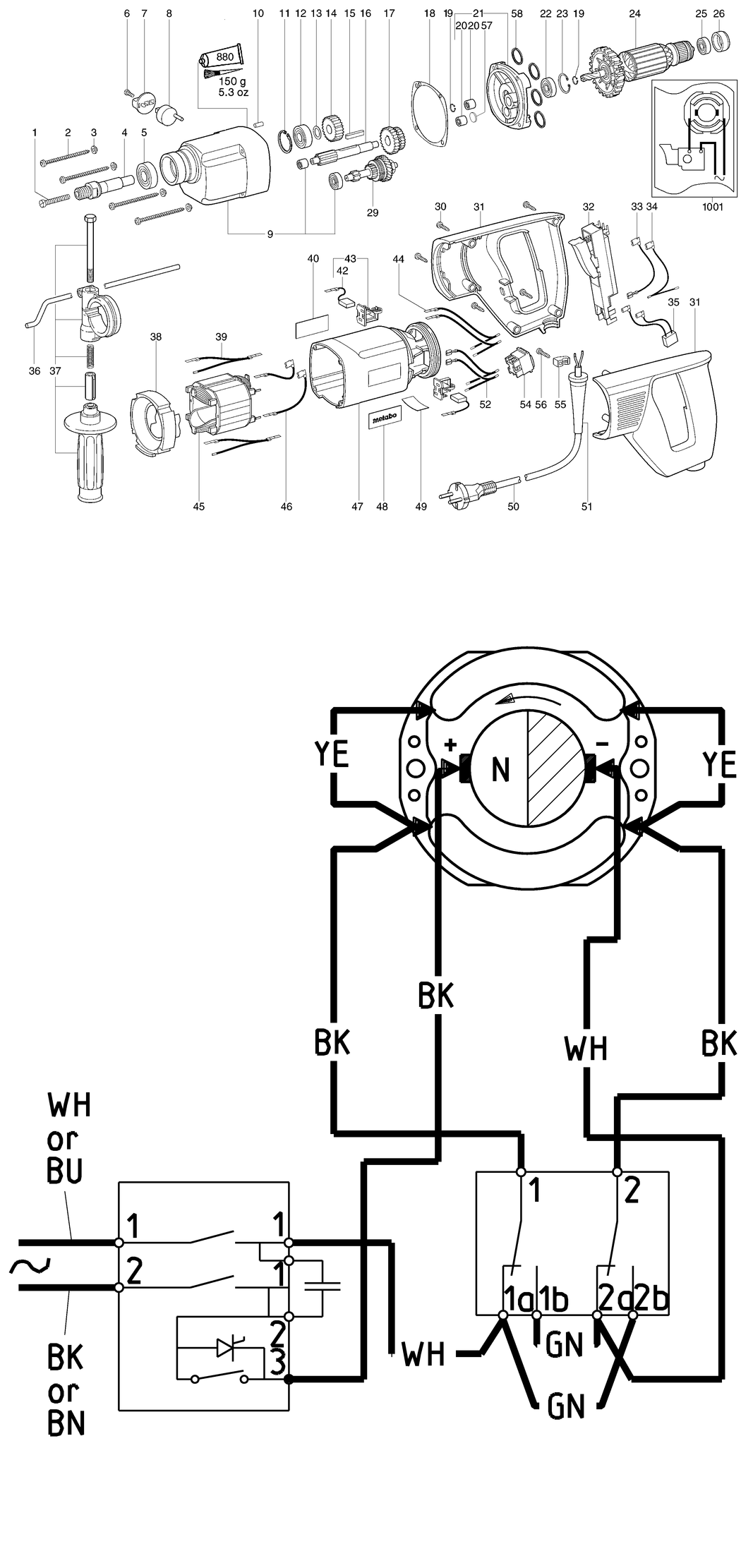

1001 - DIAGRAM
MET-338502510.A1
338502510
|
-
|
|
|
