1 - ARMATURE COMPL. 230V
MET-310011100.A1
310011100
|
£73.52
|
£88.23
|
|
|
2 - FELDPAKET VOLLST 230V
MET-311012120.A10
311012120
|
-
|
|
|
|
3 - ELECTRONIC SWITCH WITHOUT DIAL 230V
MET-343410360.A7
343410360
|
£32.88
|
£39.45
|
|
|
4 - CABLE WITH PLUG
MET-344489580.A47
344489580
|
£17.55
|
£21.06
|
|
|
5 - CABLE SLEEVE
MET-344101140.A181
344101140
|
£3.82
|
£4.59
|
|
|
6 - CABLE CLIP
MET-343362490.A1024
343362490
|
£3.20
|
£3.84
|
|
|
7 - BRUSH HOLDER COMPL. 230 V
MET-316054740.A1
316054740
|
£9.62
|
£11.54
|
|
|
9 - INSULATING HOSE
MET-339040970.A17
339040970
|
-
|
|
|
|
10 - BALL BEARING 6X 19X 6
MET-143115810.A106
143115810
|
£7.04
|
£8.45
|
|
|
11 - O-RING
MET-143192430.A146
143192430
|
£3.20
|
£3.84
|
|
|
12 - INTERMEDIATE FLANGE
MET-343434360.A2
343434360
|
-
|
|
|
|
13 - BALL BEARING 10X19X5
MET-143115570.A1
143115570
|
-
|
|
|
|
14 - MOTOR HOUSING
MET-315013610.A11
315013610
|
-
|
|
|
|
15 - SEALING RING
MET-343434430.A9
343434430
|
-
|
|
|
|
16 - SUPPORTING HANDLE CPL.
MET-314000630.A9
314000630
|
£22.61
|
£27.13
|
|
|
17 - INSERT
MET-343434600.A5
343434600
|
-
|
|
|
|
18 - HOUSING W.COVER
MET-343434340.A9
343434340
|
-
|
|
|
|
20 - SEAL
MET-344099610.A0
344099610
|
-
|
|
|
|
21 - SPINDLE
MET-341604610.A0
341604610
|
-
|
|
|
|
24 - BALL BEARING 15X32X9
MET-143115790.A40
143115790
|
£5.62
|
£6.75
|
|
|
25 - RUBBER BUFFER
MET-344099600.A11
344099600
|
-
|
|
|
|
26 - RUBBER PLUG
MET-344093350.A18
344093350
|
£1.50
|
£1.80
|
|
|
27 - RETAINING RING
MET-141181680.A71
141181680
|
£1.50
|
£1.80
|
|
|
29 - CIRCLIP
MET-141156010.A5
141156010
|
£1.50
|
£1.80
|
|
|
35 - PINION SHAFT
MET-340012940.A0
340012940
|
-
|
|
|
|
38 - SPUR GEAR
MET-340012990.A1
340012990
|
-
|
|
|
|
39 - GEAR WHEEL
MET-341071410.A5
341071410
|
-
|
|
|
|
40 - SELF-TAP FILL H SCREW
MET-141116020.A390
141116020
|
£3.20
|
£3.84
|
|
|
41 - SELF-TAP. FILL. H. SCREW
MET-141116990.A185
141116990
|
£3.20
|
£3.84
|
|
|
42 - SELF-TAP. FILL. H. SCREW
MET-141122480.A13
141122480
|
£1.50
|
£1.80
|
|
|
43 - SELF-TAP. FILL. H. SCREW
MET-141124570.A16
141124570
|
-
|
|
|
|
44 - RATING PLATE
MET-338063150.A0
338063150
|
-
|
|
|
|
45 - TYPE LABEL BE 500/10
MET-338125810.A0
338125810
|
-
|
|
|
|
46 - GEAR HOUSING COMPL.
MET-316056980.A0
316056980
|
-
|
|
|
|
47 - GEAR FLANGE COMPL.
MET-316057020.A1
316057020
|
-
|
|
|
|
50 - OPEN-END SPANNER
MET-344164080.A3
344164080
|
-
|
|
|
|
882 - GREASE FG 126
MET-344130800.A1
344130800
|
£17.55
|
£21.06
|
|
|

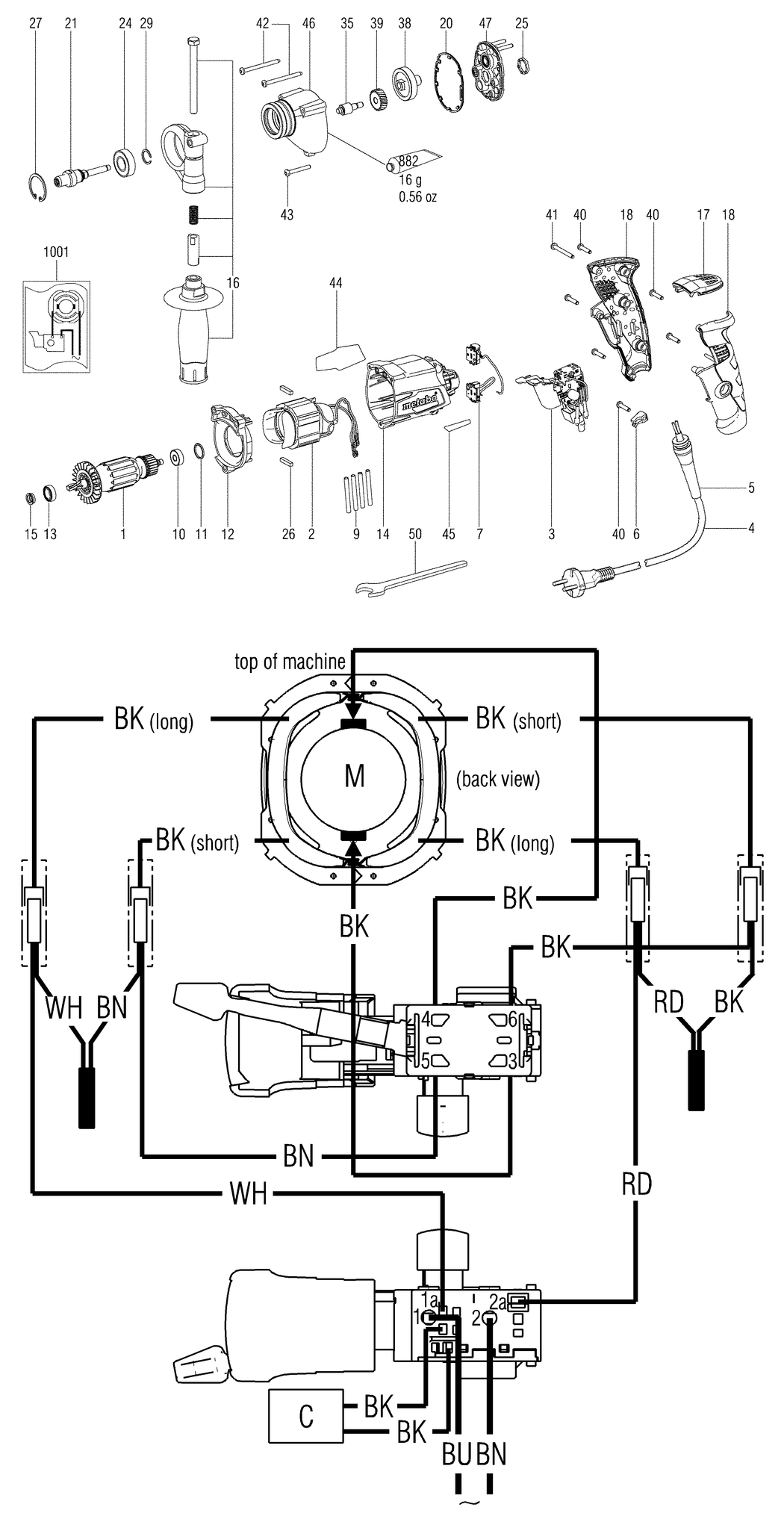

1001 - WIRING DIAGRAM 230V
MET-338505910.A2
338505910
|
-
|
|
|
