1 - ARMATURE COMPL. 230 V
MET-310010420.A1
310010420
|
-
|
|
|
|
2 - FIELD COIL 230 V ELEC
MET-311009770.A1
311009770
|
£54.94
|
£65.93
|
|
|
3 - CABLE WITH PLUG
MET-344493180.A24
344493180
|
£26.35
|
£31.62
|
|
|
4 - CABLE SLEEVE
MET-344097360.A1
344097360
|
£2.94
|
£3.53
|
|
|
5 - CABLE CLIP
MET-343362490.A1301
343362490
|
£3.20
|
£3.84
|
|
|
6 - SELF-TAP FILL H SCREW
MET-141116020.A430
141116020
|
£3.20
|
£3.84
|
|
|
7 - BRUSH HOLDER COMPL. CUT OUT 230V
MET-316046890.A40
316046890
|
£15.41
|
£18.49
|
|
|
8 - PART NOT NEEDED
MET-399999990.A2125
399999990
|
-
|
|
|
|
9 - SWITCH WITH ELEKTRONIC 230 V / 50-60 HZ
MET-316052210.A1
316052210
|
-
|
|
|
|
10 - STRAND COMPL.
MET-344498880.A77
344498880
|
£1.50
|
£1.80
|
|
|
11 - MOTOR HOUSING
MET-315013660.A10
315013660
|
£15.41
|
£18.49
|
|
|
12 - SWITCH ROD
MET-343430940.A3
343430940
|
£1.50
|
£1.80
|
|
|
13 - SWITCH SLIDE H/L
MET-343397810.A94
343397810
|
£1.50
|
£1.80
|
|
|
14 - BALL BEARING 6X19X6
MET-143115690.A90
143115690
|
£3.82
|
£4.59
|
|
|
15 - RUBBER BUSHING
MET-344097870.A110
344097870
|
£1.50
|
£1.80
|
|
|
16 - BAFFLE
MET-343436590.A56
343436590
|
£3.82
|
£4.59
|
|
|
17 - BALL BEARING 8X 22X 7
MET-143115060.A39
143115060
|
£8.37
|
£10.04
|
|
|
18 - 2 PART MOTOR CAP
MET-343432950.A17
343432950
|
-
|
|
|
|
19 - SELF-TAP. FILL. H. SCREW
MET-141113180.A29
141113180
|
£1.50
|
£1.80
|
|
|
20 - SPACER BUSH
MET-341006070.A3
341006070
|
-
|
|
|
|
21 - INTERMEDIATE FLANGE GREEN
MET-343431740.A9
343431740
|
-
|
|
|
|
22 - ANTRIEBSROLLE
MET-341201110.A1
341201110
|
£22.61
|
£27.13
|
|
|
23 - GEAR HOUSING COMPL.
MET-316056610.A5
316056610
|
£30.06
|
£36.07
|
|
|
24 - SELF-TAP. FILL. H. SCREW
MET-141116980.A58
141116980
|
£1.50
|
£1.80
|
|
|
25 - SIDE SUPPORT HANDLE COMPL.
MET-316046590.A90
316046590
|
£11.78
|
£14.13
|
|
|
26 - PINION
MET-340013110.A0
340013110
|
-
|
|
|
|
27 - HEXAGON NUT W.RECESS
MET-341102260.A46
341102260
|
-
|
|
|
|
28 - FIXED BEARING COVER
MET-315417490.A48
315417490
|
-
|
|
|
|
29 - FILLISTER HEAD SCREW
MET-141124170.A33
141124170
|
-
|
|
|
|
35 - FILLISTER HEAD SCREW
MET-141124090.A70
141124090
|
£2.94
|
£3.53
|
|
|
36 - COMPENSATING WASHER
MET-339011860.A1
339011860
|
£2.94
|
£3.53
|
|
|
37 - RATING PLATE
MET-338067010.A0
338067010
|
-
|
|
|
|
38 - PART NOT NEEDED
MET-399999990.A2126
399999990
|
-
|
|
|
|
40 - BAND FILE ATTACHMENT
MET-316064570.A2
316064570
|
-
|
|
|
|
80 - FLANGE COMPL. M10
MET-316048820.A4
316048820
|
£68.35
|
£82.02
|
|
|
880 - GREASE 100G
MET-344130920.A545
344130920
|
£19.18
|
£23.02
|
|
|

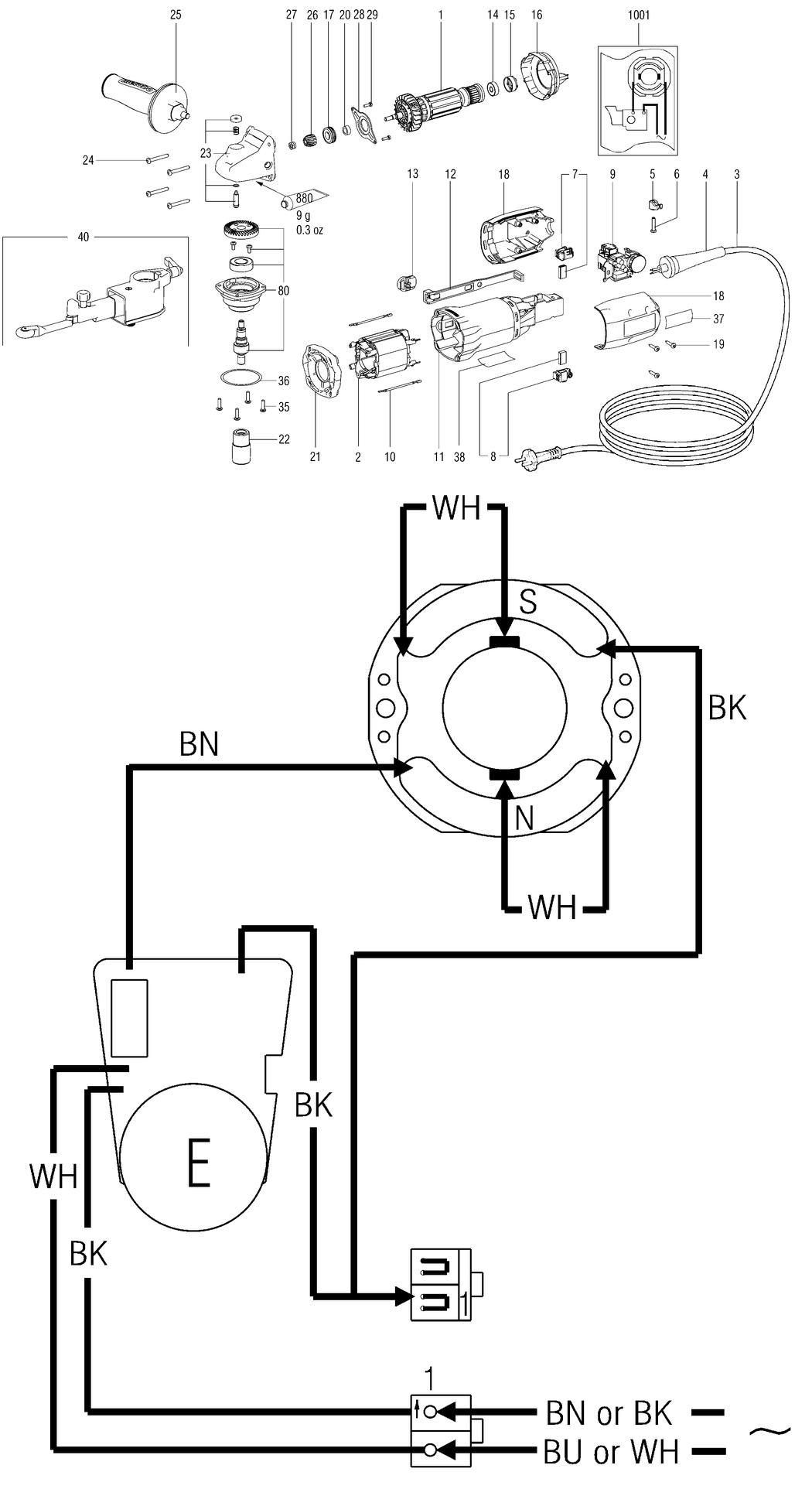

1001 - WIRING DIAGRAM
MET-338505710.A9
338505710
|
-
|
|
|
