1 - HEXAGON NUT W.RECESS
MET-341102260.A0
341102260
|
-
|
|
|
|
2 - BEVEL GEAR W.PINION
MET-316046920.A12
316046920
|
£61.08
|
£73.30
|
|
|
3 - WASHER
MET-339006390.A461
339006390
|
£1.50
|
£1.80
|
|
|
4 - BALL BEARING 8X22X7
MET-143115700.A398
143115700
|
£4.76
|
£5.71
|
|
|
5 - WASHER
MET-339132280.A35
339132280
|
£1.50
|
£1.80
|
|
|
6 - FAN W. PROT. GRID
MET-316041450.A91
316041450
|
£7.36
|
£8.83
|
|
|
7 - TACHO DISC
MET-343399850.A34
343399850
|
£3.20
|
£3.84
|
|
|
8 - ARMATURE COMPL. 230 V
MET-310009680.A1
310009680
|
-
|
|
|
|
9 - BALL BEARING 6X19X6
MET-143115690.A384
143115690
|
£3.82
|
£4.59
|
|
|
10 - RUBBER BUSHING
MET-344097870.A371
344097870
|
£1.50
|
£1.80
|
|
|
11 - PUSH BUTTON RED
MET-343393650.A73
343393650
|
£1.50
|
£1.80
|
|
|
12 - PRESSURE SPRING
MET-342003390.A556
342003390
|
£1.50
|
£1.80
|
|
|
13 - GEAR HOUSING COMPL. BLACK
MET-316056540.A0
316056540
|
-
|
|
|
|
14 - O-RING
MET-143193650.A13
143193650
|
£1.50
|
£1.80
|
|
|
15 - BOLT
MET-341515280.A30
341515280
|
£1.50
|
£1.80
|
|
|
16 - FILLISTER HEAD SCREW
MET-141123660.A73
141123660
|
£1.50
|
£1.80
|
|
|
17 - SELF-TAP FILL H SCREW
MET-141116020.A955
141116020
|
£3.20
|
£3.84
|
|
|
18 - FRICTION WASHER CPL.
MET-316041650.A54
316041650
|
£17.55
|
£21.06
|
|
|
19 - FLANGE W.CLAMPING LEVER CPL.
MET-316041720.A61
316041720
|
£32.88
|
£39.45
|
|
|
20 - SPRING CLIP
MET-342022040.A161
342022040
|
£1.50
|
£1.80
|
|
|
21 - LEVER
MET-341070440.A74
341070440
|
£4.76
|
£5.71
|
|
|
22 - CIRCLIP
MET-141181810.A131
141181810
|
£1.50
|
£1.80
|
|
|
23 - SPINDLE SHAFT
MET-341161030.A28
341161030
|
£26.35
|
£31.62
|
|
|
24 - SAFETY CLUTCH W.PINION M14
MET-316046940.A1
316046940
|
£47.43
|
£56.92
|
|
|
25 - COMPRESSION SPRING
MET-342050840.A30
342050840
|
£2.94
|
£3.53
|
|
|
26 - GASKET
MET-339011570.A85
339011570
|
£1.50
|
£1.80
|
|
|
27 - WASHER 10 2 X 14
MET-141152300.A314
141152300
|
£3.20
|
£3.84
|
|
|
28 - WASHER 10 2 X 14
MET-141151120.A49
141151120
|
£1.50
|
£1.80
|
|
|
29 - WASHER 10 2 X 14
MET-141155550.A104
141155550
|
£1.50
|
£1.80
|
|
|
30 - WASHER 10 2 X 14
MET-141153920.A92
141153920
|
£1.50
|
£1.80
|
|
|
31 - FLANGE NUT
MET-341106900.A115
341106900
|
£11.78
|
£14.13
|
|
|
32 - CLAMPING NUT COMPL. M14
MET-316023660.A30
316023660
|
£22.61
|
£27.13
|
|
|
33 - CLAMPING FLANGE
MET-341031160.A393
341031160
|
£15.41
|
£18.49
|
|
|
34 - WHEEL GUARD D125
MET-339204500.A228
339204500
|
£11.78
|
£14.13
|
|
|
35 - ANTI-VIBRATION HANDLE M 8
MET-314000970.A135
314000970
|
£19.18
|
£23.02
|
|
|
36 - BAFFLE
MET-339151040.A28
339151040
|
£3.20
|
£3.84
|
|
|
37 - FIELD COIL ASSEMBLY W.FIELD COIL 230V
MET-311010750.A7
311010750
|
£73.52
|
£88.23
|
|
|
38 - MOTOR HOUSING
MET-315013230.A31
315013230
|
£11.78
|
£14.13
|
|
|
39 - BRUSH HOLDER COMPL. CUT OUT 230V
MET-316045170.A25
316045170
|
£13.63
|
£16.36
|
|
|
40 - CARBON BRUSH SET 230V
MET-316042070.A27
316042070
|
£13.63
|
£16.36
|
|
|
41 - SWITCH ROD
MET-343393530.A36
343393530
|
£1.50
|
£1.80
|
|
|
42 - SWITCH SLIDE
MET-343392980.A23
343392980
|
£1.50
|
£1.80
|
|
|
43 - HOUSING COVER
MET-343393460.A13
343393460
|
£7.36
|
£8.83
|
|
|
44 - M-LABEL 08 TR 49-52X22 WE 14-125 INOX PL
MET-338122340.A4
338122340
|
-
|
|
|
|
45 - CABLE CLIP
MET-343362490.A519
343362490
|
£3.20
|
£3.84
|
|
|
46 - SELF-TAP FILL H SCREW
MET-141116020.A956
141116020
|
£3.20
|
£3.84
|
|
|
47 - CABLE SLEEVE
MET-344100970.A354
344100970
|
£3.20
|
£3.84
|
|
|
49 - TEMPERATURE SENSOR
MET-343081140.A12
343081140
|
£15.41
|
£18.49
|
|
|
50 - RATING PLATE
MET-338053610.A1
338053610
|
-
|
|
|
|
51 - PART NOT NEEDED
MET-399999990.A805
399999990
|
-
|
|
|
|
52 - ELECTRONIC UNIT 230V / 50/60HZ
MET-343082140.A4
343082140
|
£48.88
|
£58.66
|
|
|
53 - SWITCH
MET-343409450.A34
343409450
|
£15.41
|
£18.49
|
|
|
54 - HOUSING BLACK
MET-343395630.A9
343395630
|
£5.62
|
£6.75
|
|
|
55 - FILLISTER HEAD SCREW
MET-141123490.A31
141123490
|
£1.50
|
£1.80
|
|
|
56 - CABLE WITH PLUG
MET-344497170.A5
344497170
|
-
|
|
|
|
57 - PART NOT NEEDED
MET-399999990.A804
399999990
|
-
|
|
|
|
58 - PIN SPANNER
MET-344163920.A17
344163920
|
£4.76
|
£5.71
|
|
|
62 - SELF-TAP. FILL. H. SCREW
MET-141118270.A47
141118270
|
£3.20
|
£3.84
|
|
|
63 - SEALING WASHER
MET-343375540.A24
343375540
|
£1.50
|
£1.80
|
|
|
880 - GREASE 100G
MET-344130920.A97
344130920
|
£19.18
|
£23.02
|
|
|
885 - GREASE SF 011 50GR 1.8oz
MET-344130560.A619
344130560
|
£19.18
|
£23.02
|
|
|

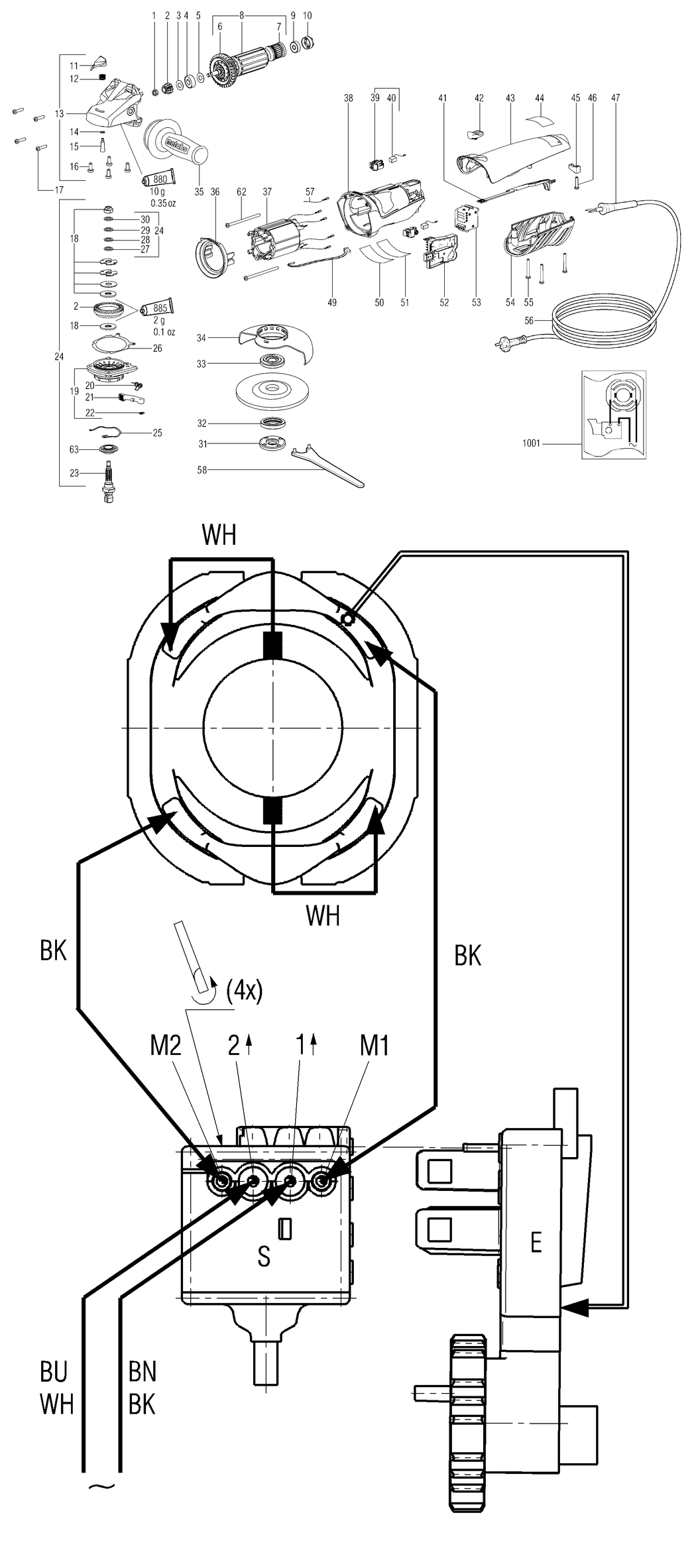

1001 - WIRING DIAGRAM 230V
MET-338504700.A20
338504700
|
-
|
|
|
