1 - ARMATURE COMPL. 120V
MET-310011150.A2
310011150
|
£55.90
|
£67.08
|
|
|
2 - FIELD COIL W.FIELD COIL 120 V
MET-311012010.A21
311012010
|
£61.08
|
£73.30
|
|
|
3 - SWITCH 2-POLE
MET-343410280.A12
343410280
|
£11.78
|
£14.13
|
|
|
4 - CABLE SLEEVE
MET-344101220.A147
344101220
|
£3.20
|
£3.84
|
|
|
5 - CABLE WITH UL-CSA-PLUG
MET-344499690.A8
344499690
|
-
|
|
|
|
6 - CABLE CLIP
MET-343362490.A1237
343362490
|
£3.20
|
£3.84
|
|
|
7 - MOTOR HOUSING
MET-315013710.A95
315013710
|
£13.63
|
£16.36
|
|
|
8 - BAFFLE
MET-339151210.A13
339151210
|
£2.94
|
£3.53
|
|
|
9 - BAFFLE
MET-339151200.A316
339151200
|
£2.94
|
£3.53
|
|
|
10 - ELECTRONIC UNIT 120V / 50/60HZ
MET-343084070.A10
343084070
|
£54.94
|
£65.93
|
|
|
11 - BALL BEARING 6X19X6
MET-143115690.A515
143115690
|
£3.82
|
£4.59
|
|
|
12 - RUBBER BUSHING
MET-344097870.A69
344097870
|
£1.50
|
£1.80
|
|
|
14 - BALL BEARING 8X22X7
MET-143115700.A274
143115700
|
£4.76
|
£5.71
|
|
|
15 - WASHER
MET-339006390.A59
339006390
|
£1.50
|
£1.80
|
|
|
16 - HEXAGON NUT W.RECESS
MET-341100940.A323
341100940
|
£3.20
|
£3.84
|
|
|
17 - SHIFT LEVER
MET-343434570.A41
343434570
|
£4.76
|
£5.71
|
|
|
18 - MOTOR CAP 2 PARTS BLACK
MET-316070220.A12
316070220
|
£15.41
|
£18.49
|
|
|
19 - LIGHT GUIDE
MET-343435170.A42
343435170
|
£2.94
|
£3.53
|
|
|
20 - CLAMPING FLANGE
MET-341031290.A154
341031290
|
£9.62
|
£11.54
|
|
|
21 - STRAP
MET-341162180.A4
341162180
|
-
|
|
|
|
23 - WHEEL GUARD D125
MET-339204500.A89
339204500
|
£11.78
|
£14.13
|
|
|
24 - ANTI-VIBRATION HANDLE M 8
MET-314000970.A275
314000970
|
£19.18
|
£23.02
|
|
|
26 - SPRING CLIP
MET-342022490.A25
342022490
|
£2.94
|
£3.53
|
|
|
30 - GASKET
MET-339011970.A143
339011970
|
£1.50
|
£1.80
|
|
|
31 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A343
141121640
|
£1.50
|
£1.80
|
|
|
32 - SELF-TAP. FILL. H. SCREW
MET-341701470.A62
341701470
|
£1.50
|
£1.80
|
|
|
33 - SELF-TAP. FILL. H. SCREW
MET-141116980.A24
141116980
|
£1.50
|
£1.80
|
|
|
34 - RATING PLATE
MET-338071830.A0
338071830
|
-
|
|
|
|
36 - WARNING LABEL 52X22
MET-338122090.A124
338122090
|
-
|
|
|
|
40 - SPINDLE
MET-316054530.A7
316054530
|
-
|
|
|
|
41 - CLAMPING NUT COMPL.
MET-316055450.A18
316055450
|
£15.41
|
£18.49
|
|
|
42 - WASHER 10 2 X 14
MET-141151120.A416
141151120
|
£1.50
|
£1.80
|
|
|
43 - WASHER 10 2 X 14
MET-141152300.A22
141152300
|
£3.20
|
£3.84
|
|
|
44 - WASHER 10 2 X 14
MET-141153920.A385
141153920
|
£1.50
|
£1.80
|
|
|
49 - SELF-TAP. FILL. H. SCREW
MET-141117060.A149
141117060
|
£3.20
|
£3.84
|
|
|
50 - FLANGE COMPL.
MET-343433280.A21
343433280
|
£11.78
|
£14.13
|
|
|
51 - NUT
MET-341102460.A26
341102460
|
£3.82
|
£4.59
|
|
|
52 - BEVEL GEAR W.PINION
MET-316054980.A114
316054980
|
£22.61
|
£27.13
|
|
|
53 - FRICTION WASHER SET COMPL.
MET-316055080.A228
316055080
|
£17.55
|
£21.06
|
|
|
54 - GEAR HOUSING COMPL.
MET-316055100.A185
316055100
|
£54.94
|
£65.93
|
|
|
55 - SAFETY CLUTCH W.PINION
MET-316054380.A0
316054380
|
-
|
|
|
|
56 - BRUSH HOLDER SET
MET-316065420.A71
316065420
|
£17.55
|
£21.06
|
|
|
57 - FAN W. DUST GUARD
MET-316054850.A107
316054850
|
£5.62
|
£6.75
|
|
|
58 - CARBON BRUSH SET CUT-OFF
MET-316065460.A42
316065460
|
£15.41
|
£18.49
|
|
|
59 - CLAMPING LEVER COMPL.
MET-316066040.A248
316066040
|
£15.41
|
£18.49
|
|
|
61 - RETAINING RING
MET-141156650.A173
141156650
|
£1.50
|
£1.80
|
|
|
62 - O-RING
MET-143196000.A148
143196000
|
-
|
|
|
|
63 - PRESSURE SPRING
MET-342003390.A256
342003390
|
£1.50
|
£1.80
|
|
|
64 - PUSH BUTTON
MET-343433130.A23
343433130
|
£1.50
|
£1.80
|
|
|
65 - BOLT
MET-341515640.A141
341515640
|
£2.94
|
£3.53
|
|
|
70 - TACHO DISC
MET-343433060.A100
343433060
|
£3.82
|
£4.59
|
|
|
72 - WASHER
MET-339007800.A135
339007800
|
£1.50
|
£1.80
|
|
|
76 - SEALING CAP
MET-343438780.A0
343438780
|
-
|
|
|
|
77 - TYPE LABEL
MET-338127640.A4
338127640
|
-
|
|
|
|
80 - BUTTING PLATE
MET-339011590.A109
339011590
|
£9.62
|
£11.54
|
|
|
81 - BRAKE DISC
MET-341013460.A45
341013460
|
£17.55
|
£21.06
|
|
|
82 - SUPPORTING PLATE
MET-343433710.A96
343433710
|
£2.94
|
£3.53
|
|
|
83 - SHIFT LEVER
MET-339136010.A86
339136010
|
£3.20
|
£3.84
|
|
|
84 - SHIFT ELEMENT
MET-343433700.A5
343433700
|
£2.94
|
£3.53
|
|
|
85 - PRESSURE SPRING
MET-342003420.A48
342003420
|
£1.50
|
£1.80
|
|
|
86 - PRESSURE SPRING
MET-342003930.A58
342003930
|
£2.94
|
£3.53
|
|
|
87 - SPACER SLEEVE
MET-341212170.A33
341212170
|
£3.82
|
£4.59
|
|
|
88 - INTERMEDIATE FLANGE
MET-343435920.A48
343435920
|
£7.36
|
£8.83
|
|
|
92 - O-RING
MET-143195640.A163
143195640
|
£2.94
|
£3.53
|
|
|
104 - CLAMPING PIECE
MET-339137160.A10
339137160
|
-
|
|
|
|
105 - CROSS REC. SELF-DRILLING SCREW 3 5X13 VE
MET-6144027270.A9
6144027270
|
£1.50
|
£1.80
|
|
|
124 - CARBONBRUSH WITH BRUSHOLDER SET 110V
MET-316066670.A80
316066670
|
£17.55
|
£21.06
|
|
|
880 - GREASE 100G
MET-344130920.A479
344130920
|
£19.18
|
£23.02
|
|
|
885 - GREASE SF 011 50GR 1.8oz
MET-344130560.A121
344130560
|
£19.18
|
£23.02
|
|
|

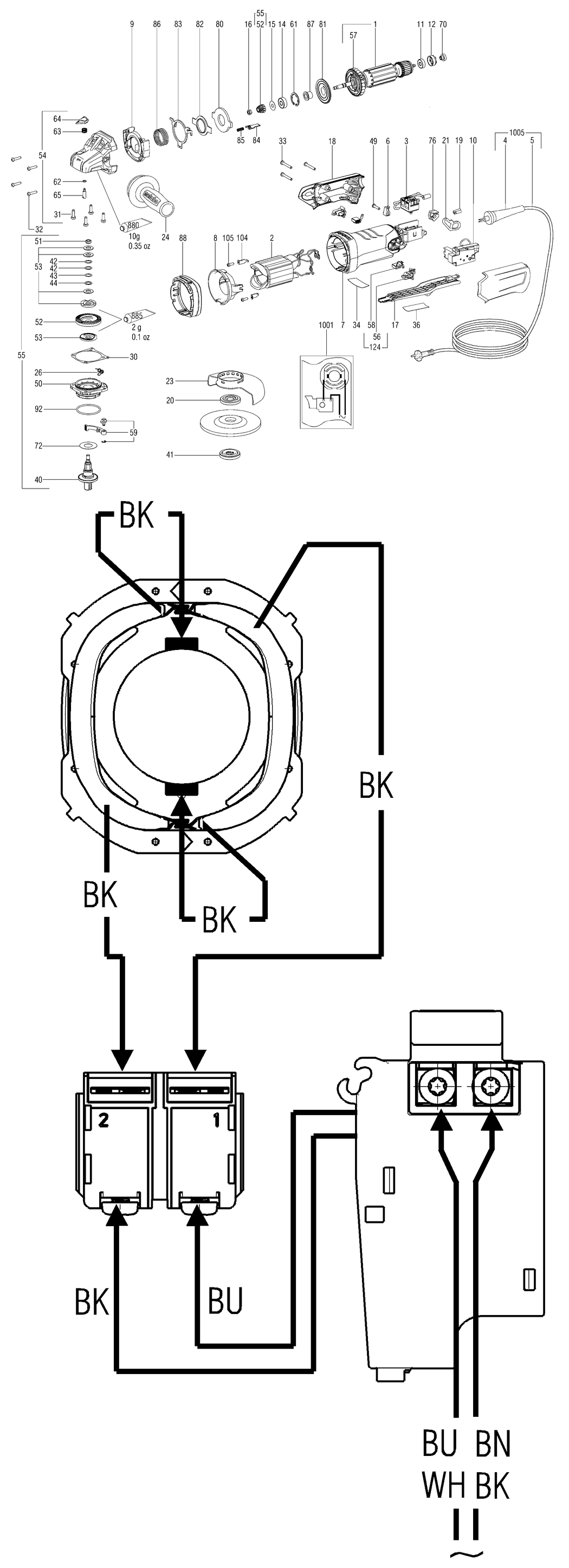

1001 - DIAGRAM
MET-338505950.A69
338505950
|
-
|
|
|
|
1005 - PART NOT NEEDED
MET-399999990.A2221
399999990
|
-
|
|
|
