1 - STOP GUIDE CPL.
MET-316033280.A5
316033280
|
£15.41
|
£18.49
|
|
|
2 - DEPTH STOP
MET-316035530.A6
316035530
|
£48.88
|
£58.66
|
|
|
3 - V-RING
MET-141155920.A1
141155920
|
£1.50
|
£1.80
|
|
|
4 - SLEEVE
MET-343378450.A3
343378450
|
£3.82
|
£4.59
|
|
|
5 - ADJUSTING SLEEVE
MET-343378470.A1
343378470
|
-
|
|
|
|
6 - ADJUSTING SLEEVE
MET-316034350.A3
316034350
|
£30.06
|
£36.07
|
|
|
7 - FLAT SPRING
MET-342050770.A2
342050770
|
£4.76
|
£5.71
|
|
|
8 - SELF-TAP. FILL. H. SCREW
MET-141122480.A11
141122480
|
£1.50
|
£1.80
|
|
|
9 - GEAR HOUSING CPL.
MET-316034110.A3
316034110
|
£60.03
|
£72.04
|
|
|
10 - CIRCLIP
MET-141181150.A3
141181150
|
£1.50
|
£1.80
|
|
|
11 - WASHER
MET-339006740.A6
339006740
|
-
|
|
|
|
12 - PRESSURE SPRING
MET-342021080.A3
342021080
|
£1.50
|
£1.80
|
|
|
13 - SLEEVE
MET-341057060.A2
341057060
|
-
|
|
|
|
14 - QUICK ACTION LOCK
MET-316034140.A2
316034140
|
£15.41
|
£18.49
|
|
|
15 - BEARING SLEEVE
MET-341005350.A3
341005350
|
-
|
|
|
|
16 - CLUTCH CPL.
MET-316034120.A3
316034120
|
£114.40
|
£137.28
|
|
|
17 - BALL
MET-143120080.A3
143120080
|
£1.50
|
£1.80
|
|
|
18 - TOOL HOLDER
MET-341603820.A3
341603820
|
£54.94
|
£65.93
|
|
|
19 - DOG CLUTCH RING
MET-341057050.A4
341057050
|
£15.41
|
£18.49
|
|
|
20 - PRESSURE SPRING
MET-342003040.A3
342003040
|
-
|
|
|
|
21 - BALL
MET-143120040.A3
143120040
|
£1.50
|
£1.80
|
|
|
22 - PRESSURE SPRING
MET-342003030.A26
342003030
|
£1.50
|
£1.80
|
|
|
23 - CIRCLIP
MET-141155910.A5
141155910
|
£1.50
|
£1.80
|
|
|
24 - BEARING PLATE
MET-143114780.A1
143114780
|
-
|
|
|
|
25 - AXIAL NEEDLE BEARING
MET-143113090.A3
143113090
|
£15.41
|
£18.49
|
|
|
26 - THRUST WASHER
MET-143114770.A5
143114770
|
£1.50
|
£1.80
|
|
|
27 - CLAW WASHER
MET-341057190.A4
341057190
|
£32.88
|
£39.45
|
|
|
28 - RING
MET-141180940.A2
141180940
|
£3.20
|
£3.84
|
|
|
29 - RING
MET-341080180.A2
341080180
|
-
|
|
|
|
30 - SHAFT
MET-341603810.A3
341603810
|
-
|
|
|
|
31 - DOG CLUTCH
MET-340003450.A2
340003450
|
£36.59
|
£43.91
|
|
|
32 - CUP SPRING
MET-141150520.A5
141150520
|
£3.20
|
£3.84
|
|
|
33 - BUSH
MET-341080170.A2
341080170
|
-
|
|
|
|
34 - AXIAL NEEDLE BEARING
MET-143113820.A4
143113820
|
£9.62
|
£11.54
|
|
|
35 - THRUST WASHER
MET-143114760.A6
143114760
|
£2.94
|
£3.53
|
|
|
36 - WASHER
MET-141151040.A32
141151040
|
£3.20
|
£3.84
|
|
|
37 - SEAL
MET-344095910.A3
344095910
|
£3.20
|
£3.84
|
|
|
38 - GEAR FLANGE CPL.
MET-316034100.A3
316034100
|
£48.88
|
£58.66
|
|
|
39 - INTERMEDIATE GEAR
MET-340050060.A5
340050060
|
£9.62
|
£11.54
|
|
|
40 - SPUR GEAR
MET-340020080.A3
340020080
|
£22.61
|
£27.13
|
|
|
41 - SEALING RING
MET-343376040.A91
343376040
|
£3.20
|
£3.84
|
|
|
42 - RUBBER BUFFER
MET-344095920.A137
344095920
|
£1.50
|
£1.80
|
|
|
43 - BALL BEARING 8X22X7
MET-143113400.A196
143113400
|
£9.82
|
£11.79
|
|
|
44 - ARMATURE CPL. 230 V
MET-310007840.A3
310007840
|
£63.44
|
£76.13
|
|
|
45 - BALL BEARING 6X 19X 6
MET-143114750.A34
143114750
|
£13.63
|
£16.36
|
|
|
46 - INTERMEDIATE FLANGE
MET-343374260.A5
343374260
|
£4.76
|
£5.71
|
|
|
47 - RATING PLATE
MET-338062850.A0
338062850
|
-
|
|
|
|
48 - COVER W.O. ELECTRONIC
MET-343374280.A13
343374280
|
£8.37
|
£10.04
|
|
|
49 - ELECTRONIC SWITCH W/O WHEEL
MET-343407200.A3
343407200
|
£32.88
|
£39.45
|
|
|
50 - SELF-TAP. FILL. H. SCREW
MET-141117060.A224
141117060
|
£3.20
|
£3.84
|
|
|
51 - PISTOL GRIP 2 PIECE
MET-343393020.A1
343393020
|
£11.78
|
£14.13
|
|
|
52 - SUPPORTING PIECE
MET-343378650.A2
343378650
|
£1.50
|
£1.80
|
|
|
53 - CABLE CLIP
MET-343362490.A824
343362490
|
£3.20
|
£3.84
|
|
|
54 - O-RING
MET-143192430.A94
143192430
|
£3.20
|
£3.84
|
|
|
55 - FIELD COIL 230 V
MET-311009790.A4
311009790
|
£54.94
|
£65.93
|
|
|
56 - SELF-TAP. FILL. H. SCREW
MET-141116090.A8
141116090
|
£1.50
|
£1.80
|
|
|
57 - MOTOR HOUSING
MET-315012650.A17
315012650
|
£19.18
|
£23.02
|
|
|
58 - M-LABEL 08 52X22
MET-338122160.A32
338122160
|
£1.50
|
£1.80
|
|
|
59 - PART NOT NEEDED
MET-399999990.A1543
399999990
|
-
|
|
|
|
60 - INDICATION LABEL
MET-338115410.A20
338115410
|
£1.50
|
£1.80
|
|
|
61 - BRUSH SET 230V/120V
MET-316034940.A13
316034940
|
£11.90
|
£14.28
|
|
|
62 - BRUSH HOLDER MODULE
MET-316028100.A9
316028100
|
£26.35
|
£31.62
|
|
|
63 - INTERFERENCE SUPPR. COND.
MET-343253780.A12
343253780
|
£6.38
|
£7.65
|
|
|
64 - CABLE W.SOCKET BLUE
MET-344499270.A2
344499270
|
-
|
|
|
|
65 - CABLE SLEEVE
MET-344101140.A158
344101140
|
£3.82
|
£4.59
|
|
|
66 - INSERT HOLDER
MET-344162720.A3
344162720
|
£32.88
|
£39.45
|
|
|
67 - PART NOT NEEDED
MET-399999990.A1542
399999990
|
-
|
|
|
|
68 - FAN W. PROT. GRID
MET-316035730.A11
316035730
|
£8.37
|
£10.04
|
|
|
69 - RING
MET-339011980.A0
339011980
|
-
|
|
|
|
880 - GREASE 50GR 1.8oz
MET-344130970.A53
344130970
|
£15.41
|
£18.49
|
|
|
885 - GREASE 50GR 1.8oz
MET-344130930.A77
344130930
|
£36.59
|
£43.91
|
|
|

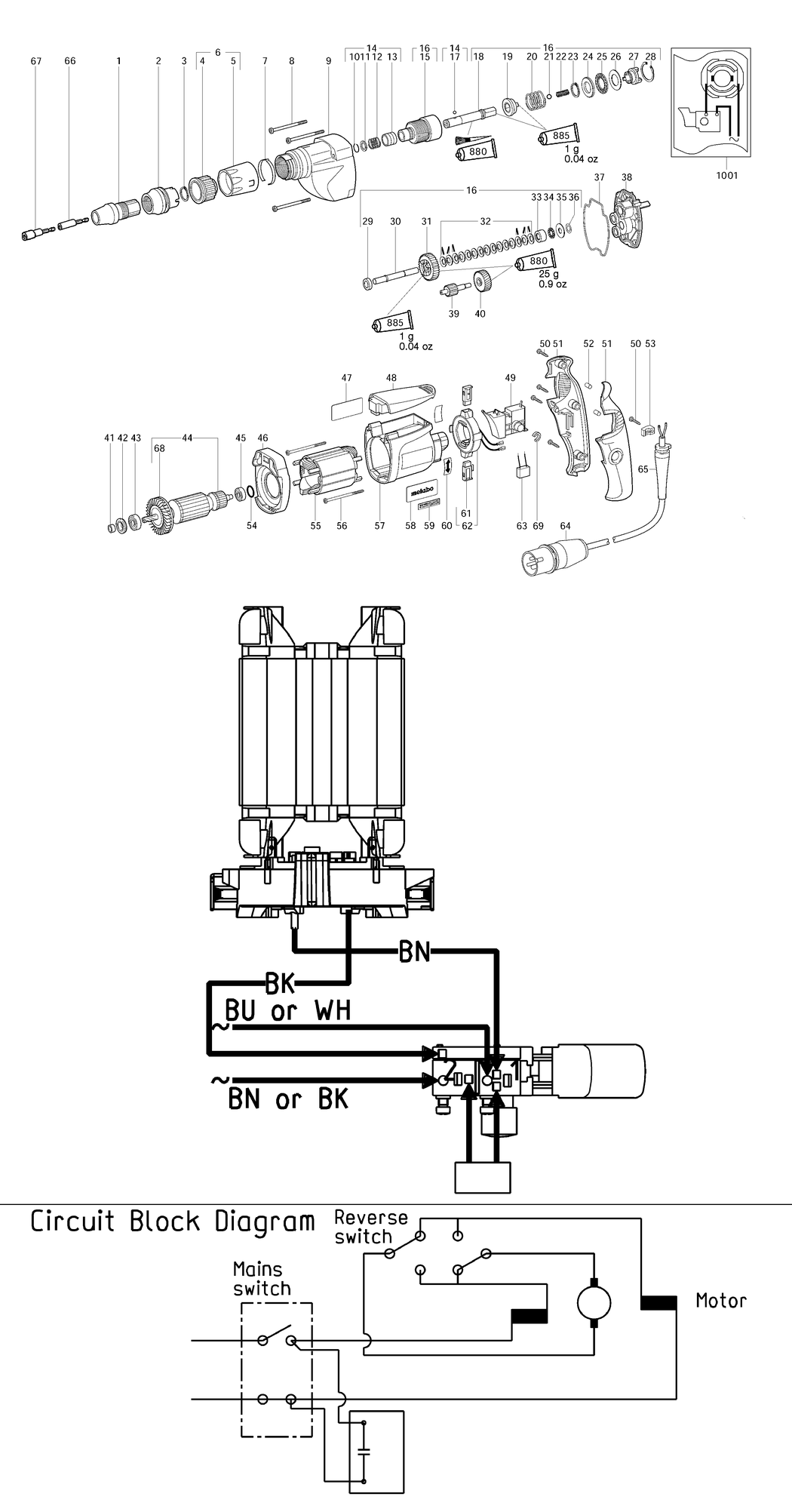

1001 - DIAGRAM
MET-338504130.A3
338504130
|
-
|
|
|
