1 - THUMBSCREW
MET-341111650.A4
341111650
|
£3.20
|
£3.84
|
|
|
2 - WASHER
MET-141151940.A170
141151940
|
£1.50
|
£1.80
|
|
|
3 - HEXAGONAL NUT
MET-141130100.A173
141130100
|
£1.50
|
£1.80
|
|
|
4 - ANGLE
MET-315413600.A6
315413600
|
£11.78
|
£14.13
|
|
|
5 - PARALLEL GUIDE
MET-331050350.A9
331050350
|
£17.55
|
£21.06
|
|
|
6 - HANDLE COVER
MET-343359020.A7
343359020
|
£11.78
|
£14.13
|
|
|
7 - FILLISTER HEAD SCREW
MET-141116970.A66
141116970
|
£3.20
|
£3.84
|
|
|
8 - INTERFERENCE SUPPR. COND.
MET-343253220.A4
343253220
|
£7.36
|
£8.83
|
|
|
9 - SWITCH
MET-343402680.A4
343402680
|
£11.78
|
£14.13
|
|
|
10 - INTERF. SUPPR.
MET-344488960.A3
344488960
|
£8.37
|
£10.04
|
|
|
11 - CABLE CLIP
MET-343362490.A60
343362490
|
£3.20
|
£3.84
|
|
|
13 - CHIP-EJECTION FLAP
MET-343358880.A5
343358880
|
£4.76
|
£5.71
|
|
|
14 - SPACING TUBE
MET-341003260.A11
341003260
|
£3.20
|
£3.84
|
|
|
15 - SQUARE NUT
MET-141130870.A11
141130870
|
£1.50
|
£1.80
|
|
|
16 - BALL BEARING 10X26X8
MET-143112150.A32
143112150
|
£19.18
|
£23.02
|
|
|
18 - SELV-TAPPING SCREW
MET-341701640.A6
341701640
|
£1.50
|
£1.80
|
|
|
19 - GRUB SCREW
MET-141114900.A9
141114900
|
£3.20
|
£3.84
|
|
|
20 - CUTTER BLOCK
MET-316015300.A2
316015300
|
£64.30
|
£77.16
|
|
|
21 - GRUB SCREW
MET-141116480.A7
141116480
|
£1.50
|
£1.80
|
|
|
22 - 2 PLANER BLADES
MET-630282000.A5
630282000
|
£5.82
|
£6.99
|
|
|
23 - PRESSURE STRIP CPL.
MET-316009180.A6
316009180
|
£26.35
|
£31.62
|
|
|
24 - NEEDLE SLEEVE
MET-143113780.A6
143113780
|
£11.78
|
£14.13
|
|
|
26 - SPINDLE
MET-341603650.A0
341603650
|
£8.37
|
£10.04
|
|
|
27 - SCREW
MET-341702400.A0
341702400
|
£1.50
|
£1.80
|
|
|
28 - PRESSURE SPRING
MET-342001250.A4
342001250
|
£3.20
|
£3.84
|
|
|
29 - SCALE
MET-339120740.A5
339120740
|
£4.76
|
£5.71
|
|
|
30 - SPRING
MET-342050180.A11
342050180
|
£1.50
|
£1.80
|
|
|
31 - HANDLE BOTTOM PART
MET-341111790.A11
341111790
|
£5.62
|
£6.75
|
|
|
32 - CAM DISC
MET-315410310.A9
315410310
|
£3.82
|
£4.59
|
|
|
33 - HEXAGON HEAD SCREW
MET-141121080.A9
141121080
|
£1.50
|
£1.80
|
|
|
34 - HOUSING WITH TABLE
MET-316029660.A4
316029660
|
£79.43
|
£95.32
|
|
|
35 - HANDLE UPPER PART
MET-341111320.A22
341111320
|
£8.37
|
£10.04
|
|
|
36 - DEPTH STOP
MET-331050290.A2
331050290
|
£5.62
|
£6.75
|
|
|
38 - THUMBSCREW
MET-341110820.A10
341110820
|
£4.76
|
£5.71
|
|
|
39 - INSULATING PLATE
MET-339010720.A6
339010720
|
£1.50
|
£1.80
|
|
|
40 - BRUSH GUIDE
MET-343000010.A7
343000010
|
£4.76
|
£5.71
|
|
|
41 - CARBON BRUSH
MET-316033720.A1
316033720
|
£13.63
|
£16.36
|
|
|
42 - BOLT
MET-141163190.A5
141163190
|
£1.50
|
£1.80
|
|
|
43 - TORSION SPRING
MET-342020740.A9
342020740
|
£3.20
|
£3.84
|
|
|
44 - COVERING FLAP
MET-339120730.A7
339120730
|
£11.78
|
£14.13
|
|
|
45 - COVER
MET-343359060.A6
343359060
|
£11.78
|
£14.13
|
|
|
46 - SELF-TAP FILL H SCREW
MET-141116020.A618
141116020
|
£3.20
|
£3.84
|
|
|
47 - BELT GUARD
MET-343374250.A2
343374250
|
£7.36
|
£8.83
|
|
|
48 - DRIVING BELT
MET-344260270.A2
344260270
|
£13.63
|
£16.36
|
|
|
49 - TOOTHED BELT PULLEY
MET-341200990.A0
341200990
|
£11.78
|
£14.13
|
|
|
51 - TOOTHED BELT PULLEY
MET-341200980.A4
341200980
|
£8.37
|
£10.04
|
|
|
52 - PRESSURE SPRING
MET-342001330.A8
342001330
|
£1.50
|
£1.80
|
|
|
53 - STRAP
MET-343359110.A6
343359110
|
£4.76
|
£5.71
|
|
|
54 - BALL BEARING 8X22X7
MET-143114740.A28
143114740
|
£15.41
|
£18.49
|
|
|
55 - FAN
MET-330000690.A10
330000690
|
-
|
|
|
|
56 - ARMATURE CPL. 220 V
MET-310004380.A2
310004380
|
£86.42
|
£103.71
|
|
|
57 - BALL BEARING 6X 19X 6
MET-143115810.A98
143115810
|
£7.04
|
£8.45
|
|
|
58 - O-RING
MET-143191620.A8
143191620
|
£3.20
|
£3.84
|
|
|
59 - WASHER
MET-141153400.A25
141153400
|
£3.20
|
£3.84
|
|
|
60 - BAFFLE
MET-343359090.A6
343359090
|
£3.82
|
£4.59
|
|
|
61 - FIELD COIL 240 V
MET-311006810.A5
311006810
|
£68.35
|
£82.02
|
|
|
62 - STRAND CPL. AWG18SW
MET-344488940.A11
344488940
|
£3.82
|
£4.59
|
|
|
63 - INTERF. SUPPR.
MET-344488950.A1
344488950
|
£8.37
|
£10.04
|
|
|
64 - SEALING PLATE
MET-344092190.A11
344092190
|
£3.20
|
£3.84
|
|
|
65 - SEALING PLATE
MET-344092650.A1
344092650
|
£3.82
|
£4.59
|
|
|
66 - CABLE WITH PLUG
MET-344485880.A8
344485880
|
£17.55
|
£21.06
|
|
|
67 - CABLE SLEEVE
MET-344100210.A13
344100210
|
£3.82
|
£4.59
|
|
|
68 - WASHER
MET-141151040.A10
141151040
|
£3.20
|
£3.84
|
|
|
70 - HEXAGONAL KEY
MET-344161540.A4
344161540
|
£3.20
|
£3.84
|
|
|
71 - METABO LABEL
MET-338122410.A11
338122410
|
£1.50
|
£1.80
|
|
|
72 - RATING PLATE
MET-338016350.A3
338016350
|
£3.20
|
£3.84
|
|
|
73 - CONTACT BRIDGE
MET-342050570.A1
342050570
|
£3.20
|
£3.84
|
|
|
78 - EXHAUST NOZZLE
MET-316024490.A6
316024490
|
£11.78
|
£14.13
|
|
|
79 - PART NOT NEEDED
MET-399999990.A9
399999990
|
-
|
|
|
|
80 - PLAIN HEXAGON NUT
MET-141131620.A1
141131620
|
£1.50
|
£1.80
|
|
|
81 - HEXAGONAL NUT
MET-141131010.A98
141131010
|
£1.50
|
£1.80
|
|
|

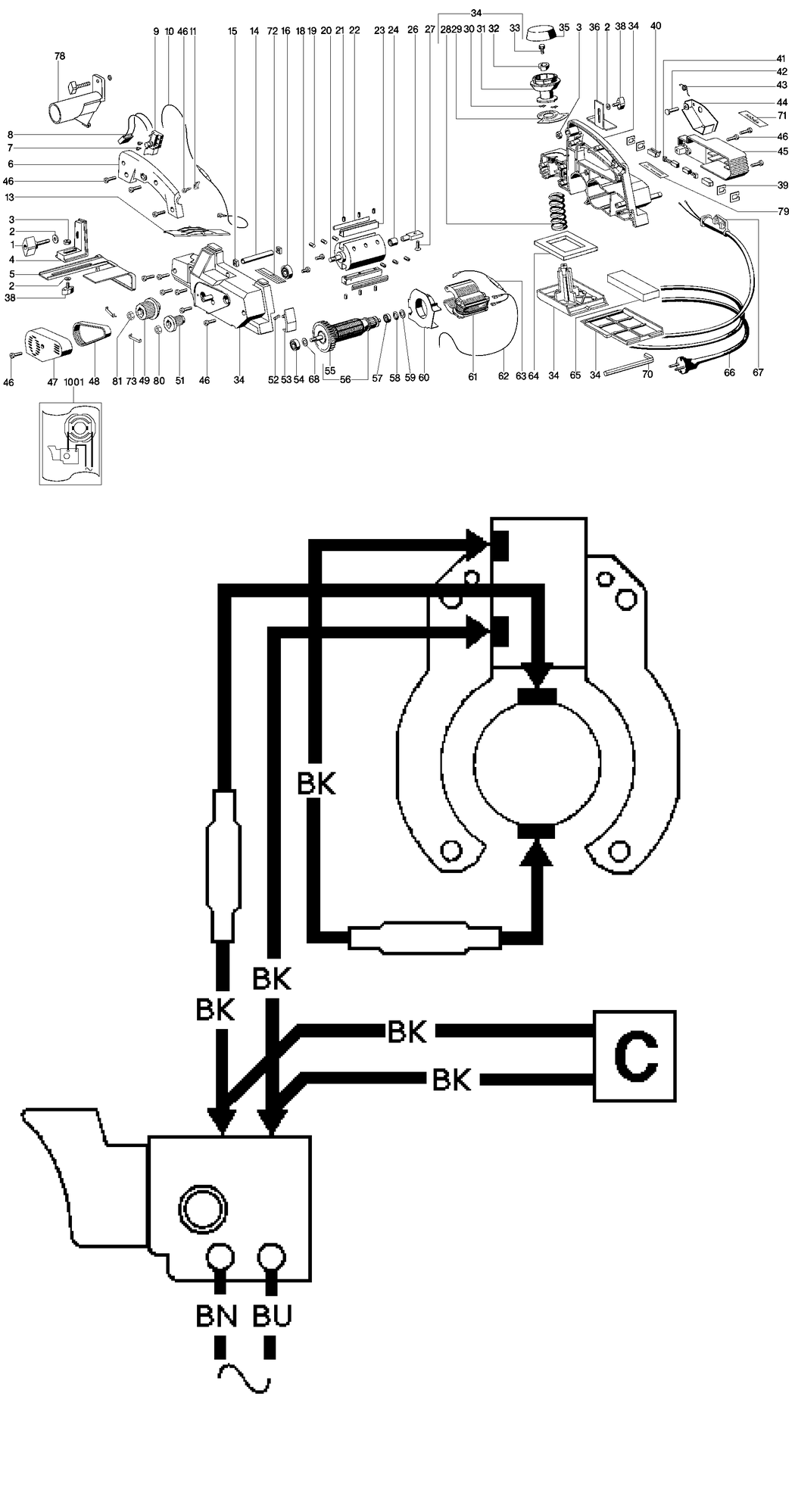

1001 - DIAGRAM
MET-338503520.A4
338503520
|
-
|
|
|
