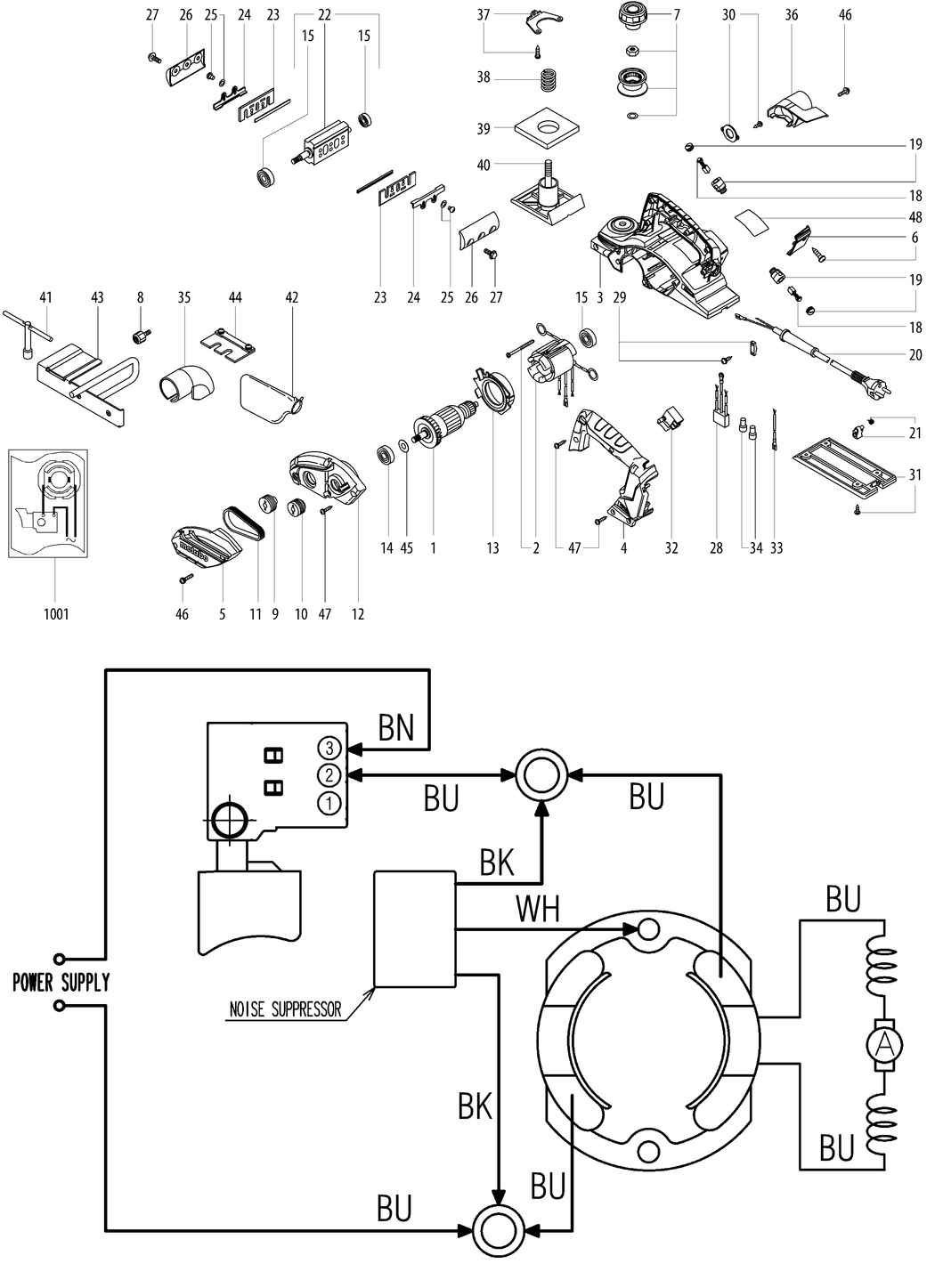

1 - ARMATURE COMPL.
MET-310012340.A0
310012340
|
-
|
|
|
|
2 - FIELD COIL COMPL.
MET-311012700.A0
311012700
|
-
|
|
|
|
3 - MOTOR HOUSING
MET-343445250.A1
343445250
|
-
|
|
|
|
4 - CAP F. GRIP
MET-343445260.A4
343445260
|
-
|
|
|
|
5 - MOTOR HOUSING
MET-343445280.A3
343445280
|
-
|
|
|
|
6 - COVER
MET-343445290.A2
343445290
|
-
|
|
|
|
7 - SHIFT KNOB
MET-343445270.A2
343445270
|
-
|
|
|
|
8 - STER GRIP SCREW
MET-343445350.A4
343445350
|
£2.94
|
£3.53
|
|
|
9 - TOOTHED BELT PULLEY IN THE FRONT
MET-341203220.A5
341203220
|
-
|
|
|
|
10 - TOOTHED BELT PULLEY REAR
MET-341203230.A0
341203230
|
-
|
|
|
|
11 - BELT
MET-341203240.A5
341203240
|
£9.62
|
£11.54
|
|
|
12 - MOTOR HOUSING (F. BEARING)
MET-343445870.A2
343445870
|
£22.61
|
£27.13
|
|
|
13 - AIR BAFFLE
MET-339153530.A3
339153530
|
£3.20
|
£3.84
|
|
|
14 - BALL BEARING 10X30X9
MET-143115650.A39
143115650
|
£4.76
|
£5.71
|
|
|
15 - BALL BEARING 8X22X7
MET-143113400.A224
143113400
|
£9.82
|
£11.79
|
|
|
18 - CARBON BRUSH SET
MET-316096480.A2
316096480
|
-
|
|
|
|
19 - CARBON BRUSH HOLDER COMPL.
MET-316096490.A3
316096490
|
-
|
|
|
|
20 - CABLE COMPL. CH
MET-344531230.A0
344531230
|
-
|
|
|
|
21 - LOCK CPL
MET-316096530.A4
316096530
|
£3.82
|
£4.59
|
|
|
22 - CUTTER BLOCK COMPL.
MET-316096500.A2
316096500
|
£73.52
|
£88.23
|
|
|
23 - SET RETAINING PLATE (A) CPL.
MET-316096510.A4
316096510
|
£3.82
|
£4.59
|
|
|
24 - SET RETAINING PLATE (B) CPL.
MET-316096520.A2
316096520
|
£15.41
|
£18.49
|
|
|
25 - RETAINING SCREW CPL.
MET-316096540.A2
316096540
|
£3.20
|
£3.84
|
|
|
26 - BLADE HOLDER SET
MET-316096550.A4
316096550
|
£11.78
|
£14.13
|
|
|
27 - RETAINING SCREW CPL.
MET-316096560.A2
316096560
|
£3.82
|
£4.59
|
|
|
28 - SUPPRESSOR
MET-343255140.A4
343255140
|
-
|
|
|
|
29 - CABLE CLAMP COMPL.
MET-316096570.A2
316096570
|
-
|
|
|
|
30 - COVER (F. BEARING) COMPL.
MET-316096580.A3
316096580
|
£3.82
|
£4.59
|
|
|
31 - PLANER TABLE REAR CPL.
MET-316096590.A3
316096590
|
£36.59
|
£43.91
|
|
|
32 - SWITCH
MET-343411640.A2
343411640
|
-
|
|
|
|
33 - STRAND SET COMPL.
MET-316096600.A2
316096600
|
-
|
|
|
|
34 - CONNECTOR SET
MET-339148870.A1
339148870
|
-
|
|
|
|
35 - ANGLE PIECE
MET-343445850.A2
343445850
|
£5.62
|
£6.75
|
|
|
36 - ADAPTOR
MET-343445490.A4
343445490
|
£3.82
|
£4.59
|
|
|
37 - UNION CPL.
MET-341166700.A1
341166700
|
£3.82
|
£4.59
|
|
|
38 - SPRING
MET-342052340.A4
342052340
|
£2.94
|
£3.53
|
|
|
39 - RUBBER PAD
MET-344113720.A3
344113720
|
£5.62
|
£6.75
|
|
|
40 - PLANER TABLE IN THE FRONT
MET-316096610.A2
316096610
|
£22.61
|
£27.13
|
|
|
41 - SOCKET 10MM
MET-344199320.A3
344199320
|
£4.76
|
£5.71
|
|
|
42 - DUST BAG
MET-344113730.A1
344113730
|
£15.41
|
£18.49
|
|
|
43 - PARALLEL GUIDE
MET-331054740.A5
331054740
|
£22.96
|
£27.55
|
|
|
44 - GAUGE
MET-339148880.A2
339148880
|
£8.37
|
£10.04
|
|
|
45 - WASHER
MET-341020200.A4
341020200
|
-
|
|
|
|
46 - FILLISTER HEAD SCREW
MET-141113200.A13
141113200
|
£1.50
|
£1.80
|
|
|
47 - FILLISTER HEAD SCREW
MET-141124210.A5
141124210
|
£2.94
|
£3.53
|
|
|
48 - RATING PLATE
MET-338068600.A1
338068600
|
-
|
|
|
|
1001 - WIRING DIAGRAM
MET-338506270.A5
338506270
|
-
|
|
|
