1 - TYPE LABEL
MET-338129270.A13
338129270
|
-
|
|
|
|
2 - CAP SCREW
MET-141121980.A83
141121980
|
£2.94
|
£3.53
|
|
|
3 - CAP
MET-341211660.A11
341211660
|
£63.36
|
£76.03
|
|
|
4 - PRESSURE SPRING
MET-342004090.A25
342004090
|
-
|
|
|
|
5 - ADJUSTING RING
MET-341211670.A18
341211670
|
£94.04
|
£112.85
|
|
|
6 - SCALE
MET-341211680.A7
341211680
|
-
|
|
|
|
7 - GRUB SCREW
MET-141124550.A11
141124550
|
£2.94
|
£3.53
|
|
|
8 - SCREW M6X55
MET-341705370.A4
341705370
|
-
|
|
|
|
9 - SPRING WASHER
MET-141150280.A13
141150280
|
£1.50
|
£1.80
|
|
|
10 - SPACER SLEEVE
MET-341211690.A18
341211690
|
-
|
|
|
|
11 - RETAINING RING
MET-141180060.A107
141180060
|
£1.50
|
£1.80
|
|
|
12 - FELT RING
MET-344071080.A5
344071080
|
£9.62
|
£11.54
|
|
|
13 - SLEEVE
MET-341211710.A6
341211710
|
-
|
|
|
|
15 - PRESSURE SPRING
MET-342004100.A2
342004100
|
-
|
|
|
|
16 - PIN
MET-341520350.A10
341520350
|
-
|
|
|
|
17 - RETAINING RING
MET-141180660.A14
141180660
|
£3.20
|
£3.84
|
|
|
18 - BALL BEARING 10X 22X 6
MET-143115370.A11
143115370
|
-
|
|
|
|
19 - GEAR HOUSING
MET-315105570.A20
315105570
|
-
|
|
|
|
21 - SERRATED LOCK WASHER
MET-6304084039.A36
6304084039
|
-
|
|
|
|
22 - CAP SCREW
MET-141113670.A12
141113670
|
£3.20
|
£3.84
|
|
|
24 - O-RING
MET-344113520.A10
344113520
|
£3.20
|
£3.84
|
|
|
26 - RETAINING RING
MET-141180150.A11
141180150
|
£1.50
|
£1.80
|
|
|
27 - TRANSFORMATION RING
MET-341211760.A18
341211760
|
-
|
|
|
|
28 - HOUSING
MET-341211740.A18
341211740
|
-
|
|
|
|
29 - SERRATED LOCK WASHER
MET-141150410.A9
141150410
|
£3.20
|
£3.84
|
|
|
30 - CAP SCREW
MET-141113590.A48
141113590
|
£3.20
|
£3.84
|
|
|
31 - RETAINING RING
MET-141180370.A28
141180370
|
£1.50
|
£1.80
|
|
|
32 - FLANGE
MET-341211750.A7
341211750
|
-
|
|
|
|
33 - SERRATED LOCK WASHER
MET-141152270.A14
141152270
|
£1.50
|
£1.80
|
|
|
34 - CAP SCREW
MET-141121980.A81
141121980
|
£2.94
|
£3.53
|
|
|
35 - SPINDLE
MET-341605070.A15
341605070
|
-
|
|
|
|
36 - SCREW M4X10 TX15
MET-341705330.A10
341705330
|
£3.20
|
£3.84
|
|
|
37 - SERRATED LOCK WASHER
MET-6304084039.A37
6304084039
|
-
|
|
|
|
38 - CAP SCREW
MET-141113690.A0
141113690
|
£3.20
|
£3.84
|
|
|
40 - SPRING WASHER
MET-141150270.A32
141150270
|
£1.50
|
£1.80
|
|
|
41 - CAP SCREW
MET-141113710.A17
141113710
|
£3.20
|
£3.84
|
|
|
43 - GUIDE RAIL A
MET-341162150.A4
341162150
|
-
|
|
|
|
44 - CAP SCREW
MET-141121980.A80
141121980
|
£2.94
|
£3.53
|
|
|
45 - SREW
MET-341722580.A8
341722580
|
-
|
|
|
|
51 - ARMATURE COMPL. 230V
MET-310010990.A72
310010990
|
£68.35
|
£82.02
|
|
|
52 - FIELD COIL W.FIELD COIL 230 V
MET-311012180.A21
311012180
|
£54.94
|
£65.93
|
|
|
53 - SWITCH 2-POLE
MET-343410120.A73
343410120
|
£13.63
|
£16.36
|
|
|
54 - PART NOT NEEDED
MET-399999990.A262
399999990
|
-
|
|
|
|
55 - PART NOT NEEDED
MET-399999990.A263
399999990
|
-
|
|
|
|
56 - CABLE CLIP
MET-343362490.A70
343362490
|
£3.20
|
£3.84
|
|
|
58 - FILL. HEAD SCREW(DIN 7985)
MET-141121430.A1
141121430
|
£1.50
|
£1.80
|
|
|
59 - ELECTRONIC UNIT 230V 50/60HZ
MET-343083780.A3
343083780
|
£48.88
|
£58.66
|
|
|
60 - MOTOR HOUSING 2 PART
MET-315013520.A6
315013520
|
£13.63
|
£16.36
|
|
|
61 - BAFFLE
MET-339151180.A47
339151180
|
£2.94
|
£3.53
|
|
|
62 - BALL BEARING 6X19X6
MET-143115690.A143
143115690
|
£3.82
|
£4.59
|
|
|
63 - RUBBER BUSHING
MET-344097870.A462
344097870
|
£1.50
|
£1.80
|
|
|
64 - TACHO DISC
MET-343433060.A243
343433060
|
£3.82
|
£4.59
|
|
|
65 - WASHER
MET-339133060.A210
339133060
|
£1.50
|
£1.80
|
|
|
66 - WASHER
MET-339006390.A365
339006390
|
£1.50
|
£1.80
|
|
|
67 - HEXAGON NUT W.RECESS
MET-341100940.A12
341100940
|
£3.20
|
£3.84
|
|
|
68 - SWITCH ROD
MET-343433070.A8
343433070
|
£1.50
|
£1.80
|
|
|
69 - PIVOTING SWITCH
MET-343433090.A41
343433090
|
£1.50
|
£1.80
|
|
|
70 - CAP
MET-343433030.A167
343433030
|
£5.62
|
£6.75
|
|
|
71 - END CAP
MET-343433100.A107
343433100
|
£2.94
|
£3.53
|
|
|
72 - SWITCH SLIDE
MET-343437100.A2
343437100
|
£2.94
|
£3.53
|
|
|
73 - SELF-TAP. FILL. H. SCREW
MET-141117060.A622
141117060
|
£3.20
|
£3.84
|
|
|
74 - LOOP HANDLE COMPL.
MET-343399690.A8
343399690
|
£19.18
|
£23.02
|
|
|
75 - SLOTTED DISC
MET-341071240.A15
341071240
|
£17.55
|
£21.06
|
|
|
76 - THUMBSCREW COMPL.
MET-341112850.A28
341112850
|
£3.82
|
£4.59
|
|
|
77 - FIXED BEARING COVER
MET-339137240.A21
339137240
|
-
|
|
|
|
78 - FILLISTER HEAD SCREW
MET-141124170.A1
141124170
|
-
|
|
|
|
80 - BUSHING COMPL.
MET-316063730.A21
316063730
|
£30.06
|
£36.07
|
|
|
81 - SELF-TAP. FILL. H. SCREW
MET-141116980.A225
141116980
|
£1.50
|
£1.80
|
|
|
82 - ROLLER COMPL.
MET-316063390.A14
316063390
|
-
|
|
|
|
83 - BRUSH HOLDER SET
MET-316065420.A115
316065420
|
£17.55
|
£21.06
|
|
|
84 - FAN W. DUST GUARD
MET-316054850.A174
316054850
|
£5.62
|
£6.75
|
|
|
85 - CARBON BRUSH SET CUT-OFF
MET-316065450.A70
316065450
|
£15.41
|
£18.49
|
|
|
86 - THREADED RING INSIDE COMPL.
MET-316094170.A23
316094170
|
-
|
|
|
|
87 - BEVEL GEAR
MET-316094190.A12
316094190
|
£198.70
|
£238.44
|
|
|
88 - HOUSING COMPL.
MET-316094210.A23
316094210
|
-
|
|
|
|
89 - ANGLE COMPL.
MET-316094230.A12
316094230
|
-
|
|
|
|
90 - RATING PLATE
MET-338066340.A1
338066340
|
-
|
|
|
|
91 - INDICATION LABEL WARNING
MET-338127220.A24
338127220
|
-
|
|
|
|
92 - PART NOT NEEDED
MET-399999990.A264
399999990
|
-
|
|
|
|
93 - O-RING
MET-143196040.A3
143196040
|
-
|
|
|
|
95 - BALL BEARING COMPL.
MET-316094890.A13
316094890
|
-
|
|
|
|
96 - PROTECTION PLATE COMPL.
MET-316094900.A12
316094900
|
£64.30
|
£77.16
|
|
|
97 - GUIDE RAIL COMPL.
MET-316094910.A13
316094910
|
-
|
|
|
|
98 - BALL BEARING COMPL.
MET-316094920.A12
316094920
|
£60.03
|
£72.04
|
|
|
112 - SCREWDRIVER SET
MET-316064340.A20
316064340
|
-
|
|
|
|
120 - SIDE SUPPORT HANDLE COMPL.
MET-316046590.A126
316046590
|
£11.78
|
£14.13
|
|
|
124 - CARBONBRUSH WITH BRUSHOLDER SET 230V
MET-316067170.A127
316067170
|
£17.55
|
£21.06
|
|
|
880 - GREASE 50GR 1.8oz
MET-344130970.A28
344130970
|
£15.41
|
£18.49
|
|
|

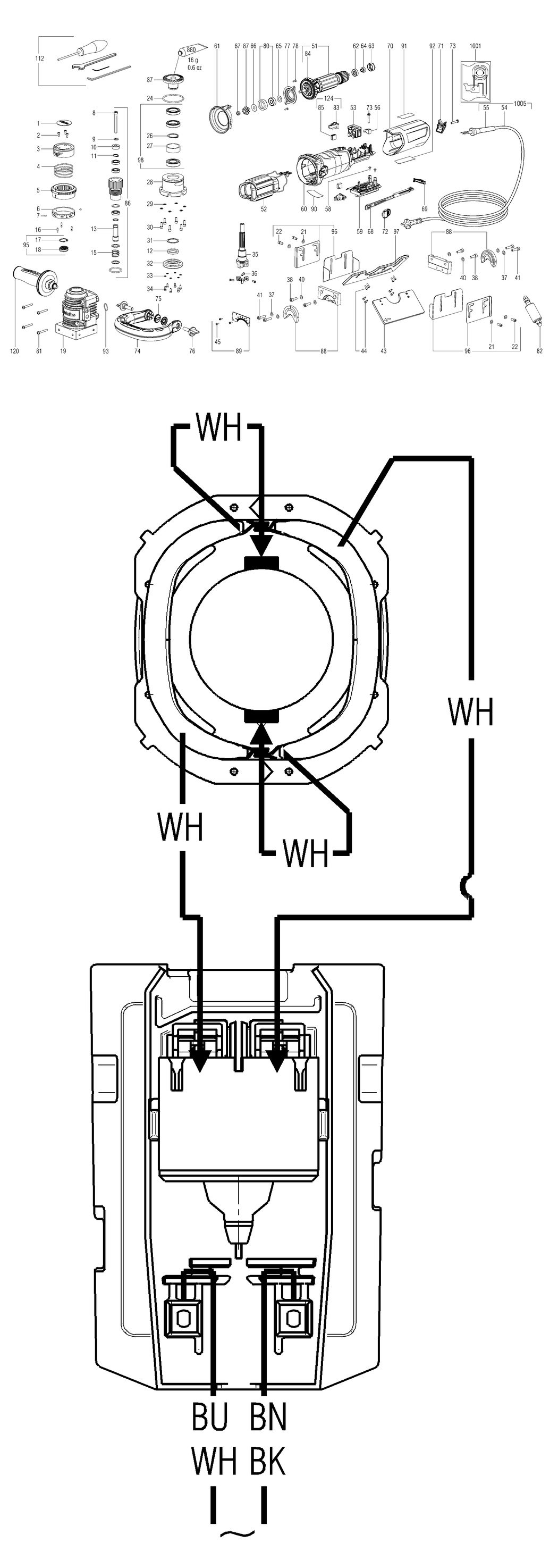

1001 - DIAGRAM
MET-338505780.A122
338505780
|
-
|
|
|
|
1005 - CABLE WITH SLEEVE
MET-316067320.A9
316067320
|
£32.88
|
£39.45
|
|
