1 - ARMATURE COMPL. 230 V
MET-310011830.A1
310011830
|
£68.35
|
£82.02
|
|
|
2 - FIELD COIL 230 V ELEC
MET-311009770.A11
311009770
|
£54.94
|
£65.93
|
|
|
3 - CABLE WITH PLUG
MET-344499660.A8
344499660
|
-
|
|
|
|
4 - CABLE SLEEVE
MET-344097360.A204
344097360
|
£2.94
|
£3.53
|
|
|
5 - CABLE CLIP
MET-343362490.A412
343362490
|
£3.20
|
£3.84
|
|
|
6 - SELF-TAP. FILL. H. SCREW
MET-141117060.A400
141117060
|
£3.20
|
£3.84
|
|
|
7 - BRUSH HOLDER COMPL. CUT OUT 230V
MET-316046890.A11
316046890
|
£15.41
|
£18.49
|
|
|
9 - SWITCH WITH ELEKTRONIC 230 V / 50-60 HZ
MET-316050300.A3
316050300
|
-
|
|
|
|
10 - STRAND COMPL.
MET-344498880.A23
344498880
|
£1.50
|
£1.80
|
|
|
11 - MOTOR HOUSING
MET-315013660.A53
315013660
|
£15.41
|
£18.49
|
|
|
12 - SWITCH ROD
MET-343430940.A41
343430940
|
£1.50
|
£1.80
|
|
|
13 - SWITCH SLIDE H/L
MET-343397810.A7
343397810
|
£1.50
|
£1.80
|
|
|
14 - BALL BEARING 6X19X6
MET-143115690.A36
143115690
|
£3.82
|
£4.59
|
|
|
15 - RUBBER BUSHING
MET-344097870.A292
344097870
|
£1.50
|
£1.80
|
|
|
16 - BAFFLE
MET-343436590.A18
343436590
|
£3.82
|
£4.59
|
|
|
17 - BALL BEARING 8X 22X 7
MET-143115060.A17
143115060
|
£8.37
|
£10.04
|
|
|
18 - 2 PART MOTOR CAP
MET-343432950.A3
343432950
|
-
|
|
|
|
19 - SELF-TAP. FILL. H. SCREW
MET-141113180.A115
141113180
|
£1.50
|
£1.80
|
|
|
20 - SPACER BUSH
MET-341006070.A18
341006070
|
-
|
|
|
|
21 - INTERMEDIATE FLANGE GREEN
MET-343431740.A22
343431740
|
-
|
|
|
|
30 - SCALE
MET-341211520.A9
341211520
|
£36.59
|
£43.91
|
|
|
31 - ADJUSTING RING
MET-341211530.A12
341211530
|
£64.30
|
£77.16
|
|
|
32 - HOUSING
MET-341211540.A9
341211540
|
£51.54
|
£61.85
|
|
|
34 - PRESSURE SPRING
MET-342004080.A4
342004080
|
£22.61
|
£27.13
|
|
|
35 - BASE PLATE
MET-341211550.A11
341211550
|
£67.04
|
£80.45
|
|
|
37 - RATING PLATE
MET-338068200.A1
338068200
|
-
|
|
|
|
38 - INDICATION LABEL WARNING
MET-338127220.A5
338127220
|
-
|
|
|
|
40 - PART NOT NEEDED
MET-399999990.A1121
399999990
|
-
|
|
|
|
41 - INDICATION LABEL
MET-338128450.A8
338128450
|
-
|
|
|
|
42 - PARALLEL GUIDE COMPL.
MET-316062870.A6
316062870
|
£71.39
|
£85.67
|
|
|
43 - GEAR HOUSING COMPL.
MET-316046070.A73
316046070
|
£30.06
|
£36.07
|
|
|
44 - SELF-TAP. FILL. H. SCREW
MET-141116980.A420
141116980
|
£1.50
|
£1.80
|
|
|
45 - O-RING
MET-143195320.A10
143195320
|
£2.94
|
£3.53
|
|
|
46 - HEXAGON NUT W.RECESS
MET-341102140.A21
341102140
|
£2.94
|
£3.53
|
|
|
47 - FIXED BEARING COVER
MET-315417490.A105
315417490
|
-
|
|
|
|
48 - FILLISTER HEAD SCREW
MET-141124170.A22
141124170
|
-
|
|
|
|
49 - FILLISTER HEAD SCREW
MET-141124090.A45
141124090
|
£2.94
|
£3.53
|
|
|
50 - COMPENSATING WASHER
MET-339011860.A37
339011860
|
£2.94
|
£3.53
|
|
|
51 - BEVEL GEAR
MET-316093360.A5
316093360
|
£32.88
|
£39.45
|
|
|
52 - FLANGE COMPL.
MET-316093280.A6
316093280
|
£67.04
|
£80.45
|
|
|
53 - BALL BEARING
MET-320054130.A7
320054130
|
£17.55
|
£21.06
|
|
|
54 - RETAINING RING
MET-141180390.A34
141180390
|
£3.20
|
£3.84
|
|
|
55 - SPINDLE COMPL.
MET-316093290.A15
316093290
|
£184.46
|
£221.35
|
|
|
56 - BALL BEARING
MET-320054160.A14
320054160
|
£48.88
|
£58.66
|
|
|
57 - RETAINING RING
MET-141180130.A53
141180130
|
£1.50
|
£1.80
|
|
|
58 - GUIDE RING COMPL.
MET-316093300.A5
316093300
|
£26.35
|
£31.62
|
|
|
59 - HEIGHT-ADJUSTMENT CPL.
MET-316093370.A16
316093370
|
£128.14
|
£153.77
|
|
|
60 - O-RING
MET-143191930.A31
143191930
|
£3.20
|
£3.84
|
|
|
62 - LOCK WASHER
MET-339007910.A5
339007910
|
£4.76
|
£5.71
|
|
|
63 - LOCK WASHER
MET-339007920.A16
339007920
|
£4.76
|
£5.71
|
|
|
65 - ADAPTOR LEFT
MET-339137590.A5
339137590
|
-
|
|
|
|
66 - ADAPTOR RIGHT
MET-339137600.A0
339137600
|
-
|
|
|
|
67 - SLOTTED DISC
MET-341071240.A1
341071240
|
£17.55
|
£21.06
|
|
|
68 - LOOP HANDLE COMPL.
MET-343399690.A25
343399690
|
£19.18
|
£23.02
|
|
|
69 - WASHER ZN5BK
MET-141153390.A20
141153390
|
£1.50
|
£1.80
|
|
|
70 - CHEESE-HEAD SCREW
MET-141114590.A1
141114590
|
£3.20
|
£3.84
|
|
|
71 - THUMB-NUT
MET-341111870.A7
341111870
|
£3.82
|
£4.59
|
|
|
72 - HEXAGONAL KEY
MET-344161510.A31
344161510
|
£3.20
|
£3.84
|
|
|
74 - RETAINING RING CPL.
MET-316096620.A3
316096620
|
-
|
|
|
|
81 - SCREW COMPL.
MET-316093380.A5
316093380
|
£4.76
|
£5.71
|
|
|
82 - SPINDLE STOP COMPL.
MET-316040610.A86
316040610
|
£4.76
|
£5.71
|
|
|
85 - LUEFTER MIT STAUBSCHUTZKORB
MET-316051700.A2
316051700
|
£7.36
|
£8.83
|
|
|
86 - CARBON BRUSH SET CUT-OFF
MET-316046900.A64
316046900
|
£15.41
|
£18.49
|
|
|
88 - GRUB SCREW
MET-141124550.A19
141124550
|
£2.94
|
£3.53
|
|
|
89 - SCREW SET
MET-341723160.A20
341723160
|
£15.41
|
£18.49
|
|
|
92 - GUIDE RING COMPL.
MET-316066080.A11
316066080
|
£36.59
|
£43.91
|
|
|
880 - GREASE 100G
MET-344130920.A13
344130920
|
£19.18
|
£23.02
|
|
|

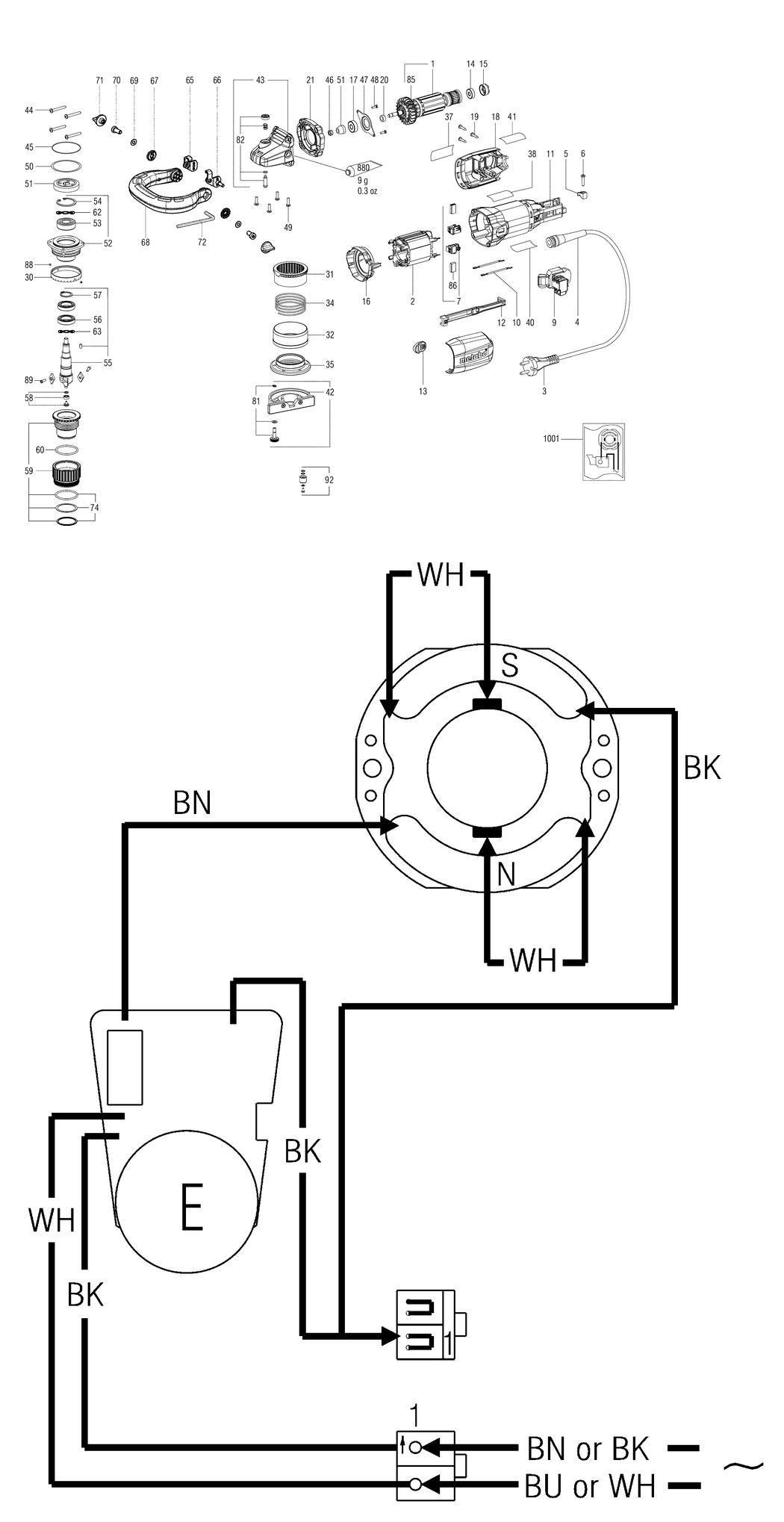

1001 - WIRING DIAGRAM
MET-338505710.A56
338505710
|
-
|
|
|
