1 - TYPE LABEL
MET-338129290.A6
338129290
|
-
|
|
|
|
2 - CAP SCREW
MET-141121980.A53
141121980
|
£2.94
|
£3.53
|
|
|
3 - CAP
MET-341211660.A3
341211660
|
£63.36
|
£76.03
|
|
|
4 - PRESSURE SPRING
MET-342004090.A14
342004090
|
-
|
|
|
|
5 - ADJUSTING RING
MET-341211670.A22
341211670
|
£94.04
|
£112.85
|
|
|
6 - SCALE
MET-341211680.A3
341211680
|
-
|
|
|
|
7 - GRUB SCREW
MET-141124550.A1
141124550
|
£2.94
|
£3.53
|
|
|
8 - SCREW M6X55
MET-341705370.A8
341705370
|
-
|
|
|
|
9 - SPRING WASHER
MET-141150280.A3
141150280
|
£1.50
|
£1.80
|
|
|
10 - SPACER SLEEVE
MET-341211690.A22
341211690
|
-
|
|
|
|
11 - RETAINING RING
MET-141180060.A117
141180060
|
£1.50
|
£1.80
|
|
|
12 - FELT RING
MET-344071080.A8
344071080
|
£9.62
|
£11.54
|
|
|
13 - SLEEVE
MET-341211710.A3
341211710
|
-
|
|
|
|
15 - PRESSURE SPRING
MET-342004100.A11
342004100
|
-
|
|
|
|
16 - PIN
MET-341520350.A3
341520350
|
-
|
|
|
|
17 - RETAINING RING
MET-141180660.A4
141180660
|
£3.20
|
£3.84
|
|
|
18 - BALL BEARING 10X 22X 6
MET-143115370.A2
143115370
|
-
|
|
|
|
19 - GEAR HOUSING
MET-315105570.A17
315105570
|
-
|
|
|
|
21 - SERRATED LOCK WASHER
MET-6304084039.A52
6304084039
|
-
|
|
|
|
22 - CAP SCREW
MET-141113670.A3
141113670
|
£3.20
|
£3.84
|
|
|
24 - O-RING
MET-344113520.A3
344113520
|
£3.20
|
£3.84
|
|
|
26 - RETAINING RING
MET-141180150.A2
141180150
|
£1.50
|
£1.80
|
|
|
27 - TRANSFORMATION RING
MET-341211760.A22
341211760
|
-
|
|
|
|
28 - HOUSING
MET-341211740.A22
341211740
|
-
|
|
|
|
29 - SERRATED LOCK WASHER
MET-141150410.A17
141150410
|
£3.20
|
£3.84
|
|
|
30 - CAP SCREW
MET-141113590.A57
141113590
|
£3.20
|
£3.84
|
|
|
31 - RETAINING RING
MET-141180370.A37
141180370
|
£1.50
|
£1.80
|
|
|
32 - FLANGE
MET-341211750.A3
341211750
|
-
|
|
|
|
33 - SERRATED LOCK WASHER
MET-141152270.A6
141152270
|
£1.50
|
£1.80
|
|
|
34 - CAP SCREW
MET-141121980.A52
141121980
|
£2.94
|
£3.53
|
|
|
35 - SPINDLE
MET-341605070.A22
341605070
|
-
|
|
|
|
36 - SCREW M4X10 TX15
MET-341705330.A5
341705330
|
£3.20
|
£3.84
|
|
|
37 - SERRATED LOCK WASHER
MET-6304084039.A53
6304084039
|
-
|
|
|
|
38 - CAP SCREW
MET-141113690.A10
141113690
|
£3.20
|
£3.84
|
|
|
40 - SPRING WASHER
MET-141150270.A40
141150270
|
£1.50
|
£1.80
|
|
|
41 - CAP SCREW
MET-141113710.A7
141113710
|
£3.20
|
£3.84
|
|
|
43 - GUIDE RAIL A
MET-341162150.A8
341162150
|
-
|
|
|
|
44 - CAP SCREW
MET-141121980.A57
141121980
|
£2.94
|
£3.53
|
|
|
45 - SREW
MET-341722580.A2
341722580
|
-
|
|
|
|
51 - ARMATURE COMPL. 120V
MET-310011150.A23
310011150
|
£55.90
|
£67.08
|
|
|
52 - FIELD COIL W.FIELD COIL 120 V
MET-311012270.A43
311012270
|
£48.88
|
£58.66
|
|
|
53 - SWITCH 2-POLE
MET-343410280.A71
343410280
|
£11.78
|
£14.13
|
|
|
54 - CABLE W. UK PLUG 110V
MET-344499700.A3
344499700
|
£36.59
|
£43.91
|
|
|
55 - CABLE SLEEVE
MET-344101220.A45
344101220
|
£3.20
|
£3.84
|
|
|
56 - CABLE CLIP
MET-343362490.A67
343362490
|
£3.20
|
£3.84
|
|
|
59 - ELECTRONIC UNIT 120V / 50/60HZ
MET-343083760.A8
343083760
|
-
|
|
|
|
60 - MOTOR HOUSING
MET-315013710.A32
315013710
|
£13.63
|
£16.36
|
|
|
61 - BAFFLE
MET-339151210.A97
339151210
|
£2.94
|
£3.53
|
|
|
62 - BALL BEARING 6X19X6
MET-143115690.A162
143115690
|
£3.82
|
£4.59
|
|
|
63 - RUBBER BUSHING
MET-344097870.A456
344097870
|
£1.50
|
£1.80
|
|
|
64 - TACHO DISC
MET-343433060.A254
343433060
|
£3.82
|
£4.59
|
|
|
66 - WASHER
MET-339006390.A358
339006390
|
£1.50
|
£1.80
|
|
|
67 - HEXAGON NUT W.RECESS
MET-341100940.A16
341100940
|
£3.20
|
£3.84
|
|
|
68 - SHIFT LEVER
MET-343434570.A1
343434570
|
£4.76
|
£5.71
|
|
|
70 - MOTOR CAP 2 PARTS BLACK
MET-316070220.A66
316070220
|
£15.41
|
£18.49
|
|
|
71 - LIGHT GUIDE
MET-343435170.A53
343435170
|
£2.94
|
£3.53
|
|
|
74 - LOOP HANDLE COMPL.
MET-343399690.A11
343399690
|
£19.18
|
£23.02
|
|
|
75 - SLOTTED DISC
MET-341071240.A11
341071240
|
£17.55
|
£21.06
|
|
|
76 - THUMBSCREW COMPL.
MET-341112850.A24
341112850
|
£3.82
|
£4.59
|
|
|
77 - FIXED BEARING COVER
MET-339137240.A13
339137240
|
-
|
|
|
|
78 - FILLISTER HEAD SCREW
MET-141124170.A9
141124170
|
-
|
|
|
|
80 - BUSHING COMPL.
MET-316063730.A14
316063730
|
£30.06
|
£36.07
|
|
|
81 - SELF-TAP. FILL. H. SCREW
MET-141116980.A234
141116980
|
£1.50
|
£1.80
|
|
|
82 - ROLLER COMPL.
MET-316063390.A20
316063390
|
-
|
|
|
|
84 - FAN W. DUST GUARD
MET-316054850.A167
316054850
|
£5.62
|
£6.75
|
|
|
85 - CARBONBRUSH WITH BRUSHOLDER SET 110V
MET-316066670.A41
316066670
|
£17.55
|
£21.06
|
|
|
86 - THREADED RING INSIDE COMPL.
MET-316094170.A15
316094170
|
-
|
|
|
|
87 - BEVEL GEAR
MET-316094190.A20
316094190
|
£198.70
|
£238.44
|
|
|
88 - HOUSING COMPL.
MET-316094210.A15
316094210
|
-
|
|
|
|
89 - ANGLE COMPL.
MET-316094230.A20
316094230
|
-
|
|
|
|
90 - RATING PLATE
MET-338066400.A2
338066400
|
-
|
|
|
|
91 - INDICATION LABEL WARNING
MET-338127220.A20
338127220
|
-
|
|
|
|
92 - PART NOT NEEDED
MET-399999990.A242
399999990
|
-
|
|
|
|
93 - O-RING
MET-143196040.A11
143196040
|
-
|
|
|
|
94 - SELF-TAP. FILL. H. SCREW
MET-141117060.A613
141117060
|
£3.20
|
£3.84
|
|
|
95 - BRAKE DISC
MET-341012810.A52
341012810
|
£30.06
|
£36.07
|
|
|
96 - SPACER SLEEVE
MET-341210710.A30
341210710
|
£6.38
|
£7.65
|
|
|
97 - INTERMEDIATE FLANGE
MET-343435920.A4
343435920
|
£7.36
|
£8.83
|
|
|
98 - BUTTING PLATE
MET-339011590.A43
339011590
|
£9.62
|
£11.54
|
|
|
99 - SUPPORTING PLATE
MET-343433710.A28
343433710
|
£2.94
|
£3.53
|
|
|
100 - SHIFT LEVER
MET-339136010.A29
339136010
|
£3.20
|
£3.84
|
|
|
101 - SHIFT ELEMENT
MET-343433700.A73
343433700
|
£2.94
|
£3.53
|
|
|
102 - PRESSURE SPRING
MET-342003420.A100
342003420
|
£1.50
|
£1.80
|
|
|
103 - PRESSURE SPRING
MET-342003930.A0
342003930
|
£2.94
|
£3.53
|
|
|
104 - PART NOT NEEDED
MET-399999990.A240
399999990
|
-
|
|
|
|
105 - PART NOT NEEDED
MET-399999990.A241
399999990
|
-
|
|
|
|
106 - BALL BEARING COMPL.
MET-316094890.A6
316094890
|
-
|
|
|
|
107 - PROTECTION PLATE COMPL.
MET-316094900.A19
316094900
|
£64.30
|
£77.16
|
|
|
108 - GUIDE RAIL COMPL.
MET-316094910.A6
316094910
|
-
|
|
|
|
109 - BALL BEARING COMPL.
MET-316094920.A19
316094920
|
£60.03
|
£72.04
|
|
|
110 - SELF-TAP. FILL. H. SCREW
MET-341701470.A99
341701470
|
£1.50
|
£1.80
|
|
|
112 - SCREWDRIVER SET
MET-316064340.A26
316064340
|
-
|
|
|
|
120 - SIDE SUPPORT HANDLE COMPL.
MET-316046590.A132
316046590
|
£11.78
|
£14.13
|
|
|
880 - GREASE 50GR 1.8oz
MET-344130970.A39
344130970
|
£15.41
|
£18.49
|
|
|

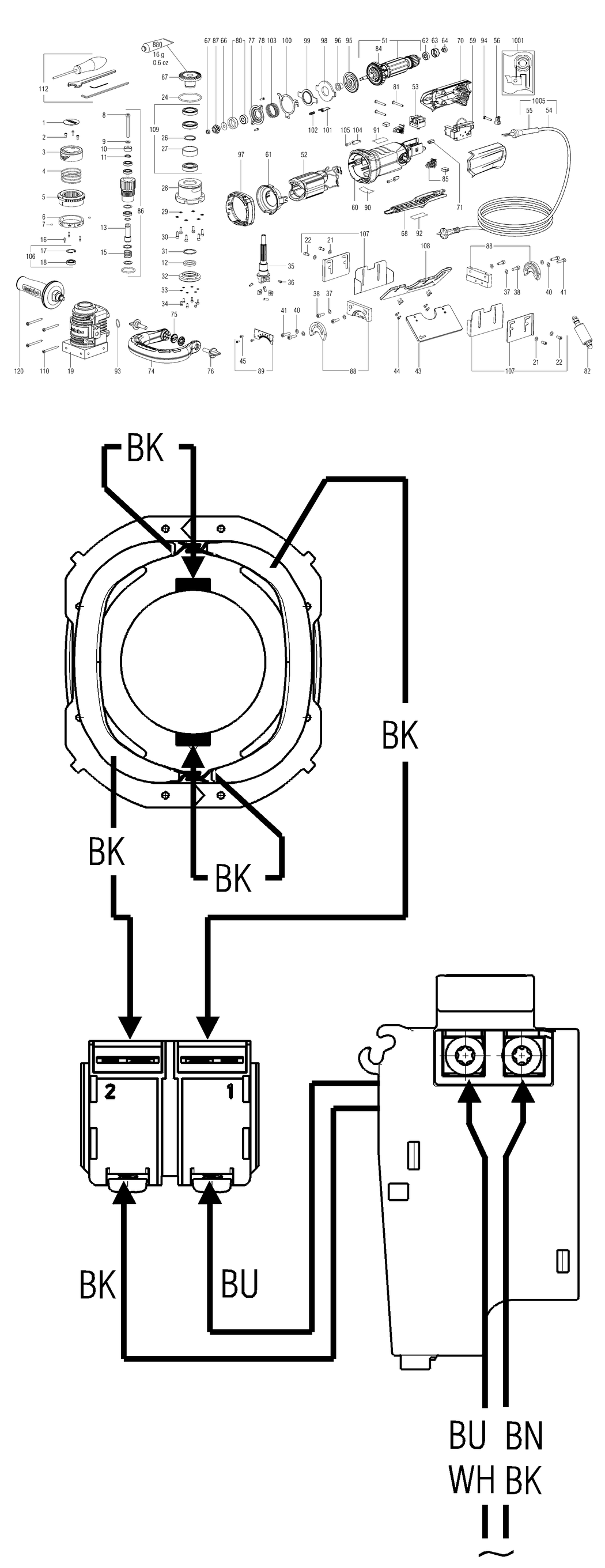

1001 - DIAGRAM
MET-338505950.A10
338505950
|
-
|
|
|
|
1005 - PART NOT NEEDED
MET-399999990.A239
399999990
|
-
|
|
|
