1 - ADAPTOR SDS -PLUS
MET-316051000.A28
316051000
|
£63.36
|
£76.03
|
|
|
2 - SHAFT SEALING RING
MET-143195160.A28
143195160
|
-
|
|
|
|
3 - NEEDLE SLEEVE 30X37X16
MET-143115090.A2
143115090
|
-
|
|
|
|
4 - WASHER
MET-339007150.A15
339007150
|
£3.20
|
£3.84
|
|
|
5 - PRESSURE SPRING
MET-342003490.A9
342003490
|
£1.50
|
£1.80
|
|
|
6 - RETAINING RING
MET-343397820.A0
343397820
|
£1.50
|
£1.80
|
|
|
7 - GEAR HOUSING COMPL.
MET-316047840.A12
316047840
|
£73.52
|
£88.23
|
|
|
8 - SLIDING BLOCK
MET-340004030.A30
340004030
|
£11.78
|
£14.13
|
|
|
9 - CIRCLIP
MET-141156380.A29
141156380
|
£1.50
|
£1.80
|
|
|
10 - SUPPORT RING
MET-341013060.A36
341013060
|
£6.38
|
£7.65
|
|
|
11 - CUP SPRING
MET-342070620.A9
342070620
|
£1.50
|
£1.80
|
|
|
12 - RATCHED WHEEL SET
MET-316064060.A10
316064060
|
£8.37
|
£10.04
|
|
|
14 - SUPPORT RING
MET-343431000.A34
343431000
|
£1.50
|
£1.80
|
|
|
15 - CIRCLIP
MET-141156360.A22
141156360
|
£1.50
|
£1.80
|
|
|
16 - DRILL DRIVING SLEEVE CPL.
MET-316050710.A19
316050710
|
£71.39
|
£85.67
|
|
|
17 - SHAFT SEALING RING
MET-143195200.A9
143195200
|
£3.82
|
£4.59
|
|
|
18 - BUSHING
MET-341006030.A2
341006030
|
-
|
|
|
|
19 - PISTON
MET-341210120.A23
341210120
|
£13.63
|
£16.36
|
|
|
20 - SUPPORT RING
MET-341013180.A1
341013180
|
£4.76
|
£5.71
|
|
|
21 - O-RING
MET-143195150.A14
143195150
|
£3.20
|
£3.84
|
|
|
22 - WASHER
MET-339007190.A20
339007190
|
£1.50
|
£1.80
|
|
|
23 - O-RING
MET-143195210.A32
143195210
|
£1.50
|
£1.80
|
|
|
24 - CATCHING SLEEVE
MET-341058950.A7
341058950
|
£5.62
|
£6.75
|
|
|
25 - CIRCLIP
MET-141181840.A78
141181840
|
£1.50
|
£1.80
|
|
|
26 - SEALING RING
MET-344093140.A67
344093140
|
£6.38
|
£7.65
|
|
|
27 - STRIKER COMPL.
MET-316043350.A3
316043350
|
£26.35
|
£31.62
|
|
|
28 - EXCITER SLEEVE COMPL.
MET-341058680.A5
341058680
|
£26.35
|
£31.62
|
|
|
29 - BALL HOLDER
MET-320050480.A0
320050480
|
£4.76
|
£5.71
|
|
|
30 - SEAL
MET-344098640.A27
344098640
|
£2.94
|
£3.53
|
|
|
31 - GEAR FLANGE CPL.
MET-316047860.A33
316047860
|
£48.88
|
£58.66
|
|
|
32 - FELT SEAL
MET-344070670.A50
344070670
|
£1.50
|
£1.80
|
|
|
33 - RUBBER BUFFER
MET-344095920.A212
344095920
|
£1.50
|
£1.80
|
|
|
34 - FILISTER HEAD SCREW
MET-141123400.A36
141123400
|
£2.94
|
£3.53
|
|
|
35 - SELF-TAP. FILL. H. SCREW
MET-141123610.A34
141123610
|
£1.50
|
£1.80
|
|
|
36 - CONTROL KNOB COMPL.
MET-316044470.A29
316044470
|
£8.37
|
£10.04
|
|
|
37 - SEAL
MET-343376750.A5
343376750
|
£3.20
|
£3.84
|
|
|
38 - WASHER
MET-339129610.A51
339129610
|
£1.50
|
£1.80
|
|
|
39 - AXIAL NEEDLE BEARING
MET-143114280.A52
143114280
|
£8.37
|
£10.04
|
|
|
40 - CUP SPRING
MET-141152550.A5
141152550
|
£3.20
|
£3.84
|
|
|
41 - PINION SHAFT COMPL.
MET-316047880.A6
316047880
|
£55.90
|
£67.08
|
|
|
42 - GUIDE SHEET
MET-339134350.A15
339134350
|
£2.94
|
£3.53
|
|
|
43 - SHIFT ELEMENT COMPL.
MET-316044460.A7
316044460
|
£22.61
|
£27.13
|
|
|
45 - CAP SCREW
MET-341703360.A46
341703360
|
£7.36
|
£8.83
|
|
|
46 - KEYLESS CHUCK W.ADAPTOR
MET-316050870.A24
316050870
|
-
|
|
|
|
47 - QUICK-CHANGE ADAPTOR
MET-316050880.A1
316050880
|
£42.65
|
£51.18
|
|
|
48 - SIDE SUPPORT HANDLE COMPL.
MET-316052270.A0
316052270
|
£32.88
|
£39.45
|
|
|
49 - SEALING RING
MET-343376040.A19
343376040
|
£3.20
|
£3.84
|
|
|
50 - FAN
MET-330001830.A38
330001830
|
£13.63
|
£16.36
|
|
|
51 - ARMATURE COMPL. 120 V
MET-310009430.A8
310009430
|
£60.03
|
£72.04
|
|
|
52 - O-RING
MET-143192430.A181
143192430
|
£3.20
|
£3.84
|
|
|
53 - RATING PLATE
MET-338063940.A0
338063940
|
-
|
|
|
|
54 - ELECTRONIC UNIT 120V 50/60HZ
MET-343084210.A2
343084210
|
£73.52
|
£88.23
|
|
|
55 - SELF-TAP. FILL. H. SCREW
MET-141116990.A217
141116990
|
£3.20
|
£3.84
|
|
|
56 - SELF-TAP FILL H SCREW
MET-141116020.A595
141116020
|
£3.20
|
£3.84
|
|
|
57 - PISTOL GRIP 2-PART GUMMED
MET-343398530.A51
343398530
|
£13.63
|
£16.36
|
|
|
58 - BALL BEARING 8X22X7
MET-143114880.A140
143114880
|
£9.62
|
£11.54
|
|
|
59 - BALL BEARING 6X19X6
MET-143115690.A249
143115690
|
£3.82
|
£4.59
|
|
|
60 - INTERMEDIATE FLANGE
MET-343399770.A14
343399770
|
£3.82
|
£4.59
|
|
|
61 - CYLINDRICAL PIN
MET-341520230.A32
341520230
|
£1.50
|
£1.80
|
|
|
62 - SELF-TAP. FILL. H. SCREW
MET-141118260.A118
141118260
|
£1.50
|
£1.80
|
|
|
63 - FIELD COIL W.FIELD COIL 120V
MET-311010930.A4
311010930
|
£30.06
|
£36.07
|
|
|
64 - MOTOR HOUSING
MET-315013250.A68
315013250
|
£17.55
|
£21.06
|
|
|
65 - WARNING LABEL 50 X 16
MET-338121950.A18
338121950
|
-
|
|
|
|
66 - BRUSH HOLDER MODULE 120V
MET-316051960.A66
316051960
|
£17.55
|
£21.06
|
|
|
67 - CARBON BRUSH SET 120 V
MET-316046980.A5
316046980
|
£17.55
|
£21.06
|
|
|
68 - POTI SWITCH
MET-343409250.A33
343409250
|
£19.18
|
£23.02
|
|
|
69 - SELF-TAP. FILL. H. SCREW
MET-141117060.A94
141117060
|
£3.20
|
£3.84
|
|
|
70 - CABLE CLIP
MET-343362490.A1090
343362490
|
£3.20
|
£3.84
|
|
|
71 - CABLE SLEEVE
MET-343394300.A1
343394300
|
£3.20
|
£3.84
|
|
|
72 - CABLE WITH UL-CSA-PLUG
MET-344494030.A2
344494030
|
£26.35
|
£31.62
|
|
|
73 - MAINTENANCE KIT
MET-316050740.A7
316050740
|
£63.44
|
£76.13
|
|
|
880 - GREASE FG 126
MET-344130800.A55
344130800
|
£17.55
|
£21.06
|
|
|
890 - TUBE GREASE 50G KLUEBER MICROLUBE GL 261
MET-344131210.A11
344131210
|
£19.18
|
£23.02
|
|
|

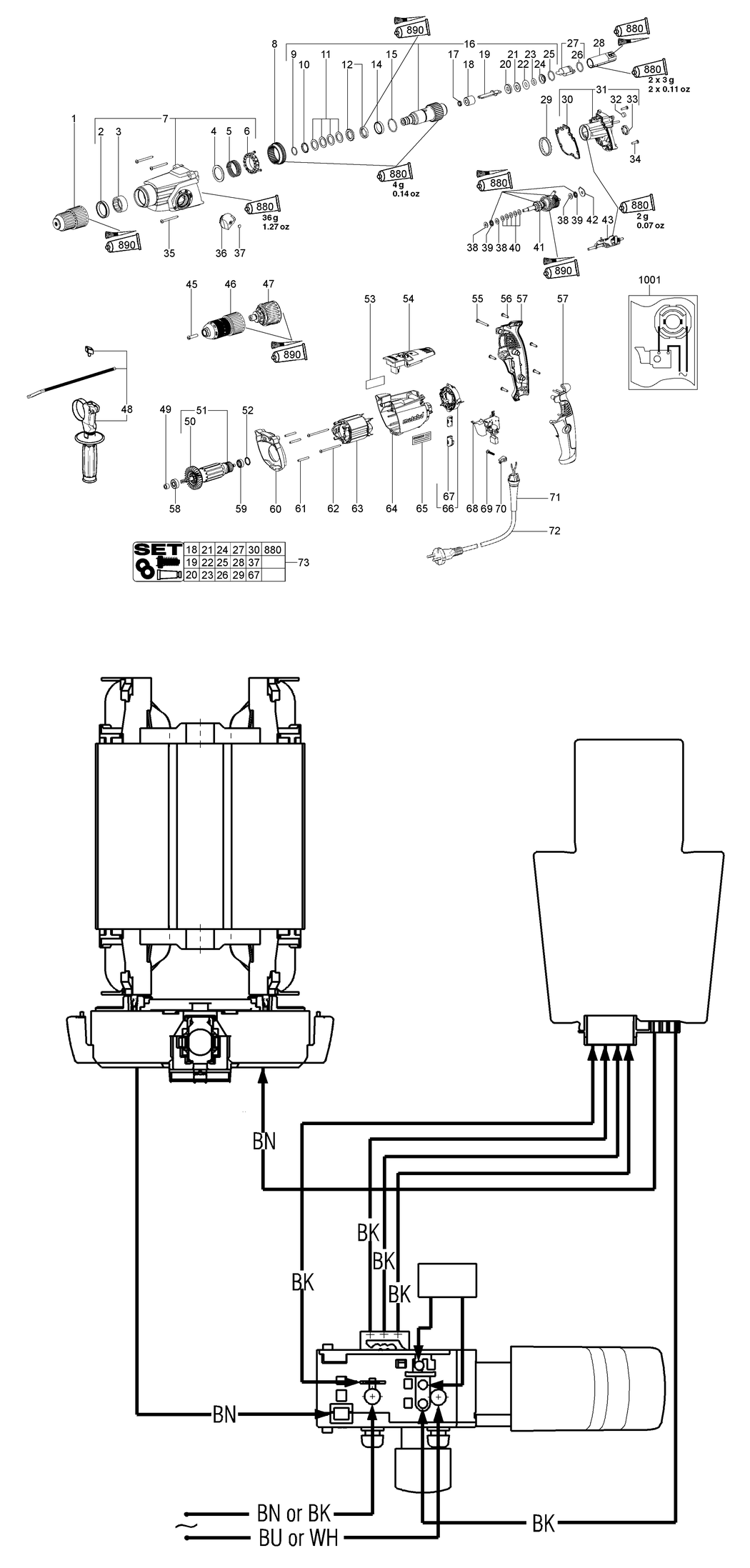

1001 - WIRING DIAGRAM 230 V
MET-338505140.A4
338505140
|
-
|
|
|
