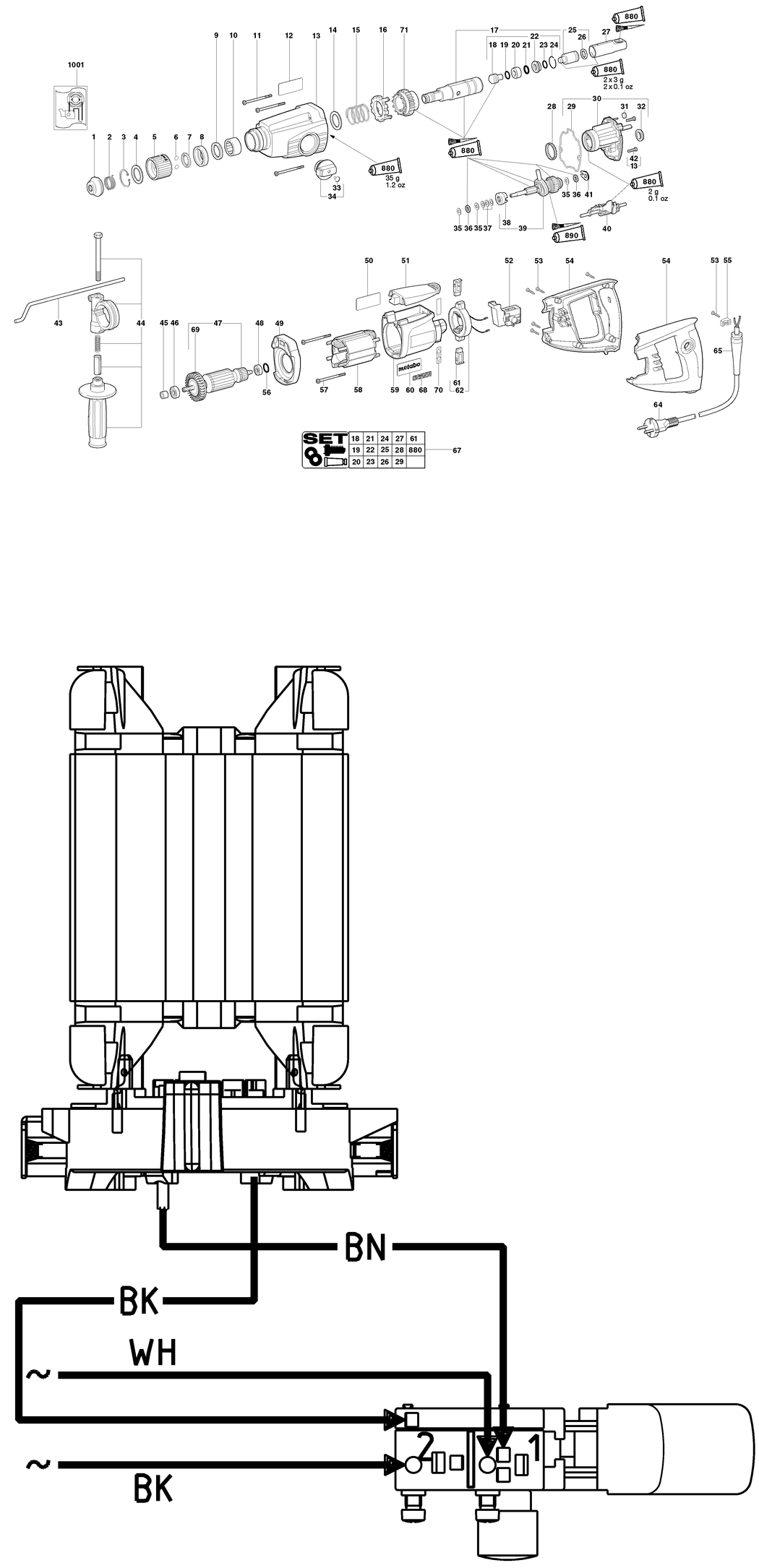

An exploded diagram and spare parts listing for the Metabo KHE-D 24 / 00223421 / US 120V
Ex VAT Inc VAT
1 - RUBBER CAP MET-343430090.A9 343430090 £3.82 £4.59
2 - TORSION SPRING MET-342021040.A8 342021040 £3.20 £3.84
3 - RETAINING RING MET-141155460.A8 141155460 £1.50 £1.80
4 - WASHER MET-141155470.A7 141155470 £1.50 £1.80
5 - ADJUSTING RING MET-343374550.A7 343374550 £8.37 £10.04
6 - BALL MET-143120320.A9 143120320 £2.94 £3.53
7 - TENSION-SPRING RING MET-342001560.A5 342001560 £4.76 £5.71
8 - SPACER RING MET-343361690.A6 343361690 £3.20 £3.84
9 - SHAFT SEALING RING MET-143194910.A3 143194910 £3.20 £3.84
10 - NEEDLE SLEEVE MET-143113830.A4 143113830 £22.96 £27.55
11 - SELF-TAP. FILL. H. SCREW MET-141122490.A6 141122490 £3.20 £3.84
12 - INDICATION LABEL MET-338114490.A3 338114490 £3.20 £3.84
13 - GEAR HOUSING CPL. MET-316031850.A1 316031850 £68.35 £82.02
14 - SUPPORTING DISC MET-141153750.A15 141153750 £3.20 £3.84
15 - PRESSURE SPRING MET-342002690.A2 342002690 £6.38 £7.65
16 - RETAINING RING MET-343374440.A3 343374440 £1.50 £1.80
17 - DRILL DRIVING SLEEVE CPL. MET-316035210.A1 316035210 £60.03 £72.04
18 - INTERMEDIATE STRIKER CPL. MET-316031890.A3 316031890 £15.41 £18.49
19 - O-RING MET-143192400.A22 143192400 £3.20 £3.84
20 - SUPPORTING RING MET-341012610.A0 341012610 £5.62 £6.75
21 - O-RING MET-143193910.A8 143193910 £3.20 £3.84
22 - CATCHING SLEEVE CPL. MET-316031940.A0 316031940 £22.96 £27.55
23 - O-RING MET-143193920.A3 143193920 £8.37 £10.04
24 - CIRCLIP MET-141181840.A66 141181840 £1.50 £1.80
25 - STRIKER CPL. MET-316040790.A1 316040790 £22.61 £27.13
26 - SEALING RING MET-344093140.A92 344093140 £6.38 £7.65
27 - EXCITER SLEEVE COMPL. MET-341058160.A0 341058160 £26.35 £31.62
28 - BALL HOLDER MET-320050480.A11 320050480 £4.76 £5.71
29 - SEAL MET-344095570.A6 344095570 £3.20 £3.84
30 - GEAR FLANGE CPL. MET-316030540.A3 316030540 £54.94 £65.93
31 - FELT SEAL MET-344070670.A15 344070670 £1.50 £1.80
32 - RUBBER BUFFER MET-344095920.A139 344095920 £1.50 £1.80
33 - SEAL MET-343376750.A35 343376750 £3.20 £3.84
34 - CONTROL KNOB CPL. MET-316032640.A3 316032640 £11.78 £14.13
35 - WASHER MET-339129610.A39 339129610 £1.50 £1.80
36 - AXIAL NEEDLE BEARING MET-143114280.A33 143114280 £8.37 £10.04
37 - CUP SPRING MET-141154920.A44 141154920 £3.20 £3.84
38 - COUPLING SLEEVE MET-340003220.A2 340003220 £9.62 £11.54
39 - INTERMEDIATE GEAR CPL. MET-316034870.A0 316034870 £63.44 £76.13
40 - SWITCH ELEMENT CPL.W. ROT. STOP MET-316031370.A3 316031370 £15.41 £18.49
41 - BUTTING SHEET MET-339130980.A4 339130980 £1.50 £1.80
42 - FILL. HEAD SCREW(DIN 7985) MET-141119440.A38 141119440 £1.50 £1.80
43 - DEPTH STOP MET-341511630.A160 341511630 £6.38 £7.65
44 - SUPPORT HANDLE COMPL. MET-314000770.A4 314000770 £30.06 £36.07
45 - SEALING RING MET-343376040.A75 343376040 £3.20 £3.84
46 - BALL BEARING 8X22X7 MET-143114880.A53 143114880 £9.62 £11.54
47 - ARMATURE CPL. 120V MET-310007870.A2 310007870 £67.04 £80.45
48 - BALL BEARING 6X 19X 6 MET-143114750.A23 143114750 £13.63 £16.36
49 - INTERMEDIATE FLANGE MET-343374270.A6 343374270 £8.37 £10.04
50 - RATING PLATE MET-338046390.A0 338046390 -
51 - COVER W.O. ELECTRONIC MET-343374280.A10 343374280 £8.37 £10.04
52 - ELECTRONIC SWITCH MET-343407510.A0 343407510 -
53 - SELF-TAP. FILL. H. SCREW MET-141117060.A241 141117060 £3.20 £3.84
54 - D-HANDLE MET-343379260.A1 343379260 -
55 - CABLE CLIP MET-343362490.A747 343362490 £3.20 £3.84
56 - O-RING MET-143192430.A77 143192430 £3.20 £3.84
57 - SELF-TAP. FILL. H. SCREW MET-141118260.A164 141118260 £1.50 £1.80
58 - FIELD COIL 120V MET-311009830.A2 311009830 £42.65 £51.18
59 - MOTOR HOUSING MET-315012650.A12 315012650 £19.18 £23.02
60 - M-LABEL 08 52X22 MET-338122160.A6 338122160 £1.50 £1.80
61 - BRUSH SET 230V/120V MET-316034940.A18 316034940 £11.90 £14.28
62 - BRUSH HOLDER MODULE MET-316036060.A1 316036060 -
64 - CABLE WITH UL-CSA-PLUG MET-344494030.A26 344494030 £26.35 £31.62
65 - CABLE SLEEVE MET-344101140.A148 344101140 £3.82 £4.59
67 - MAINTENANCE KIT MET-316041000.A0 316041000 £71.39 £85.67
68 - WARNING LABEL MET-338115880.A34 338115880 -
69 - FAN W. PROT. GRID MET-316035730.A16 316035730 £8.37 £10.04
70 - INDICATION LABEL MET-338115410.A13 338115410 £1.50 £1.80
71 - SLIDING SLEEVE CPL. MET-316031500.A0 316031500 £19.18 £23.02
880 - GREASE FG 126 MET-344130800.A111 344130800 £17.55 £21.06
890 - GREASE SF 011 50GR 1.8oz MET-344130560.A183 344130560 £19.18 £23.02
1001 - DIAGRAM MET-338502440.A4 338502440 -
