1 - RUBBER CAP
MET-344114200.A8
344114200
|
-
|
|
|
|
2 - SPIRAL RETAINING RING
MET-342024380.A2
342024380
|
-
|
|
|
|
3 - WASHER
MET-339009480.A9
339009480
|
-
|
|
|
|
4 - DAMPER
MET-344114370.A11
344114370
|
-
|
|
|
|
5 - SLIDING SLEEVE
MET-341213270.A4
341213270
|
-
|
|
|
|
6 - SLEEVE
MET-341213280.A10
341213280
|
-
|
|
|
|
7 - SUPPORTING DISC
MET-341723310.A2
341723310
|
-
|
|
|
|
8 - PRESSURE SPRING
MET-342011030.A5
342011030
|
-
|
|
|
|
9 - GUIDE PLATE
MET-339149350.A12
339149350
|
-
|
|
|
|
10 - O-RING
MET-344114290.A7
344114290
|
-
|
|
|
|
11 - SCREW
MET-341723550.A13
341723550
|
-
|
|
|
|
12 - HOUSING CAP FRONT
MET-343449370.A6
343449370
|
-
|
|
|
|
13 - CIRCLIP
MET-342024490.A4
342024490
|
-
|
|
|
|
14 - SEALING RING
MET-342024500.A5
342024500
|
-
|
|
|
|
15 - BALL BEARING
MET-320054550.A8
320054550
|
-
|
|
|
|
16 - WASHER
MET-341020270.A5
341020270
|
-
|
|
|
|
17 - SHAFT SEALING RING
MET-339013260.A3
339013260
|
-
|
|
|
|
18 - GEAR HOUSING IN THE FRONT
MET-315420390.A5
315420390
|
-
|
|
|
|
19 - SCREW
MET-341723410.A9
341723410
|
-
|
|
|
|
20 - O-RING
MET-344114430.A6
344114430
|
-
|
|
|
|
21 - SUPPORTING DISC
MET-341020260.A4
341020260
|
-
|
|
|
|
22 - DAMPING RING
MET-344114460.A2
344114460
|
-
|
|
|
|
23 - FLANGE BUSH
MET-341006630.A8
341006630
|
-
|
|
|
|
24 - SUPPORT RING
MET-341020300.A1
341020300
|
-
|
|
|
|
25 - CARRIER
MET-339149080.A10
339149080
|
-
|
|
|
|
26 - DRILL DRIVING SLEEVE FRONT
MET-341213420.A2
341213420
|
-
|
|
|
|
27 - CYLINDRICAL PIN
MET-341519830.A9
341519830
|
-
|
|
|
|
28 - O-RING
MET-344113900.A19
344113900
|
£5.62
|
£6.75
|
|
|
29 - STRIKER
MET-341020310.A8
341020310
|
-
|
|
|
|
30 - SUPPORTING DISC
MET-341020320.A1
341020320
|
-
|
|
|
|
31 - DAMPER
MET-344114470.A6
344114470
|
-
|
|
|
|
32 - SUPPORTING DISC
MET-341020330.A8
341020330
|
-
|
|
|
|
33 - DRILL DRIVING SLEEVE BEHIND
MET-341213430.A7
341213430
|
-
|
|
|
|
34 - STRIKER
MET-341020340.A1
341020340
|
-
|
|
|
|
35 - WASHER
MET-341020280.A5
341020280
|
-
|
|
|
|
36 - O-RING
MET-344114440.A4
344114440
|
-
|
|
|
|
37 - SLEEVE
MET-341020350.A3
341020350
|
-
|
|
|
|
38 - PRESSURE SPRING
MET-342024510.A5
342024510
|
-
|
|
|
|
39 - RETAINING RING
MET-343449380.A4
343449380
|
-
|
|
|
|
40 - PRESSURE SPRING
MET-342024520.A4
342024520
|
-
|
|
|
|
41 - COUPLING SLEEVE
MET-341020360.A1
341020360
|
-
|
|
|
|
42 - SHIFT FORK
MET-341020380.A6
341020380
|
-
|
|
|
|
43 - BEVEL GEAR
MET-340037580.A1
340037580
|
-
|
|
|
|
44 - CON ROD CPL.
MET-316098230.A1
316098230
|
-
|
|
|
|
46 - PIN
MET-341519840.A0
341519840
|
-
|
|
|
|
47 - PISTON
MET-343449390.A5
343449390
|
-
|
|
|
|
48 - ARMATURE COMPL. 110-120 V
MET-316098220.A2
316098220
|
-
|
|
|
|
49 - SCREW
MET-341723380.A4
341723380
|
-
|
|
|
|
52 - WASHER
MET-339009520.A5
339009520
|
-
|
|
|
|
53 - BALL BEARING
MET-320054530.A13
320054530
|
-
|
|
|
|
54 - MOTOR HOUSING
MET-315420290.A11
315420290
|
-
|
|
|
|
55 - BUFFER
MET-344114540.A3
344114540
|
-
|
|
|
|
56 - DUST SEAL
MET-344114400.A7
344114400
|
-
|
|
|
|
57 - PAN HD.PLASTIC SCR.
MET-341723060.A9
341723060
|
-
|
|
|
|
58 - M5 SEALOCK BUTTON BOLT
MET-341723430.A20
341723430
|
-
|
|
|
|
59 - SPACER SLEEVE
MET-341723260.A3
341723260
|
-
|
|
|
|
60 - HANDLE CPL.
MET-343448550.A2
343448550
|
-
|
|
|
|
61 - RUBBER PLUG
MET-344114270.A21
344114270
|
-
|
|
|
|
62 - FORK
MET-315420340.A3
315420340
|
-
|
|
|
|
63 - LED DISPLAY
MET-343087410.A13
343087410
|
£22.96
|
£27.55
|
|
|
64 - ELECTRONIC UNIT 110 V
MET-343087440.A0
343087440
|
-
|
|
|
|
65 - SCREW
MET-341571030.A19
341571030
|
-
|
|
|
|
67 - MOTOR CAP
MET-343449360.A8
343449360
|
-
|
|
|
|
68 - SCREW
MET-341723050.A11
341723050
|
-
|
|
|
|
70 - COVER SHEET
MET-341213410.A12
341213410
|
-
|
|
|
|
71 - BELLOWS
MET-344114410.A7
344114410
|
-
|
|
|
|
72 - SWITCH TRIGGER
MET-343449270.A20
343449270
|
-
|
|
|
|
73 - SWITCH
MET-343412140.A14
343412140
|
-
|
|
|
|
74 - BEARING BOLT
MET-341519820.A0
341519820
|
-
|
|
|
|
75 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
MET-341723450.A20
341723450
|
-
|
|
|
|
76 - SCREW
MET-341723440.A3
341723440
|
-
|
|
|
|
77 - HOUSING CAP REAR
MET-343448540.A12
343448540
|
-
|
|
|
|
78 - CABLE TERMINAL
MET-343087720.A13
343087720
|
-
|
|
|
|
79 - CABLE CLIP
MET-343447450.A14
343447450
|
-
|
|
|
|
80 - CABLE W. UK PLUG + COUPL.
MET-344532110.A1
344532110
|
-
|
|
|
|
81 - CABLE SLEEVE
MET-344114120.A29
344114120
|
£3.20
|
£3.84
|
|
|
85 - SLEEVE
MET-341020370.A2
341020370
|
-
|
|
|
|
86 - PROFILE RING
MET-341020390.A2
341020390
|
-
|
|
|
|
87 - WASHER
MET-341020290.A4
341020290
|
-
|
|
|
|
88 - CYLINDRICAL PIN
MET-341525470.A1
341525470
|
-
|
|
|
|
89 - RETAINING RING
MET-342024480.A2
342024480
|
-
|
|
|
|
90 - ECCENTRIC SHAFT
MET-341605730.A1
341605730
|
-
|
|
|
|
91 - FEATHER KEY
MET-339101140.A2
339101140
|
-
|
|
|
|
92 - RETAINING RING
MET-342024530.A7
342024530
|
-
|
|
|
|
93 - O-RING
MET-344114490.A2
344114490
|
-
|
|
|
|
94 - BALL BEARING
MET-320054570.A2
320054570
|
-
|
|
|
|
96 - CAP
MET-343448450.A3
343448450
|
-
|
|
|
|
97 - VIBRATION DAMPER COMPL.
MET-316098240.A3
316098240
|
-
|
|
|
|
98 - SENSOR
MET-343087420.A1
343087420
|
-
|
|
|
|
99 - SCREW
MET-341723390.A8
341723390
|
-
|
|
|
|
100 - FELT
MET-344071170.A5
344071170
|
-
|
|
|
|
103 - SCREW
MET-341723470.A19
341723470
|
-
|
|
|
|
104 - CONTROL KNOB SLIDE
MET-343449280.A4
343449280
|
-
|
|
|
|
105 - PRESSURE SPRING
MET-342024430.A22
342024430
|
-
|
|
|
|
106 - STEEL BALL
MET-341166880.A11
341166880
|
-
|
|
|
|
107 - O-RING
MET-344113940.A14
344113940
|
£9.62
|
£11.54
|
|
|
108 - CONTROL-KNOB COVER
MET-341167160.A4
341167160
|
-
|
|
|
|
109 - RETAINING RING
MET-141180130.A38
141180130
|
£1.50
|
£1.80
|
|
|
110 - O-RING
MET-344114450.A4
344114450
|
-
|
|
|
|
111 - SHIFT ELEMENT
MET-339149400.A3
339149400
|
-
|
|
|
|
112 - SCREW
MET-341571000.A19
341571000
|
£5.62
|
£6.75
|
|
|
113 - VALVE COMPL.
MET-316098250.A1
316098250
|
-
|
|
|
|
114 - GEAR HOUSING REAR
MET-315420400.A2
315420400
|
-
|
|
|
|
115 - SHAFT SEALING RING
MET-339013270.A6
339013270
|
-
|
|
|
|
116 - SAFETY CLUTCH COMPL.
MET-316098260.A3
316098260
|
£79.10
|
£94.92
|
|
|
117 - WASHER
MET-341723300.A13
341723300
|
-
|
|
|
|
119 - SPUR GEAR
MET-340037590.A1
340037590
|
-
|
|
|
|
120 - GEAR WHEEL
MET-340037570.A2
340037570
|
-
|
|
|
|
121 - BALL BEARING
MET-320054490.A8
320054490
|
-
|
|
|
|
122 - FLAT GASKET RING
MET-344114480.A2
344114480
|
-
|
|
|
|
123 - SCREW
MET-341723400.A6
341723400
|
-
|
|
|
|
124 - GEAR BOX COVER
MET-315420410.A2
315420410
|
-
|
|
|
|
125 - LOCK BUTTON
MET-343448570.A17
343448570
|
-
|
|
|
|
126 - SPEED BUTTON
MET-343448580.A7
343448580
|
-
|
|
|
|
127 - PRESSURE SPRING
MET-342024420.A1
342024420
|
-
|
|
|
|
128 - PUSH BUTTON SWITCH
MET-343412150.A9
343412150
|
-
|
|
|
|
130 - BALL BEARING
MET-320054540.A2
320054540
|
-
|
|
|
|
131 - SEALING WASHER
MET-339009530.A10
339009530
|
-
|
|
|
|
135 - RATING PLATE
MET-338130710.A2
338130710
|
-
|
|
|
|
140 - RATING PLATE
MET-338071521.A0
338071521
|
-
|
|
|
|
145 - INDICATION LABEL VTC ELECTRONIC
MET-338130760.A10
338130760
|
-
|
|
|
|
150 - PART NOT NEEDED
MET-399999990.A616
399999990
|
-
|
|
|
|
155 - SUPPRESSOR 100V-130V
MET-343255210.A3
343255210
|
-
|
|
|
|
160 - SIDE SUPPORT HANDLE COMPL.
MET-314001530.A3
314001530
|
-
|
|
|
|
161 - CLAMPING BAND
MET-339138230.A6
339138230
|
-
|
|
|
|
162 - CLAMPING BOLT
MET-341519810.A7
341519810
|
-
|
|
|
|
163 - CLAMPING PIECE
MET-343448700.A1
343448700
|
-
|
|
|
|
165 - CLEANING CLOTH
MET-341167130.A3
341167130
|
-
|
|
|
|
880 - SPECIAL GREASE
MET-631800000.A5
631800000
|
£4.16
|
£4.99
|
|
|
885 - SPECIAL GREASE 500G
MET-344131350.A12
344131350
|
-
|
|
|
|
886 - GEAR GREASE
MET-344131360.A17
344131360
|
-
|
|
|
|

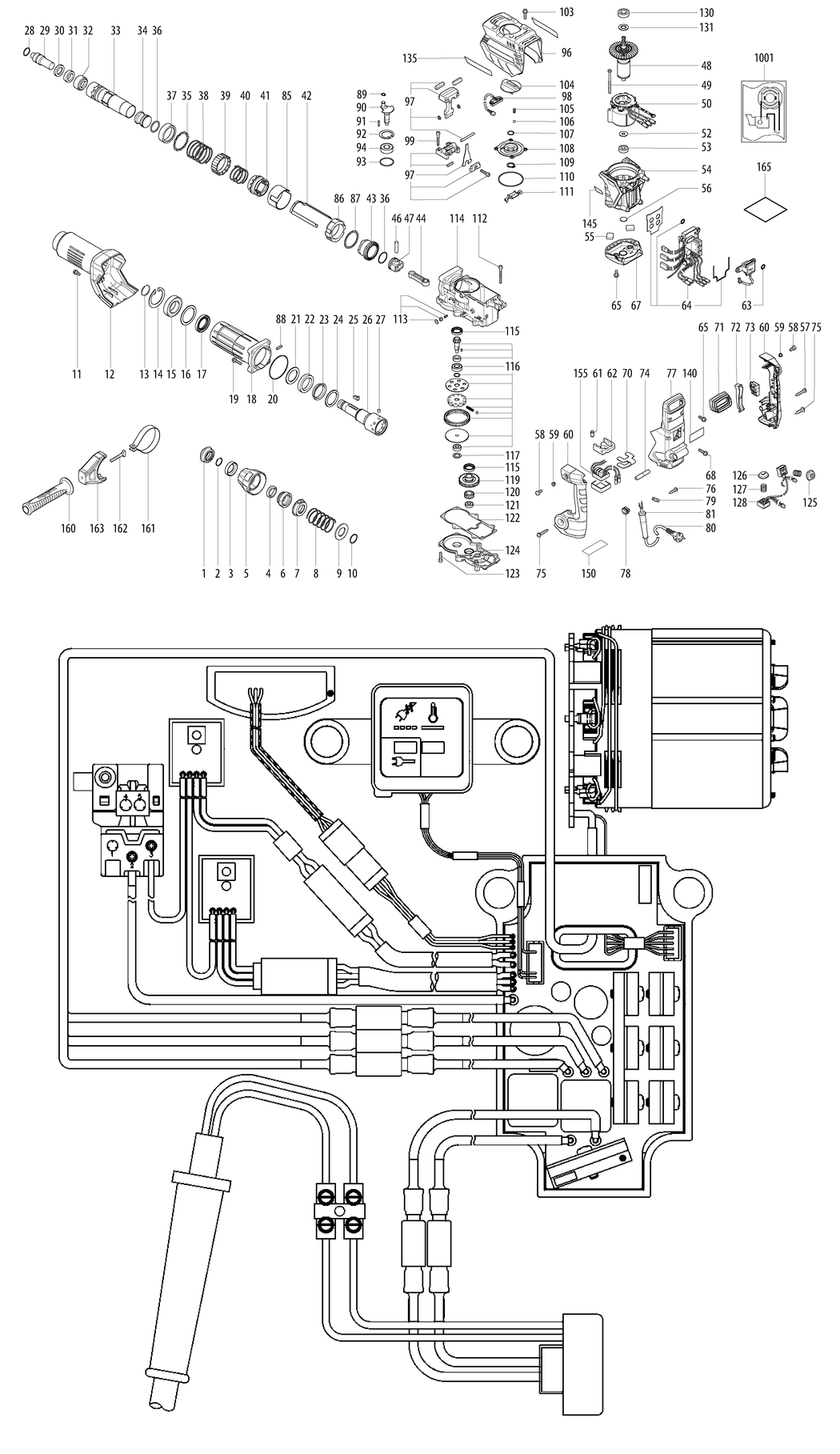

1001 - DIAGRAM
MET-338510310.A1
338510310
|
-
|
|
|
