2 - GEAR-BOX COMPL.
MET-316063950.A0
316063950
|
£121.97
|
£146.36
|
|
|
3 - SIDE SUPPORT HANDLE COMPL.
MET-316046590.A99
316046590
|
£11.78
|
£14.13
|
|
|
9 - DRIVE SHAFT
MET-341605120.A1
341605120
|
-
|
|
|
|
10 - ARMATURE COMPL. 230V
MET-310011280.A0
310011280
|
-
|
|
|
|
11 - SELF-TAP FILL H SCREW
MET-141116020.A434
141116020
|
£3.20
|
£3.84
|
|
|
12 - SELF-TAP. FILL. H. SCREW
MET-141123380.A1
141123380
|
-
|
|
|
|
13 - BEARING FLANGE
MET-315202610.A1
315202610
|
£30.06
|
£36.07
|
|
|
14 - SELF-TAP. FILL. H. SCREW
MET-141113180.A33
141113180
|
£1.50
|
£1.80
|
|
|
15 - SWITCH ROD
MET-343430940.A2
343430940
|
£1.50
|
£1.80
|
|
|
16 - SWITCH SLIDE H/L
MET-343397810.A98
343397810
|
£1.50
|
£1.80
|
|
|
17 - BALL BEARING 6X19X6
MET-143115690.A91
143115690
|
£3.82
|
£4.59
|
|
|
18 - RUBBER BUSHING
MET-344097870.A209
344097870
|
£1.50
|
£1.80
|
|
|
19 - BAFFLE
MET-343436590.A58
343436590
|
£3.82
|
£4.59
|
|
|
20 - SWITCH WITH ELEKTRONIC 230 V / 50-60 HZ
MET-316057490.A0
316057490
|
£61.08
|
£73.30
|
|
|
21 - SWITCH
MET-343409640.A2
343409640
|
£9.62
|
£11.54
|
|
|
22 - BRUSH HOLDER COMPL. CUT OUT 230V
MET-316046890.A48
316046890
|
£15.41
|
£18.49
|
|
|
23 - CARBON BRUSH SET CUT-OFF
MET-316046900.A10
316046900
|
£15.41
|
£18.49
|
|
|
24 - ARMATURE COMPL. 230V
MET-316063540.A0
316063540
|
£68.35
|
£82.02
|
|
|
25 - GEAR PARTS COMPL.
MET-316063500.A19
316063500
|
£11.78
|
£14.13
|
|
|
26 - BEVEL GEAR AND PINION
MET-316061120.A0
316061120
|
£17.55
|
£21.06
|
|
|
36 - PART NOT NEEDED
MET-399999990.A1682
399999990
|
-
|
|
|
|
38 - RATING PLATE
MET-338067030.A0
338067030
|
-
|
|
|
|
40 - FIELD COIL 230 V ELEC
MET-311009770.A4
311009770
|
£54.94
|
£65.93
|
|
|
44 - 2 PART MOTOR CAP
MET-343432950.A12
343432950
|
-
|
|
|
|
45 - CABLE CLIP
MET-343362490.A978
343362490
|
£3.20
|
£3.84
|
|
|
48 - MOTOR HOUSING
MET-315013660.A17
315013660
|
£15.41
|
£18.49
|
|
|
49 - STRAND COMPL.
MET-344498880.A50
344498880
|
£1.50
|
£1.80
|
|
|
50 - CABLE SLEEVE
MET-344097360.A67
344097360
|
£2.94
|
£3.53
|
|
|
51 - CABLE WITH PLUG
MET-344493180.A55
344493180
|
£26.35
|
£31.62
|
|
|
52 - HOUSING
MET-315419640.A1
315419640
|
£198.70
|
£238.44
|
|
|
53 - HOUSING COVER
MET-315419650.A1
315419650
|
£135.84
|
£163.01
|
|
|
54 - LOCKING BOLT
MET-341515850.A1
341515850
|
-
|
|
|
|
55 - SPRING
MET-342003690.A1
342003690
|
-
|
|
|
|
56 - CIRCLIP
MET-141181500.A53
141181500
|
£1.50
|
£1.80
|
|
|
57 - NEEDLE ROLLER
MET-143115440.A17
143115440
|
£1.50
|
£1.80
|
|
|
58 - BALL BEARING 15X24X5
MET-143115260.A4
143115260
|
£68.35
|
£82.02
|
|
|
59 - BALL BEARING 12X24X6
MET-143115270.A1
143115270
|
£9.62
|
£11.54
|
|
|
60 - SHAFT
MET-341211970.A1
341211970
|
£63.36
|
£76.03
|
|
|
62 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A486
141121640
|
£1.50
|
£1.80
|
|
|
63 - V-BELT
MET-344260320.A0
344260320
|
£32.88
|
£39.45
|
|
|
64 - CLAMPING FLANGE
MET-341032350.A1
341032350
|
£22.61
|
£27.13
|
|
|
65 - CLAMPING NUT
MET-341102620.A2
341102620
|
£22.96
|
£27.55
|
|
|
66 - WHEEL GUARD
MET-339204740.A1
339204740
|
£32.88
|
£39.45
|
|
|
78 - BEARING FLANGE
MET-315105380.A0
315105380
|
-
|
|
|
|
79 - BALL BEARING
MET-143115620.A1
143115620
|
£9.62
|
£11.54
|
|
|
80 - FILL. HEAD SCREW(DIN 7985)
MET-141119570.A41
141119570
|
£1.50
|
£1.80
|
|
|
81 - FIXED BEARING COVER
MET-339136610.A0
339136610
|
-
|
|
|
|
82 - COMPENSATING WASHER
MET-339012050.A1
339012050
|
-
|
|
|
|
83 - SPACER SLEEVE
MET-341210860.A0
341210860
|
-
|
|
|
|
84 - SPINDLE
MET-341605130.A0
341605130
|
-
|
|
|
|
85 - FILLISTER HEAD SCREW
MET-141124090.A55
141124090
|
£2.94
|
£3.53
|
|
|
86 - ANGULAR BALL BEARING DOUBLE-ROWED 15X32
MET-143115630.A1
143115630
|
£30.06
|
£36.07
|
|
|
87 - PLANET CARRIER
MET-341604710.A1
341604710
|
-
|
|
|
|
88 - BUTTING WASHER
MET-341080230.A0
341080230
|
£2.94
|
£3.53
|
|
|
89 - FILLISTER HEAD SCREW
MET-141124370.A3
141124370
|
-
|
|
|
|
90 - O-RING
MET-143195470.A4
143195470
|
£1.50
|
£1.80
|
|
|
91 - NEEDLE ROLLER
MET-143115610.A1
143115610
|
£2.94
|
£3.53
|
|
|
92 - 3EEDLE ROLLER AND CAGE
MET-143115450.A2
143115450
|
£6.38
|
£7.65
|
|
|
93 - PIN SPANNER
MET-344163920.A198
344163920
|
£4.76
|
£5.71
|
|
|
94 - HEXAGONAL KEY
MET-344161510.A9
344161510
|
£3.20
|
£3.84
|
|
|
98 - O-RING
MET-143195530.A11
143195530
|
£2.94
|
£3.53
|
|
|
880 - GREASE FG 126
MET-344130800.A124
344130800
|
£17.55
|
£21.06
|
|
|

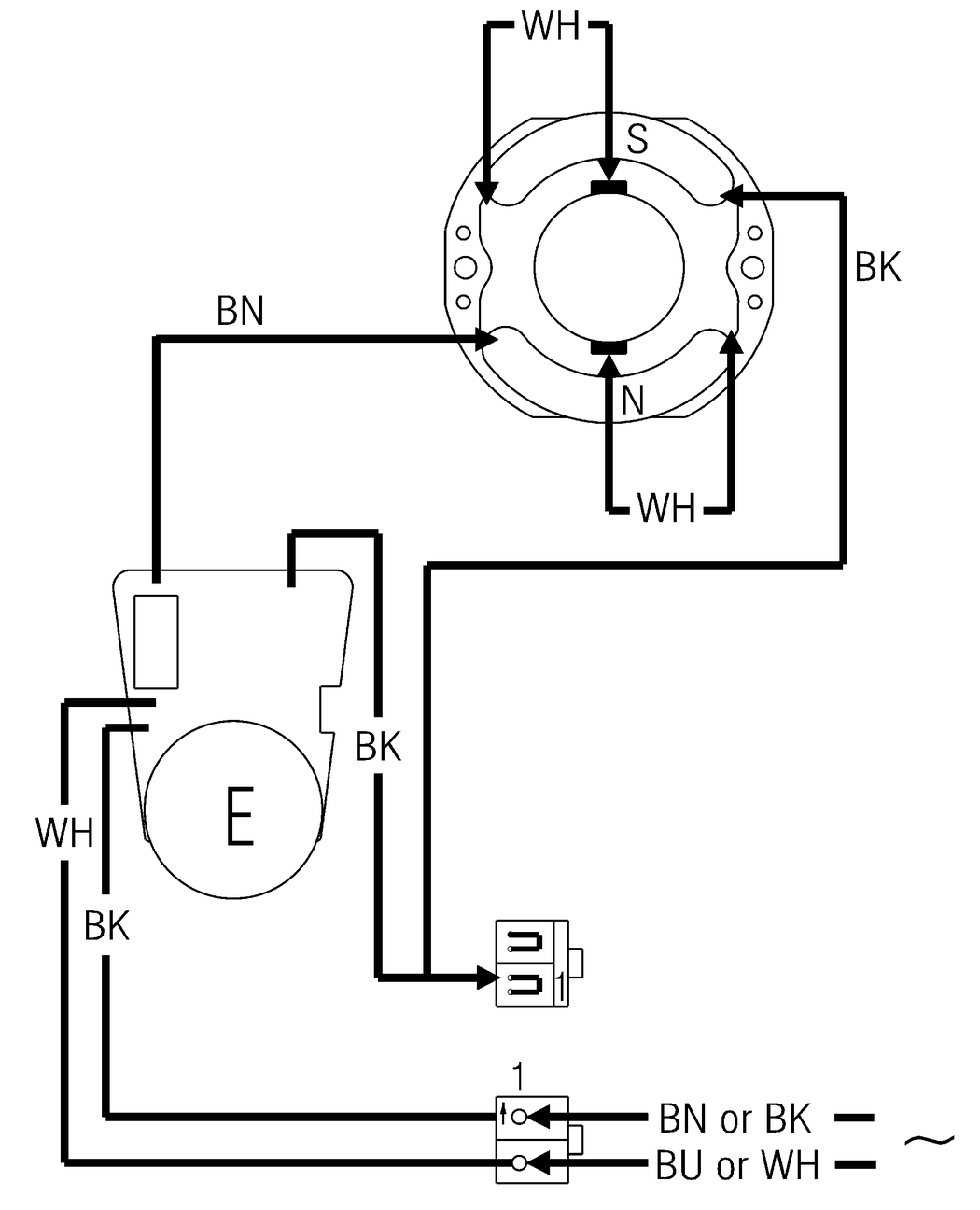

1001 - WIRING DIAGRAM
MET-338505710.A23
338505710
|
-
|
|
|
