Metabo KS 305 Plus / 0103050138 10 / GB 230V Spare Parts

Home Details Reviews Delivery

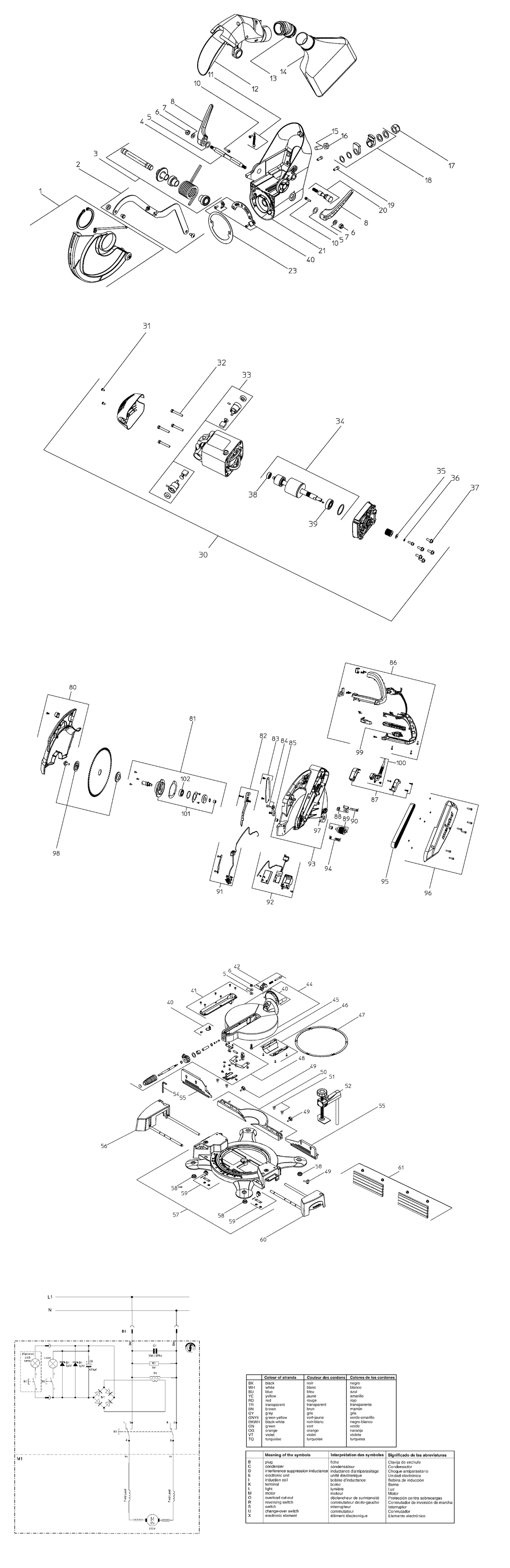

An exploded diagram and spare parts listing for the Metabo KS 305 Plus / 0103050138 10 / GB 230V

	Ex VAT	Inc VAT
1 - MOVING GUARD COMPL. KS 305 MET-1010737601.A1 1010737601	£42.65	£51.18
2 - LINKAGE COMPL. KS 305 MET-1010737628.A4 1010737628	£30.06	£36.07
3 - TORSION SPRING COMPL. KS 305 MET-1010738004.A2 1010738004	£32.88	£39.45
4 - BEVEL CAM SHAFT KS 254/305 MET-1385738036.A1 1385738036	-
5 - PLASTIC WASHER RD22/16X1 MET-1381700786.A3 1381700786	-
6 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A220 6202002305	£1.50	£1.80
7 - WASHER MET-141151340.A113 141151340	£1.50	£1.80
8 - CLAMPING LEVER COMPL. KS 254/305 MET-7006738049.A2 7006738049	£19.18	£23.02
10 - HEXAGON SOCKET HEAD CAP SCREW MET-6121102640.A11 6121102640	£1.50	£1.80
11 - RETURN SPRING COMPL. KS 254/305 MET-1010738063.A4 1010738063	-
12 - EXTRACTION CHANNEL COMPL. KS 305 MET-1010737695.A3 1010737695	£22.61	£27.13
13 - DUST EXTRACTION PORT 44/35-44/32 MET-1381691566.A16 1381691566	£6.38	£7.65
14 - DUST BAG KS 254/305 MET-1388737529.A1 1388737529	£9.82	£11.79
15 - GRUB SCREW MET-141116470.A6 141116470	-
16 - HEXAGON THIN NUT MET-6205084779.A3 6205084779	-
17 - HEXAGON NUT PREV. TORQUE TYPE MET-6202128341.A7 6202128341	£1.50	£1.80
18 - FRONT BACK BLOCK COMPL. KS 254/305 MET-1010738055.A3 1010738055	-
19 - CAP SCREW MET-6121023081.A12 6121023081	£1.50	£1.80
20 - TRANSPORTATION LOCK COMPL. KS 254/305 MET-1010737865.A4 1010737865	£15.41	£18.49
21 - PIVOT COMPL. KS 254/305 PLUS MET-1010738020.A4 1010738020	£55.90	£67.08
23 - SLIDING SHEET COMPL. KS 254/305 MET-1010738012.A3 1010738012	-
30 - MOTOR COMPL. KS 305 MET-1010738578.A2 1010738578	£142.38	£170.85
31 - CROSS RECD PAN HEAD TAP.SCREW MET-6172015687.A26 6172015687	£1.50	£1.80
32 - SLOTTED CHEESE HEAD SCREW M 6X40 VERZ. MET-6120015468.A3 6120015468	-
33 - CARBON BRUSH 230V COMPL. KS 254/305 MET-1010737385.A1 1010737385	£26.35	£31.62
34 - AMATURE 230V COMPL. KS 254/305 MET-1010737342.A3 1010737342	-
35 - WASHER ZN5BK MET-141150970.A10 141150970	£1.50	£1.80
36 - SERRATED LOCK WASHER MET-141150420.A14 141150420	£1.50	£1.80
37 - HEXAGON SOCKET HEAD CAP SCREW M 6X16 VER MET-6122151520.A4 6122151520	£3.20	£3.84
38 - DEEP GROOVE BALL BEARING 15X35X11 6202-2 MET-7100067433.A10 7100067433	£11.78	£14.13
39 - RILLENKUGELLAGER 608-2Z C3 (8X22X7) MET-7100695361.A4 7100695361	-
40 - POINTER COMPL. KS 254/305 MET-1010737784.A4 1010737784	-
41 - TABLE INSERT COMPL. KS 254/305 MET-1010737733.A4 1010737733	£17.55	£21.06
42 - BEVEL DETENT KNOB COMPL KS 254/305 MET-1010737776.A3 1010737776	£15.41	£18.49
44 - TURNTABLE COMPL. KS 254/305 MET-1010737725.A3 1010737725	-
45 - HEX HEAD SCREW MET-6103001178.A129 6103001178	£1.50	£1.80
46 - SAW BLADE COVER KS 254/305 MET-1010737768.A4 1010737768	-
47 - GLIDE SEGMENT KS 254/305 MET-1381737752.A2 1381737752	£7.36	£8.83
48 - MITRE DETENT COMPL. KS 254/305 MET-1010737741.A3 1010737741	£61.08	£73.30
50 - STOP COMPL. MET-1010736427.A12 1010736427	£36.59	£43.91
51 - CROSS RECESSED FLAT HEAD SCREW MET-6131009460.A39 6131009460	-
52 - WORK CLAMB ASSY COMPL. KS PLUS MET-1010737440.A15 1010737440	£61.08	£73.30
54 - ALLEN HEXAGON KEY MET-9102689833.A7 9102689833	£6.38	£7.65
55 - AUXILIARY GUIDE COMPL. MET-1010737210.A12 1010737210	£36.59	£43.91
56 - EXTENSION LEFT COMPL. KS 305 MET-1010737504.A1 1010737504	£63.36	£76.03
57 - BASE COMPL. KS 254/305 MET-1010737539.A1 1010737539	£100.42	£120.50
58 - RUBBER FOOT KS 254/305 MET-1010737547.A6 1010737547	£3.20	£3.84
59 - EXTENSION DETENT COMPL. KS 254/305 MET-1010737555.A1 1010737555	£13.63	£16.36
60 - EXTENSION RIGHT COMPL. KS 305 MET-1010737512.A4 1010737512	£54.94	£65.93
80 - WHEEL GUARD COMPL. KS 305 MET-1010737679.A2 1010737679	£61.08	£73.30
81 - SAW BLADE SHAFT COMPL. KS 305 MET-1010737830.A2 1010737830	£63.36	£76.03
82 - LOCKING SAFETY GUARD COMPL. KS 305 MET-1010737970.A2 1010737970	£9.62	£11.54
83 - COVER SHEET COMPL. KS 254/305 MET-1010737954.A3 1010737954	-
84 - SPRING GUIDE KS 254/305 MET-1010737938.A3 1010737938	£8.37	£10.04
85 - STOP SAFETY GUARD COMPL. KS 254/305 MET-1010737946.A3 1010737946	£4.76	£5.71
86 - HANDLE COMPL. MET-1010740238.A0 1010740238	£54.94	£65.93
87 - CABLE BOX ASSY KS 254/305 MET-1010737580.A6 1010737580	-
88 - TURNING LEVER BRACKET COMPL. KS 254/305 MET-1010737989.A3 1010737989	£8.37	£10.04
89 - BELT PULLEY COMPL. KS 305 MET-1010737881.A1 1010737881	£48.88	£58.66
90 - BELT PROTECTION TUBE COMPL. KS 254/305 MET-1010737903.A3 1010737903	-
91 - LASER COMPL. KS 254/305 MET-1010737814.A3 1010737814	£22.40	£26.88
92 - POWER SUPPLY PACK COMPL. MET-1010738519.A0 1010738519	£42.65	£51.18
93 - MOTOR BRACKET COMPL. KS 305 MET-1010737920.A2 1010737920	-
94 - SAW BLADE ARREST COMPL. KS 254/305 MET-1010737890.A4 1010737890	£11.78	£14.13
95 - V-BELT PULLEY KS 305 PLUS MET-7233738560.A1 7233738560	£36.59	£43.91
96 - BELT GUARD COMPL.KS 305 MET-1010737288.A4 1010737288	£19.18	£23.02
97 - GRUB SCREW MET-6163121261.A11 6163121261	£1.50	£1.80
98 - FLANGE 230V COMPL. KS 305 MET-1010737644.A0 1010737644	£55.90	£67.08
99 - ON-OFF SWITCH KS 254/305 MET-8111737712.A11 8111737712	£26.35	£31.62
100 - CABLE WITH PLUG 2X1 0X2500 (GB) MET-8402741636.A0 8402741636	-
101 - HOUSING SAW BLADE SHAFT KS 305 MET-1010737857.A0 1010737857	-
102 - DEEP GROOVE BALL BEARING 17X35X10 6003-2 MET-7100198490.A1 7100198490	-
103 - HEX. HEAD THREAD ROLLING SCREW M 4X8 (GE MET-6143088225.A6 6143088225	£1.50	£1.80
104 - SERRATED LOCK WASHER MET-141150430.A0 141150430	£1.50	£1.80
105 - SERRATED LOCK WASHER MET-141150410.A7 141150410	£3.20	£3.84
106 - INDICATION LABEL LASER RADIATION MET-338125960.A6 338125960	-

Attribute Name	Value
Brand	Metabo
