Metabo KSE 55 Vario Plus / 01204180 / CH 230V Spare Parts

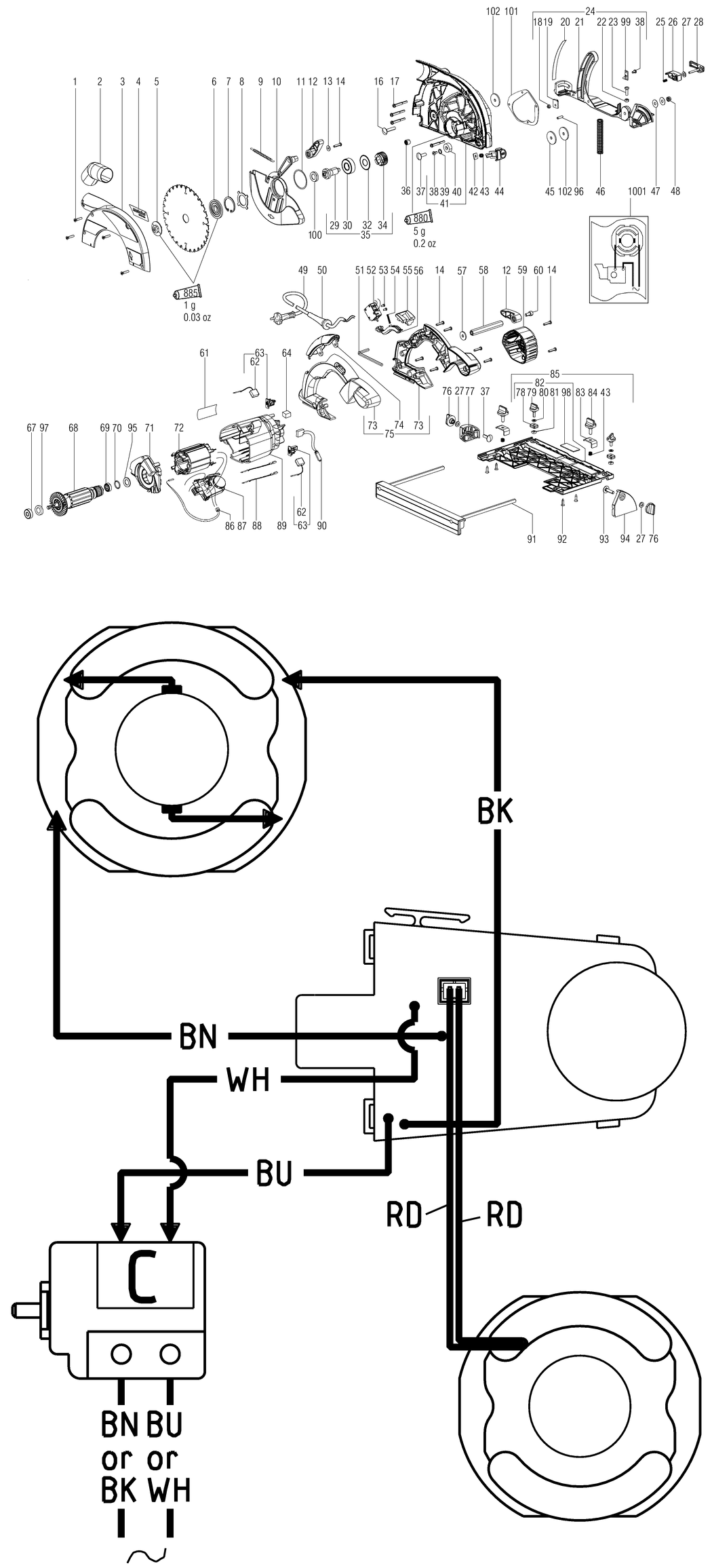

An exploded diagram and spare parts listing for the Metabo KSE 55 Vario Plus / 01204180 / CH 230V

	Ex VAT	Inc VAT
1 - SELF-TAPP. COUNTERS. SCREW MET-141123510.A0 141123510	-
2 - SAWDUST EJECTION NOZZLE MET-343378810.A0 343378810	-
3 - SAW HOUSING COVER MET-315416230.A1 315416230	-
4 - M-LABEL 99 49-52X22 WB 11-125 QUICK MET-338121130.A0 338121130	-
5 - SCREW COMPL. MET-316034800.A12 316034800	£11.78	£14.13
6 - FLANGE MET-339131430.A2 339131430	£9.62	£11.54
7 - RETAINING RING MET-141180390.A10 141180390	£3.20	£3.84
8 - RETRAINING SHEET MET-339122780.A1 339122780	£3.20	£3.84
9 - TENSION SPRING MET-342003570.A0 342003570	-
10 - WHEEL GUARD COMPL. MET-316041890.A0 316041890	-
11 - WASHER MET-141154070.A9 141154070	£3.20	£3.84
12 - CLAMPING LEVER MET-343398140.A4 343398140	£3.82	£4.59
13 - WASHER MET-141150110.A58 141150110	£1.50	£1.80
14 - SELF-TAP FILL H SCREW MET-141116020.A138 141116020	£3.20	£3.84
16 - TRUSS HEAD SCREW MET-341704500.A0 341704500	-
17 - TIGHT-FIT SCREW MET-341701490.A57 341701490	£1.50	£1.80
18 - HEXAGONAL LOCK NUT MET-141131220.A1 141131220	£1.50	£1.80
19 - SLIDING BLOCK MET-315416270.A1 315416270	-
20 - SCALE MET-338120940.A1 338120940	-
21 - BEARING SUPPORT MET-315416240.A0 315416240	-
22 - HEXAGONAL NUT MET-141130090.A36 141130090	£1.50	£1.80
23 - FILLISTER HEAD SCREW MET-141116780.A39 141116780	£1.50	£1.80
24 - BEARING SUPPORT COMPL. MET-316041930.A1 316041930	-
25 - PRESSURE SPRING MET-342010330.A1 342010330	-
26 - POINTER MET-343393810.A1 343393810	-
27 - WASHER MET-141151940.A117 141151940	£1.50	£1.80
28 - CLAMPING LEVER COMPL. MET-316041950.A0 316041950	-
29 - SAW AXLE MET-341056970.A3 341056970	-
30 - BALL BEARING 15X35X11 MET-143114020.A2 143114020	£17.55	£21.06
32 - INTERMEDIATE SHEET MET-341013070.A0 341013070	-
34 - SPUR GEAR MET-341056990.A0 341056990	£22.61	£27.13
35 - SAW SHAFT COMPL. MET-316041870.A1 316041870	-
36 - NEEDLE BUSHING MET-143111180.A4 143111180	£11.78	£14.13
37 - TRUSS HEAD SCREW MET-141111540.A1 141111540	£3.20	£3.84
38 - FILL. HEAD SCREW(DIN 7985) MET-141121430.A45 141121430	£1.50	£1.80
39 - WASHER MET-141155950.A1 141155950	-
40 - RUBBER RING MET-339040620.A0 339040620	£3.20	£3.84
41 - SAW HOUSING COMPL. MET-316041920.A0 316041920	-
42 - FELT MET-344070600.A5 344070600	£1.50	£1.80
43 - PRESSURE SPRING MET-342001070.A8 342001070	£1.50	£1.80
44 - SPINDLE LOCK MET-316041900.A1 316041900	-
45 - WASHER MET-141150950.A1 141150950	£3.20	£3.84
46 - PRESSURE SPRING MET-342003430.A1 342003430	-
47 - CUP SPRING MET-141150530.A0 141150530	£3.20	£3.84
48 - HEXAGONAL LOCK NUT MET-141130650.A86 141130650	£3.20	£3.84
49 - CABLE WITH PLUG MET-344497170.A3 344497170	-
50 - CABLE SLEEVE MET-344100970.A198 344100970	£3.20	£3.84
51 - CRANKED WRENCH KEY MET-344161520.A26 344161520	£3.20	£3.84
52 - SWITCH MET-343406260.A2 343406260	£11.78	£14.13
53 - FILLISTER HEAD SCREW MET-141116970.A76 141116970	£3.20	£3.84
54 - PRESSURE SPRING MET-342003140.A1 342003140	£1.50	£1.80
55 - SWITCH LOCK RED MET-343394510.A6 343394510	-
56 - SWITCH TRIGGER MET-343394500.A10 343394500	-
57 - WASHER MET-141150130.A203 141150130	£1.50	£1.80
58 - DISTANCE ELEMENT MET-341059170.A0 341059170	-
59 - MOTOR COVER MET-343393700.A0 343393700	-
60 - CAP SCREW MET-141113840.A38 141113840	£3.20	£3.84
61 - RATING PLATE MET-338049490.A1 338049490	-
62 - CARBON BRUSH SET 230 V MET-316041880.A1 316041880	-
63 - BRUSH HOLDER COMPL. CUT OUT 230V MET-316041600.A0 316041600	-
64 - INSERT MET-344098520.A2 344098520	-
67 - BALL BEARING 8X22X7 MET-143114880.A0 143114880	£9.62	£11.54
68 - ARMATURE COMPL. 230 V MET-310008970.A0 310008970	£60.03	£72.04
69 - BALL BEARING 6X 19X 6 MET-143115810.A10 143115810	£7.04	£8.45
70 - O-RING MET-143195230.A14 143195230	£1.50	£1.80
71 - BAFFLE MET-339151080.A1 339151080	-
72 - FIELD COIL 230V MET-311010140.A0 311010140	£36.59	£43.91
73 - HANDLE W.COVER MET-343393730.A5 343393730	-
74 - HANDLE ELEMENT MET-343393720.A1 343393720	-
75 - HANDLE COMPL. MET-316041860.A0 316041860	£42.65	£51.18
76 - THUMB-NUT MET-341111870.A14 341111870	£3.82	£4.59
77 - CONSOLE REAR MET-343393760.A0 343393760	-
78 - SLIDING PIECE MET-343393790.A1 343393790	£3.20	£3.84
79 - THUMBSCREW MET-341111920.A18 341111920	£3.82	£4.59
80 - WASHER MET-141150120.A5 141150120	£1.50	£1.80
81 - SQUARE NUT MET-141130660.A21 141130660	£1.50	£1.80
82 - GUIDE PLATE COMPL. SILVER MET-316043440.A0 316043440	£32.88	£39.45
83 - CHAMPING CLAW MET-339133030.A1 339133030	£2.94	£3.53
84 - THUMBSCREW COMPL. MET-341112650.A5 341112650	£3.20	£3.84
85 - GUIDE PLATE CPL. MET-316041910.A0 316041910	-
86 - TEMPERATURE SENSOR MET-343077490.A26 343077490	£13.63	£16.36
87 - ELECTRONIC UNIT 230V/ MET-343080930.A1 343080930	-
88 - PART NOT NEEDED MET-399999990.A1461 399999990	-
89 - MOTOR HOUSING MET-343393680.A1 343393680	-
90 - SPEED TRANSMITTER MET-343080340.A0 343080340	-
91 - PARALLEL GUIDE COMPL. MET-316041610.A1 316041610	-
92 - SELF-TAPP. COUNTERS. SCREW MET-141123520.A1 141123520	-
93 - TRUSS HEAD SCREW MET-341703660.A3 341703660	£1.50	£1.80
94 - CONSOLE FRONT MET-343393750.A1 343393750	-
95 - WASHER MET-141153400.A39 141153400	£3.20	£3.84
96 - RUBBER PLUG MET-344097580.A29 344097580	£1.50	£1.80
97 - SPACER RING MET-341005820.A0 341005820	-
98 - SUPPORT MET-344098680.A0 344098680	-
99 - CUT INDICATOR MET-343398210.A0 343398210	-
100 - SEAL MET-344098690.A1 344098690	-
101 - SEAL MET-344098720.A0 344098720	-
102 - WASHER MET-339011820.A0 339011820	-
880 - GREASE SF 011 50GR 1.8oz MET-344130560.A180 344130560	£19.18	£23.02
885 - GREASE 50GR 1.8oz MET-344130970.A79 344130970	£15.41	£18.49
1001 - DIAGRAM MET-338503930.A3 338503930	-
