1 - RUBBER CAP
MET-344114200.A4
344114200
|
-
|
|
|
|
2 - SPIRAL RETAINING RING
MET-342024380.A9
342024380
|
-
|
|
|
|
3 - WASHER
MET-339009480.A3
339009480
|
-
|
|
|
|
4 - DAMPER
MET-344114370.A14
344114370
|
-
|
|
|
|
5 - SLIDING SLEEVE
MET-341213270.A5
341213270
|
-
|
|
|
|
6 - SLEEVE
MET-341213280.A9
341213280
|
-
|
|
|
|
7 - SUPPORTING DISC
MET-341020400.A2
341020400
|
-
|
|
|
|
8 - PRESSURE SPRING
MET-342011030.A10
342011030
|
-
|
|
|
|
9 - GUIDE PLATE
MET-339149350.A19
339149350
|
-
|
|
|
|
10 - O-RING
MET-344114290.A10
344114290
|
-
|
|
|
|
11 - SCREW
MET-341723550.A8
341723550
|
-
|
|
|
|
12 - HOUSING CAP FRONT
MET-343449370.A4
343449370
|
-
|
|
|
|
13 - CIRCLIP
MET-342024490.A1
342024490
|
-
|
|
|
|
14 - SEALING RING
MET-342024500.A8
342024500
|
-
|
|
|
|
15 - BALL BEARING
MET-320054550.A4
320054550
|
-
|
|
|
|
16 - WASHER
MET-341020270.A4
341020270
|
-
|
|
|
|
17 - SHAFT SEALING RING
MET-339013260.A0
339013260
|
-
|
|
|
|
18 - GEAR HOUSING IN THE FRONT
MET-315420390.A8
315420390
|
-
|
|
|
|
19 - SCREW
MET-341723410.A3
341723410
|
-
|
|
|
|
20 - O-RING
MET-344114430.A3
344114430
|
-
|
|
|
|
21 - SUPPORTING DISC
MET-341020260.A5
341020260
|
-
|
|
|
|
22 - DAMPING RING
MET-344114460.A6
344114460
|
-
|
|
|
|
23 - FLANGE BUSH
MET-341006630.A4
341006630
|
-
|
|
|
|
24 - SUPPORT RING
MET-341020300.A7
341020300
|
-
|
|
|
|
25 - CARRIER
MET-339149080.A20
339149080
|
-
|
|
|
|
26 - DRILL DRIVING SLEEVE FRONT
MET-341213420.A1
341213420
|
-
|
|
|
|
27 - CYLINDRICAL PIN
MET-341519830.A3
341519830
|
-
|
|
|
|
28 - O-RING
MET-344113900.A14
344113900
|
£5.62
|
£6.75
|
|
|
29 - STRIKER
MET-341020310.A2
341020310
|
-
|
|
|
|
30 - SUPPORTING DISC
MET-341020320.A7
341020320
|
-
|
|
|
|
31 - DAMPER
MET-344114470.A2
344114470
|
-
|
|
|
|
32 - SUPPORTING DISC
MET-341020330.A2
341020330
|
-
|
|
|
|
33 - DRILL DRIVING SLEEVE BEHIND
MET-341213430.A8
341213430
|
-
|
|
|
|
34 - STRIKER
MET-341213450.A1
341213450
|
-
|
|
|
|
35 - WASHER
MET-341020280.A6
341020280
|
-
|
|
|
|
36 - O-RING
MET-344114440.A7
344114440
|
-
|
|
|
|
37 - SLEEVE
MET-341020350.A9
341020350
|
-
|
|
|
|
38 - PRESSURE SPRING
MET-342024510.A1
342024510
|
-
|
|
|
|
39 - RETAINING RING
MET-343449380.A6
343449380
|
-
|
|
|
|
40 - PRESSURE SPRING
MET-342024520.A8
342024520
|
-
|
|
|
|
41 - COUPLING SLEEVE
MET-341213460.A3
341213460
|
-
|
|
|
|
42 - SHIFT FORK
MET-341020380.A1
341020380
|
-
|
|
|
|
44 - CON ROD CPL.
MET-316098230.A7
316098230
|
-
|
|
|
|
46 - PIN
MET-341519840.A6
341519840
|
-
|
|
|
|
47 - PISTON
MET-343449390.A3
343449390
|
-
|
|
|
|
48 - ARMATURE
MET-310012970.A7
310012970
|
-
|
|
|
|
49 - SCREW
MET-341723380.A11
341723380
|
-
|
|
|
|
50 - STATOR COMPL. 110-120V
MET-316098280.A0
316098280
|
-
|
|
|
|
52 - WASHER
MET-339009520.A10
339009520
|
-
|
|
|
|
53 - BALL BEARING
MET-320054530.A8
320054530
|
-
|
|
|
|
54 - MOTOR HOUSING
MET-315420290.A4
315420290
|
-
|
|
|
|
55 - BUFFER
MET-344114540.A7
344114540
|
-
|
|
|
|
56 - DUST SEAL
MET-344114400.A4
344114400
|
-
|
|
|
|
57 - PAN HD.PLASTIC SCR.
MET-341723060.A4
341723060
|
-
|
|
|
|
58 - M5 SEALOCK BUTTON BOLT
MET-341723430.A12
341723430
|
-
|
|
|
|
59 - SPACER SLEEVE
MET-341723260.A10
341723260
|
-
|
|
|
|
60 - HANDLE CPL.
MET-343448550.A0
343448550
|
-
|
|
|
|
61 - RUBBER PLUG
MET-344114270.A23
344114270
|
-
|
|
|
|
62 - FORK
MET-315420340.A13
315420340
|
-
|
|
|
|
63 - LED DISPLAY
MET-343087410.A7
343087410
|
£22.96
|
£27.55
|
|
|
64 - ELECTRONIC UNIT 120 V
MET-343087550.A0
343087550
|
-
|
|
|
|
65 - SCREW
MET-341571030.A29
341571030
|
-
|
|
|
|
67 - MOTOR CAP
MET-343449360.A10
343449360
|
-
|
|
|
|
68 - SCREW
MET-341723050.A19
341723050
|
-
|
|
|
|
70 - COVER SHEET
MET-341213410.A13
341213410
|
-
|
|
|
|
71 - BELLOWS
MET-344114410.A10
344114410
|
-
|
|
|
|
72 - SWITCH TRIGGER
MET-343449270.A12
343449270
|
-
|
|
|
|
73 - SWITCH
MET-343412140.A12
343412140
|
-
|
|
|
|
74 - BEARING BOLT
MET-341519820.A6
341519820
|
-
|
|
|
|
75 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
MET-341723450.A12
341723450
|
-
|
|
|
|
76 - SCREW
MET-341723440.A12
341723440
|
-
|
|
|
|
77 - HOUSING CAP REAR
MET-343448540.A14
343448540
|
-
|
|
|
|
78 - CABLE TERMINAL
MET-343087720.A3
343087720
|
-
|
|
|
|
79 - CABLE CLIP
MET-343447450.A10
343447450
|
-
|
|
|
|
80 - CABLE WITH PLUG
MET-344532080.A3
344532080
|
-
|
|
|
|
81 - CABLE SLEEVE
MET-344114120.A31
344114120
|
£3.20
|
£3.84
|
|
|
85 - SLEEVE
MET-341020370.A8
341020370
|
-
|
|
|
|
86 - PROFILE RING
MET-341213470.A1
341213470
|
-
|
|
|
|
88 - CYLINDRICAL PIN
MET-341525480.A4
341525480
|
-
|
|
|
|
89 - RETAINING RING
MET-342024480.A8
342024480
|
-
|
|
|
|
90 - ECCENTRIC SHAFT
MET-341605730.A6
341605730
|
-
|
|
|
|
91 - FEATHER KEY
MET-339101140.A0
339101140
|
-
|
|
|
|
92 - RETAINING RING
MET-342024530.A1
342024530
|
-
|
|
|
|
93 - O-RING
MET-344114490.A9
344114490
|
-
|
|
|
|
94 - BALL BEARING
MET-320054570.A6
320054570
|
-
|
|
|
|
95 - O-RING
MET-344114330.A4
344114330
|
-
|
|
|
|
96 - CAP
MET-343448460.A3
343448460
|
-
|
|
|
|
97 - VIBRATION DAMPER COMPL.
MET-316098290.A1
316098290
|
-
|
|
|
|
99 - SCREW
MET-341723390.A3
341723390
|
-
|
|
|
|
103 - SCREW
MET-341723470.A12
341723470
|
-
|
|
|
|
104 - CONTROL KNOB SLIDE
MET-343449450.A2
343449450
|
-
|
|
|
|
105 - PRESSURE SPRING
MET-342024430.A14
342024430
|
-
|
|
|
|
106 - STEEL BALL
MET-341166880.A1
341166880
|
-
|
|
|
|
107 - O-RING
MET-344113940.A18
344113940
|
£9.62
|
£11.54
|
|
|
108 - PROFILE RING
MET-341167170.A4
341167170
|
-
|
|
|
|
109 - RETAINING RING
MET-141180130.A36
141180130
|
£1.50
|
£1.80
|
|
|
110 - O-RING
MET-344114450.A2
344114450
|
-
|
|
|
|
111 - SHIFT ELEMENT
MET-339149400.A9
339149400
|
-
|
|
|
|
112 - SCREW
MET-341571000.A28
341571000
|
£5.62
|
£6.75
|
|
|
114 - GEAR HOUSING REAR
MET-315420420.A4
315420420
|
-
|
|
|
|
115 - SHAFT SEALING RING
MET-339013270.A9
339013270
|
-
|
|
|
|
119 - SPUR GEAR
MET-340037590.A8
340037590
|
-
|
|
|
|
121 - BALL BEARING
MET-320054490.A18
320054490
|
-
|
|
|
|
122 - FLAT GASKET RING
MET-344114500.A0
344114500
|
-
|
|
|
|
123 - SCREW
MET-341723400.A11
341723400
|
-
|
|
|
|
124 - GEAR BOX COVER
MET-315420430.A0
315420430
|
-
|
|
|
|
125 - LOCK BUTTON
MET-343448570.A23
343448570
|
-
|
|
|
|
126 - SPEED BUTTON
MET-343448580.A1
343448580
|
-
|
|
|
|
127 - PRESSURE SPRING
MET-342024420.A10
342024420
|
-
|
|
|
|
128 - PUSH BUTTON SWITCH
MET-343412150.A12
343412150
|
-
|
|
|
|
130 - BALL BEARING
MET-320054540.A7
320054540
|
-
|
|
|
|
131 - SEALING WASHER
MET-339009530.A4
339009530
|
-
|
|
|
|
135 - RATING PLATE
MET-338130730.A0
338130730
|
-
|
|
|
|
140 - RATING PLATE
MET-338071610.A0
338071610
|
-
|
|
|
|
145 - INDICATION LABEL VTC ELECTRONIC
MET-338130760.A5
338130760
|
-
|
|
|
|
150 - WARNING LABEL SERIAL 40X14
MET-338121750.A5
338121750
|
-
|
|
|
|
155 - SUPPRESSOR 100V-130V
MET-343255210.A1
343255210
|
-
|
|
|
|
160 - LOOP HANDLE
MET-343449440.A6
343449440
|
-
|
|
|
|
161 - BOLT M8
MET-341723460.A3
341723460
|
-
|
|
|
|
162 - RATCHED WHEEL
MET-341072200.A3
341072200
|
-
|
|
|
|
163 - CLAMPING PIECE
MET-344650020.A4
344650020
|
£31.92
|
£38.30
|
|
|
164 - KNURLED NUT
MET-341109150.A3
341109150
|
-
|
|
|
|
165 - CLEANING CLOTH
MET-341167130.A11
341167130
|
-
|
|
|
|
166 - SPECIAL GREASE
MET-631800000.A15
631800000
|
£4.16
|
£4.99
|
|
|
885 - SPECIAL GREASE 500G
MET-344131350.A9
344131350
|
-
|
|
|
|
886 - GEAR GREASE
MET-344131360.A20
344131360
|
-
|
|
|
|

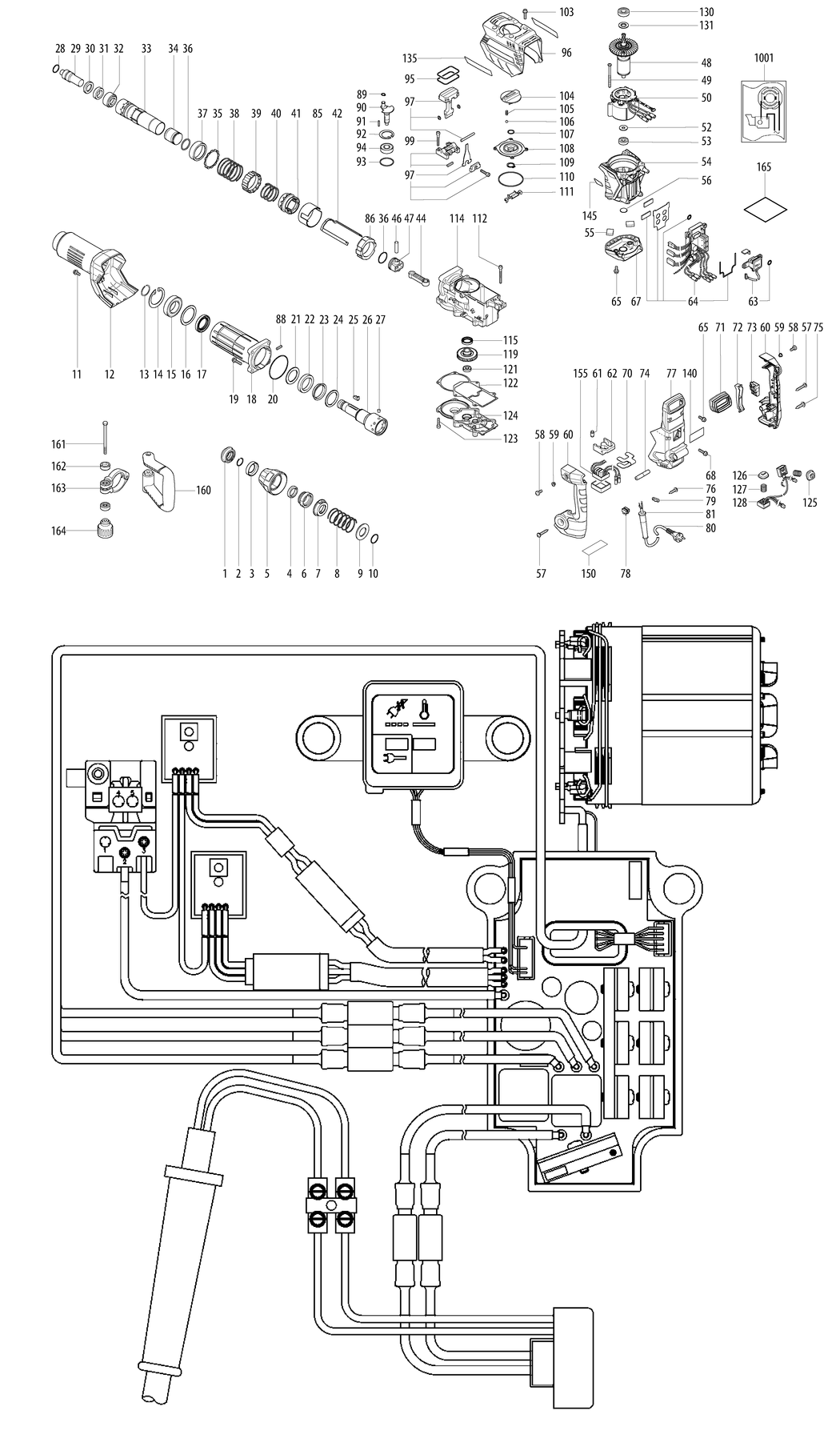

1001 - DIAGRAM
MET-338510530.A0
338510530
|
-
|
|
|
