1 - RUBBER CAP
MET-344114200.A6
344114200
|
-
|
|
|
|
2 - SPIRAL RETAINING RING
MET-342024380.A10
342024380
|
-
|
|
|
|
3 - WASHER
MET-339009480.A2
339009480
|
-
|
|
|
|
4 - DAMPER
MET-344114210.A9
344114210
|
-
|
|
|
|
5 - SLIDING SLEEVE
MET-341213160.A4
341213160
|
-
|
|
|
|
6 - RETAINING RING
MET-339149340.A0
339149340
|
-
|
|
|
|
7 - SUPPORTING DISC
MET-341723200.A3
341723200
|
-
|
|
|
|
8 - PRESSURE SPRING
MET-342024390.A5
342024390
|
-
|
|
|
|
9 - GUIDE PLATE
MET-339149350.A18
339149350
|
-
|
|
|
|
11 - SCREW
MET-341571030.A28
341571030
|
-
|
|
|
|
12 - HOUSING CAP FRONT
MET-343448410.A3
343448410
|
-
|
|
|
|
18 - GEAR HOUSING IN THE FRONT
MET-315107710.A1
315107710
|
-
|
|
|
|
19 - SCREW WITH FLANGE
MET-341570980.A6
341570980
|
-
|
|
|
|
20 - O-RING
MET-344114220.A0
344114220
|
-
|
|
|
|
21 - SUPPORTING DISC
MET-341723210.A6
341723210
|
-
|
|
|
|
22 - DAMPING RING
MET-344114230.A9
344114230
|
-
|
|
|
|
24 - SUPPORT RING
MET-341213170.A5
341213170
|
-
|
|
|
|
25 - CARRIER
MET-339149080.A17
339149080
|
-
|
|
|
|
26 - DRILL DRIVING SLEEVE FRONT
MET-341723230.A5
341723230
|
-
|
|
|
|
28 - O-RING
MET-344113880.A8
344113880
|
£5.62
|
£6.75
|
|
|
29 - STRIKER
MET-341213190.A4
341213190
|
-
|
|
|
|
30 - SUPPORTING DISC
MET-341723220.A4
341723220
|
-
|
|
|
|
31 - DAMPER
MET-344114240.A1
344114240
|
-
|
|
|
|
32 - SUPPORTING DISC
MET-341020410.A1
341020410
|
-
|
|
|
|
33 - DRILL DRIVING SLEEVE BEHIND
MET-341723240.A4
341723240
|
-
|
|
|
|
34 - STRIKER
MET-341213200.A5
341213200
|
£15.41
|
£18.49
|
|
|
35 - BEARING SLEEVE
MET-341006640.A1
341006640
|
-
|
|
|
|
36 - O-RING
MET-344113900.A13
344113900
|
£5.62
|
£6.75
|
|
|
37 - BIT SLEEVE
MET-341213220.A5
341213220
|
-
|
|
|
|
38 - PRESSURE SPRING
MET-342024400.A4
342024400
|
-
|
|
|
|
39 - RETAINING RING
MET-343447420.A6
343447420
|
-
|
|
|
|
40 - PRESSURE SPRING
MET-342024410.A5
342024410
|
-
|
|
|
|
41 - COUPLING SLEEVE
MET-341213210.A4
341213210
|
-
|
|
|
|
42 - SHIFT FORK
MET-341213230.A4
341213230
|
-
|
|
|
|
44 - CON ROD CPL.
MET-316098040.A8
316098040
|
£26.35
|
£31.62
|
|
|
45 - NEEDLE BEARING
MET-320054480.A1
320054480
|
-
|
|
|
|
46 - BOLT
MET-341525460.A5
341525460
|
£3.20
|
£3.84
|
|
|
47 - PLASTIC PLUNGER
MET-343447430.A8
343447430
|
£7.36
|
£8.83
|
|
|
48 - ARMATURE
MET-310012950.A1
310012950
|
-
|
|
|
|
49 - HEX HEAD SCREW
MET-341723040.A6
341723040
|
-
|
|
|
|
50 - STATOR COMPL. 220-240V
MET-316098060.A2
316098060
|
-
|
|
|
|
51 - SPACING WASHER
MET-341020240.A0
341020240
|
-
|
|
|
|
52 - WASHER
MET-341723020.A8
341723020
|
-
|
|
|
|
53 - BALL BEARING
MET-320054490.A16
320054490
|
-
|
|
|
|
54 - MOTOR HOUSING
MET-315420270.A8
315420270
|
-
|
|
|
|
55 - SCREW
MET-341571000.A27
341571000
|
£5.62
|
£6.75
|
|
|
56 - DUST SEAL
MET-344114250.A9
344114250
|
-
|
|
|
|
57 - HOULDER BOLT
MET-341723420.A3
341723420
|
-
|
|
|
|
58 - M5 SEALOCK BUTTON BOLT
MET-341723430.A10
341723430
|
-
|
|
|
|
59 - SPACER SLEEVE
MET-341723260.A9
341723260
|
-
|
|
|
|
60 - HANDLE HALF PAIR
MET-343448490.A9
343448490
|
-
|
|
|
|
61 - RUBBER PLUG
MET-344114270.A22
344114270
|
-
|
|
|
|
62 - FORK
MET-315420340.A14
315420340
|
-
|
|
|
|
63 - FOAM PAD
MET-344114280.A0
344114280
|
-
|
|
|
|
64 - ELECTRONIC UNIT 220V-240V
MET-343087490.A2
343087490
|
-
|
|
|
|
66 - SCREW
MET-341723050.A17
341723050
|
-
|
|
|
|
67 - MOTOR CAP
MET-343449260.A3
343449260
|
-
|
|
|
|
71 - BELLOWS
MET-344102230.A6
344102230
|
-
|
|
|
|
72 - SWITCH TRIGGER
MET-343449270.A10
343449270
|
-
|
|
|
|
73 - SWITCH
MET-343412140.A10
343412140
|
-
|
|
|
|
74 - BEARING BOLT
MET-341519770.A3
341519770
|
-
|
|
|
|
75 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
MET-341723450.A10
341723450
|
-
|
|
|
|
76 - SCREW
MET-341723440.A14
341723440
|
-
|
|
|
|
77 - HOUSING CAP REAR
MET-343448480.A0
343448480
|
-
|
|
|
|
78 - CABLE TERMINAL
MET-343087720.A5
343087720
|
-
|
|
|
|
79 - CABLE CLIP
MET-343447450.A8
343447450
|
-
|
|
|
|
80 - CABLE WITH PLUG
MET-344532040.A1
344532040
|
-
|
|
|
|
81 - CABLE SLEEVE
MET-344114120.A30
344114120
|
£3.20
|
£3.84
|
|
|
87 - GEAR HOUSING REAR
MET-315107720.A8
315107720
|
-
|
|
|
|
90 - ECCENTRIC SHAFT
MET-341605690.A0
341605690
|
-
|
|
|
|
91 - ADJUSTING SPRING
MET-339101150.A3
339101150
|
-
|
|
|
|
92 - RETAINING RING
MET-342024300.A4
342024300
|
-
|
|
|
|
93 - O-RING
MET-344114260.A0
344114260
|
-
|
|
|
|
94 - BALL BEARING
MET-320054500.A0
320054500
|
-
|
|
|
|
95 - SHAFT SEALING RING
MET-339013230.A3
339013230
|
-
|
|
|
|
96 - CAP
MET-343448430.A0
343448430
|
-
|
|
|
|
97 - VIBRATION DAMPER COMPL.
MET-316098080.A8
316098080
|
-
|
|
|
|
99 - O-RING
MET-344114010.A0
344114010
|
£2.94
|
£3.53
|
|
|
100 - FELT
MET-344071160.A0
344071160
|
-
|
|
|
|
101 - VALVE COMPL.
MET-316098090.A0
316098090
|
-
|
|
|
|
102 - LED-DISPLAY UNIT
MET-343087330.A3
343087330
|
£22.61
|
£27.13
|
|
|
103 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12
MET-341723480.A3
341723480
|
-
|
|
|
|
104 - CONTROL KNOB SLIDE
MET-343449450.A0
343449450
|
-
|
|
|
|
105 - PRESSURE SPRING
MET-342024430.A15
342024430
|
-
|
|
|
|
106 - STEEL BALL
MET-341166880.A2
341166880
|
-
|
|
|
|
107 - O-RING
MET-344113940.A19
344113940
|
£9.62
|
£11.54
|
|
|
108 - CONTROL-KNOB COVER
MET-343450170.A3
343450170
|
-
|
|
|
|
109 - RETAINING RING
MET-141180130.A34
141180130
|
£1.50
|
£1.80
|
|
|
110 - GEAR BOX COVER
MET-315420280.A0
315420280
|
-
|
|
|
|
111 - NEEDLE BEARING
MET-320054510.A14
320054510
|
-
|
|
|
|
112 - SCREW
MET-341571010.A0
341571010
|
-
|
|
|
|
119 - SPUR GEAR
MET-341072170.A9
341072170
|
-
|
|
|
|
120 - SCREW
MET-341723470.A10
341723470
|
-
|
|
|
|
125 - LOCK BUTTON
MET-343448570.A24
343448570
|
-
|
|
|
|
126 - SPEED BUTTON
MET-343448580.A0
343448580
|
-
|
|
|
|
127 - PRESSURE SPRING
MET-342024420.A9
342024420
|
-
|
|
|
|
128 - PUSH BUTTON SWITCH
MET-343412150.A14
343412150
|
-
|
|
|
|
130 - BALL BEARING
MET-320054410.A7
320054410
|
-
|
|
|
|
131 - SEALING WASHER
MET-341213240.A7
341213240
|
-
|
|
|
|
135 - RATING PLATE
MET-338130720.A0
338130720
|
-
|
|
|
|
140 - RATING PLATE
MET-338071541.A0
338071541
|
-
|
|
|
|
145 - INDICATION LABEL VTC ELECTRONIC
MET-338130750.A2
338130750
|
-
|
|
|
|
150 - PART NOT NEEDED
MET-399999990.A601
399999990
|
-
|
|
|
|
155 - SUPPRESSOR 220V-240V
MET-343255200.A5
343255200
|
-
|
|
|
|
160 - LOOP HANDLE
MET-343449440.A9
343449440
|
-
|
|
|
|
161 - BOLT M8
MET-341723460.A5
341723460
|
-
|
|
|
|
162 - RATCHED WHEEL
MET-341072200.A0
341072200
|
-
|
|
|
|
163 - CLAMPING PIECE
MET-341072210.A4
341072210
|
-
|
|
|
|
164 - KNURLED NUT
MET-341109150.A2
341109150
|
-
|
|
|
|
165 - CLEANING CLOTH
MET-341167130.A10
341167130
|
-
|
|
|
|
166 - SPECIAL GREASE
MET-631800000.A12
631800000
|
£4.16
|
£4.99
|
|
|
885 - SPECIAL GREASE 500G
MET-344131350.A8
344131350
|
-
|
|
|
|
886 - GEAR GREASE
MET-344131360.A21
344131360
|
-
|
|
|
|

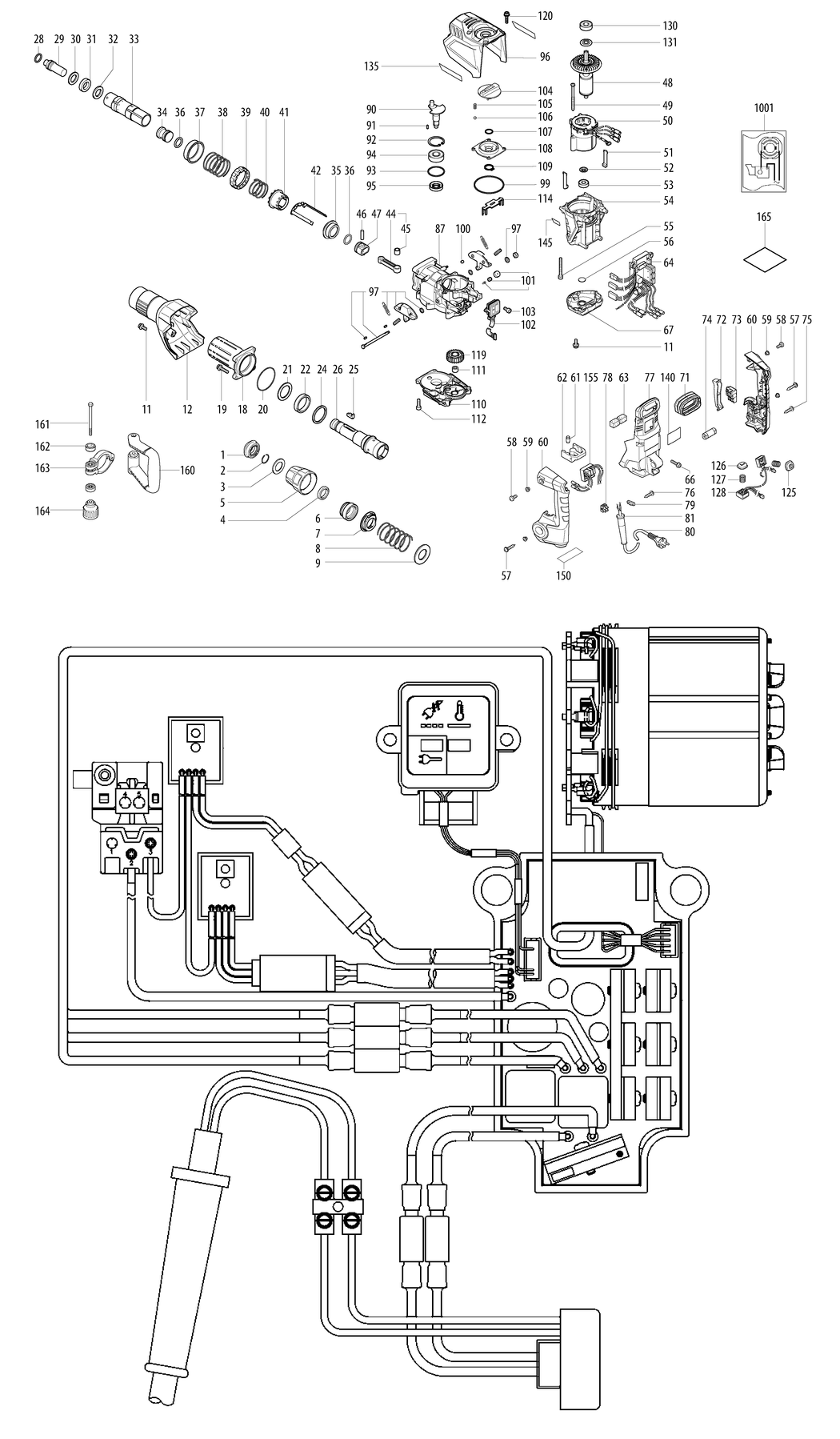

1001 - DIAGRAM
MET-338510520.A0
338510520
|
-
|
|
|
