1 - CABLE WITH PLUG
MET-344486640.A0
344486640
|
-
|
|
|
|
2 - HANDLE UPPER PART
MET-341111560.A2
341111560
|
£7.36
|
£8.83
|
|
|
3 - BOLT
MET-341052560.A3
341052560
|
£1.50
|
£1.80
|
|
|
4 - ADJUSTING TOGGLE
MET-341540090.A4
341540090
|
£3.20
|
£3.84
|
|
|
5 - POINTER
MET-343363660.A3
343363660
|
£3.82
|
£4.59
|
|
|
6 - SCALE
MET-338110240.A3
338110240
|
£3.82
|
£4.59
|
|
|
7 - COVER
MET-339124510.A1
339124510
|
£3.20
|
£3.84
|
|
|
8 - HEXAGONAL NUT
MET-141130100.A180
141130100
|
£1.50
|
£1.80
|
|
|
9 - CIRCLIP
MET-342021120.A4
342021120
|
£1.50
|
£1.80
|
|
|
10 - RETAINING RING
MET-141180660.A2
141180660
|
£3.20
|
£3.84
|
|
|
11 - HANDLE BOTTOM PART
MET-316033040.A2
316033040
|
£7.36
|
£8.83
|
|
|
12 - HANDLE UPPER PART
MET-341111320.A11
341111320
|
£8.37
|
£10.04
|
|
|
14 - HOUSING WITH COVER
MET-343374410.A10
343374410
|
£6.19
|
£7.43
|
|
|
15 - CABLE SLEEVE
MET-344101140.A103
344101140
|
£3.82
|
£4.59
|
|
|
16 - SWITCH
MET-343406730.A10
343406730
|
£22.61
|
£27.13
|
|
|
17 - ELECTRONIC UNIT 230 V
MET-343079700.A5
343079700
|
£42.65
|
£51.18
|
|
|
18 - CABLE STRAND
MET-344493960.A57
344493960
|
£3.20
|
£3.84
|
|
|
19 - BRUSH HOLDER CPL.
MET-316035500.A1
316035500
|
£9.62
|
£11.54
|
|
|
20 - RATING PLATE
MET-338040910.A1
338040910
|
-
|
|
|
|
21 - MOTOR HOUSING
MET-315012680.A16
315012680
|
£15.41
|
£18.49
|
|
|
22 - FIELD COIL 230V
MET-311009960.A22
311009960
|
£22.96
|
£27.55
|
|
|
23 - BAFFLE
MET-339150930.A1
339150930
|
£3.20
|
£3.84
|
|
|
24 - OPEN-END SPANNER
MET-344161300.A2
344161300
|
£8.37
|
£10.04
|
|
|
25 - HOUSING WITH COVER
MET-343374430.A14
343374430
|
£6.19
|
£7.43
|
|
|
26 - SELF-TAP. FILL. H. SCREW
MET-141116990.A57
141116990
|
£3.20
|
£3.84
|
|
|
27 - CABLE CLIP
MET-343362490.A151
343362490
|
£3.20
|
£3.84
|
|
|
28 - SELF-TAP FILL H SCREW
MET-141116020.A856
141116020
|
£3.20
|
£3.84
|
|
|
29 - SWITCH ROD
MET-343373640.A9
343373640
|
£3.20
|
£3.84
|
|
|
30 - SWITCH SLIDE
MET-343375880.A1
343375880
|
£3.82
|
£4.59
|
|
|
31 - M-LABEL 08 52X22
MET-338122160.A279
338122160
|
£1.50
|
£1.80
|
|
|
32 - RUBBER BUSHING
MET-344096360.A1
344096360
|
£1.50
|
£1.80
|
|
|
33 - RI.KU.LA. 6X 19X 6
MET-143114790.A31
143114790
|
£5.62
|
£6.75
|
|
|
34 - ARMATURE CPL.230V
MET-310008150.A2
310008150
|
£56.63
|
£67.96
|
|
|
35 - CLAMPING WASHER
MET-339031530.A0
339031530
|
£4.64
|
£5.57
|
|
|
36 - SNAP RING
MET-141180090.A51
141180090
|
£3.20
|
£3.84
|
|
|
37 - BALL BEARING 15X35X11
MET-143114650.A14
143114650
|
£17.55
|
£21.06
|
|
|
38 - SEALING WASHER
MET-339003480.A3
339003480
|
£3.20
|
£3.84
|
|
|
39 - FELT RING
MET-143191190.A13
143191190
|
£1.50
|
£1.80
|
|
|
40 - SPINDLE HEAD
MET-315410040.A0
315410040
|
£36.65
|
£43.98
|
|
|
41 - TIGHT-FIT SCREW
MET-341701490.A1
341701490
|
£1.50
|
£1.80
|
|
|
42 - FILLISTER HEAD SCREW
MET-141120190.A8
141120190
|
£1.50
|
£1.80
|
|
|
43 - COLLET 8 MM WITH FLANGE NUT (HEXAGON)
MET-631946000.A2
631946000
|
£11.20
|
£13.44
|
|
|
44 - THUMBSCREW
MET-341110820.A5
341110820
|
£4.76
|
£5.71
|
|
|
45 - TRIGGER
MET-343364110.A1
343364110
|
£3.82
|
£4.59
|
|
|
46 - PRESSURE SPRING
MET-342001770.A21
342001770
|
£1.50
|
£1.80
|
|
|
47 - SLIDE
MET-339124490.A8
339124490
|
£6.38
|
£7.65
|
|
|
48 - TUBULAR RIVET
MET-141163410.A1
141163410
|
£3.20
|
£3.84
|
|
|
49 - PRESSURE SPRING
MET-342001980.A0
342001980
|
£5.62
|
£6.75
|
|
|
50 - EXHAUST NOZZLE
MET-316025140.A1
316025140
|
£22.96
|
£27.55
|
|
|
51 - KNURLED-SCREW
MET-141119120.A4
141119120
|
£5.62
|
£6.75
|
|
|
52 - PRESSURE SPRING
MET-342000040.A4
342000040
|
£1.50
|
£1.80
|
|
|
53 - BASE PLATE CPL.
MET-316020730.A8
316020730
|
£55.90
|
£67.08
|
|
|
54 - SUPPORT
MET-339124480.A2
339124480
|
£6.38
|
£7.65
|
|
|
55 - HOLDER CPL.
MET-316020720.A2
316020720
|
£94.04
|
£112.85
|
|
|
56 - LOCKING PLATE
MET-339124520.A2
339124520
|
£3.82
|
£4.59
|
|
|
57 - CAP SCREW
MET-141113900.A26
141113900
|
£3.20
|
£3.84
|
|
|
58 - PLATE
MET-339004950.A7
339004950
|
£3.20
|
£3.84
|
|
|
59 - FILL. HEAD SCREW
MET-141120070.A57
141120070
|
£1.50
|
£1.80
|
|
|
60 - PRESSURE SPRING
MET-342001820.A3
342001820
|
£4.76
|
£5.71
|
|
|
61 - FILLISTER HEAD SCREW
MET-141113220.A71
141113220
|
£1.50
|
£1.80
|
|
|
62 - ANGLE BRACKET
MET-343364680.A2
343364680
|
£4.76
|
£5.71
|
|
|
63 - PARALLEL GUIDE
MET-316020750.A2
316020750
|
£36.59
|
£43.91
|
|
|
64 - THUMBSCREW
MET-341111030.A3
341111030
|
£3.82
|
£4.59
|
|
|
65 - SCALE
MET-344350150.A2
344350150
|
£6.38
|
£7.65
|
|
|
66 - CARBON BRUSH
MET-316035510.A38
316035510
|
£17.55
|
£21.06
|
|
|
67 - HANDLE BOTTOM PART
MET-316033050.A8
316033050
|
£8.37
|
£10.04
|
|
|

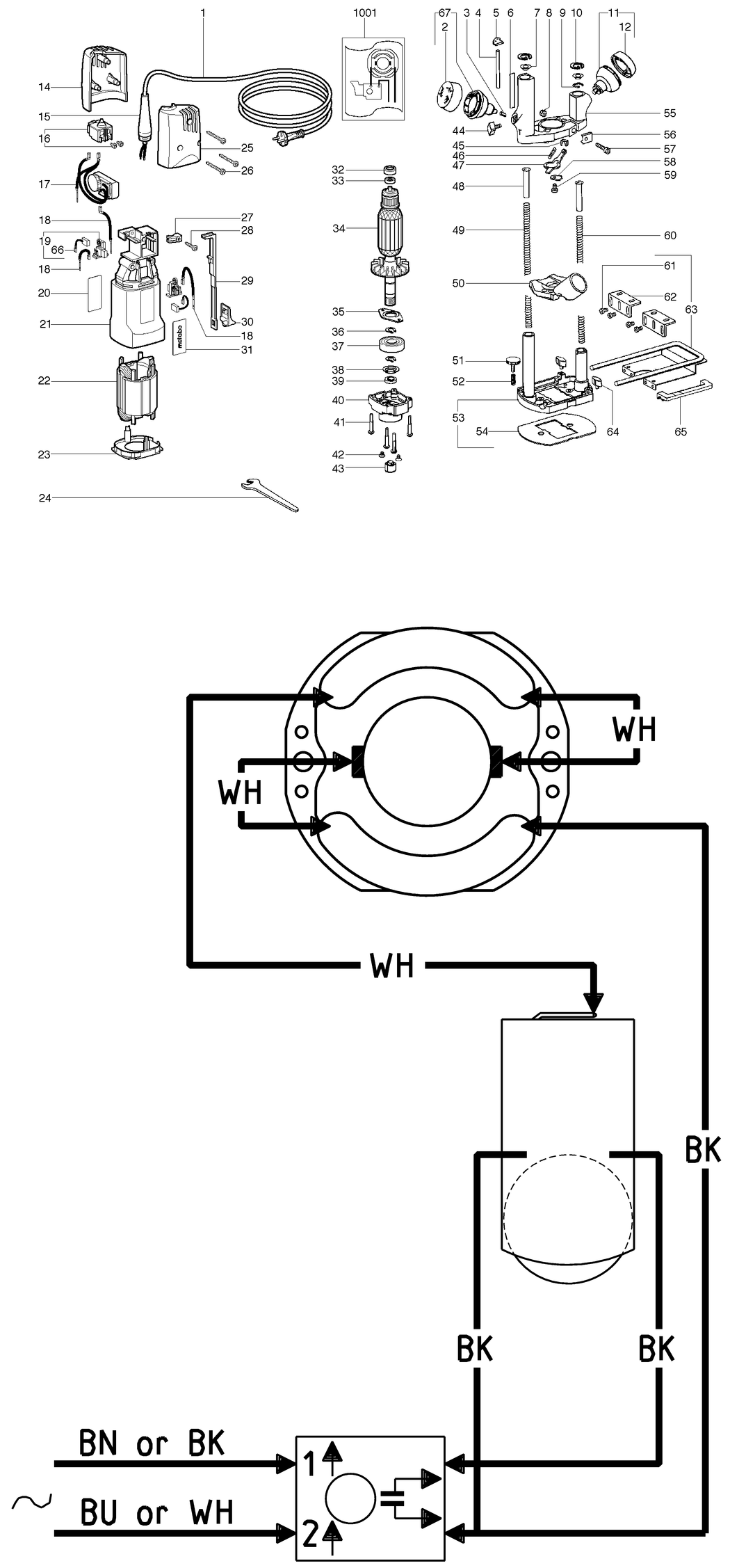

1001 - DIAGRAM
MET-338502380.A10
338502380
|
-
|
|
|
