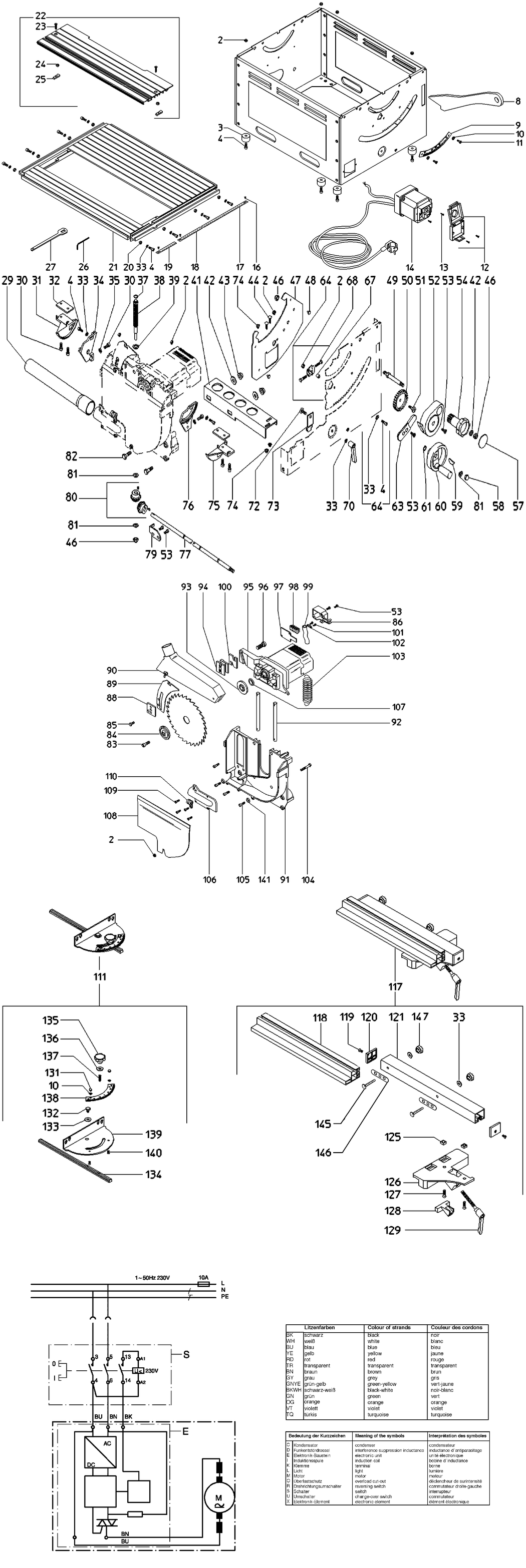

An exploded diagram and spare parts listing for the Metabo PK 200 / 0102001001 15 / EU 230V
Ex VAT Inc VAT
2 - HEXAGONAL LOCK NUT MET-141130650.A167 141130650 £3.20 £3.84
3 - RUBBER FOOT RD 30X17 5 80 SHORE MET-7057208753.A7 7057208753 £3.20 £3.84
4 - HEXAGON SOCKET HEAD CAP SCREW MET-6127059193.A13 6127059193 £1.50 £1.80
8 - PUSH STICK MET-1394201630.A4 1394201630 £9.62 £11.54
9 - ANGLE SCALE MET-1142215647.A7 1142215647 £6.38 £7.65
10 - WASHER MET-141150010.A106 141150010 £1.50 £1.80
11 - RAISED CHEESE HEAD SCREW MET-6143639612.A6 6143639612 -
12 - PADLOCKABLE SWITCH GUARD MET-8118411022.A2 8118411022 £7.36 £8.83
13 - FILLISTER HEAD SCREW W.FILL. HEAD SCREW MET-6172001805.A2 6172001805 £1.50 £1.80
14 - SWITCH KSK WN K700/TAZ/NKAZ/KAZ/KL MET-8131221399.A1 8131221399 -
16 - FILLISTER HEAD SCREW MET-6172091014.A67 6172091014 £1.50 £1.80
17 - SCALE 0 50X9 MET-1142221965.A1 1142221965 £6.19 £7.43
18 - SCALE 0 50X9 MET-1142221043.A2 1142221043 £6.19 £7.43
19 - SCALE 0 50X9 MET-1142221027.A1 1142221027 £5.38 £6.45
20 - FLANGE NUT MET-6209114230.A167 6209114230 £1.50 £1.80
21 - TABLE ASSEMBLY PK200 MET-1010651111.A1 1010651111 £117.26 £140.71
22 - EXTRUSION REMOV.TABLE SECTION KOMPLETT MET-1010657616.A0 1010657616 £54.44 £65.33
23 - SELF-TAPP. COUNTERS. SCREW MET-6174155800.A6 6174155800 £1.50 £1.80
24 - O-RING 4X1 5 70 SHORE MET-7632183687.A3 7632183687 -
25 - TIN NUT MET-6265167657.A5 6265167657 £2.60 £3.12
26 - ALLEN HEXAGON KEY MET-9102016766.A4 9102016766 -
27 - WRENCH BLADE COLLAR MET-9105222162.A1 9105222162 £3.89 £4.67
29 - TUBE DUST COLLECTION RDA 37X290 MET-1381221845.A2 1381221845 -
30 - CAP SCREW MET-141113840.A83 141113840 £3.20 £3.84
31 - TABLE SECTION HINTEN MET-1380220977.A0 1380220977 -
32 - FASTENING STRAP FL 16X5X48 /2XM6 MET-1482222788.A8 1482222788 £5.62 £6.75
33 - WASHER MET-141151940.A273 141151940 £1.50 £1.80
34 - SWIVEL SEGMENT HINTEN MET-1380220950.A0 1380220950 £8.62 £10.34
35 - CUP SPRING MET-141155660.A37 141155660 £1.50 £1.80
37 - RETAINING WASHER RD 8 VERZ. MET-6404091580.A4 6404091580 £1.50 £1.80
38 - THREADED ROD M 14LH X132 HÖHENVERSTELLUN MET-1485221480.A2 1485221480 -
39 - WASHER MET-141150050.A118 141150050 £1.50 £1.80
41 - LEVER BLADE TILT BL 2 MET-1382220915.A1 1382220915 -
42 - WASHER MET-6305002486.A22 6305002486 -
43 - FLANGE NUT MET-6209110995.A90 6209110995 £1.50 £1.80
44 - CUP SQUARE NECK SCREW M 5X16 VERZ. MET-6110125036.A3 6110125036 £1.50 £1.80
46 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A145 6202002305 £1.50 £1.80
47 - SWIVEL PLATE BL 2 99X263X236 MET-1482220920.A0 1482220920 -
48 - GLIDE PIECE MET-2391202772.A78 2391202772 £1.50 £1.80
49 - GEARWHEEL AXLE SW 13X87 MET-1485215308.A3 1485215308 £7.44 £8.93
50 - GEARWHEEL RD 62X19 MET-1380215329.A2 1380215329 £9.62 £11.54
51 - GEARWHEEL SW 13X28 MET-1485221740.A2 1485221740 £11.20 £13.44
52 - COVER BEVEL GEAR DRIVE MET-1381221462.A0 1381221462 -
53 - RAISED CHEESE HEAD SCREW MET-6123612815.A6 6123612815 £1.50 £1.80
54 - HANDWHEEL BLADE TILT MET-1381215330.A6 1381215330 £5.62 £6.75
57 - HANDWHEEL COVER MET-1381212846.A4 1381212846 £1.50 £1.80
58 - CAP NUT SELF-LOCKING MET-6208073395.A12 6208073395 £1.50 £1.80
59 - WOODRUFF KEY MET-6720008511.A9 6720008511 £1.50 £1.80
60 - HANDWHEEL KOMPLETT UK/TKU ET MET-1010657543.A1 1010657543 £36.59 £43.91
61 - RETAINING RING MET-141180040.A1 141180040 £1.50 £1.80
63 - SEGMENT PIECE MET-1381220938.A2 1381220938 £2.60 £3.12
64 - TILT STOP ASSEMBLY KOMPLETT UK/TKU MET-1010657535.A1 1010657535 -
67 - SPACER SLEEVE MET-6442059304.A4 6442059304 £1.50 £1.80
68 - SELF-TAPP. HEXAG. H. SCREW MET-141122680.A23 141122680 -
70 - CLAMPING LEVER MET-7006072385.A10 7006072385 £8.37 £10.04
72 - CUP SQUARE NECK SCREW MET-6110000594.A24 6110000594 £1.50 £1.80
73 - BRAKE PAD BD 2 99X25X59 MET-1482221803.A3 1482221803 -
74 - NUT AND WASHER ASSEMBLY MET-6209018460.A9 6209018460 £1.50 £1.80
75 - TABLE SECTION VORNE MET-1380220969.A2 1380220969 £8.62 £10.34
76 - SWIVEL SEGMENT VORNE MET-1380220942.A3 1380220942 £8.62 £10.34
77 - ADVANCING SHAFT RD 10X385 MET-1485221090.A0 1485221090 £17.07 £20.48
79 - SETTING PLATE BD 2 99X30X63 MET-1482222656.A3 1482222656 £2.60 £3.12
80 - REPAIR KIT KEGELRÄDER-HÖHENVER. MET-1010657527.A1 1010657527 -
81 - WASHER MET-141151340.A178 141151340 £1.50 £1.80
82 - HEXAGON HEAD SCREW MET-141110320.A3 141110320 £3.20 £3.84
83 - CAP SCREW MET-6121000839.A44 6121000839 £1.50 £1.80
84 - BLADE COLLAR OUTER MET-1482221900.A0 1482221900 £7.36 £8.83
85 - HEXAGON HEAD SCREW M 6X16 VERZ.FLECKBESC MET-6103001356.A16 6103001356 £1.50 £1.80
86 - LID TERMINAL BOX MOTOR AM21 MET-1331700076.A4 1331700076 £3.20 £3.84
88 - RIVING KIFE PLATE MET-1482221595.A9 1482221595 £3.20 £3.84
89 - RIVING KNIFE MET-1482221587.A6 1482221587 £22.96 £27.55
90 - WHEEL GUARD COMPL. MET-316052430.A4 316052430 £17.55 £21.06
91 - MOTORHEAD CARRIAGE MET-1380221400.A2 1380221400 £70.49 £84.59
92 - GUIDE MET-1385221491.A1 1385221491 £19.18 £23.02
93 - BLADE COLLAR INNER MET-1485221618.A26 1485221618 £17.55 £21.06
94 - RIVING KNIFE CARRIER MET-1380221434.A1 1380221434 £19.18 £23.02
95 - ELECTRIC MOTOR 1 8KW 230/1/50 AM21 DREHZ MET-1010720520.A0 1010720520 -
96 - POSITIONING SCREW MET-1485221570.A2 1485221570 £5.62 £6.75
97 - TERMINAL BOX MOTOR AM21 MET-1331700068.A4 1331700068 £5.62 £6.75
98 - TERMINAL BLOCK 1 5 MM² NR.134S / VDE MET-8216628625.A2 8216628625 -
99 - SLEEVE CABLE SUPPORT TYP 15-561 MET-1341016980.A3 1341016980 £3.20 £3.84
100 - SPACER PLATE BL 0 5X40X40 MET-1382666042.A1 1382666042 £4.64 £5.57
101 - SELF-TAP. FILL. H. SCREW MET-141116840.A9 141116840 £1.50 £1.80
102 - STRAIN RELIEF MET-8242033664.A1 8242033664 £1.50 £1.80
103 - TENSION SPRING RD 2X34X30 MET-7051221952.A2 7051221952 £6.19 £7.43
104 - HEXAGON HEAD SCREW MET-141116250.A5 141116250 £1.50 £1.80
105 - CAP SCREW MET-141113870.A38 141113870 £3.20 £3.84
106 - DUST EXTRACTION PORT MET-1381221454.A3 1381221454 £3.89 £4.67
107 - SHIM RING 16X22X0 2 VERZ. MET-6306670482.A1 6306670482 £1.50 £1.80
108 - COVER PLATE BL 1 50X196X276 MET-1382221725.A1 1382221725 £14.71 £17.65
109 - FILLISTER HEAD SCREW MET-6172001830.A42 6172001830 £1.50 £1.80
110 - CABLE CLIP MET-8242051328.A53 8242051328 £3.82 £4.59
111 - MITRE FENCE PRE-ASSEMBLED MET-1010603265.A0 1010603265 -
117 - RIP FENCE PRE-ASSEMBLED MET-1010603257.A3 1010603257 £94.04 £112.85
118 - AUXILIARY FENCE EXTRUSION 400 MM MET-1383220838.A1 1383220838 £20.12 £24.14
119 - SELF-TAPP. COUNTERS. SCREW MET-6174155800.A3 6174155800 £1.50 £1.80
120 - EXTRUSION END CAP MET-1381220822.A7 1381220822 £3.82 £4.59
121 - FENCE CARRIER EXTRUSION MET-1383220862.A2 1383220862 £26.85 £32.22
125 - SQUARE NUT MET-141131020.A9 141131020 £3.20 £3.84
126 - CLAMPING PAD MET-1380220845.A6 1380220845 £63.36 £76.03
127 - CROSS RECESSED FLAT HEAD SCREW MET-6131009460.A56 6131009460 -
128 - LOCK PLATE MET-1380222031.A7 1380222031 £8.70 £10.44
129 - RATCHET LOCK LEVER M8X100 UK/TKU /ET MET-1010657560.A1 1010657560 -
131 - CAP NUT M 4 VERZ. MET-6201001437.A5 6201001437 £1.50 £1.80
132 - HEX FIT BOLT MET-6104220876.A1 6104220876 £3.82 £4.59
133 - CUP SPRING MET-7053016795.A8 7053016795 £1.50 £1.80
134 - GUIDE RAIL 300 MM MET-1482221129.A1 1482221129 £22.61 £27.13
135 - STARKNOB NUT M 6 (DIN 934) VERZINKT MET-7000025466.A2 7000025466 £3.20 £3.84
136 - WASHER MET-141150130.A47 141150130 £1.50 £1.80
137 - HEX. SOCKET SET SCREW FLAT PT M 6X20 VE MET-141124480.A7 141124480 £2.94 £3.53
138 - ANGLE SCALE 1 00 2X0-45 GRAD MET-1142221132.A0 1142221132 £6.38 £7.65
139 - ANGLE BRACKET BL 2 99X125 MET-1382221148.A2 1382221148 £14.71 £17.65
140 - CROSS RECESSED FLAT HEAD SCREW M 4X8 VER MET-6131001531.A0 6131001531 -
141 - O-RING 6X2 70 SHORE A MET-7632610097.A1 7632610097 £1.50 £1.80
145 - TRUSS HEAD SCREW MET-6110019490.A2 6110019490 £2.94 £3.53
146 - GUIDE PLATE FLIPSTOP MET-1392201587.A20 1392201587 £1.50 £1.80
147 - KNURLED NUT MET-6241125058.A60 6241125058 £3.20 £3.84
7500 - SPARE PARTS LIST 8-SEITIG /A4 ART.-NR. 0 MET-1153637969.A0 1153637969 -
