Metabo SBE 561 / 01160190 / AU 240V Spare Parts

Metabo SBE 561 / 01160190 / AU 240V Spare Parts

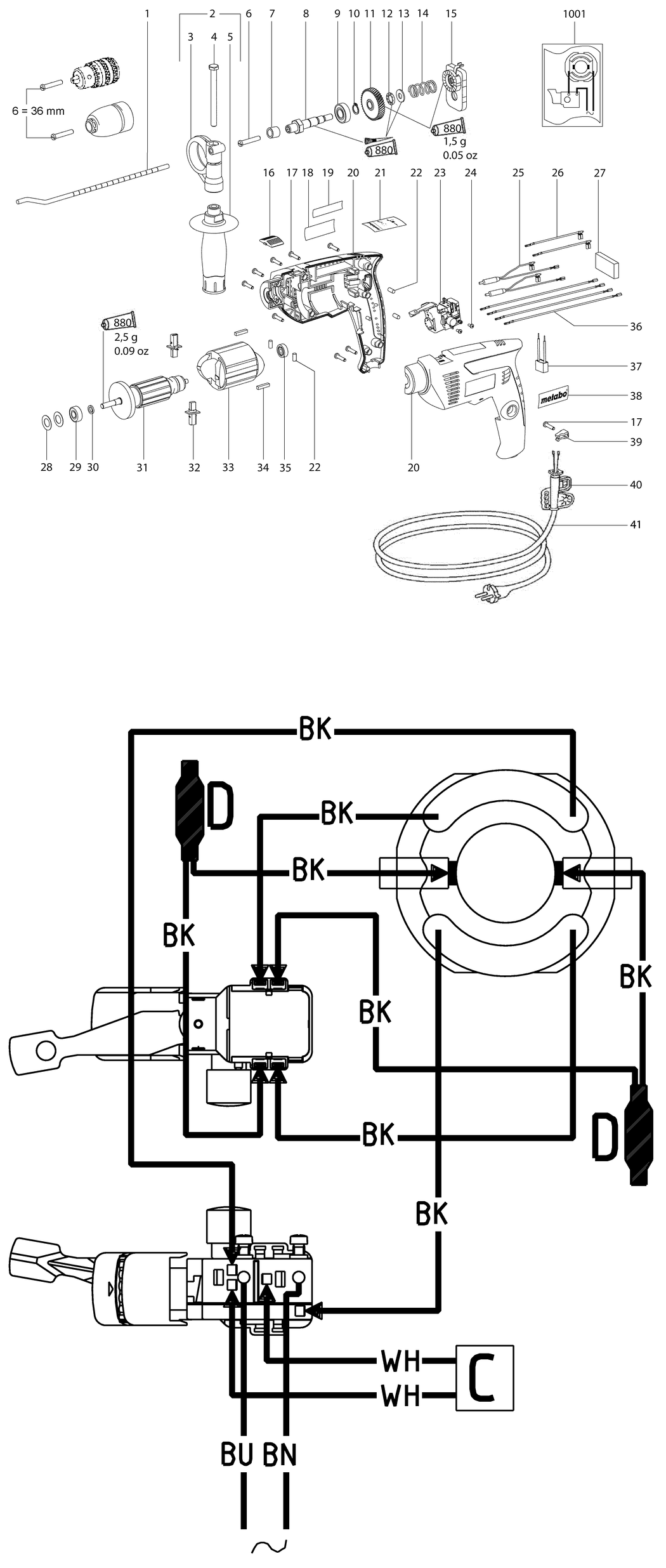

An exploded diagram and spare parts listing for the Metabo SBE 561 / 01160190 / AU 240V
Ex VAT Inc VAT
1 - DEPTH STOP MET-341511630.A115 341511630 £6.38 £7.65
2 - SUPPORT HANDLE CPL. MET-314000840.A66 314000840 £11.78 £14.13
3 - CLAMPING PIECE MET-343359780.A13 343359780 £7.36 £8.83
4 - HEXAGON HEAD SCREW MET-141116160.A19 141116160 £3.20 £3.84
5 - HANDLE MET-314000550.A13 314000550 -
6 - CHEESE-HEAD SCREW MET-341701940.A58 341701940 £3.20 £3.84
7 - BIT RETAINING BUSH MET-631281000.A9 631281000 -
8 - SPINDLE MET-341603980.A11 341603980 -
9 - BALL BEARING 12X28X8 MET-143115640.A50 143115640 £3.82 £4.59
10 - RETAINING RING MET-141180060.A88 141180060 £1.50 £1.80
11 - SPUR GEAR MET-341054650.A6 341054650 £19.18 £23.02
12 - BALL HOLDER MET-320050260.A7 320050260 £5.62 £6.75
13 - WASHER MET-339005870.A22 339005870 £1.50 £1.80
14 - PRESSURE SPRING MET-342021560.A13 342021560 £1.50 £1.80
15 - GEAR FLANGE CPL. MET-316025220.A6 316025220 £26.35 £31.62
16 - SWITCH SLIDE MET-343370760.A3 343370760 £3.20 £3.84
17 - SELF-TAP FILL H SCREW MET-141116020.A747 141116020 £3.20 £3.84
18 - RATING PLATE MET-338050780.A0 338050780 -
19 - PART NOT NEEDED MET-399999990.A161 399999990 -
20 - HOUSING W.COVER GUMMED MET-343393420.A10 343393420 £26.35 £31.62
21 - INDICATION LABEL BIT RETAINING BUSH MET-338121340.A13 338121340 -
22 - RUBBER PLUG MET-344092220.A14 344092220 £1.50 £1.80
23 - ELECTRONIC SWITCH MET-343406370.A0 343406370 -
24 - FILLISTER HEAD SCREW MET-141116970.A55 141116970 £3.20 £3.84
25 - SUPPRESSOR MET-343253940.A14 343253940 £8.37 £10.04
26 - PART NOT NEEDED MET-399999990.A162 399999990 -
27 - INSERT MET-344103000.A15 344103000 £1.50 £1.80
28 - CUP SPRING MET-141150590.A4 141150590 £1.50 £1.80
29 - BALL BEARING 8X22X7 MET-143115800.A183 143115800 £3.83 £4.60
30 - WASHER MET-341055170.A18 341055170 £3.20 £3.84
31 - ARMATURE COMPL. MET-310009250.A4 310009250 £68.35 £82.02
32 - BRUSH HOLDER CPL. MET-316033870.A10 316033870 £17.55 £21.06
33 - FIELD COIL W.FIELD COIL 230 V MET-311010910.A9 311010910 £42.65 £51.18
34 - RUBBER PLUG MET-344093350.A27 344093350 £1.50 £1.80
35 - BALL BEARING 6X19X6 MET-143115660.A164 143115660 £3.82 £4.59
36 - STRAND SET MET-344493140.A9 344493140 £6.38 £7.65
37 - SUPPRESSOR MET-343254010.A10 343254010 -
38 - M-LABEL 08 52X22 MET-338122160.A347 338122160 £1.50 £1.80
39 - CABLE CLIP MET-343362490.A38 343362490 £3.20 £3.84
40 - CABLE SLEEVE MET-344100590.A53 344100590 £3.82 £4.59
41 - CABLE WITH PLUG MET-344491010.A14 344491010 £19.18 £23.02
880 - GREASE GL 402 MET-344130650.A6 344130650 £15.41 £18.49
1001 - DIAGRAM MET-338500260.A10 338500260 -
