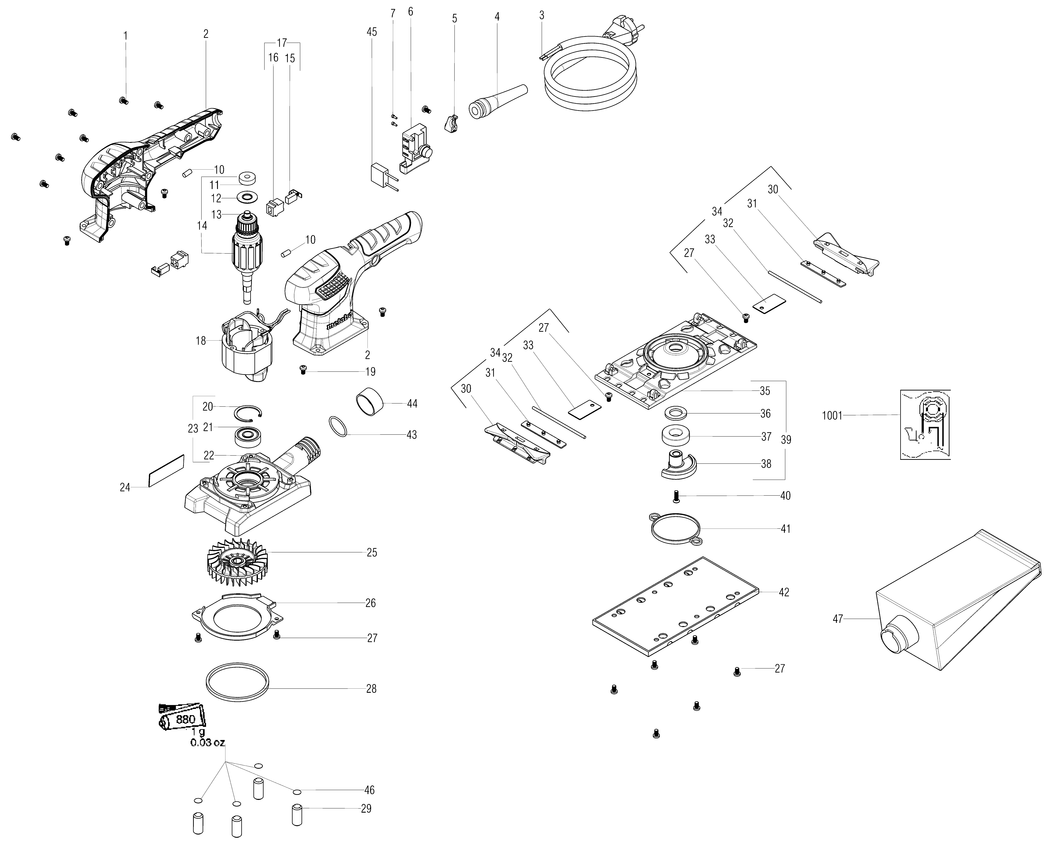

1 - SELF-TAP FILL H SCREW
MET-141116020.A574
141116020
|
£3.20
|
£3.84
|
|
2 - HOUSING
MET-343436400.A3
343436400
|
-
|
|
|
3 - CABLE WITH PLUG
MET-344494580.A5
344494580
|
-
|
|
|
4 - CABLE SLEEVE
MET-344101140.A193
344101140
|
£3.82
|
£4.59
|
|
5 - CABLE CLIP
MET-343362490.A1142
343362490
|
£3.20
|
£3.84
|
|
6 - SWITCH
MET-343410540.A4
343410540
|
£9.62
|
£11.54
|
|
7 - FILLISTER HEAD SCREW
MET-141116970.A150
141116970
|
£3.20
|
£3.84
|
|
10 - RUBBER PLUG
MET-344092220.A169
344092220
|
£1.50
|
£1.80
|
|
11 - BALL BEARING 6X19X6
MET-143115660.A246
143115660
|
£3.82
|
£4.59
|
|
12 - INSULATING WASHER
MET-343436390.A7
343436390
|
£2.94
|
£3.53
|
|
13 - ARMATURE 120V
MET-310011580.A1
310011580
|
-
|
|
|
14 - ARMATURE COMPL. 230V (PAD SANDER)
MET-317004540.A4
317004540
|
-
|
|
|
16 - BRUSH HOLDER
MET-343001340.A4
343001340
|
£7.36
|
£8.83
|
|
18 - FIELD COIL 120V
MET-311012310.A2
311012310
|
-
|
|
|
19 - FILL. HEAD SCREW
MET-141120070.A205
141120070
|
£1.50
|
£1.80
|
|
20 - RETAINING RING
MET-141180370.A79
141180370
|
£1.50
|
£1.80
|
|
21 - BALL BEARING
MET-320050820.A1
320050820
|
£6.38
|
£7.65
|
|
22 - BEARING FLANGE
MET-315302030.A5
315302030
|
-
|
|
|
23 - FLANGE COMPL.
MET-316060490.A7
316060490
|
-
|
|
|
25 - FAN
MET-343436430.A3
343436430
|
-
|
|
|
26 - COVER F. FAN
MET-343436440.A6
343436440
|
-
|
|
|
27 - CHEESE-HEAD SCREW
MET-141124530.A9
141124530
|
-
|
|
|
28 - FELT RING F. FAN COVER
MET-344070990.A5
344070990
|
-
|
|
|
29 - SWIVEL PIN
MET-344091250.A12
344091250
|
£6.38
|
£7.65
|
|
30 - PRESSURE LEVER CPL.
MET-343378750.A3
343378750
|
£6.38
|
£7.65
|
|
31 - PRESSURE PLATE
MET-344096370.A1
344096370
|
£1.50
|
£1.80
|
|
32 - RIVET
MET-341520060.A2
341520060
|
£3.20
|
£3.84
|
|
33 - PLATE
MET-339131720.A13
339131720
|
-
|
|
|
34 - CLAMPING PIECE CPL.
MET-316060560.A4
316060560
|
-
|
|
|
35 - OSCILLATING PLATE
MET-315418660.A1
315418660
|
-
|
|
|
36 - FELT RING
MET-344071090.A7
344071090
|
-
|
|
|
37 - BALL BEARING 15X32X9
MET-143112030.A19
143112030
|
£22.96
|
£27.55
|
|
38 - COUNTERWEIGHT
MET-315418670.A9
315418670
|
-
|
|
|
39 - SANDING BASE PLATE COMPL.
MET-316060500.A2
316060500
|
-
|
|
|
40 - COUNTERSUNK SCREW
MET-141120200.A2
141120200
|
£1.50
|
£1.80
|
|
41 - DUST COVER
MET-339136810.A4
339136810
|
-
|
|
|
42 - BASE PLATE
MET-343436450.A2
343436450
|
£26.35
|
£31.62
|
|
43 - O-RING
MET-143195260.A5
143195260
|
-
|
|
|
44 - PLUG
MET-343437630.A5
343437630
|
-
|
|
|
45 - CAPACITOR
MET-343254950.A9
343254950
|
-
|
|
|
46 - WASHER
MET-339009340.A6
339009340
|
-
|
|
|
47 - PART NOT NEEDED
MET-399999990.A2363
399999990
|
-
|
|
|
48 - WASHER
MET-339007560.A3
339007560
|
£1.50
|
£1.80
|
|
880 - GREASE
MET-136011700.A8
136011700
|
-
|
|
|
