2 - SELF-TAP FILL H SCREW
MET-141116020.A728
141116020
|
£3.20
|
£3.84
|
|
|
3 - HOUSING
MET-343397630.A5
343397630
|
£42.65
|
£51.18
|
|
|
4 - CIRCLIP
MET-141181810.A68
141181810
|
£1.50
|
£1.80
|
|
|
5 - NEEDLE BEARING
MET-341002610.A30
341002610
|
£17.55
|
£21.06
|
|
|
6 - SPUR GEAR COMPL.
MET-316043990.A8
316043990
|
£13.63
|
£16.36
|
|
|
7 - NEEDLE SLEEVE
MET-143111430.A10
143111430
|
£7.36
|
£8.83
|
|
|
8 - BALANCING PLATE
MET-339133650.A2
339133650
|
-
|
|
|
|
9 - PRESSURE LEVER
MET-339133460.A2
339133460
|
£4.76
|
£5.71
|
|
|
10 - BEARING BRIDGE COMPL.
MET-316044000.A8
316044000
|
£9.62
|
£11.54
|
|
|
11 - RUBBER PLUG
MET-344098660.A5
344098660
|
£2.94
|
£3.53
|
|
|
12 - COVER BRUSH
MET-343380060.A12
343380060
|
£1.50
|
£1.80
|
|
|
13 - BALL BEARING 8X22X7
MET-143113400.A125
143113400
|
£9.82
|
£11.79
|
|
|
14 - ARMATURE CPL. 230 V
MET-310009630.A2
310009630
|
-
|
|
|
|
15 - BRUSH HOLDER COMPL. 230V
MET-316043490.A3
316043490
|
£8.37
|
£10.04
|
|
|
16 - RUBBER PLUG
MET-344093350.A23
344093350
|
£1.50
|
£1.80
|
|
|
17 - SWITCH SLIDE H/L
MET-343397810.A37
343397810
|
£1.50
|
£1.80
|
|
|
18 - SWITCH ROD
MET-343397580.A1
343397580
|
-
|
|
|
|
19 - SWITCH
MET-343409200.A11
343409200
|
£4.76
|
£5.71
|
|
|
20 - LED COMPL.
MET-343081830.A2
343081830
|
-
|
|
|
|
21 - SQUARE NUT
MET-141131370.A15
141131370
|
£1.50
|
£1.80
|
|
|
22 - LEVER COMPL.
MET-343397600.A4
343397600
|
£3.20
|
£3.84
|
|
|
23 - WASHER
MET-339007340.A2
339007340
|
-
|
|
|
|
24 - SPRING CLIP
MET-342022180.A6
342022180
|
-
|
|
|
|
25 - COLLAR SCREW
MET-341704490.A2
341704490
|
-
|
|
|
|
26 - CYLINDRICAL PIN
MET-141164050.A6
141164050
|
£1.50
|
£1.80
|
|
|
27 - EYE SHIELD
MET-343398000.A5
343398000
|
£3.20
|
£3.84
|
|
|
28 - GUIDE PIECE TOP
MET-341070660.A11
341070660
|
£2.94
|
£3.53
|
|
|
29 - FLAT SPRING
MET-342050890.A8
342050890
|
£1.50
|
£1.80
|
|
|
30 - RAM COMPL.
MET-316045100.A5
316045100
|
£36.59
|
£43.91
|
|
|
31 - RAM WELDED
MET-316045090.A0
316045090
|
£22.96
|
£27.55
|
|
|
33 - CAP
MET-343397610.A0
343397610
|
-
|
|
|
|
34 - LEVER
MET-339134280.A3
339134280
|
-
|
|
|
|
35 - CLAMPING PIECE
MET-341070830.A3
341070830
|
-
|
|
|
|
36 - TENSION SPRING
MET-342003550.A7
342003550
|
£1.50
|
£1.80
|
|
|
38 - GUIDE
MET-343397640.A0
343397640
|
-
|
|
|
|
39 - LATCH
MET-343397650.A5
343397650
|
-
|
|
|
|
40 - PRESSURE SPRING
MET-342002440.A3
342002440
|
£1.50
|
£1.80
|
|
|
41 - CAP SCREW
MET-141122300.A24
141122300
|
£1.50
|
£1.80
|
|
|
42 - CHAMPING CLAW
MET-339133640.A9
339133640
|
£1.50
|
£1.80
|
|
|
43 - ANTI-SPLINTERING INSERT
MET-343395480.A15
343395480
|
£2.94
|
£3.53
|
|
|
44 - BASE PLATE COMPL.
MET-316043480.A14
316043480
|
£15.41
|
£18.49
|
|
|
45 - SUPPORTING LEVER COMPL.
MET-316043470.A6
316043470
|
£11.78
|
£14.13
|
|
|
46 - WASHER
MET-339007300.A5
339007300
|
-
|
|
|
|
47 - CYLINDRICAL PIN
MET-341520210.A3
341520210
|
-
|
|
|
|
48 - BALL BEARING 6X19X6
MET-143115660.A150
143115660
|
£3.82
|
£4.59
|
|
|
49 - RUBBER PLUG
MET-344091420.A95
344091420
|
£1.50
|
£1.80
|
|
|
50 - FIELD COIL COMPL. 230V
MET-311011080.A2
311011080
|
-
|
|
|
|
51 - ELECTRONIC UNIT 230V 55/60HZ
MET-343081410.A0
343081410
|
-
|
|
|
|
52 - CYLINDRICAL PIN
MET-141164040.A13
141164040
|
£1.50
|
£1.80
|
|
|
53 - POSITION PLATE
MET-339129310.A1
339129310
|
£1.50
|
£1.80
|
|
|
54 - INDEX BOLT
MET-342001140.A7
342001140
|
£3.20
|
£3.84
|
|
|
56 - CABLE SLEEVE
MET-344101140.A90
344101140
|
£3.82
|
£4.59
|
|
|
57 - CABLE WITH PLUG
MET-344490330.A0
344490330
|
£19.18
|
£23.02
|
|
|
58 - SLIDE BLOCK
MET-343375130.A2
343375130
|
£6.38
|
£7.65
|
|
|
59 - HEXAGONAL KEY
MET-344161530.A56
344161530
|
£3.20
|
£3.84
|
|
|
60 - SLIDER
MET-343397570.A5
343397570
|
-
|
|
|
|
61 - CYLINDRICAL PIN
MET-141163320.A8
141163320
|
£1.50
|
£1.80
|
|
|
62 - CONTROL KNOB COMPL.
MET-316044010.A8
316044010
|
-
|
|
|
|
63 - PART NOT NEEDED
MET-399999990.A137
399999990
|
-
|
|
|
|
880 - GREASE 50GR 1.8oz
MET-344130930.A97
344130930
|
£36.59
|
£43.91
|
|
|

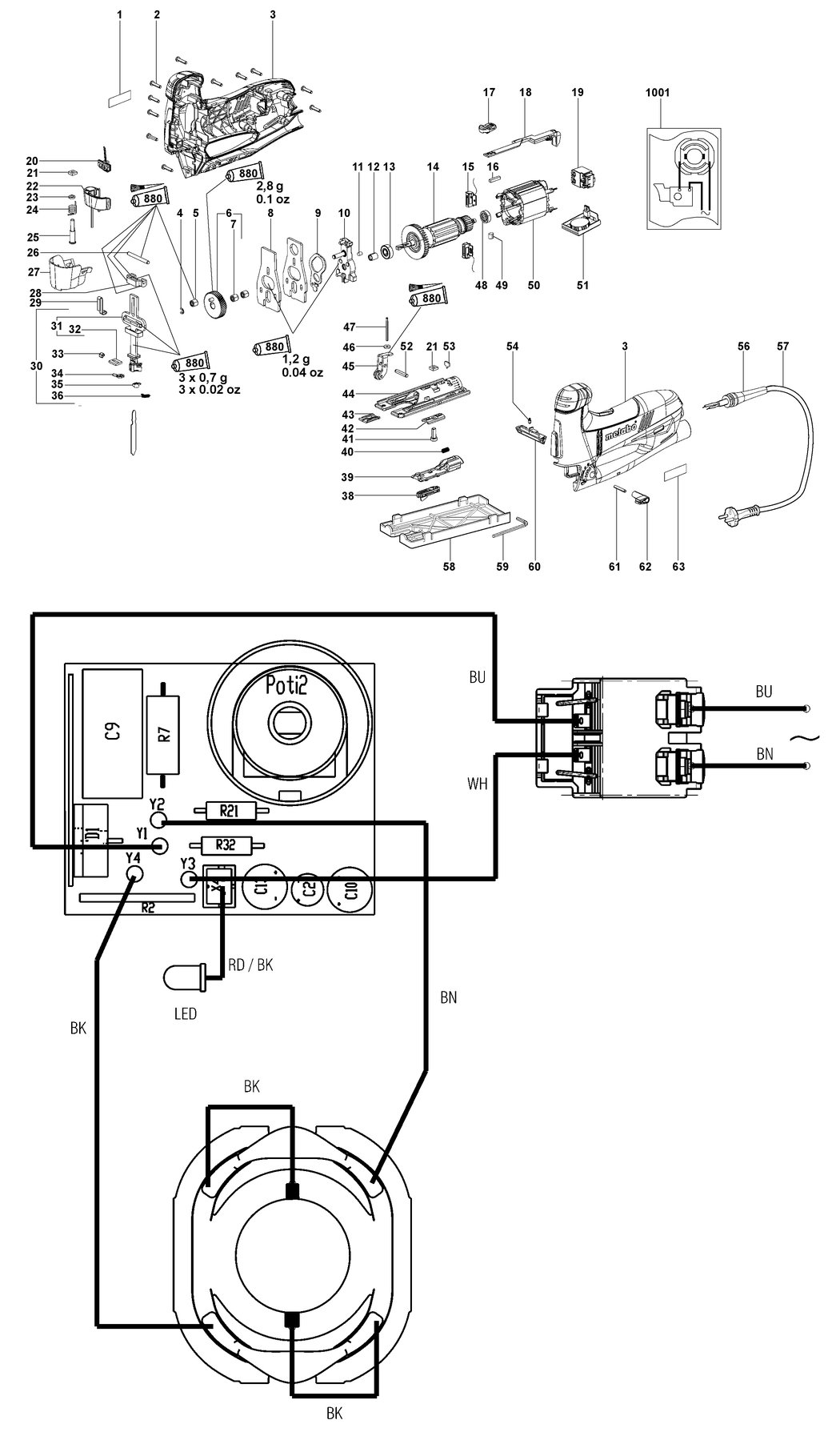

1001 - WIRING DIAGRAM
MET-338504890.A3
338504890
|
-
|
|
|
