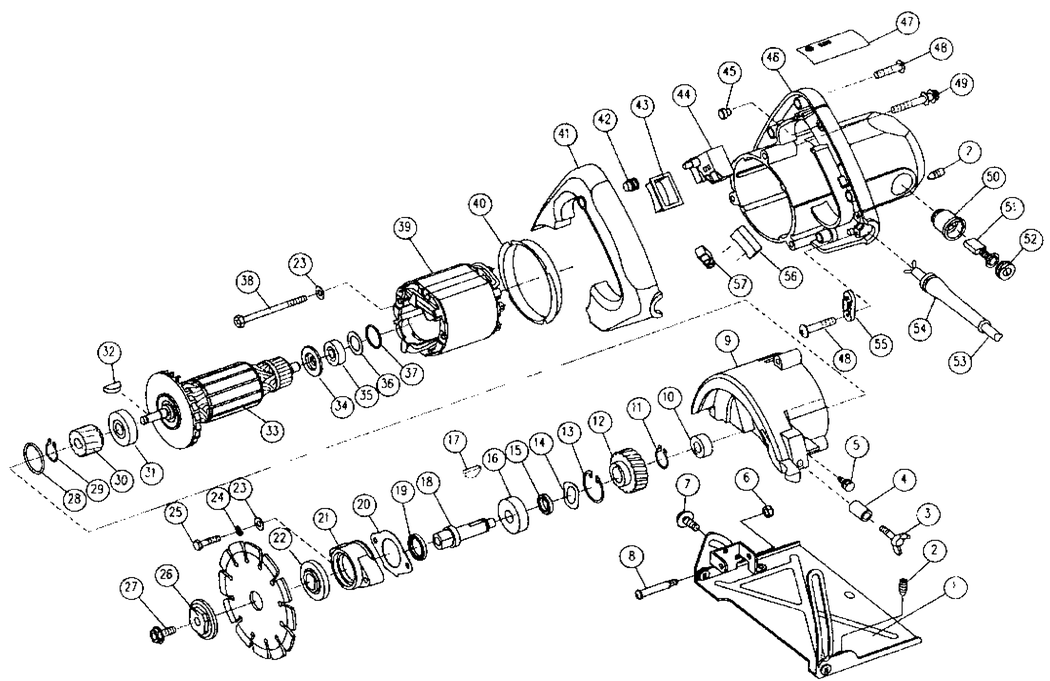

1 - BASE PLATE
MET-339132840.A2
339132840
|
-
|
|
|
|
2 - SCREW
MET-341704070.A2
341704070
|
-
|
|
|
|
3 - THUMBSCREW
MET-341704100.A0
341704100
|
-
|
|
|
|
4 - BUSHING
MET-341005680.A2
341005680
|
-
|
|
|
|
5 - SCREW
MET-341704080.A0
341704080
|
-
|
|
|
|
6 - NUT M5
MET-341102070.A0
341102070
|
-
|
|
|
|
7 - BOLT M6X8
MET-341704090.A2
341704090
|
-
|
|
|
|
8 - SCREW PIN
MET-341570080.A2
341570080
|
-
|
|
|
|
9 - GEAR CASE
MET-315104540.A2
315104540
|
-
|
|
|
|
10 - BALL BEARING
MET-320050560.A2
320050560
|
-
|
|
|
|
11 - RETAINER
MET-341150060.A2
341150060
|
-
|
|
|
|
12 - BIG GEAR
MET-340003550.A2
340003550
|
-
|
|
|
|
13 - RETAINER
MET-341150070.A0
341150070
|
-
|
|
|
|
14 - WAVE WASHER
MET-339006880.A2
339006880
|
-
|
|
|
|
15 - SPINDLE RING
MET-341058090.A0
341058090
|
-
|
|
|
|
16 - BALL BEARING
MET-320050570.A0
320050570
|
-
|
|
|
|
17 - KEY
MET-339100050.A2
339100050
|
-
|
|
|
|
18 - SPINDLE
MET-341058080.A2
341058080
|
-
|
|
|
|
19 - SEAL RING
MET-344097490.A2
344097490
|
-
|
|
|
|
20 - SEAL PAPER
MET-339011520.A2
339011520
|
-
|
|
|
|
21 - ALU. FLANGE
MET-315406140.A0
315406140
|
-
|
|
|
|
22 - INNER FLANGE
MET-341031930.A0
341031930
|
-
|
|
|
|
23 - WASHER
MET-339006900.A0
339006900
|
-
|
|
|
|
24 - SPRING WASHER
MET-341150120.A0
341150120
|
-
|
|
|
|
25 - BOLT M5X25
MET-341570090.A2
341570090
|
-
|
|
|
|
26 - OUT FLANGER
MET-341031940.A2
341031940
|
-
|
|
|
|
27 - BOLT M6X18-LEFT
MET-341570110.A0
341570110
|
-
|
|
|
|
28 - O RING
MET-341150090.A0
341150090
|
-
|
|
|
|
29 - RETAINER
MET-341150080.A2
341150080
|
-
|
|
|
|
30 - SMALL GEAR
MET-340033560.A2
340033560
|
-
|
|
|
|
31 - BALL BEARING
MET-320050610.A0
320050610
|
-
|
|
|
|
32 - KEY
MET-339100060.A2
339100060
|
-
|
|
|
|
33 - ARMATURE
MET-310008890.A1
310008890
|
-
|
|
|
|
34 - ANEL PLASTICO
MET-343392490.A2
343392490
|
-
|
|
|
|
35 - BALL BEARING
MET-320050590.A2
320050590
|
-
|
|
|
|
36 - WASHER
MET-339006890.A2
339006890
|
-
|
|
|
|
37 - O RING
MET-341150110.A2
341150110
|
-
|
|
|
|
38 - ST 5X65
MET-341704110.A2
341704110
|
-
|
|
|
|
39 - FIELD
MET-311010540.A1
311010540
|
-
|
|
|
|
40 - AIR DEFLECTOR
MET-339151030.A0
339151030
|
-
|
|
|
|
41 - HANDLE COVER
MET-343392450.A0
343392450
|
-
|
|
|
|
42 - SWITCH LOCKER COVER
MET-343392460.A2
343392460
|
-
|
|
|
|
43 - SWITCH TRIGGER COVER
MET-343392470.A0
343392470
|
-
|
|
|
|
44 - SWITCH
MET-343408290.A2
343408290
|
-
|
|
|
|
45 - RUBBER PIN
MET-344097460.A2
344097460
|
-
|
|
|
|
46 - MOTOR HOUSING
MET-315013180.A2
315013180
|
-
|
|
|
|
47 - NAME PLATE
MET-338120300.A0
338120300
|
-
|
|
|
|
48 - ST4X16
MET-341704120.A0
341704120
|
-
|
|
|
|
49 - SCREW M5X25
MET-341704130.A2
341704130
|
-
|
|
|
|
50 - BRUSH HOLDER
MET-343000880.A2
343000880
|
-
|
|
|
|
51 - BRUSH
MET-316040140.A2
316040140
|
-
|
|
|
|
52 - BRUSH CAP
MET-343030170.A2
343030170
|
-
|
|
|
|
53 - POWER CORD
MET-344496780.A0
344496780
|
-
|
|
|
|
54 - CORD PROTECTOR
MET-344097470.A0
344097470
|
-
|
|
|
|
55 - CABLE CLAMP
MET-343392480.A1
343392480
|
-
|
|
|
|
56 - CAPACITOR
MET-343254340.A0
343254340
|
-
|
|
|
|
57 - WIRING ADAPTER
MET-343050260.A2
343050260
|
-
|
|
|
