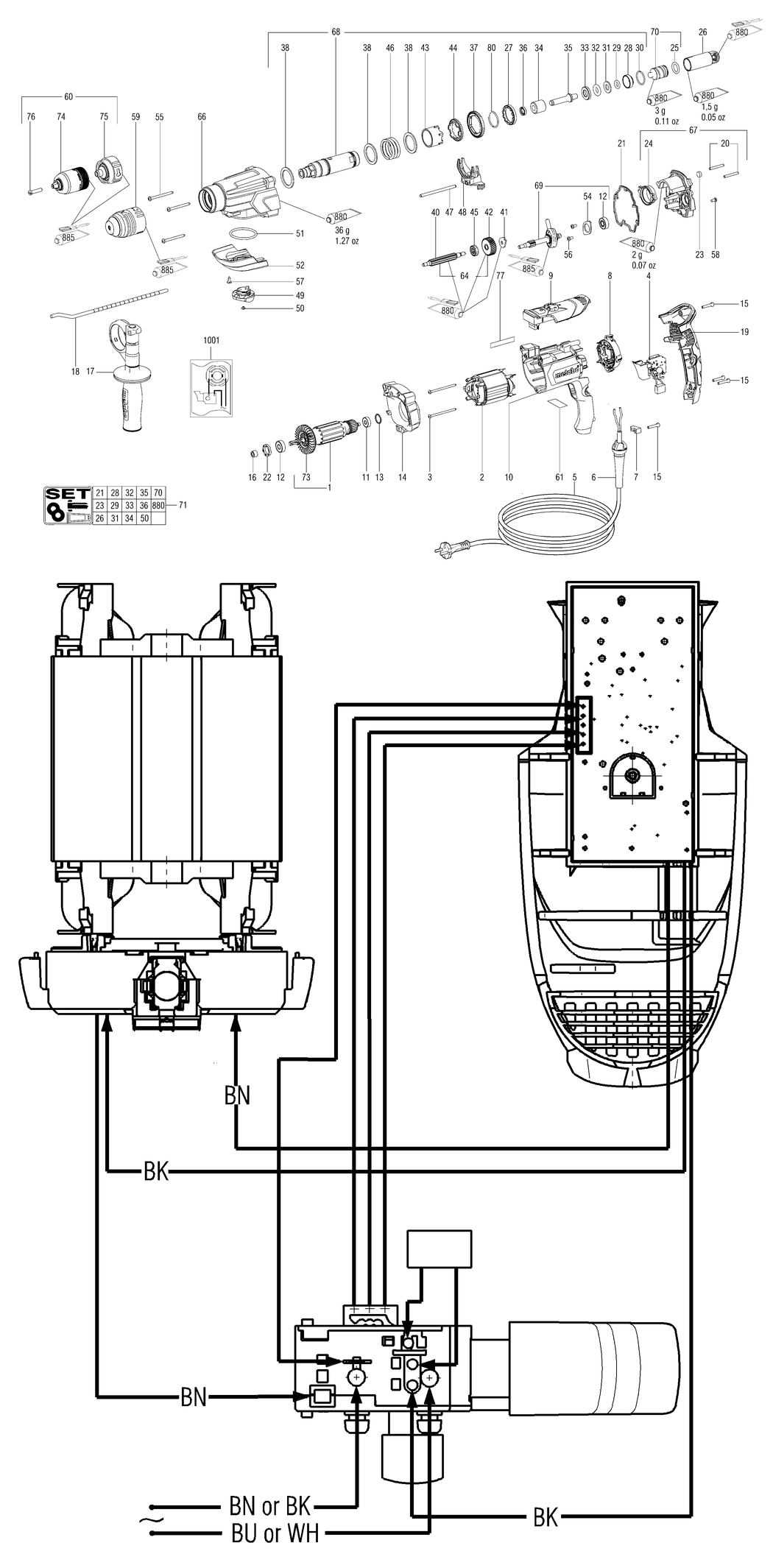

1 - ARMATURE COMPL. 120 V
MET-310012120.A1
310012120
|
£68.35
|
£82.02
|
|
|
2 - FIELD COIL W.FIELD COIL 120V
MET-311010930.A7
311010930
|
£30.06
|
£36.07
|
|
|
3 - SELF-TAP. FILL. H. SCREW
MET-141118260.A113
141118260
|
£1.50
|
£1.80
|
|
|
4 - POTI SWITCH
MET-343410950.A21
343410950
|
£17.55
|
£21.06
|
|
|
5 - CABLE WITH UL-CSA-PLUG
MET-344494030.A1
344494030
|
£26.35
|
£31.62
|
|
|
6 - CABLE SLEEVE
MET-343394300.A14
343394300
|
£3.20
|
£3.84
|
|
|
7 - CABLE CLIP
MET-343362490.A1162
343362490
|
£3.20
|
£3.84
|
|
|
8 - BRUSH HOLDER MODULE 230V
MET-316051960.A42
316051960
|
£17.55
|
£21.06
|
|
|
9 - ELECTRONIC UNIT 120V 50/60HZ
MET-343085160.A1
343085160
|
£48.88
|
£58.66
|
|
|
10 - MOTOR HOUSING
MET-315013700.A3
315013700
|
£19.18
|
£23.02
|
|
|
11 - BALL BEARING 6X19X6
MET-143115690.A293
143115690
|
£3.82
|
£4.59
|
|
|
12 - BALL BEARING 8X22X7
MET-143114880.A135
143114880
|
£9.62
|
£11.54
|
|
|
13 - O-RING
MET-143192430.A194
143192430
|
£3.20
|
£3.84
|
|
|
14 - INTERMEDIATE FLANGE
MET-343438040.A5
343438040
|
£5.62
|
£6.75
|
|
|
15 - SELF-TAP. FILL. H. SCREW
MET-141117060.A73
141117060
|
£3.20
|
£3.84
|
|
|
16 - SEALING RING
MET-343376040.A0
343376040
|
£3.20
|
£3.84
|
|
|
17 - SUPPORT HANDLE COMPL.
MET-314001460.A12
314001460
|
£17.55
|
£21.06
|
|
|
18 - DEPTH STOP
MET-341511630.A136
341511630
|
£6.38
|
£7.65
|
|
|
19 - HANDLE COVER
MET-343438030.A20
343438030
|
£9.62
|
£11.54
|
|
|
20 - CYLINDRICAL PIN
MET-341520230.A42
341520230
|
£1.50
|
£1.80
|
|
|
21 - SEAL
MET-344101780.A11
344101780
|
-
|
|
|
|
22 - RUBBER BUFFER
MET-344095920.A195
344095920
|
£1.50
|
£1.80
|
|
|
23 - FELT SEAL
MET-344070670.A37
344070670
|
£1.50
|
£1.80
|
|
|
24 - BEARING RING
MET-341006300.A12
341006300
|
-
|
|
|
|
25 - O-RING
MET-143195350.A13
143195350
|
£1.50
|
£1.80
|
|
|
26 - EXCITER SLEEVE COMPL.
MET-341211330.A4
341211330
|
£22.96
|
£27.55
|
|
|
27 - RATCHED WHEEL
MET-341071750.A7
341071750
|
£3.20
|
£3.84
|
|
|
28 - CATCHING SLEEVE
MET-341059760.A9
341059760
|
£5.62
|
£6.75
|
|
|
29 - O-RING
MET-143195210.A45
143195210
|
£1.50
|
£1.80
|
|
|
30 - CIRCLIP
MET-141156560.A1
141156560
|
£1.50
|
£1.80
|
|
|
31 - WASHER
MET-339007190.A10
339007190
|
£1.50
|
£1.80
|
|
|
32 - O-RING
MET-143195150.A21
143195150
|
£3.20
|
£3.84
|
|
|
33 - SUPPORT RING
MET-341013470.A10
341013470
|
-
|
|
|
|
34 - BUSHING
MET-341005950.A8
341005950
|
£7.36
|
£8.83
|
|
|
35 - PISTON
MET-341212200.A12
341212200
|
£13.63
|
£16.36
|
|
|
36 - SHAFT SEALING RING
MET-143195380.A9
143195380
|
£2.94
|
£3.53
|
|
|
37 - INTERMEDIATE GEAR
MET-340004450.A13
340004450
|
£4.76
|
£5.71
|
|
|
38 - WASHER
MET-339007150.A25
339007150
|
£3.20
|
£3.84
|
|
|
40 - PINION SHAFT
MET-340004490.A13
340004490
|
£19.18
|
£23.02
|
|
|
41 - GUIDE SHEET
MET-339134350.A24
339134350
|
£2.94
|
£3.53
|
|
|
42 - SPUR GEAR
MET-340013090.A9
340013090
|
£6.38
|
£7.65
|
|
|
43 - CLUTCH HUB
MET-341071830.A9
341071830
|
£5.62
|
£6.75
|
|
|
44 - CLAW WHEEL
MET-340004530.A3
340004530
|
£3.82
|
£4.59
|
|
|
45 - COUPLING SLEEVE
MET-340004460.A3
340004460
|
£2.94
|
£3.53
|
|
|
46 - PRESSURE SPRING
MET-342004060.A13
342004060
|
£3.20
|
£3.84
|
|
|
47 - SWITCH ROD
MET-341540220.A10
341540220
|
-
|
|
|
|
48 - SHIFT ELEMENT COMPL.
MET-316062550.A8
316062550
|
£4.76
|
£5.71
|
|
|
49 - CONTROL KNOB COMPL.
MET-316062450.A4
316062450
|
£4.76
|
£5.71
|
|
|
50 - SEAL
MET-343376750.A22
343376750
|
£3.20
|
£3.84
|
|
|
51 - O-RING
MET-143195870.A7
143195870
|
£2.94
|
£3.53
|
|
|
52 - HOUSING CAP UHE
MET-343438240.A0
343438240
|
£5.62
|
£6.75
|
|
|
54 - BEARING COVER
MET-339137180.A7
339137180
|
-
|
|
|
|
55 - SELF-TAP. FILL. H. SCREW
MET-141118840.A3
141118840
|
£1.50
|
£1.80
|
|
|
56 - FILL. HEAD SCREW(DIN 7985)
MET-141119570.A13
141119570
|
£1.50
|
£1.80
|
|
|
57 - SELF-TAP. FILL. H. SCREW
MET-141116130.A39
141116130
|
£1.50
|
£1.80
|
|
|
58 - FILLISTER HEAD SCREW
MET-141123980.A7
141123980
|
-
|
|
|
|
59 - ADAPTOR SDS -PLUS
MET-316047350.A7
316047350
|
£63.36
|
£76.03
|
|
|
60 - KEYLESS CHUCK W.ADAPT.
MET-316047500.A5
316047500
|
£55.90
|
£67.08
|
|
|
61 - RATING PLATE
MET-338066930.A0
338066930
|
-
|
|
|
|
64 - INTERMEDIATE SHAFT COMPL.
MET-316065240.A12
316065240
|
£36.59
|
£43.91
|
|
|
65 - GEAR-BOX COMPL.
MET-316063970.A8
316063970
|
£78.00
|
£93.60
|
|
|
66 - GEAR HOUSING COMPL.
MET-316063980.A8
316063980
|
£48.88
|
£58.66
|
|
|
67 - GEAR FLANGE CPL.
MET-316063990.A8
316063990
|
£32.88
|
£39.45
|
|
|
68 - DRILL DRIVING SLEEVE COMPL.
MET-316069070.A5
316069070
|
£67.04
|
£80.45
|
|
|
69 - WOBBLER DRIVE COMPL.
MET-316064010.A8
316064010
|
£61.08
|
£73.30
|
|
|
70 - STRIKER COMPL.
MET-316065360.A15
316065360
|
-
|
|
|
|
71 - MAINTENANCE KIT SDS
MET-316064020.A8
316064020
|
£79.10
|
£94.92
|
|
|
73 - FAN
MET-330001830.A44
330001830
|
£13.63
|
£16.36
|
|
|
74 - KEYLESS CHUCK
MET-301003140.A13
301003140
|
£32.88
|
£39.45
|
|
|
75 - QUICK-CHANGE ADAPTOR
MET-316050630.A12
316050630
|
£48.88
|
£58.66
|
|
|
76 - CAP SCREW
MET-341703360.A38
341703360
|
£7.36
|
£8.83
|
|
|
77 - INDICATION LABEL WARNING
MET-338126950.A13
338126950
|
-
|
|
|
|
80 - CIRCLIP
MET-141156360.A15
141156360
|
£1.50
|
£1.80
|
|
|
880 - GREASE FG 126
MET-344130800.A65
344130800
|
£17.55
|
£21.06
|
|
|
885 - TUBE GREASE 50G KLUEBER MICROLUBE GL 261
MET-344131210.A4
344131210
|
£19.18
|
£23.02
|
|
|
1001 - WIRING DIAGRAM 230V / 120V
MET-338506130.A4
338506130
|
-
|
|
|
