Metabo USE 8 / 20002000 / EU 230V Spare Parts

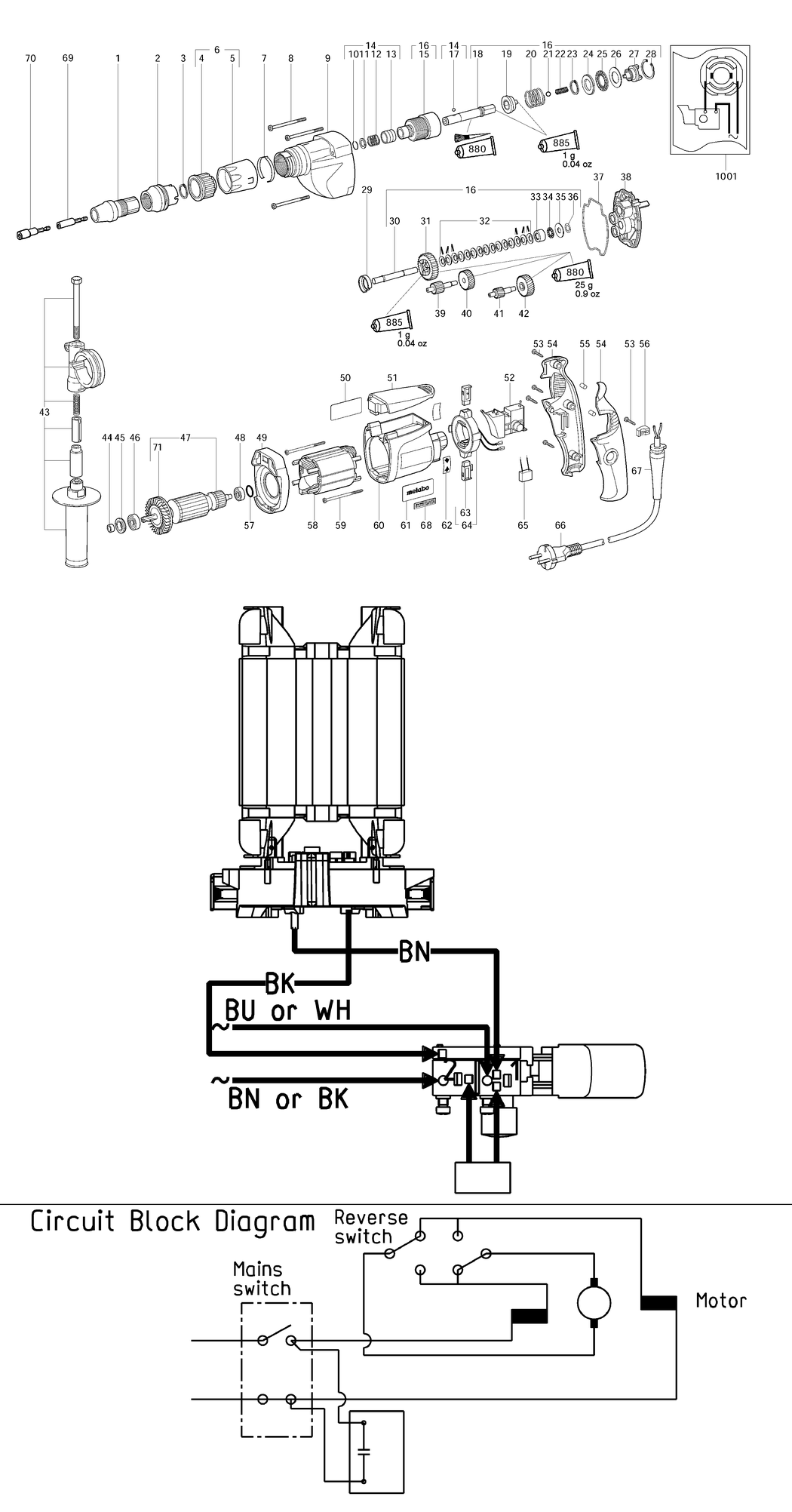

An exploded diagram and spare parts listing for the Metabo USE 8 / 20002000 / EU 230V

	Ex VAT	Inc VAT
1 - STOP GUIDE CPL. MET-316033280.A4 316033280	£15.41	£18.49
2 - DEPTH STOP MET-316035530.A4 316035530	£48.88	£58.66
3 - V-RING MET-141155920.A2 141155920	£1.50	£1.80
4 - SLEEVE MET-343378450.A2 343378450	£3.82	£4.59
5 - ADJUSTING SLEEVE MET-343378460.A0 343378460	£8.37	£10.04
6 - ADJUSTING SLEEVE MET-316034130.A2 316034130	£15.41	£18.49
7 - FLAT SPRING MET-342050770.A1 342050770	£4.76	£5.71
8 - SELF-TAP. FILL. H. SCREW MET-141122480.A9 141122480	£1.50	£1.80
9 - GEAR HOUSING CPL. MET-316034110.A2 316034110	£60.03	£72.04
10 - CIRCLIP MET-141181150.A0 141181150	£1.50	£1.80
11 - WASHER MET-339006740.A4 339006740	-
12 - PRESSURE SPRING MET-342021080.A4 342021080	£1.50	£1.80
13 - SLEEVE MET-341057060.A3 341057060	-
14 - QUICK ACTION LOCK MET-316034140.A0 316034140	£15.41	£18.49
15 - BEARING SLEEVE MET-341005350.A5 341005350	-
16 - CLUTCH CPL. MET-316034120.A4 316034120	£114.40	£137.28
17 - BALL MET-143120080.A6 143120080	£1.50	£1.80
18 - TOOL HOLDER MET-341603820.A2 341603820	£54.94	£65.93
19 - DOG CLUTCH RING MET-341057050.A3 341057050	£15.41	£18.49
20 - PRESSURE SPRING MET-342003040.A2 342003040	-
21 - BALL MET-143120040.A0 143120040	£1.50	£1.80
22 - PRESSURE SPRING MET-342003030.A27 342003030	£1.50	£1.80
23 - CIRCLIP MET-141155910.A4 141155910	£1.50	£1.80
24 - BEARING PLATE MET-143114780.A4 143114780	-
25 - AXIAL NEEDLE BEARING MET-143113090.A6 143113090	£15.41	£18.49
26 - THRUST WASHER MET-143114770.A2 143114770	£1.50	£1.80
27 - CLAW WASHER MET-341057190.A3 341057190	£32.88	£39.45
28 - RING MET-141180940.A5 141180940	£3.20	£3.84
29 - SPACER BUSH MET-343378740.A2 343378740	£3.82	£4.59
30 - SHAFT MET-341603810.A4 341603810	-
31 - DOG CLUTCH MET-340003450.A1 340003450	£36.59	£43.91
32 - CUP SPRING MET-141150520.A3 141150520	£3.20	£3.84
33 - BUSH MET-341080170.A3 341080170	-
34 - AXIAL NEEDLE BEARING MET-143113820.A8 143113820	£9.62	£11.54
35 - THRUST WASHER MET-143114760.A13 143114760	£2.94	£3.53
36 - WASHER MET-141151040.A35 141151040	£3.20	£3.84
37 - SEAL MET-344095910.A5 344095910	£3.20	£3.84
38 - GEAR FLANGE CPL. MET-316034100.A4 316034100	£48.88	£58.66
39 - INTERMEDIATE GEAR MET-340050060.A1 340050060	£9.62	£11.54
40 - SPUR GEAR MET-340020090.A1 340020090	£26.35	£31.62
41 - INTERMEDIATE GEAR MET-340012040.A2 340012040	£9.62	£11.54
42 - SPUR GEAR MET-340020080.A1 340020080	£22.61	£27.13
43 - SUPPORT HANDLE CPL. MET-314000830.A2 314000830	£11.78	£14.13
44 - SEALING RING MET-343376040.A92 343376040	£3.20	£3.84
45 - RUBBER BUFFER MET-344095920.A133 344095920	£1.50	£1.80
46 - BALL BEARING 8X22X7 MET-143115800.A437 143115800	£3.83	£4.60
47 - ARMATURE CPL. 230 V MET-310007840.A2 310007840	£63.44	£76.13
48 - BALL BEARING 6X 19X 6 MET-143114750.A25 143114750	£13.63	£16.36
49 - INTERMEDIATE FLANGE MET-343374260.A6 343374260	£4.76	£5.71
50 - RATING PLATE MET-338042950.A1 338042950	-
51 - COVER W.O. ELECTRONIC MET-343374280.A12 343374280	£8.37	£10.04
52 - ELECTRONIC SWITCH W/O WHEEL MET-343407200.A5 343407200	£32.88	£39.45
53 - SELF-TAP. FILL. H. SCREW MET-141117060.A229 141117060	£3.20	£3.84
54 - PISTOL GRIP 2 PIECE MET-343393020.A4 343393020	£11.78	£14.13
56 - CABLE CLIP MET-343362490.A816 343362490	£3.20	£3.84
57 - O-RING MET-143192430.A99 143192430	£3.20	£3.84
58 - FIELD COIL 230 V MET-311009790.A2 311009790	£54.94	£65.93
59 - SELF-TAP. FILL. H. SCREW MET-141116090.A6 141116090	£1.50	£1.80
60 - MOTOR HOUSING MET-315012650.A16 315012650	£19.18	£23.02
61 - M-LABEL 08 52X22 MET-338122160.A25 338122160	£1.50	£1.80
62 - INDICATION LABLE MET-338117280.A1 338117280	£1.50	£1.80
63 - BRUSH SET 230V/120V MET-316034940.A14 316034940	£11.90	£14.28
64 - BRUSH HOLDER MODULE MET-316028100.A13 316028100	£26.35	£31.62
65 - INTERFERENCE SUPPR. COND. MET-343253780.A13 343253780	£6.38	£7.65
66 - CABLE WITH PLUG MET-344493180.A74 344493180	£26.35	£31.62
67 - CABLE SLEEVE MET-344101140.A152 344101140	£3.82	£4.59
68 - PART NOT NEEDED MET-399999990.A1524 399999990	-
69 - INSERT HOLDER MET-344162720.A4 344162720	£32.88	£39.45
70 - PART NOT NEEDED MET-399999990.A1523 399999990	-
71 - FAN W. PROT. GRID MET-316035730.A12 316035730	£8.37	£10.04
880 - GREASE 50GR 1.8oz MET-344130970.A55 344130970	£15.41	£18.49
885 - GREASE 50GR 1.8oz MET-344130930.A75 344130930	£36.59	£43.91
1001 - DIAGRAM MET-338504130.A2 338504130	-

Attribute Name	Value
Brand	Metabo
