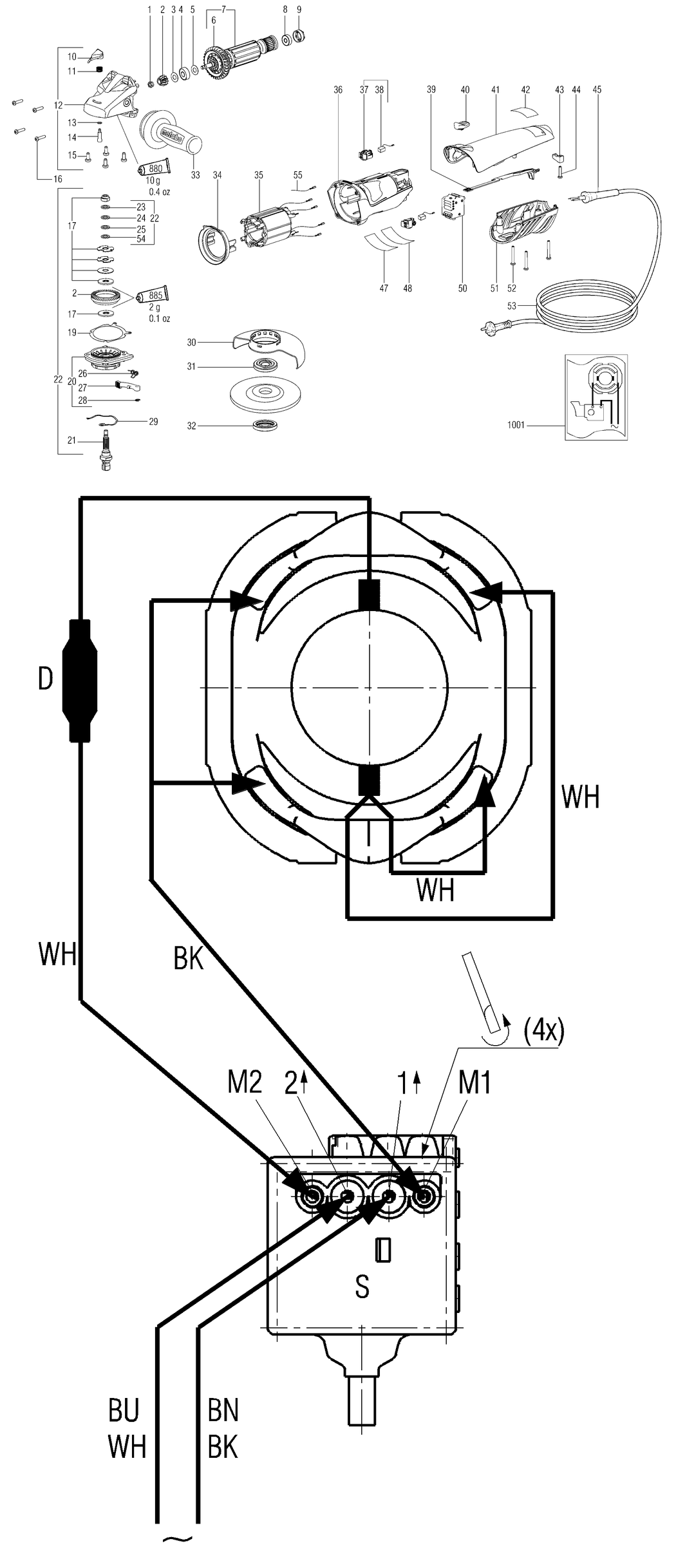

1 - HEXAGON NUT W.RECESS
MET-341102140.A37
341102140
|
£2.94
|
£3.53
|
|
|
2 - BEVEL GEAR W.PINION
MET-316041660.A58
316041660
|
£22.61
|
£27.13
|
|
|
3 - WASHER
MET-339006390.A377
339006390
|
£1.50
|
£1.80
|
|
|
4 - BALL BEARING 8X22X7
MET-143115700.A542
143115700
|
£4.76
|
£5.71
|
|
|
5 - WASHER
MET-339132280.A21
339132280
|
£1.50
|
£1.80
|
|
|
6 - FAN W. PROT. GRID
MET-316041450.A60
316041450
|
£7.36
|
£8.83
|
|
|
7 - ARMATURE COMPL. 120V
MET-310009160.A4
310009160
|
£55.90
|
£67.08
|
|
|
8 - BALL BEARING 6X19X6
MET-143115690.A308
143115690
|
£3.82
|
£4.59
|
|
|
9 - RUBBER BUSHING
MET-344097870.A301
344097870
|
£1.50
|
£1.80
|
|
|
10 - PUSH BUTTON RED
MET-343393650.A91
343393650
|
£1.50
|
£1.80
|
|
|
11 - PRESSURE SPRING
MET-342003390.A579
342003390
|
£1.50
|
£1.80
|
|
|
12 - GEAR HOUSING COMPL.
MET-316041620.A66
316041620
|
£32.88
|
£39.45
|
|
|
13 - O-RING
MET-143193650.A10
143193650
|
£1.50
|
£1.80
|
|
|
14 - BOLT
MET-341515280.A32
341515280
|
£1.50
|
£1.80
|
|
|
15 - FILLISTER HEAD SCREW
MET-141123660.A57
141123660
|
£1.50
|
£1.80
|
|
|
16 - SELF-TAP FILL H SCREW
MET-141116020.A1022
141116020
|
£3.20
|
£3.84
|
|
|
17 - FRICTION WASHER CPL.
MET-316041650.A23
316041650
|
£17.55
|
£21.06
|
|
|
19 - GASKET
MET-339011570.A62
339011570
|
£1.50
|
£1.80
|
|
|
20 - FLANGE W.CLAMPING LEVER CPL.
MET-316041720.A86
316041720
|
£32.88
|
£39.45
|
|
|
21 - SPINDLE SHAFT
MET-341161030.A39
341161030
|
£26.35
|
£31.62
|
|
|
22 - SAFETY CLUTCH W.PINION M14
MET-316041790.A13
316041790
|
£68.35
|
£82.02
|
|
|
23 - WASHER 10 2 X 14
MET-141151120.A1
141151120
|
£1.50
|
£1.80
|
|
|
24 - WASHER 10 2 X 14
MET-141152300.A252
141152300
|
£3.20
|
£3.84
|
|
|
25 - WASHER 10 2 X 14
MET-141155550.A86
141155550
|
£1.50
|
£1.80
|
|
|
26 - SPRING CLIP
MET-342022040.A162
342022040
|
£1.50
|
£1.80
|
|
|
27 - LEVER
MET-341070440.A97
341070440
|
£4.76
|
£5.71
|
|
|
28 - CIRCLIP
MET-141181810.A107
141181810
|
£1.50
|
£1.80
|
|
|
29 - COMPRESSION SPRING
MET-342050840.A22
342050840
|
£2.94
|
£3.53
|
|
|
30 - WHEEL GUARD D125
MET-339204500.A209
339204500
|
£11.78
|
£14.13
|
|
|
31 - CLAMPING FLANGE
MET-341031160.A306
341031160
|
£15.41
|
£18.49
|
|
|
32 - CLAMPING NUT COMPL. M14
MET-316023660.A19
316023660
|
£22.61
|
£27.13
|
|
|
33 - ANTI-VIBRATION HANDLE M 8
MET-314000970.A125
314000970
|
£19.18
|
£23.02
|
|
|
34 - BAFFLE
MET-339151040.A7
339151040
|
£3.20
|
£3.84
|
|
|
35 - FIELD COIL ASSEMBLY W.FIELD COIL 120V
MET-311010740.A7
311010740
|
£51.54
|
£61.85
|
|
|
36 - MOTOR HOUSING
MET-315013230.A44
315013230
|
£11.78
|
£14.13
|
|
|
37 - BRUSH HOLDER COMPL. 120V
MET-316045590.A3
316045590
|
£11.78
|
£14.13
|
|
|
38 - CARBON BRUSH SET COMPL. 120V
MET-316045820.A4
316045820
|
£11.78
|
£14.13
|
|
|
39 - SWITCH ROD
MET-343393530.A26
343393530
|
£1.50
|
£1.80
|
|
|
40 - SWITCH SLIDE
MET-343392980.A6
343392980
|
£1.50
|
£1.80
|
|
|
41 - HOUSING COVER
MET-343393460.A23
343393460
|
£7.36
|
£8.83
|
|
|
42 - M-LABEL 99 49-52X22
MET-338121660.A18
338121660
|
£4.76
|
£5.71
|
|
|
43 - CABLE CLIP
MET-343362490.A455
343362490
|
£3.20
|
£3.84
|
|
|
44 - SELF-TAP FILL H SCREW
MET-141116020.A1023
141116020
|
£3.20
|
£3.84
|
|
|
45 - CABLE SLEEVE
MET-344100970.A401
344100970
|
£3.20
|
£3.84
|
|
|
47 - RATING PLATE
MET-338050200.A0
338050200
|
£1.50
|
£1.80
|
|
|
48 - PART NOT NEEDED
MET-399999990.A648
399999990
|
-
|
|
|
|
50 - SWITCH 120V (AC/DC)
MET-343409440.A6
343409440
|
£15.41
|
£18.49
|
|
|
51 - HOUSING BLACK
MET-343395610.A8
343395610
|
£5.62
|
£6.75
|
|
|
52 - FILLISTER HEAD SCREW
MET-141123490.A7
141123490
|
£1.50
|
£1.80
|
|
|
53 - CABLE W.BRITISH PLUG 110V
MET-344497250.A8
344497250
|
£30.06
|
£36.07
|
|
|
54 - WASHER 10 2 X 14
MET-141153920.A2
141153920
|
£1.50
|
£1.80
|
|
|
55 - PART NOT NEEDED
MET-399999990.A649
399999990
|
-
|
|
|
|
880 - GREASE 100G
MET-344130920.A46
344130920
|
£19.18
|
£23.02
|
|
|
885 - GREASE SF 011 50GR 1.8oz
MET-344130560.A500
344130560
|
£19.18
|
£23.02
|
|
|
1001 - DIAGRAM
MET-338504800.A2
338504800
|
-
|
|
|
