1 - ANTI-VIBRATION HANDLE M 14
MET-314000960.A33
314000960
|
£30.06
|
£36.07
|
|
|
2 - PUSH BUTTON
MET-343376440.A24
343376440
|
£3.82
|
£4.59
|
|
|
3 - PRESSURE SPRING
MET-342001730.A46
342001730
|
£1.50
|
£1.80
|
|
|
4 - GUIDE BUSH
MET-341003970.A17
341003970
|
£5.62
|
£6.75
|
|
|
5 - GEAR HOUSING CPL.
MET-316031720.A24
316031720
|
£61.08
|
£73.30
|
|
|
6 - THRUST BOLT
MET-341513810.A6
341513810
|
£3.20
|
£3.84
|
|
|
7 - SELF LOCKING NUT
MET-341100660.A135
341100660
|
£4.76
|
£5.71
|
|
|
8 - BEVEL GEAR
MET-316025290.A2
316025290
|
£45.80
|
£54.96
|
|
|
9 - BALL BEARING 12X37X12
MET-143115230.A9
143115230
|
£9.62
|
£11.54
|
|
|
10 - SPACER RING
MET-341011510.A12
341011510
|
£7.36
|
£8.83
|
|
|
11 - ELT RING
MET-143192440.A15
143192440
|
£4.76
|
£5.71
|
|
|
12 - COVER WASHER
MET-339070080.A17
339070080
|
£3.20
|
£3.84
|
|
|
13 - FIXED BEARING COVER
MET-339007280.A35
339007280
|
£4.76
|
£5.71
|
|
|
14 - FAN W. DUST GUARD
MET-316045560.A151
316045560
|
£13.63
|
£16.36
|
|
|
15 - ARMATURE COMPL. 230 V
MET-310009480.A52
310009480
|
-
|
|
|
|
16 - SEALING WASHER
MET-343390630.A103
343390630
|
£2.94
|
£3.53
|
|
|
17 - BALL BEARING 8X22X7
MET-143113400.A248
143113400
|
£9.82
|
£11.79
|
|
|
18 - RUBBER BEARING
MET-344094080.A34
344094080
|
£2.60
|
£3.12
|
|
|
19 - BAFFLE
MET-339151160.A4
339151160
|
-
|
|
|
|
20 - SELF-TAP. FILL. H. SCREW
MET-141121680.A2
141121680
|
£1.50
|
£1.80
|
|
|
21 - FIELD COIL
MET-311009590.A115
311009590
|
£36.59
|
£43.91
|
|
|
22 - STRAND
MET-344493690.A9
344493690
|
£3.20
|
£3.84
|
|
|
23 - SELF-TAP. FILL. H. SCREW
MET-141119370.A14
141119370
|
£1.50
|
£1.80
|
|
|
24 - FILLISTER HEAD SCREW
MET-141122020.A202
141122020
|
£1.50
|
£1.80
|
|
|
25 - FILLISTER HEAD SCREW
MET-141119850.A83
141119850
|
£1.50
|
£1.80
|
|
|
26 - SEALING RING
MET-339060140.A5
339060140
|
£3.20
|
£3.84
|
|
|
27 - GEAR FLANGE COMPL. D230
MET-316045810.A2
316045810
|
-
|
|
|
|
28 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A595
141121640
|
£1.50
|
£1.80
|
|
|
29 - FILLISTER HEAD SCREW (DIN 7985)
MET-141123890.A67
141123890
|
£1.50
|
£1.80
|
|
|
31 - CIRCLIP
MET-141181500.A55
141181500
|
£1.50
|
£1.80
|
|
|
32 - SPINDLE SHAFT
MET-341602980.A33
341602980
|
£32.88
|
£39.45
|
|
|
33 - FLANGE NUT
MET-341106900.A320
341106900
|
£11.78
|
£14.13
|
|
|
34 - CLAMPING FLANGE
MET-341031160.A215
341031160
|
£15.41
|
£18.49
|
|
|
35 - WHEEL GUARD COMPL.
MET-316053510.A82
316053510
|
£32.88
|
£39.45
|
|
|
36 - SCREW
MET-341702050.A108
341702050
|
£1.50
|
£1.80
|
|
|
37 - COVER
MET-343376430.A26
343376430
|
£3.20
|
£3.84
|
|
|
38 - CARBON BRUSH SET 230 V
MET-316045790.A4
316045790
|
£17.55
|
£21.06
|
|
|
39 - BRUSH GUIDE
MET-343000770.A24
343000770
|
£8.37
|
£10.04
|
|
|
41 - HANDLE (UPPER+UNDER PART)
MET-343398260.A23
343398260
|
£15.41
|
£18.49
|
|
|
42 - SELF-TAP FILL H SCREW
MET-141116020.A258
141116020
|
£3.20
|
£3.84
|
|
|
43 - SWITCH 230V/120V
MET-343409150.A33
343409150
|
£22.96
|
£27.55
|
|
|
44 - CABLE CLIP
MET-339127730.A130
339127730
|
£1.50
|
£1.80
|
|
|
45 - CABLE SLEEVE
MET-344094550.A120
344094550
|
£3.82
|
£4.59
|
|
|
46 - CABLE WITH PLUG
MET-344487800.A76
344487800
|
£36.59
|
£43.91
|
|
|
47 - PIN SPANNER
MET-344160840.A62
344160840
|
£7.36
|
£8.83
|
|
|
48 - INDICATION LABEL
MET-338117340.A9
338117340
|
£1.50
|
£1.80
|
|
|
49 - MOTOR HOUSING
MET-315012760.A35
315012760
|
£26.35
|
£31.62
|
|
|
50 - METABO LABEL
MET-338122080.A6
338122080
|
-
|
|
|
|
51 - RATING PLATE
MET-338053120.A0
338053120
|
-
|
|
|
|
52 - SELF-TAP. FILL. H. SCREW
MET-141116800.A47
141116800
|
£1.50
|
£1.80
|
|
|
88 - SPACER BUSH
MET-341006090.A119
341006090
|
£2.94
|
£3.53
|
|
|
89 - CAP SCREW
MET-141111340.A3
141111340
|
£1.50
|
£1.80
|
|
|
880 - GREASE 100G
MET-344130910.A165
344130910
|
£19.18
|
£23.02
|
|
|

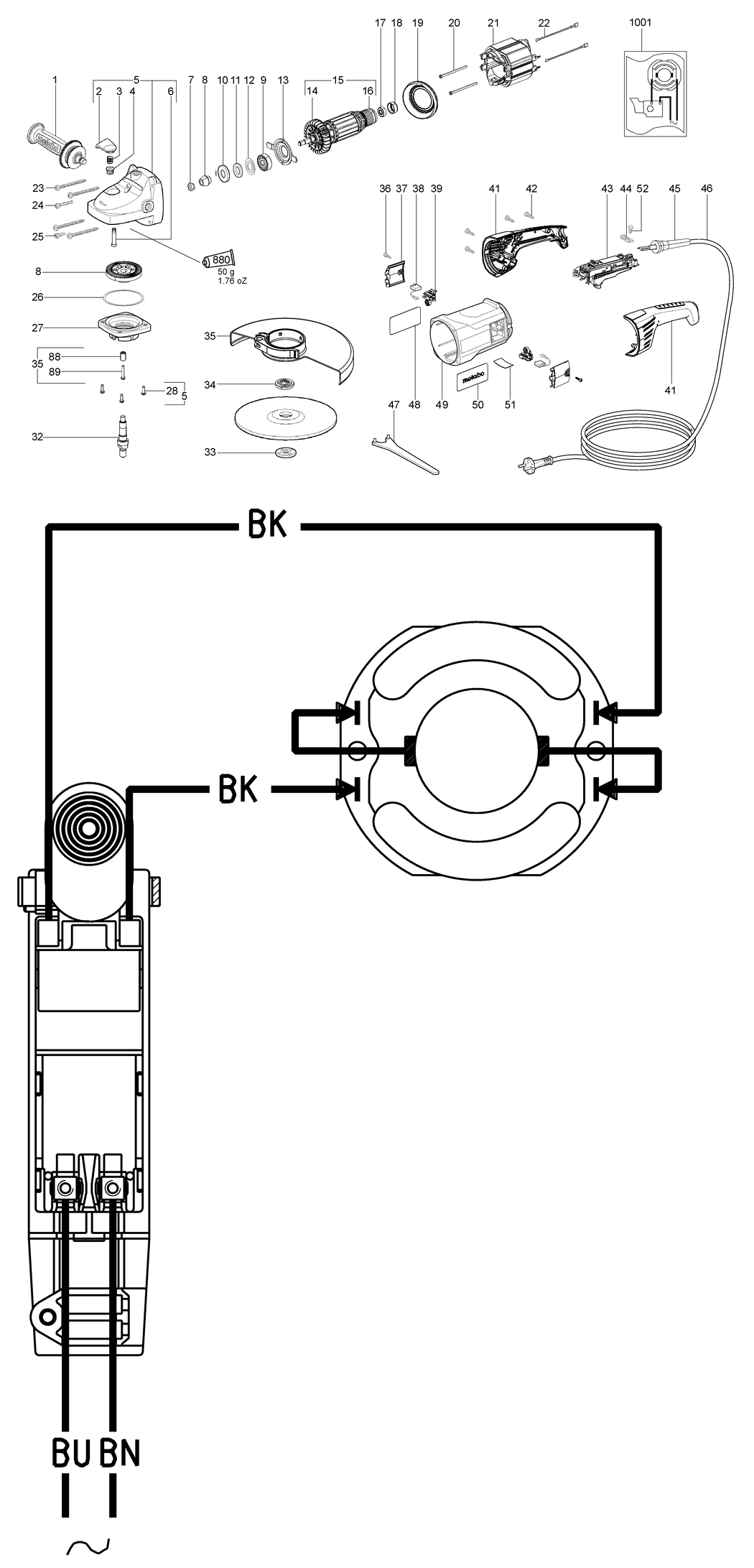

1001 - DIAGRAM
MET-338502110.A44
338502110
|
-
|
|
|
