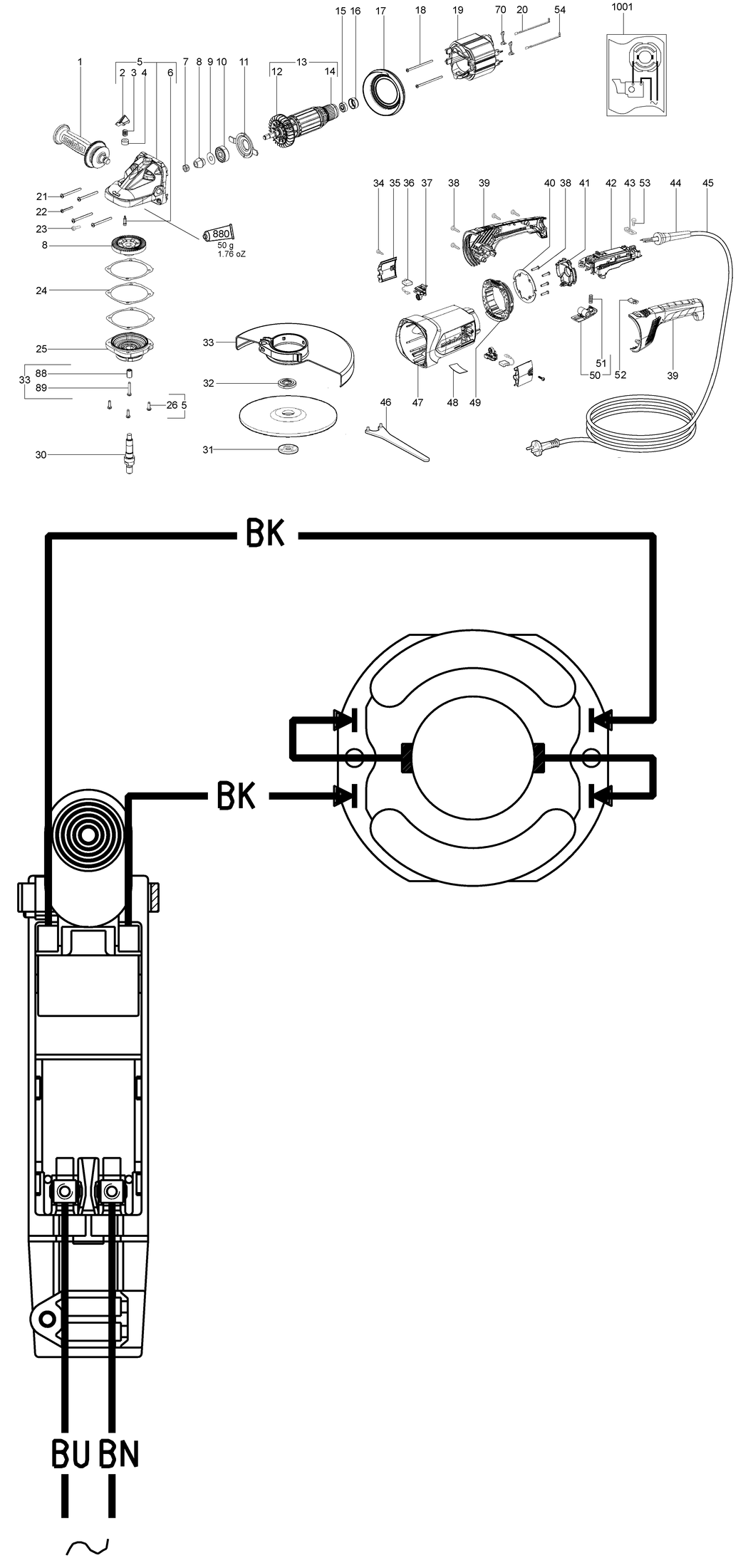

An exploded diagram and spare parts listing for the Metabo W 22-230 / 06458380 / GB 230V
Ex VAT Inc VAT
1 - ANTI-VIBRATION HANDLE M 14 MET-314000960.A116 314000960 £30.06 £36.07
2 - PUSH BUTTON BLACK MET-343399790.A71 343399790 £2.94 £3.53
3 - PRESSURE SPRING MET-342003390.A430 342003390 £1.50 £1.80
4 - GUIDE BUSH MET-341005830.A164 341005830 £5.62 £6.75
5 - GEAR HOUSING CPL. MET-316045500.A159 316045500 £68.35 £82.02
6 - BOLT MET-341515430.A160 341515430 £2.94 £3.53
7 - SELF LOCKING NUT MET-341100660.A60 341100660 £4.76 £5.71
8 - BEVEL GEAR MET-316045530.A106 316045530 £61.08 £73.30
9 - WASHER MET-141123870.A143 141123870 £1.50 £1.80
10 - BALL BEARING 12X37X12 MET-143115510.A82 143115510 £6.38 £7.65
11 - FIXED BEARING COVER MET-339007280.A154 339007280 £4.76 £5.71
12 - FAN W. DUST GUARD MET-316045560.A5 316045560 £13.63 £16.36
13 - ARMATURE COMPL. 230 V MET-310009480.A24 310009480 -
14 - SEALING WASHER MET-343390630.A59 343390630 £2.94 £3.53
15 - BALL BEARING 8X22X7 MET-143115800.A262 143115800 £3.83 £4.60
16 - RUBBER BEARING MET-344094080.A144 344094080 £2.60 £3.12
17 - BAFFLE MET-339151130.A68 339151130 £2.94 £3.53
18 - SELF-TAP. FILL. H. SCREW MET-141121680.A113 141121680 £1.50 £1.80
19 - FIELD COIL MET-311009590.A92 311009590 £36.59 £43.91
20 - STRAND COMPL. 230V MET-344498050.A22 344498050 -
21 - SELF-TAP. FILL. H. SCREW MET-141119370.A156 141119370 £1.50 £1.80
22 - FILLISTER HEAD SCREW MET-141122020.A65 141122020 £1.50 £1.80
23 - FILLISTER HEAD SCREW MET-141119850.A150 141119850 £1.50 £1.80
24 - GASKET MET-339011810.A97 339011810 £1.50 £1.80
25 - GEAR FLANGE CPL. MET-316045550.A101 316045550 £54.94 £65.93
26 - FILL. HEAD SCREW(DIN 7985) MET-141121640.A153 141121640 £1.50 £1.80
27 - FILLISTER HEAD SCREW (DIN 7985) MET-141123890.A25 141123890 £1.50 £1.80
29 - CIRCLIP MET-141181500.A9 141181500 £1.50 £1.80
30 - SPINDLE SHAFT MET-341602980.A81 341602980 £32.88 £39.45
31 - FLANGE NUT MET-341106900.A158 341106900 £11.78 £14.13
32 - CLAMPING FLANGE MET-341031160.A268 341031160 £15.41 £18.49
33 - WHEEL GUARD COMPL. MET-316053510.A11 316053510 £32.88 £39.45
34 - SCREW MET-341702050.A212 341702050 £1.50 £1.80
35 - BRUSH HOLDER COVER MET-343395530.A112 343395530 £1.50 £1.80
36 - CARBON BRUSH SET 230 V MET-316045570.A114 316045570 £19.18 £23.02
37 - BRUSH GUIDE MET-343000950.A29 343000950 £9.62 £11.54
38 - SELF-TAP FILL H SCREW MET-141116020.A1169 141116020 £3.20 £3.84
39 - HANDLE (UPPER+UNDER PART) MET-343395510.A64 343395510 £13.63 £16.36
40 - RETAINING SHEET MET-339007320.A90 339007320 £3.20 £3.84
41 - EDGE PROTECTION MET-343398250.A34 343398250 £1.50 £1.80
42 - WITCH MET-343409180.A8 343409180 £22.96 £27.55
43 - CABLE CLIP MET-339127730.A85 339127730 £1.50 £1.80
44 - CABLE SLEEVE MET-344094550.A59 344094550 £3.82 £4.59
45 - CABLE WITH PLUG MET-344491990.A1 344491990 £54.94 £65.93
46 - PIN SPANNER MET-344160840.A129 344160840 £7.36 £8.83
47 - MOTOR HOUSING MET-315013300.A136 315013300 £22.61 £27.13
48 - RATING PLATE MET-338054550.A3 338054550 -
49 - DAMPER MET-343397490.A6 343397490 £11.78 £14.13
50 - LOCKING LEVER MET-343395520.A52 343395520 £3.20 £3.84
51 - PRESSURE SPRING MET-342002170.A47 342002170 £1.50 £1.80
52 - DUMMY PLUG MET-343397890.A7 343397890 £1.50 £1.80
53 - SELF-TAP. FILL. H. SCREW MET-141116800.A162 141116800 £1.50 £1.80
54 - PART NOT NEEDED MET-399999990.A1006 399999990 -
70 - PART NOT NEEDED MET-399999990.A1007 399999990 -
88 - SPACER BUSH MET-341006090.A1 341006090 £2.94 £3.53
89 - CAP SCREW MET-141111340.A54 141111340 £1.50 £1.80
880 - GREASE 100G MET-344130910.A433 344130910 £19.18 £23.02
1001 - DIAGRAM MET-338502110.A15 338502110 -
