1 - SELF-TAP. FILL. H. SCREW
MET-341723170.A5
341723170
|
-
|
|
|
|
2 - PRESS BUTTON
MET-343448230.A13
343448230
|
-
|
|
|
|
3 - PRESSURE SPRING
MET-342024350.A11
342024350
|
-
|
|
|
|
4 - GEAR HOUSING COMPL.
MET-316097750.A3
316097750
|
-
|
|
|
|
5 - FELT WASHER
MET-344071130.A17
344071130
|
-
|
|
|
|
6 - HEX NUT
MET-341109130.A15
341109130
|
-
|
|
|
|
7 - BALL BEARING
MET-320054450.A13
320054450
|
-
|
|
|
|
8 - SEALING RING
MET-344114080.A16
344114080
|
-
|
|
|
|
9 - WASHER
MET-341020220.A11
341020220
|
-
|
|
|
|
10 - RETAINING RING
MET-342024300.A24
342024300
|
-
|
|
|
|
11 - BAFFLE
MET-339153570.A17
339153570
|
-
|
|
|
|
12 - ARMATURE 110V
MET-310150120.A4
310150120
|
£64.30
|
£77.16
|
|
|
13 - BAFFLE
MET-339153580.A4
339153580
|
-
|
|
|
|
14 - HANDLE CPL.
MET-314000960.A222
314000960
|
£30.06
|
£36.07
|
|
|
15 - RETAINING RING
MET-141180060.A60
141180060
|
£1.50
|
£1.80
|
|
|
16 - FILLISTER HEAD SCREW (DIN 7985)
MET-141123890.A71
141123890
|
£1.50
|
£1.80
|
|
|
17 - BEARING COVER
MET-339149180.A16
339149180
|
-
|
|
|
|
18 - BALL BEARING
MET-320054460.A8
320054460
|
-
|
|
|
|
19 - FELT
MET-344071140.A4
344071140
|
-
|
|
|
|
20 - SPINDLE
MET-341605680.A3
341605680
|
-
|
|
|
|
21 - SEALING WASHER
MET-339013190.A8
339013190
|
-
|
|
|
|
22 - GEAR FLANGE
MET-315203160.A11
315203160
|
-
|
|
|
|
23 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A590
141121640
|
£1.50
|
£1.80
|
|
|
24 - CHEESE-HEAD SCREW
MET-141114010.A23
141114010
|
£1.50
|
£1.80
|
|
|
25 - WHEEL GUARD COMPL.
MET-339204880.A17
339204880
|
-
|
|
|
|
26 - PART NOT NEEDED
MET-399999990.A1264
399999990
|
-
|
|
|
|
27 - PART NOT NEEDED
MET-399999990.A1265
399999990
|
-
|
|
|
|
28 - LOCKING BOLT
MET-341519740.A16
341519740
|
-
|
|
|
|
29 - BEVEL GEAR AND PINION D230
MET-316097770.A4
316097770
|
-
|
|
|
|
30 - FIELD 120V-127V
MET-311013030.A5
311013030
|
-
|
|
|
|
31 - DUST SEAL
MET-344114090.A6
344114090
|
-
|
|
|
|
32 - BALL BEARING
MET-320054470.A11
320054470
|
-
|
|
|
|
33 - MOTOR HOUSING
MET-343448240.A10
343448240
|
-
|
|
|
|
34 - CARBON BRUSH HOLDER COMPL.
MET-316097780.A15
316097780
|
£8.37
|
£10.04
|
|
|
35 - PAN HD.PLASTIC SCR.
MET-341723070.A20
341723070
|
-
|
|
|
|
36 - CARBON BRUSH COMPL.
MET-316097790.A6
316097790
|
£6.38
|
£7.65
|
|
|
37 - BRUSH HOLDER COVER
MET-343448260.A10
343448260
|
-
|
|
|
|
38 - SELF-TAP. FILL. H. SCREW
MET-341723190.A15
341723190
|
-
|
|
|
|
39 - METABO LABEL
MET-338129850.A5
338129850
|
-
|
|
|
|
40 - SWITCH 230V/120V
MET-343409150.A35
343409150
|
£22.96
|
£27.55
|
|
|
41 - SLEEVE 120V
MET-344114110.A3
344114110
|
-
|
|
|
|
43 - CABLE CLIP
MET-343448330.A12
343448330
|
-
|
|
|
|
44 - CABLE SLEEVE
MET-344114120.A12
344114120
|
£3.20
|
£3.84
|
|
|
45 - CARRY HANDLE (B)
MET-343448250.A11
343448250
|
-
|
|
|
|
46 - CARRY HANDLE (A)
MET-343448270.A11
343448270
|
-
|
|
|
|
47 - CABLE 120V
MET-344531880.A2
344531880
|
-
|
|
|
|
48 - RATING PLATE
MET-338070630.A0
338070630
|
-
|
|
|
|
50 - WARNING LABEL 52X22
MET-338122090.A149
338122090
|
-
|
|
|
|
51 - PART NOT NEEDED
MET-399999990.A1266
399999990
|
-
|
|
|
|
880 - GREASE 100G
MET-344130910.A158
344130910
|
£19.18
|
£23.02
|
|
|

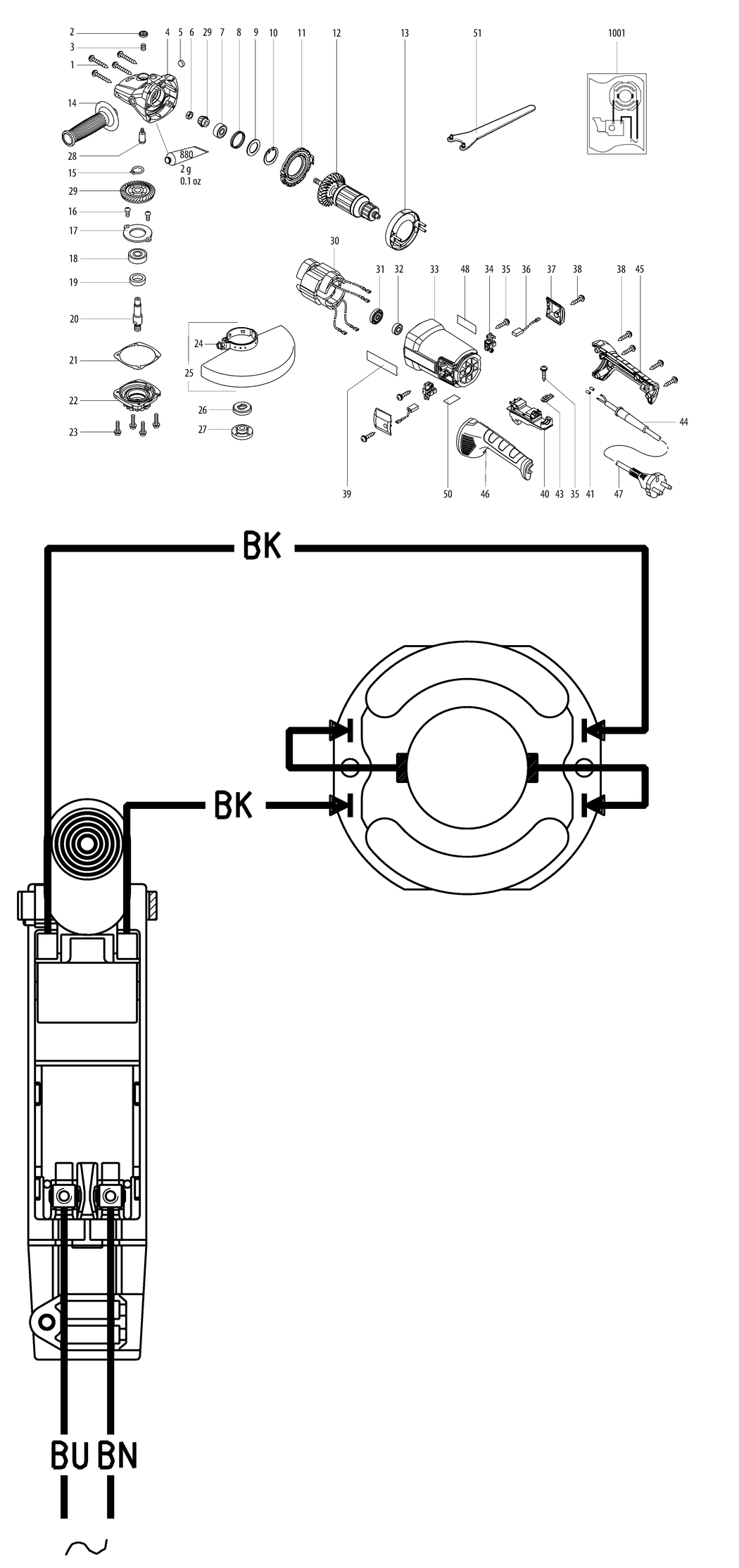

1001 - DIAGRAM
MET-338502110.A41
338502110
|
-
|
|
|
