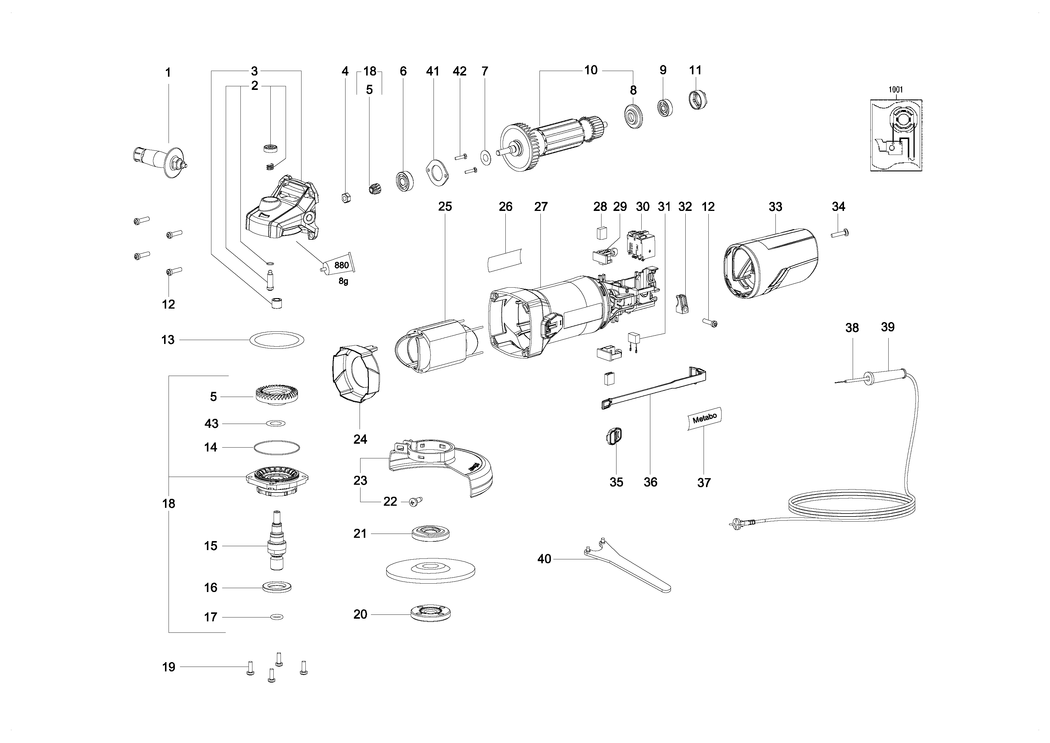

1 - HANDLE CPL.
MET-314000540.A36
314000540
|
£15.41
|
£18.49
|
|
|
2 - SPINDLE STOP COMPL.
MET-316040610.A216
316040610
|
£4.76
|
£5.71
|
|
|
3 - GEAR HOUSING COMPL.
MET-316098360.A9
316098360
|
-
|
|
|
|
4 - HEXAGONAL NUT
MET-141130100.A103
141130100
|
£1.50
|
£1.80
|
|
|
5 - BEVEL GEAR AND PINION
MET-316098350.A4
316098350
|
-
|
|
|
|
6 - BALL BEARING 8X 22X 7
MET-143116020.A7
143116020
|
-
|
|
|
|
7 - WASHER
MET-339007940.A31
339007940
|
-
|
|
|
|
8 - SEALING WASHER
MET-343392740.A87
343392740
|
£6.38
|
£7.65
|
|
|
9 - BALL BEARING 6X19X6
MET-143115870.A155
143115870
|
£5.62
|
£6.75
|
|
|
10 - ARMATURE COMPL. 230V
MET-310013010.A10
310013010
|
-
|
|
|
|
11 - RUBBER BUSHING
MET-344095260.A187
344095260
|
£3.20
|
£3.84
|
|
|
12 - SELF-TAP FILL H SCREW
MET-141116020.A550
141116020
|
£3.20
|
£3.84
|
|
|
13 - COMPENSATING WASHER
MET-339060160.A137
339060160
|
£3.20
|
£3.84
|
|
|
14 - O-RING 48 X 1
MET-344097550.A114
344097550
|
£1.50
|
£1.80
|
|
|
15 - SPINDLE M14
MET-341605710.A6
341605710
|
-
|
|
|
|
16 - WASHER
MET-339007790.A24
339007790
|
-
|
|
|
|
17 - O-RING
MET-143192540.A15
143192540
|
£1.50
|
£1.80
|
|
|
18 - FLANGE COMPL.
MET-316098320.A7
316098320
|
£26.35
|
£31.62
|
|
|
19 - FILL. HEAD SCREW
MET-141120070.A229
141120070
|
£1.50
|
£1.80
|
|
|
20 - FLANGE NUT
MET-341106900.A199
341106900
|
£11.78
|
£14.13
|
|
|
21 - CLAMPING FLANGE
MET-341031160.A49
341031160
|
£15.41
|
£18.49
|
|
|
22 - FILLISTER HEAD SCREW
MET-141124060.A37
141124060
|
-
|
|
|
|
23 - WHEEL GUARD COMPL. D 125
MET-339209560.A4
339209560
|
-
|
|
|
|
24 - BAFFLE
MET-339151280.A13
339151280
|
-
|
|
|
|
25 - FIELD COIL 230V
MET-311013090.A8
311013090
|
-
|
|
|
|
26 - RATING PLATE
MET-338071760.A0
338071760
|
-
|
|
|
|
27 - MOTOR HOUSING
MET-315013970.A7
315013970
|
-
|
|
|
|
28 - CARBON BRUSH COMPL.
MET-316098370.A4
316098370
|
£6.38
|
£7.65
|
|
|
29 - BRUSH HOLDER COMPL.
MET-316098380.A9
316098380
|
-
|
|
|
|
30 - SWITCH
MET-343408260.A51
343408260
|
£7.36
|
£8.83
|
|
|
31 - CAPACITOR
MET-343255170.A0
343255170
|
-
|
|
|
|
32 - CABLE CLIP
MET-343362490.A1118
343362490
|
£3.20
|
£3.84
|
|
|
33 - MOTOR CAP
MET-343449410.A12
343449410
|
-
|
|
|
|
34 - SELF-TAP. FILL. H. SCREW
MET-141116800.A134
141116800
|
£1.50
|
£1.80
|
|
|
35 - SWITCH SLIDE RED
MET-343412110.A29
343412110
|
£2.94
|
£3.53
|
|
|
36 - SWITCH ROD
MET-343446390.A5
343446390
|
-
|
|
|
|
37 - METABO PLATE
MET-338122540.A132
338122540
|
£1.50
|
£1.80
|
|
|
38 - CABLE W.CEE PLUG
MET-344499540.A39
344499540
|
£17.55
|
£21.06
|
|
|
39 - CABLE SLEEVE
MET-343446380.A27
343446380
|
-
|
|
|
|
40 - PIN SPANNER
MET-344164240.A15
344164240
|
-
|
|
|
|
41 - FIXED BEARING COVER
MET-315420080.A18
315420080
|
-
|
|
|
|
42 - FILLISTER HEAD SCREW
MET-141110460.A108
141110460
|
£1.50
|
£1.80
|
|
|
43 - WASHER
MET-141156520.A18
141156520
|
-
|
|
|
|
880 - GREASE 100G
MET-344130910.A106
344130910
|
£19.18
|
£23.02
|
|
|
1001 - DIAGRAM
MET-338510270.A12
338510270
|
-
|
|
|
