1 - HANDLE CPL.
MET-314000540.A38
314000540
|
£15.41
|
£18.49
|
|
|
2 - SPINDLE STOP COMPL.
MET-316040610.A221
316040610
|
£4.76
|
£5.71
|
|
|
3 - GEAR HOUSING COMPL.
MET-316046070.A28
316046070
|
£30.06
|
£36.07
|
|
|
4 - HEXAGONAL NUT
MET-141130100.A104
141130100
|
£1.50
|
£1.80
|
|
|
5 - BEVEL GEAR AND PINION
MET-316051030.A13
316051030
|
£22.61
|
£27.13
|
|
|
6 - FILLISTER HEAD SCREW
MET-141110460.A111
141110460
|
£1.50
|
£1.80
|
|
|
7 - BALL BEARING 8X22X7
MET-143115420.A8
143115420
|
£8.37
|
£10.04
|
|
|
8 - FIXED BEARING COVER
MET-315417490.A35
315417490
|
-
|
|
|
|
9 - SEALING WASHER
MET-343392740.A83
343392740
|
£6.38
|
£7.65
|
|
|
10 - BALL BEARING 6X19X6
MET-143115870.A150
143115870
|
£5.62
|
£6.75
|
|
|
11 - ARMATURE COMPL. 230V
MET-310009770.A3
310009770
|
£42.65
|
£51.18
|
|
|
12 - RUBBER BUSHING
MET-344095260.A188
344095260
|
£3.20
|
£3.84
|
|
|
13 - BAFFLE
MET-343399200.A19
343399200
|
-
|
|
|
|
14 - MOTOR CAP
MET-343399190.A4
343399190
|
-
|
|
|
|
15 - SELF-TAP FILL H SCREW
MET-141116020.A547
141116020
|
£3.20
|
£3.84
|
|
|
16 - O-RING 48 X 1
MET-344097550.A111
344097550
|
£1.50
|
£1.80
|
|
|
17 - SPINDLE M14
MET-341161150.A91
341161150
|
-
|
|
|
|
18 - O-RING
MET-143192540.A18
143192540
|
£1.50
|
£1.80
|
|
|
19 - FLANGE COMPL.
MET-341032230.A6
341032230
|
£42.65
|
£51.18
|
|
|
20 - FILL. HEAD SCREW
MET-141120070.A230
141120070
|
£1.50
|
£1.80
|
|
|
21 - FLANGE NUT
MET-341106900.A196
341106900
|
£11.78
|
£14.13
|
|
|
22 - CLAMPING FLANGE
MET-341031160.A53
341031160
|
£15.41
|
£18.49
|
|
|
23 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A287
141121640
|
£1.50
|
£1.80
|
|
|
24 - WHEEL GUARD COMPL. dia115
MET-339203660.A3
339203660
|
£11.78
|
£14.13
|
|
|
25 - M-LABEL 08 52X22
MET-338122160.A89
338122160
|
£1.50
|
£1.80
|
|
|
26 - SWITCH SLIDE
MET-343409810.A12
343409810
|
£3.82
|
£4.59
|
|
|
27 - SWITCH ROD
MET-343399170.A4
343399170
|
£1.50
|
£1.80
|
|
|
28 - CABLE CLIP
MET-343362490.A1119
343362490
|
£3.20
|
£3.84
|
|
|
29 - FIELD COIL COMPL. 230V
MET-311011230.A2
311011230
|
-
|
|
|
|
30 - RATING PLATE
MET-338054190.A1
338054190
|
-
|
|
|
|
31 - MOTOR HOUSING
MET-343399180.A17
343399180
|
£11.78
|
£14.13
|
|
|
32 - METABO PLATE
MET-338122540.A129
338122540
|
£1.50
|
£1.80
|
|
|
33 - CARBON BRUSH SET CUT-OFF
MET-316047440.A2
316047440
|
£6.38
|
£7.65
|
|
|
34 - PART NOT NEEDED
MET-399999990.A2352
399999990
|
-
|
|
|
|
35 - BRUSH HOLDER
MET-343012950.A57
343012950
|
£3.82
|
£4.59
|
|
|
36 - CONDENSER
MET-343254290.A40
343254290
|
£2.94
|
£3.53
|
|
|
37 - SWITCH
MET-343408260.A47
343408260
|
£7.36
|
£8.83
|
|
|
38 - CABLE SLEEVE
MET-344097360.A60
344097360
|
£2.94
|
£3.53
|
|
|
39 - CABLE WITH PLUG 240V
MET-344498480.A2
344498480
|
£19.18
|
£23.02
|
|
|
40 - PIN SPANNER
MET-344163920.A170
344163920
|
£4.76
|
£5.71
|
|
|
880 - GREASE 100G
MET-344130910.A108
344130910
|
£19.18
|
£23.02
|
|
|

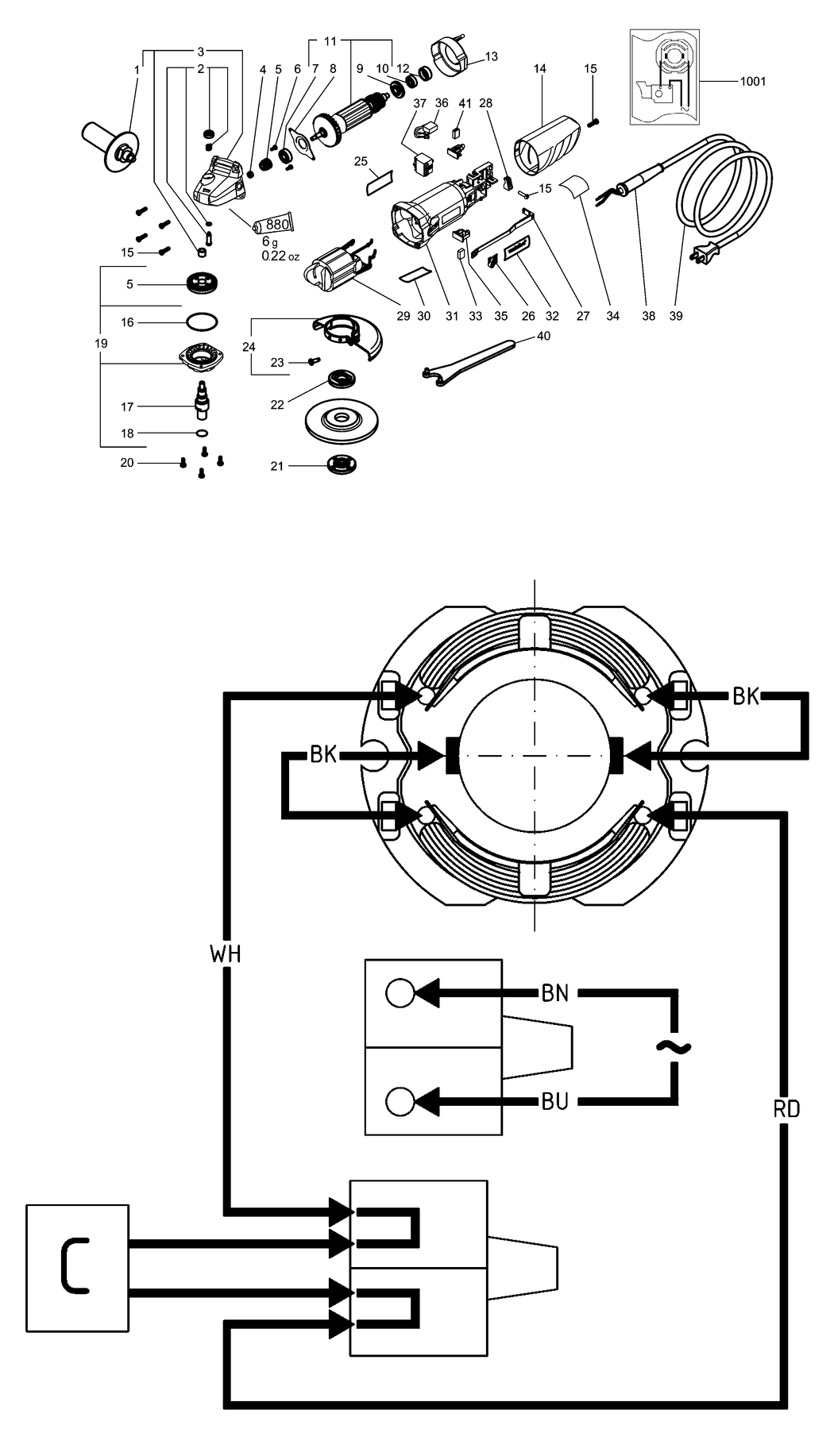

1001 - DIAGRAM
MET-338504470.A118
338504470
|
-
|
|
|
