Metabo W 8-100 / 00258370 / TW 110V Spare Parts

Metabo W 8-100 / 00258370 / TW 110V Spare Parts

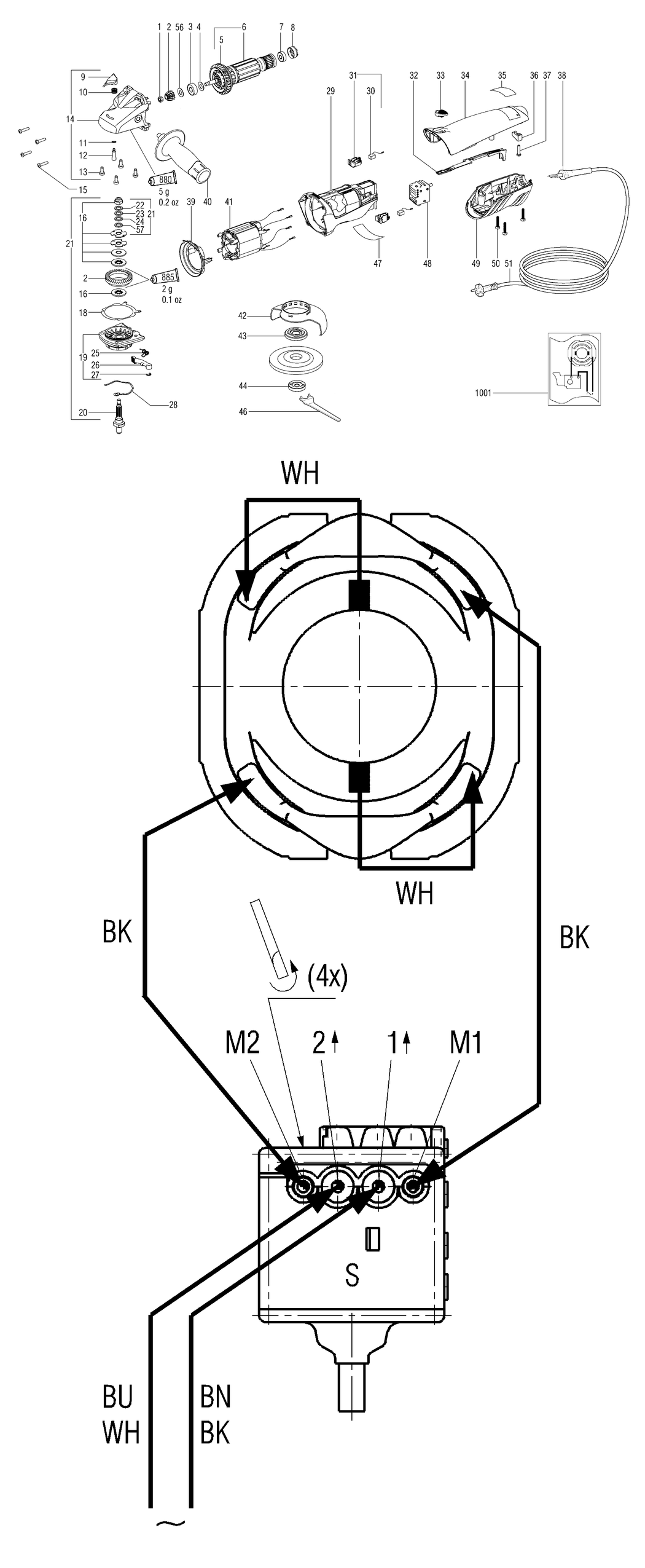

An exploded diagram and spare parts listing for the Metabo W 8-100 / 00258370 / TW 110V
Ex VAT Inc VAT
1 - HEXAGON NUT W.RECESS MET-341100940.A485 341100940 £3.20 £3.84
2 - BEVEL GEAR W.PINION MET-316041660.A7 316041660 £22.61 £27.13
3 - BALL BEARING 8X22X7 MET-143115700.A370 143115700 £4.76 £5.71
4 - WASHER MET-339133060.A22 339133060 £1.50 £1.80
5 - FAN W. PROT. GRID MET-316041450.A15 316041450 £7.36 £8.83
6 - ARMATURE COMPL. 120V MET-310009050.A4 310009050 £30.06 £36.07
7 - BALL BEARING 6X19X6 MET-143115690.A343 143115690 £3.82 £4.59
8 - RUBBER BUSHING MET-344097870.A130 344097870 £1.50 £1.80
9 - PUSH BUTTON MET-343393410.A12 343393410 £1.50 £1.80
10 - PRESSURE SPRING MET-342003390.A124 342003390 £1.50 £1.80
11 - O-RING MET-143193650.A79 143193650 £1.50 £1.80
12 - BOLT MET-341515280.A100 341515280 £1.50 £1.80
13 - FILL. HEAD SCREW(DIN 7985) MET-141121640.A466 141121640 £1.50 £1.80
14 - GEAR HOUSING COMPL. MET-316041440.A4 316041440 £48.88 £58.66
15 - SELF-TAP FILL H SCREW MET-141116020.A102 141116020 £3.20 £3.84
16 - FRICTION WASHER CPL. MET-316041650.A106 316041650 £17.55 £21.06
18 - GASKET MET-339011570.A34 339011570 £1.50 £1.80
19 - FLANGE W.CLAMPING LEVER CPL. MET-316041720.A8 316041720 £32.88 £39.45
20 - SPINDLE SHAFT MET-341161050.A0 341161050 -
21 - SAFETY CLUTCH W.PINION M10 MET-316041670.A3 316041670 £54.44 £65.33
22 - WASHER 10 2 X 14 MET-141151120.A285 141151120 £1.50 £1.80
23 - WASHER 10 2 X 14 MET-141152300.A179 141152300 £3.20 £3.84
24 - WASHER 10 2 X 14 MET-141153920.A299 141153920 £1.50 £1.80
25 - SPRING CLIP MET-342022040.A70 342022040 £1.50 £1.80
26 - LEVER MET-341070440.A36 341070440 £4.76 £5.71
27 - CIRCLIP MET-141181810.A50 141181810 £1.50 £1.80
28 - COMPRESSION SPRING MET-342050840.A110 342050840 £2.94 £3.53
29 - MOTOR HOUSING MET-315013210.A18 315013210 £9.62 £11.54
30 - CARBON BRUSH SET MET-316046800.A29 316046800 £11.78 £14.13
31 - BRUSH HOLDER COMPL. CUT OUT MET-316046890.A67 316046890 £15.42 £18.51
32 - SWITCH ROD MET-343393110.A7 343393110 £1.50 £1.80
33 - SWITCH SLIDE MET-343392980.A48 343392980 £1.50 £1.80
34 - HOUSING COVER MET-343392990.A16 343392990 £6.38 £7.65
35 - M-LABEL 08 49-51X25 MET-338122770.A3 338122770 -
36 - CABLE CLIP MET-343362490.A839 343362490 £3.20 £3.84
37 - SELF-TAP. FILL. H. SCREW MET-141117060.A335 141117060 £3.20 £3.84
38 - CABLE SLEEVE MET-344101220.A94 344101220 £3.20 £3.84
39 - BAFFLE MET-339151050.A12 339151050 £1.50 £1.80
40 - HANDLE CPL. MET-314000540.A5 314000540 £15.41 £18.49
41 - FIELD COIL ASSEMBLY W.FIELD COIL 120V MET-311010700.A5 311010700 £26.35 £31.62
42 - WHEEL GUARD D100 MET-339202980.A0 339202980 £11.20 £13.44
43 - FLANGE NUT MET-341102220.A2 341102220 £9.62 £11.54
44 - CLAMPING NUT MET-341131110.A3 341131110 £11.78 £14.13
46 - PIN SPANNER MET-344163930.A0 344163930 £3.82 £4.59
47 - RATING LABLE MET-338050140.A0 338050140 -
48 - SWITCH MET-343408530.A2 343408530 -
49 - HOUSING BLACK MET-343395600.A9 343395600 £4.76 £5.71
50 - FILLISTER HEAD SCREW MET-141123490.A103 141123490 £1.50 £1.80
51 - CABLE W.TAIWANESE PLUG MET-344497300.A0 344497300 -
56 - WASHER MET-339006390.A163 339006390 £1.50 £1.80
57 - WASHER 10 2 X 14 MET-141155550.A48 141155550 £1.50 £1.80
880 - GREASE 100G MET-344130920.A284 344130920 £19.18 £23.02
885 - GREASE SF 011 50GR 1.8oz MET-344130560.A317 344130560 £19.18 £23.02
1001 - WIRING DIAGRAM MET-338504650.A13 338504650 -
